DWVO L Shaped Desk with Lift Top Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your DWVO L Shaped Desk with Lift Top. This versatile desk features an adjustable lift-top section, a file drawer, and integrated storage shelves, designed for efficient home office use. Please read this manual thoroughly before assembly and use to ensure proper function and safety.

Image 1.1: DWVO L Shaped Desk with Lift Top in a home office setting, showcasing its design and functionality.

2. Safety Information

To prevent injury or damage to the product, observe the following safety guidelines:

• Always follow the assembly instructions carefully.
• Keep the desk on a stable, level surface.
• Avoid overloading the file drawer and shelves.
• Ensure the desk is properly anchored to the floor if desired, to prevent tipping.
• Do not use the desk if any parts are damaged or missing. Contact customer support for replacement parts.
• Keep children and pets away from the assembly area.

3. Package Contents

Verify that all components are present before beginning assembly. The package should contain:

• 1 x Instructions Manual
• 1 x L Shaped Desk (disassembled components)
• 1 x Packet of Fittings (screws, bolts, tools, etc.)

If any parts are missing or damaged, please contact DWVO customer support immediately.

4. Setup and Assembly Instructions

Assembly of the DWVO L Shaped Desk requires careful attention to detail. Follow the included step-by-step instructions and use the numbered parts for a smooth process. It is recommended to have two people for assembly due to the desk's size and weight.

1. Unpack all components and verify against the parts list in the separate instruction manual.
2. Lay out all parts on a clean, soft surface to prevent scratches.
3. Follow the graphical instructions provided in the separate manual for connecting the metal frame components.
4. Attach the P2 particle board panels to the frame using the designated fittings.
5. Install the file drawer mechanism and drawer box according to the instructions.
6. Once assembled, adjust the 8 feet pads at the base of the desk to ensure stability on uneven floors. Turn the pads clockwise or counter-clockwise until the desk is level and stable.

Image 4.1: Illustration of the adjustable feet pads at the base of the desk, designed for stability on uneven surfaces.

For a visual guide on assembly, please refer to the product video below.

5. Operating Instructions

5.1. Lift Top Function

The left tabletop section of the desk is designed with a lift-top mechanism, allowing you to easily transition between sitting and standing positions. To operate:

• Gently lift the front edge of the left tabletop. The spring mechanism will assist in raising it.
• To lower, gently push down on the tabletop until it locks back into the flat position.
• Ensure no objects are obstructing the mechanism when raising or lowering the top.

5.2. File Drawer Usage

The integrated file drawer is equipped with adjustable hanging bars to accommodate both A4 and letter-size documents.

• Pull the drawer open using the handle.
• Adjust the hanging bars to fit your desired document size (A4 or letter).
• Place hanging files onto the bars.
• Ensure the drawer closes smoothly without excessive force. Do not overload the drawer.

Image 5.1: View of the file drawer with hanging bars, demonstrating its capacity for A4 and letter-size documents.

5.3. Monitor Riser

The desk includes a monitor riser designed to elevate your monitors to an ergonomic height, promoting better posture and reducing neck and back strain.

• Place your monitors directly onto the riser.
• Ensure the weight of your monitors does not exceed the riser's capacity.

Image 5.2: Image showing the integrated monitor riser on the desk, designed to elevate monitors for ergonomic viewing.

5.4. Storage Shelves

The desk features integrated storage shelves for organizing various office items.

• Utilize the shelves for books, documents, office supplies, or decorative items.
• Distribute weight evenly across the shelves.

Image 5.3: Diagram illustrating the various items that can be stored on the desk, including monitors, laptops, books, printers, documents, and plants.

6. Maintenance

Regular maintenance will help prolong the life and appearance of your DWVO L Shaped Desk.

• Cleaning: Wipe the desk surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, as they may damage the laminated finish.
• Spills: Immediately wipe up any spills to prevent water damage or staining. The 0.59-inch thick P2 particle board is designed for durability.


Image 6.1: Close-up view of the desk surface, highlighting the 0.59-inch thickness of the P2 particle board material.

• Hardware: Periodically check all screws and bolts to ensure they are tight. Retighten if necessary to maintain stability.
• Moving the Desk: When moving the desk, lift it rather than dragging it to prevent damage to the legs and floor.

7. Troubleshooting

If you encounter any issues with your DWVO L Shaped Desk, refer to the following common problems and solutions:

• Desk is wobbly:
      - Ensure all assembly screws and bolts are securely tightened.
      - Adjust the feet pads at the bottom of the desk legs to level the desk on uneven surfaces.
• Lift-top mechanism is stiff or not moving smoothly:
      - Check for any obstructions around the lift mechanism.
      - Ensure the desk is not overloaded on the lift-top section.
• Drawer is difficult to open or close:
      - Check for any items obstructing the drawer slides.
      - Ensure the drawer is properly aligned on its runners.
• Missing parts:
      - Refer to the 'Package Contents' section and contact customer support if parts are missing.

If these solutions do not resolve the issue, please contact DWVO customer support for further assistance.

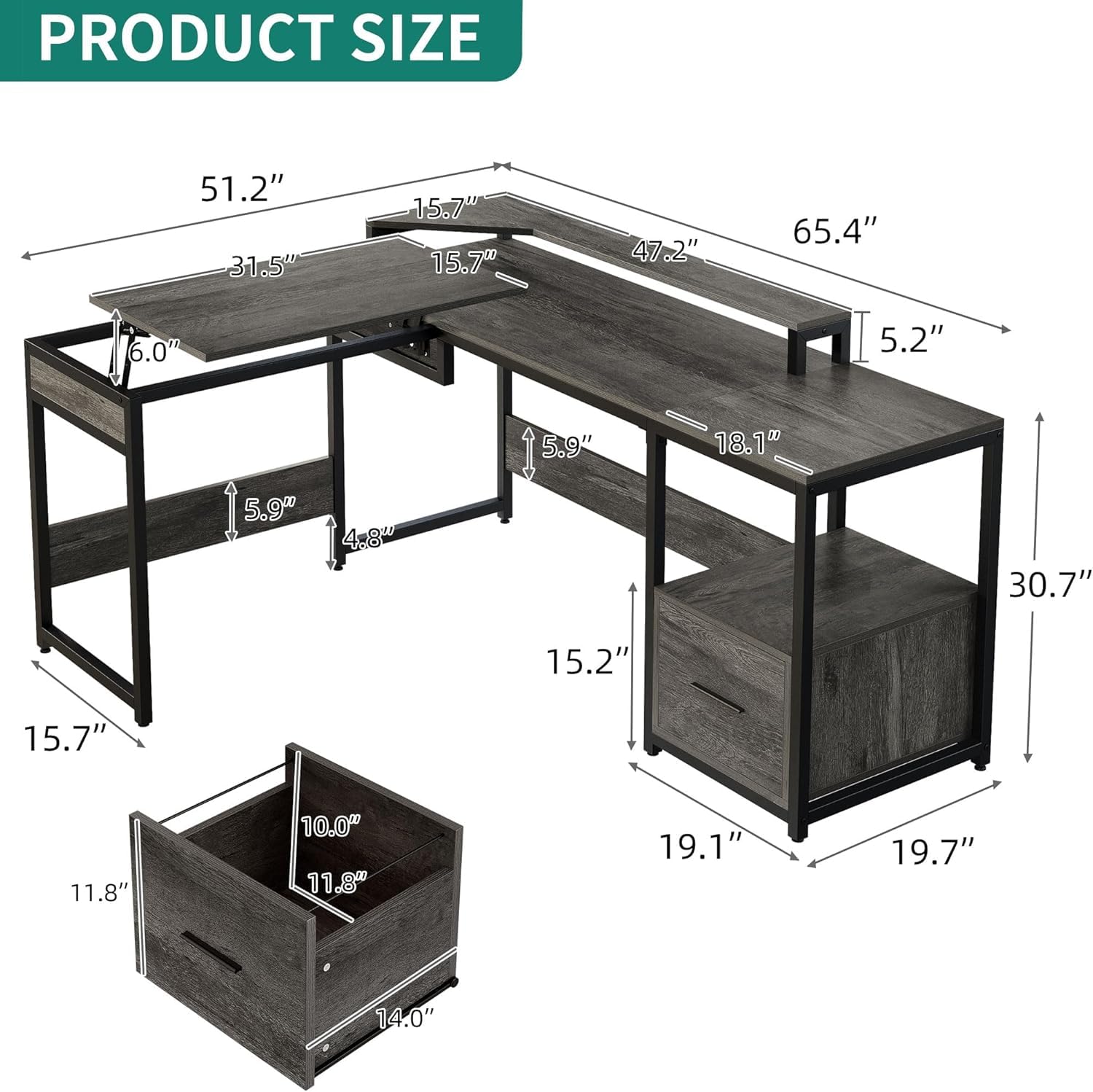

8. Specifications

9. Warranty and Support

9.1. Warranty Information

This DWVO L Shaped Desk comes with a Full Warranty. Please retain your proof of purchase for warranty claims. Specific terms and conditions of the warranty may vary; refer to your purchase documentation for details.

9.2. Customer Support

For any questions, concerns, or assistance with assembly, operation, or warranty claims, please contact DWVO customer support. We are committed to providing a quick and reasonable reply to all inquiries.

You can also visit the official DWVO store for more information: DWVO Store
