1. Product Overview
The ANLAN 26J IPL Hair Removal Device is designed for effective and comfortable hair removal at home. It features advanced Sapphire Ice Cooling technology, dual light lamps, and multiple operating modes to suit various skin and hair types.
Image 1.1: The ANLAN 26J IPL Hair Removal Device.
Key Features:
- Sapphire Ice Cooling: Provides a gentle and painless hair removal experience by reducing heat.
- Dual Quartz Lamps: Delivers up to 26J of high-intensity pulsed light for deeper penetration and effective hair root targeting.
- 4 Operating Modes: HR (Hair Removal), FR (Fast Hair Removal for large areas), SR (Skin Rejuvenation), and AR (Acne Treatment).
- 10 Energy Levels: Adjustable from 8J to 26J for personalized treatment.
- Ultra-Fast Flashing: IGBT chip enables 5 consecutive flashes in 0.18 seconds, covering up to 1241 cm² per minute.
- Full Spectrum Technology: Utilizes precise wavelengths (500-600nm, 550-650nm, 650-1200nm) for comprehensive treatment.
2. Safety Information
Read all safety instructions carefully before using the device. Failure to follow these instructions may result in injury or damage to the device.
Important Safeguards:
- Do not use on tattooed areas, moles, or dark spots.
- Avoid direct eye contact with the light flash. Always wear the provided protective eyewear.
- Do not use on irritated, damaged, or recently tanned skin.
- Consult a physician before use if you have any skin conditions, medical implants, or are pregnant/breastfeeding.
- Keep out of reach of children.
- Ensure the device is clean and dry before each use.
- Do not use the device near water or in damp environments.
3. Setup
Before your first treatment, prepare your skin and the device as follows:
- Cleanse Skin: Ensure the treatment area is clean, dry, and free from any lotions, oils, or deodorants.
- Shave Hair: Shave the hair in the treatment area. Do not wax or pluck, as the IPL device targets the hair root.
- Wear Protective Eyewear: Put on the provided sunglasses to protect your eyes from the intense light flashes.
- Connect Power: Plug the power adapter into the device and then into an electrical outlet. The device will power on.
- Select Mode: Press the power button to turn on the device. Use the mode selection button to choose the desired mode (HR, FR, SR, AR).
- Adjust Energy Level: Use the energy level buttons to select an appropriate intensity level (1-10). Start with a lower level and gradually increase as your skin tolerates it.

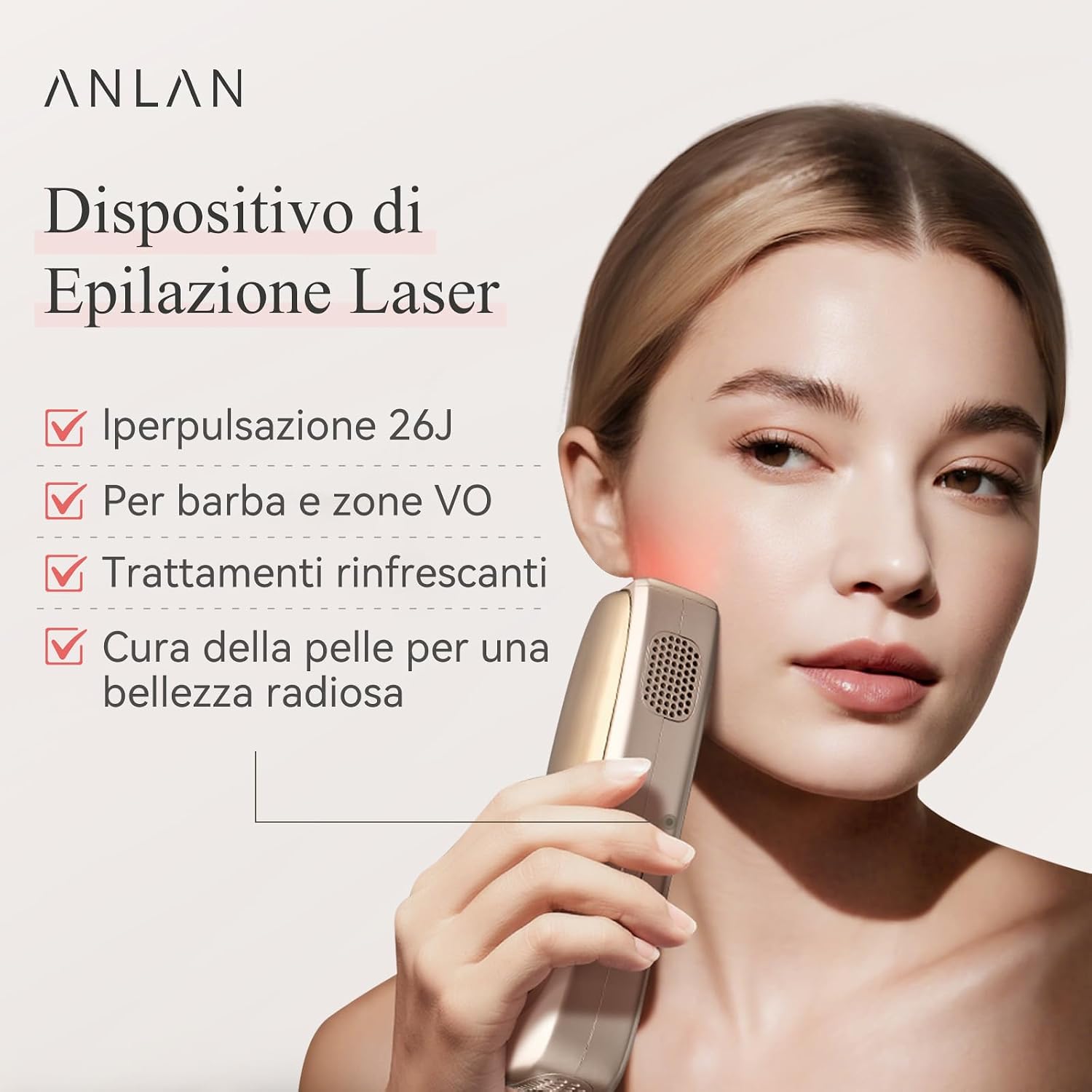

Image 3.1: Preparing the skin and device for use. The image shows a woman holding the ANLAN device near her cheek, illustrating its use for facial areas.
4. Operating Instructions
Follow these steps for effective and safe operation of your ANLAN IPL device:
4.1 Hair Removal (HR/FR Modes)
- Place Device: Press the light emission window firmly against your skin in the desired treatment area.
- Automatic Mode: For large areas (e.g., legs, back), press and hold the flash button. The device will automatically emit continuous flashes as you glide it over your skin.
- Manual Mode: For small or sensitive areas (e.g., face, underarms, bikini line), press the flash button once for each flash.
- Treatment Schedule:
- Weeks 1-4: Use 3-4 times a week.
- Weeks 4-8: Use 2-3 times a week.
- Continue treatment until desired results are achieved. Hair growth will gradually reduce.
- Cooling Function: The device's sapphire ice cooling technology will activate automatically to maintain a comfortable skin temperature during treatment.
Image 4.1: The device in use on an arm, illustrating the 3.7 cm² light emission area and fast flashing capability. This allows for quick treatment, with full body hair removal possible in approximately 5 minutes.
Image 4.2: The device's dual quartz lamps emit 26J of light energy, effective for thick hair. The image also shows a visual progression of hair reduction from "Before hair removal" to "4-8 weeks" of treatment.
4.2 Skin Rejuvenation (SR Mode) & Acne Treatment (AR Mode)
These modes utilize specific light wavelengths for skin care benefits. Follow the same application method as hair removal, ensuring the light emission window is in full contact with the skin.
- SR Mode: Aims to improve skin texture and promote a smoother complexion.
- AR Mode: Designed to treat skin imperfections and acne.
5. Maintenance
Proper maintenance ensures the longevity and optimal performance of your device.
- Cleaning: After each use, unplug the device and allow it to cool down. Use a soft, dry cloth to wipe the light emission window and the device body. Do not use abrasive cleaners or immerse the device in water.
- Storage: Store the device in its original storage box in a cool, dry place, away from direct sunlight and moisture.
- Lamp Life: The device has a long lamp life (1 million flashes). No replacement lamps are needed.
6. Troubleshooting
If you encounter any issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Power cable not properly connected; power outlet issue. | Ensure the power cable is securely plugged into both the device and a working electrical outlet. Try a different outlet. |
| No flash emitted. | Light emission window not in full contact with skin; device in standby mode. | Ensure the light emission window is fully pressed against the skin. Press the power button to wake the device from standby. |
| Skin feels too hot or uncomfortable. | Energy level is too high for your skin type; device not properly cooled. | Reduce the energy level. Ensure the sapphire ice cooling function is active. If discomfort persists, stop use. |
| Uneven hair removal results. | Inconsistent application; missed spots. | Ensure even coverage by overlapping treatment areas slightly. Follow the recommended treatment schedule consistently. |
If the problem persists after trying these solutions, please contact customer support.
7. Specifications
- Model Number: 02-ATMY52
- Brand: ANLAN
- Light Energy: 8J - 26J (10 adjustable levels)
- Flash Speed: 0.18 seconds for 5 consecutive flashes
- Light Emission Area: 3.7 cm²
- Cooling Technology: Sapphire Ice Cooling (down to 8°C)
- Modes: HR (Hair Removal), FR (Fast Hair Removal), SR (Skin Rejuvenation), AR (Acne Treatment)
- Lamp Life: 1,000,000 flashes
- Package Dimensions: 27.6 x 23.7 x 7.9 cm
- Package Weight: 1.44 kg
Image 7.1: Illustration of the 8°C cooling technology, highlighting the difference between traditional hair removal (irritation and burns) and the ANLAN device (refreshing and soothing care).
Image 7.2: The ANLAN IPL device being used on an underarm, demonstrating its ergonomic design for various body areas.
8. Warranty and Support
ANLAN provides comprehensive support for its products.
- Manufacturer's Warranty: The device comes with a two-year manufacturer's warranty.
- Customer Support: For any questions, technical assistance, or warranty claims, please contact ANLAN customer service.
- Package Contents: The product package includes the IPL device, power cable, razor, protective sunglasses, storage box, and this user manual.
Image 8.1: ANLAN's commitment to customer service, including a 365-day warranty, lifetime technical support, free returns, and 24-hour response time.
