1. Introduction
Thank you for choosing the Fanbulous 42-Inch Farmhouse Ceiling Fan. This manual provides essential information for the safe installation, operation, and maintenance of your new ceiling fan. Please read these instructions thoroughly before beginning installation and retain them for future reference.
2. Safety Information
WARNING: To reduce the risk of fire, electric shock, or personal injury, always follow these basic precautions:
- Ensure the power is turned off at the circuit breaker before installation or servicing.
- All wiring must be in accordance with national and local electrical codes. Consult a qualified electrician if you are unsure about wiring.
- The mounting structure must be capable of supporting the weight of the fan (approximately 35 lbs).
- Do not operate the fan with damaged power cords or plugs.
- Keep hands, clothing, and other objects away from rotating fan blades.
- This fan is designed for indoor use only.
3. Package Contents
Verify that all components listed below are included in your package:
- Fan Motor Assembly
- Fan Blades (5)
- Light Kit with Caged Fixture
- Remote Control with Batteries
- Down Rods (4-inch and 8-inch options)
- Mounting Bracket and Hardware
- Instruction Manual
4. Setup and Installation
Installation of this ceiling fan requires careful attention to detail and is best performed by two individuals to ensure safety and proper assembly. Ensure all electrical connections are secure and follow local electrical codes.
4.1 Mounting Options
The fan includes both 4-inch and 8-inch down rods to accommodate various ceiling heights, suitable for rooms with ceilings between 14-18 feet high. It supports standard, low, and sloped ceiling installations.

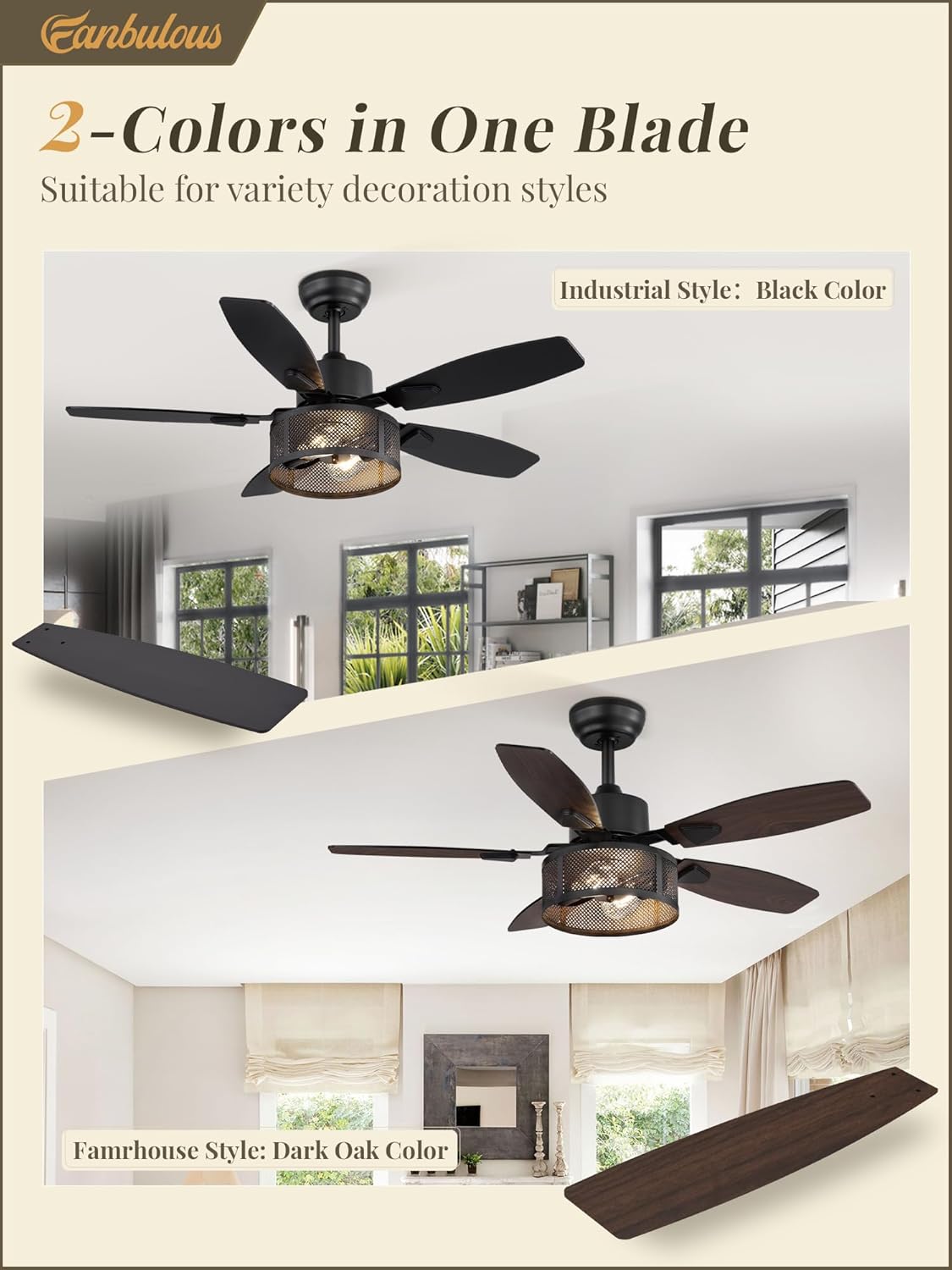

4.2 Blade Assembly
The fan features dual-color blades, allowing you to choose between a black finish for an industrial style or a dark oak color for a farmhouse aesthetic. Attach the blades securely to the motor housing.
5. Operating Instructions
Your Fanbulous ceiling fan is equipped with a remote control for convenient operation of all functions.

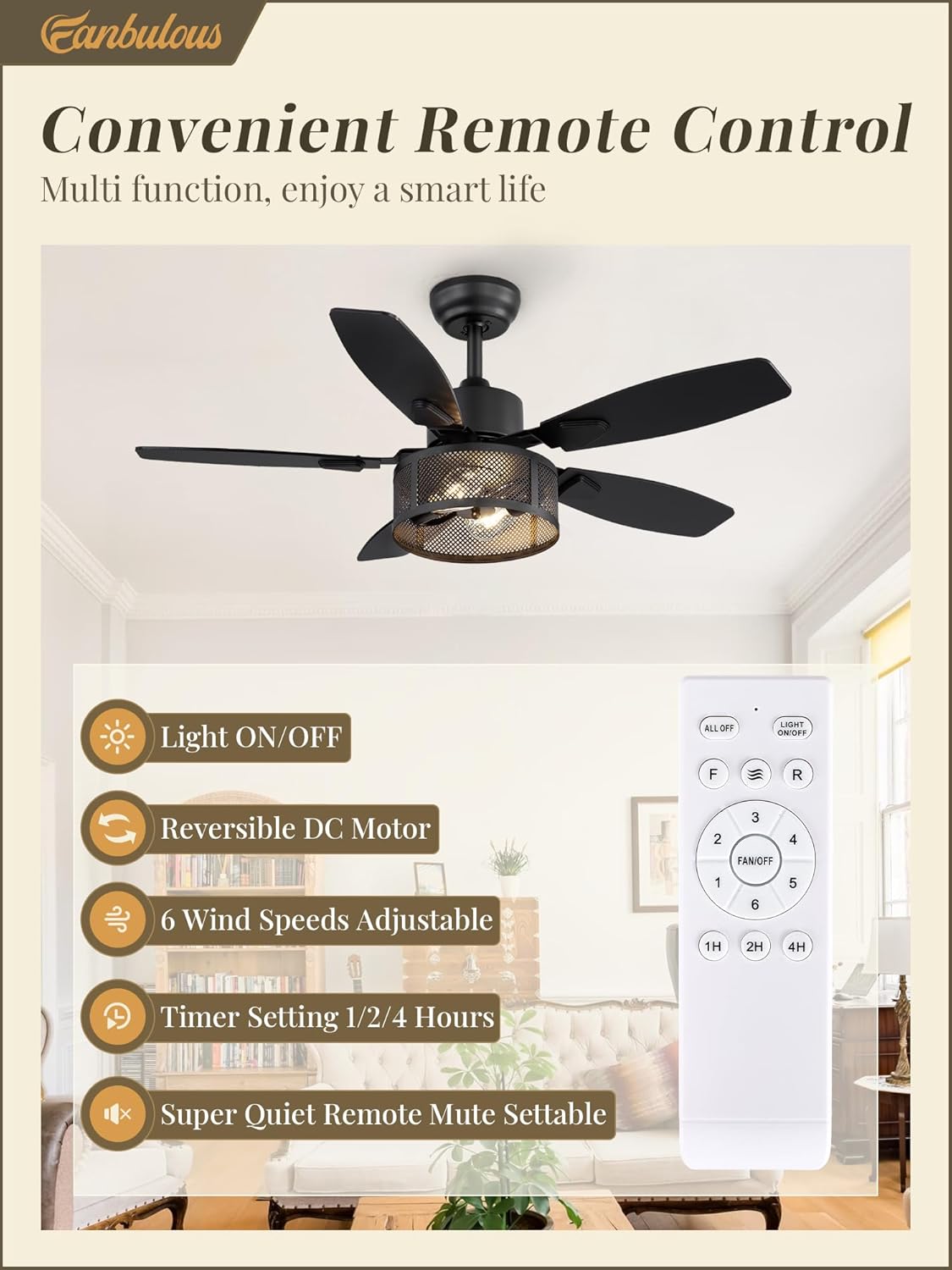

5.1 Remote Control Functions
The remote control allows you to manage the fan's light, speed, direction, and timer settings.
- Light ON/OFF: Press the light button to turn the integrated light fixture on or off.
- Fan Speed: Select from 6 adjustable speeds (1-6) to control airflow.
- Reversible Motor: Use the reversible function to change the blade direction for seasonal comfort.
- Timer Settings: Set the fan to turn off automatically after 1, 2, or 4 hours.

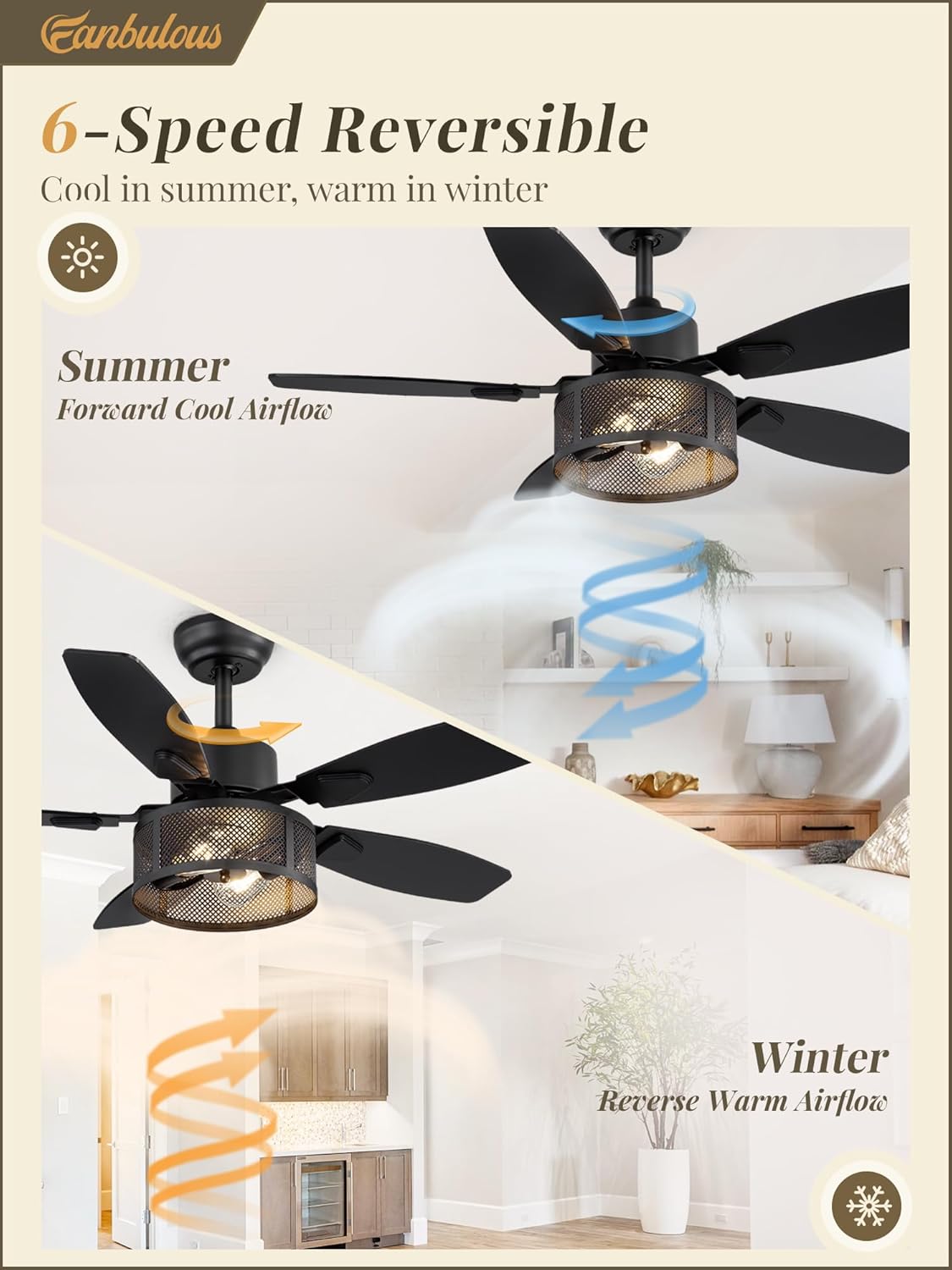

5.2 Reversible Function for Year-Round Use
The fan's reversible DC motor allows for optimal air circulation throughout the year:
- Summer Mode (Forward): Blades rotate counter-clockwise to create a downward airflow, producing a cooling effect.
- Winter Mode (Reverse): Blades rotate clockwise to create an upward airflow, circulating warm air trapped near the ceiling.
5.3 Quiet Operation
The Fanbulous ceiling fan features an energy-efficient DC motor designed for quiet operation, producing a noise level of 35 decibels or less, comparable to a library environment.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your ceiling fan.
- Cleaning: Periodically wipe the fan blades and motor housing with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Tighten Screws: Check all screws and connections annually to ensure they are secure. Loose screws can cause wobbling or noise.
- Light Bulbs: Replace light bulbs as needed. Ensure the power is off before changing bulbs.
7. Troubleshooting
If you encounter issues with your fan, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Fan does not start | No power; loose wiring; remote control issue | Check circuit breaker; verify all wiring connections; replace remote batteries or re-pair remote. |
| Fan wobbles | Loose blades or mounting hardware; unbalanced blades | Ensure all blade screws and mounting screws are tight; use a balancing kit if necessary. |
| Light does not work | Bulb burnt out; loose wiring; light switch off | Replace bulbs; check wiring connections in the light kit; ensure light function is activated on remote. |
| Light has a delay | Normal operation for some LED drivers | This can be a characteristic of the light's internal electronics. If it functions, no action is needed. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Fanbulous |
| Model Name | 42HL |
| Product Dimensions | 42"D x 42"W x 10"H |
| Color | Black |
| Material | Metal |
| Electric Fan Design | Ceiling Fan |
| Power Source | AC/DC |
| Style | Farmhouse |
| Room Type | Indoor |
| Mounting Type | Downrod Mount |
| Number of Speeds | 6 |
| Noise Level | 35 Decibels |
| Wattage | 40 watts |
| Voltage | 120 Volts |
| Switch Type | Remote Control |
| Control Method | Remote |
| Motor Type | Energy-efficient DC motor |
9. Warranty and Support
Fanbulous offers two years of after-sales service for this product. We are committed to providing high-quality products and ensuring your satisfaction. If you encounter any issues during use, please contact our customer service team. We aim to resolve all issues within 24 hours.
