1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your amiciSmart 125A DC Circuit Breaker. This device is designed to protect DC circuits in photovoltaic (PV) systems, solar installations, and battery banks from overloads and short circuits.
The amiciSmart DC Circuit Breaker features a 1P B Curve, rated for up to 250V DC with a 10kA breaking capacity. It offers rapid fault protection with a trip time of ≤0.03 seconds.
Figure 1.1: amiciSmart 125A DC Circuit Breaker. This image highlights key features such as 125A 1P rating and fast trip time. Note that while the image overlay indicates 6kA breaking capacity, the product specifications confirm a 10kA breaking capacity.
2. Safety Information
WARNING: Electrical shock hazard. Installation and maintenance should only be performed by qualified personnel.
- Always disconnect power before installing, servicing, or removing the circuit breaker.
- Ensure proper grounding according to local electrical codes and standards.
- Do not operate the circuit breaker if it appears physically damaged.
- Verify voltage and current ratings match your system requirements before installation.
- The circuit breaker is designed for DC applications only. Do not use in AC circuits.
- A light noise when the device is shaken is normal. This is caused by the built-in arc extinguishing cover and does not affect performance or safety.
Figure 2.1: Scope of Application and Potential Hazards. The circuit breaker provides protection against electrical overload, leakage hazards, short circuits, and contributes to anti-electric shock safety.
Figure 2.2: Flame Retardant Material. The circuit breaker is constructed with flame-retardant material for enhanced safety and heat resistance.
3. Setup and Installation
3.1 Mounting
The amiciSmart DC Circuit Breaker is designed for standard 35mm DIN rail mounting. Ensure the DIN rail is securely fastened within your electrical enclosure.

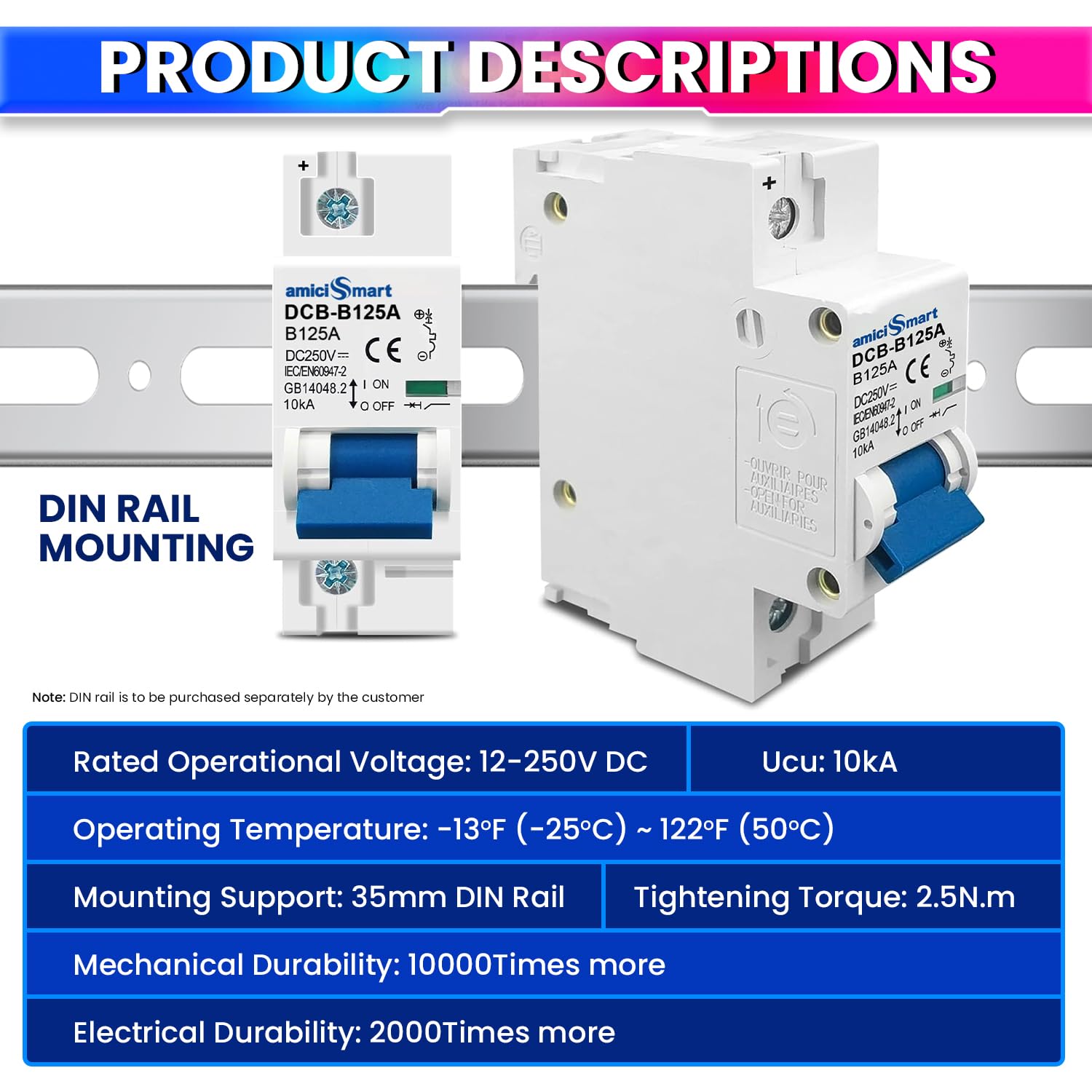

Figure 3.1: DIN Rail Mounting. The circuit breaker easily clips onto a standard 35mm DIN rail (DIN rail sold separately).
3.2 Wiring
Follow the wiring diagram carefully. Connect the positive (+) and negative (-) DC input lines to the top terminals and the positive (+) and negative (-) DC output lines to the bottom terminals. Ensure all connections are tight and secure.
- Tightening Torque: Apply a tightening torque of 2.5 N·m to the terminal screws to ensure a secure electrical connection and prevent loose wiring.
Figure 3.2: Wiring Diagram. Connect the input (typically positive and negative for DC) to the top terminals and the output (positive and negative) to the bottom terminals as indicated. Always verify polarity before connecting.
4. Operating Instructions
The amiciSmart DC Circuit Breaker operates as a manual switch and an automatic protective device.
- To Turn ON: Push the toggle switch upwards to the "ON" position. This closes the circuit, allowing current to flow.
- To Turn OFF: Push the toggle switch downwards to the "OFF" position. This opens the circuit, stopping current flow.
- Automatic Trip: In the event of an overload or short circuit, the breaker will automatically trip to the "OFF" position, interrupting the circuit to prevent damage. Before resetting, identify and resolve the fault.
- Resetting: After an automatic trip, ensure the fault is cleared. Then, push the toggle switch fully to the "OFF" position before pushing it back to "ON" to reset the breaker.
5. Maintenance
The amiciSmart DC Circuit Breaker is designed for minimal maintenance. However, periodic checks are recommended to ensure optimal performance and safety.
- Visual Inspection: Regularly inspect the circuit breaker for any signs of physical damage, discoloration, or loose connections.
- Terminal Tightness: Periodically check the tightness of the terminal screws. Loose connections can lead to overheating and poor performance.
- Environmental Conditions: Ensure the operating environment remains within the specified temperature range (-25°C to 50°C) and is free from excessive dust or moisture.
- Cleaning: If necessary, clean the exterior of the circuit breaker with a dry, soft cloth. Do not use liquid cleaners or solvents.
6. Troubleshooting
If you encounter issues with your amiciSmart DC Circuit Breaker, refer to the following common troubleshooting steps:
- Breaker Trips Frequently:
- Cause: Overload or short circuit in the protected DC system.
- Solution: Disconnect all loads from the circuit. Reset the breaker. If it trips again immediately, there might be a short circuit in the wiring. If it trips only when loads are connected, the total current draw might exceed the breaker's 125A rating. Reduce the load or re-evaluate system design.
- Breaker Does Not Reset:
- Cause: Persistent fault or internal damage to the breaker.
- Solution: Ensure the fault is completely cleared. Try pushing the switch firmly to the "OFF" position before attempting to reset to "ON". If it still does not reset, the breaker may be damaged and requires replacement.
- No Power Through Breaker (Switch is ON):
- Cause: Loose wiring, internal fault, or upstream power issue.
- Solution: Check all terminal connections for tightness. Verify that power is present at the input terminals of the breaker. If connections are secure and input power is present, the breaker may be faulty and needs replacement.
7. Specifications
The following table details the technical specifications for the amiciSmart DC Circuit Breaker (Model AS-DC-MCB-125A-1P):
| Parameter | Value |
|---|---|
| Brand | amiciSmart |
| Model Number | AS-DC-MCB-125A-1P |
| Current Rating | 125 Amps |
| Rated Operational Voltage | 12-250V DC |
| Breaking Capacity (Ucu) | 10kA |
| Trip Curve | B Curve |
| Number of Poles | 1P |
| Fast Trip Time | ≤0.03s |
| Mechanical Durability | ≥10,000 operations |
| Electrical Durability | ≥2,000 operations |
| Operating Temperature | -25°C to 50°C (-13°F to 122°F) |
| Mounting Support | 35 mm DIN rail |
| Tightening Torque | 2.5 N·m |
| Product Dimensions (D x W x H) | 8D x 6W x 2.6H Centimeters |
| Item Weight | 140 Grams |
| Included Components | DC Circuit Breaker 125A |
Figure 7.1: Product Dimensions and Weight. The image illustrates the physical dimensions and weight of the circuit breaker.
8. Warranty Information
The amiciSmart DC Circuit Breaker comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and ensures the product performs as specified under normal use conditions.
To claim warranty service, please contact amiciKart customer support using the details provided in the Support section.
9. Support and Contact Information
For technical assistance, warranty claims, or any other inquiries regarding your amiciSmart DC Circuit Breaker, please contact amiciKart customer support:
- Contact Number: +91-9809709898 (as per packer information)
- Importer Contact: Amici Import Export
- Packer Contact: Amicikart Online Services Pvt Ltd, B-36, Sector 57, Noida
- Manufacturer: Yueqing Xinpu Electric Co.,Limited
Please have your model number (AS-DC-MCB-125A-1P) and purchase details ready when contacting support.
