Sekey Honeycomb Pleated Blind (Model BL-5041) Instruction Manual

Introduction

Thank you for choosing the Sekey Honeycomb Pleated Blind. This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your new blind. Designed for convenience, this drill-free system offers 100% blackout capability and UV protection, making it suitable for various rooms in your home or office.

Image: Sekey Honeycomb Pleated Blind in white and grey, 50x120cm.

Setup and Installation

The Sekey Honeycomb Pleated Blind features a drill-free Klemmfix system for quick and easy installation without the need for drilling or screwing. Please follow these steps carefully:

1. Measurement Guidelines

Before installation, ensure you have the correct measurements for your window. The order width should be the glass width plus 4 cm, and the order height should be the total height of the window frame.

Image: Measurement guide illustrating how to calculate the correct blind dimensions based on window glass width and frame height.

2. Installation Steps

Refer to the visual guide below for a clear understanding of each step.

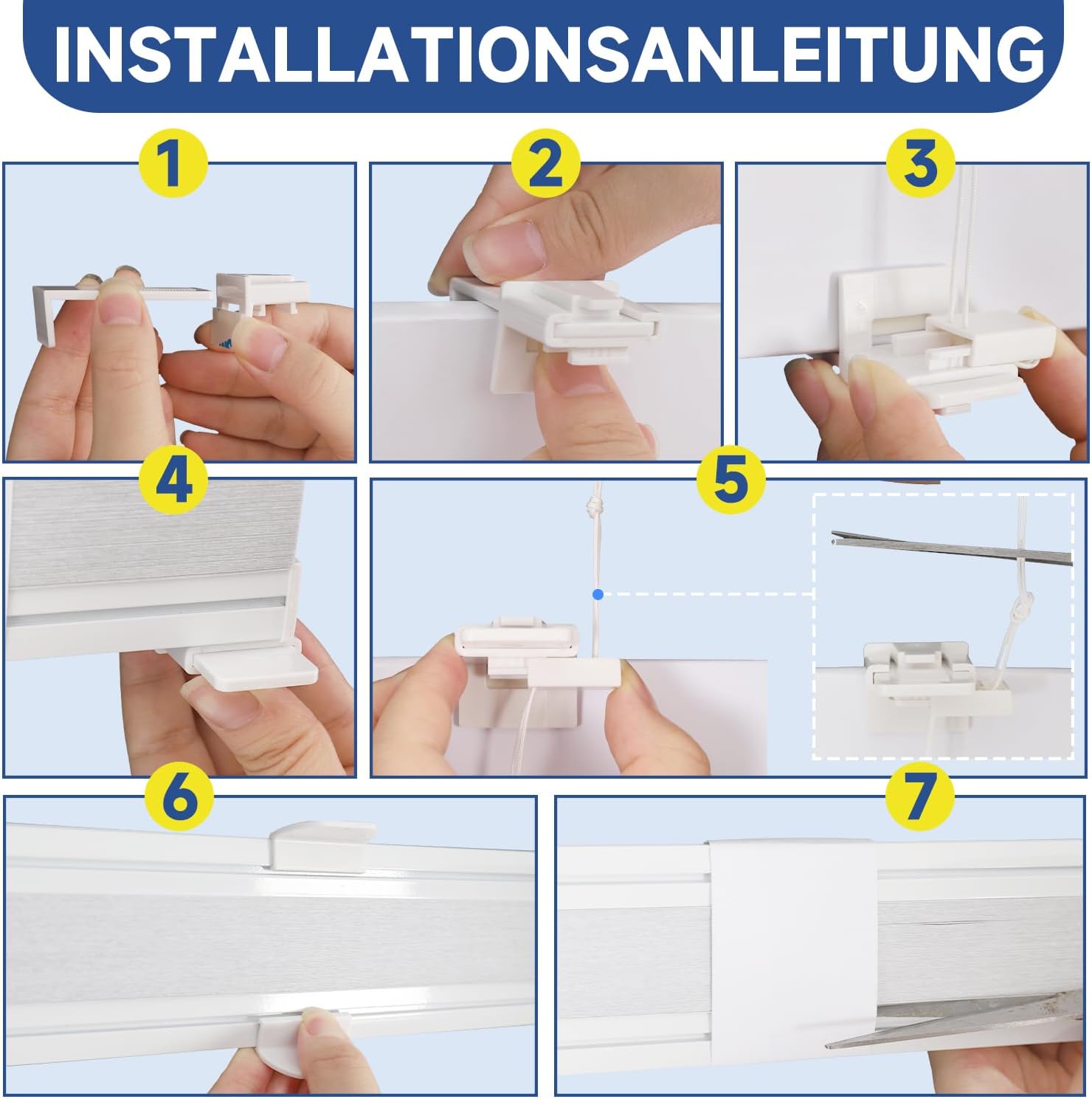

Image: Detailed seven-step installation guide for the pleated blind, showing assembly of clamp brackets, rail attachment, and cord adjustment.

1. Assemble Clamp Brackets: Connect the components of the clamp brackets as shown.
2. Attach Top Rail: Insert the top rail of the blind into the assembled clamp brackets.
3. Secure to Window Frame: Place and secure the clamp brackets onto the top of your window frame.
4. Attach Bottom Rail: Insert the bottom rail into the lower clamp brackets.
5. Adjust Tensioning Cords: Carefully adjust the tensioning cords and secure them to ensure smooth operation.
6. Attach Handle: Affix the operating handle to the inner rail for easy height adjustment.
7. Trim Excess Cord: Trim any excess cord for a neat appearance and to prevent tangling.

Image: Close-up view of the clamp bracket, highlighting its design for drill-free installation.

Operating Instructions

Your Sekey Honeycomb Pleated Blind is designed for simple and flexible light control and privacy.

1. Adjusting Height and Light

Use the handle attached to the inner rail to easily move the blind up and down. This allows you to flexibly adjust the light transmission and privacy level according to your needs.

Image: Close-up of the handle mechanism used for adjusting the blind's position.

2. Blackout Functionality

The blind features a 100% blackout design, utilizing high-quality polyester with aluminum foil to effectively block sunlight and UV rays. This ensures optimal privacy and light control.

Image: Visual comparison showing a room with the blind open and then fully closed, highlighting the complete blackout effect and enhanced privacy.

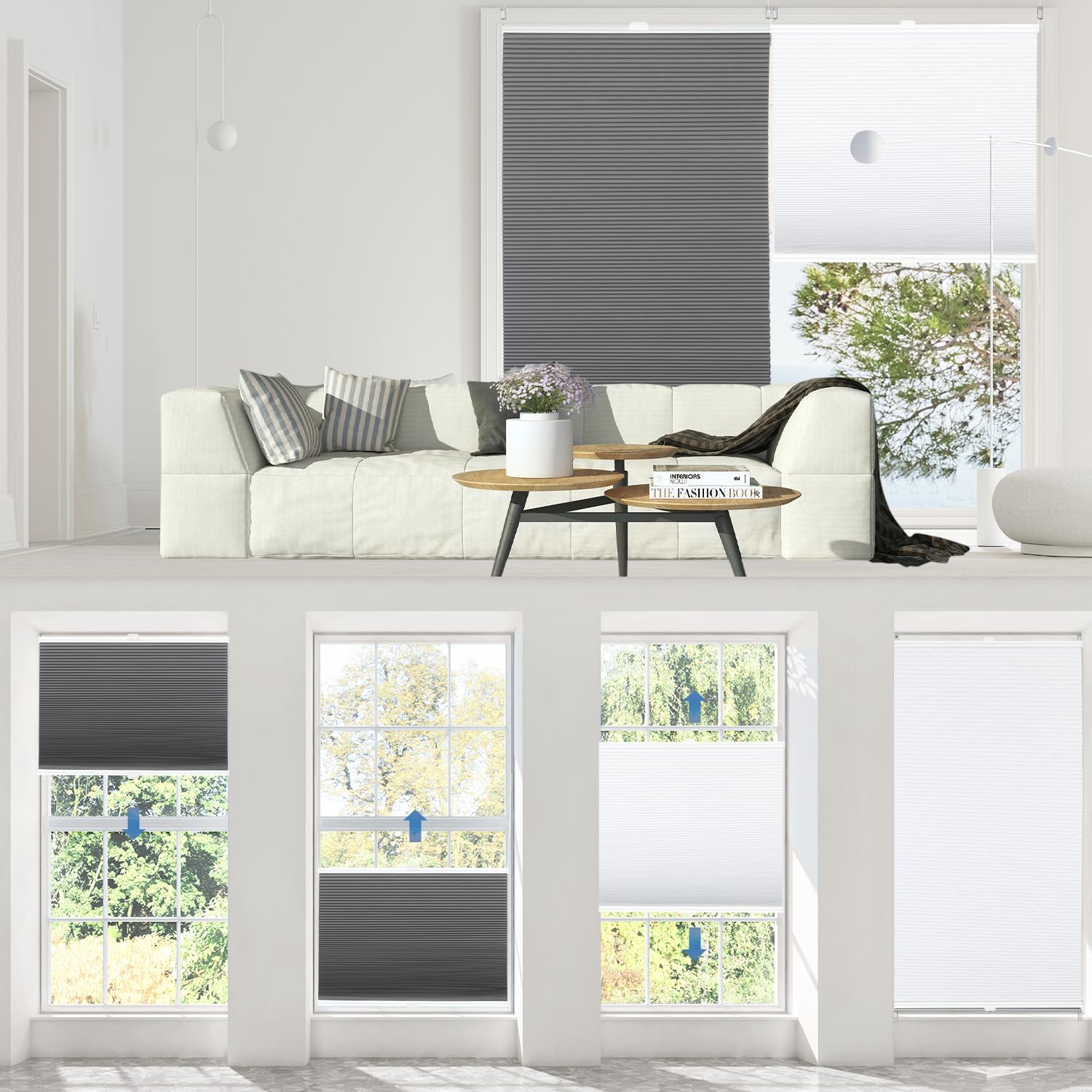

Image: The pleated blind installed in a living room, demonstrating its versatility in different open and closed positions to manage light and privacy.

Maintenance

To ensure the longevity and optimal performance of your Sekey Honeycomb Pleated Blind, follow these simple maintenance guidelines:

• Regular Cleaning: Gently dust the blind fabric with a soft brush or a vacuum cleaner with a brush attachment on a low setting.
• Spot Cleaning: For small stains, use a damp cloth with mild soap and water. Blot the stained area gently; do not rub vigorously. Allow the blind to air dry completely before raising it.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or harsh detergents, as these can damage the fabric and aluminum rail.
• Inspect Components: Periodically check the clamp brackets and rails for any signs of wear or damage. Ensure all parts are securely in place.

Troubleshooting

If you encounter any issues with your pleated blind, refer to the following common problems and solutions:

• Blind Does Not Stay Up/Down:
  • Check the tensioning cords. They might need to be re-adjusted to provide adequate tension. Refer to step 5 of the installation guide.
  • Ensure the handle is securely attached to the inner rail and is not slipping.
• Blind is Crooked or Uneven:
  • Verify that the clamp brackets are installed evenly and securely on the window frame.
  • Check if the fabric is properly aligned within the rails. Gently guide it back into place if necessary.
• Difficulty Moving the Blind:
  • Ensure the rails are clean and free from dust or debris that might obstruct movement.
  • Check if the tensioning cords are too tight or too loose. Adjust as needed.

If the problem persists, please contact customer support for further assistance.

Specifications

Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact Sekey customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official Sekey website or contact their customer support channels.
