User Manual

Introduction

This manual provides essential information for the installation, operation, and maintenance of your SPEDWHEL Original Throttle With Key Electric Door Lock, designed for KUGOO KIRIN KuKirin A1 Electric Scooters. Please read this manual thoroughly before installation and use to ensure proper function and safety.

Important Compatibility Note

Before proceeding with installation, it is crucial to verify that your scooter's existing accessories match the components shown in this manual and the product images. Inconsistencies may result in incompatibility, and the product may not function correctly with your specific scooter model. Please compare carefully before attempting installation.

Safety Information

• Always disconnect the scooter's power source before attempting any installation or maintenance.
• If you are unsure about any installation steps, seek assistance from a qualified technician.
• Ensure all connections are secure and properly insulated to prevent electrical shorts.
• Keep keys secure and away from children.
• Do not modify the product in any way. Unauthorized modifications may void the warranty and pose safety risks.

Package Contents

The package should contain the following items:

• 1 x Original Throttle with Integrated Key Electric Door Lock
• 2 x Keys
• Wiring harness with connectors

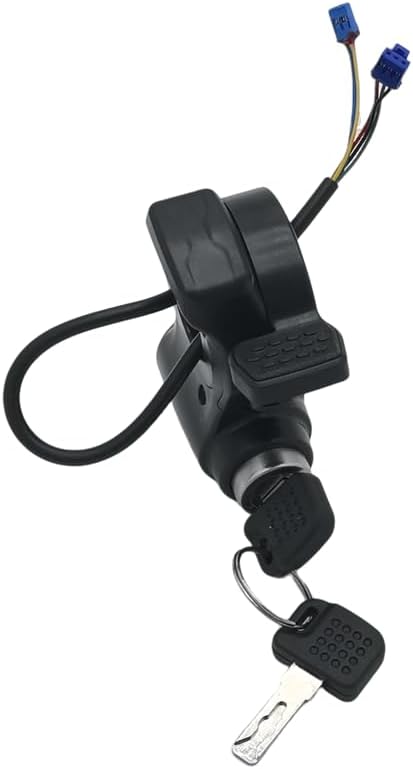

Figure 1: Complete assembly of the throttle, key lock, and keys.

Setup and Installation

Follow these steps to install the throttle and key electric door lock on your KUGOO KIRIN KuKirin A1 Electric Scooter.

1. Preparation: Ensure the scooter is powered off and the battery is disconnected for safety.
2. Remove Old Components: Carefully remove the existing throttle and ignition switch from your scooter, noting the wiring connections.
3. Mount the New Throttle: Slide the new throttle assembly onto the handlebar. Secure it firmly in place using the appropriate screws or clamps (not included, use existing hardware if compatible).


   Figure 2: Detail of the throttle grip and integrated key slot.

4. Connect Wiring: Identify the corresponding wires on your scooter's harness. Connect the throttle's wiring harness to the scooter's electrical system. The throttle unit features two distinct connectors, typically for throttle signal and power/ignition.

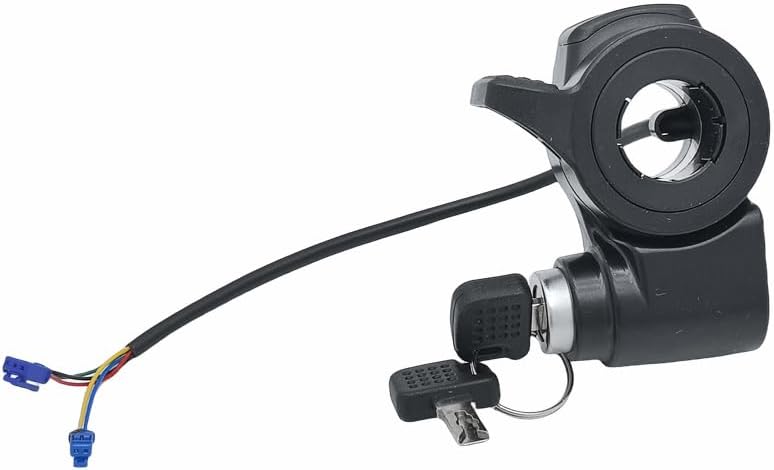

   Figure 3: The wiring harness with its two distinct blue connectors for integration into the scooter's electrical system.



   Figure 4: Side profile of the throttle and key lock, showing the cable routing and connector attachment points.

5. Secure Connections: Ensure all connections are tight and properly insulated. Use zip ties or electrical tape to secure loose wires and prevent snagging.
6. Test Functionality: Reconnect the scooter's battery. Insert the key into the lock and turn it to the "ON" position. Verify that the scooter powers on and the throttle responds correctly.

Operating Instructions

• Power On/Off: Insert the key into the ignition slot. Turn the key clockwise to the "ON" position to power on the scooter. Turn the key counter-clockwise to the "OFF" position to power off the scooter and remove the key.
• Throttle Control: Once the scooter is powered on, gently twist the throttle grip towards you to accelerate. Release the throttle to decelerate.
• Key Management: Always remove the key when the scooter is not in use to prevent unauthorized operation. Keep a spare key in a safe place.

Figure 5: The throttle unit with a key inserted into the integrated electric door lock.

Maintenance

• Cleaning: Wipe the throttle and key lock assembly with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners.
• Inspection: Periodically inspect the wiring for any signs of wear, fraying, or damage. Ensure all connections remain secure.
• Lubrication: The key lock mechanism may benefit from a small amount of graphite lubricant if it becomes stiff over time.

Troubleshooting

Specifications

• Model: A1
• Brand: SPEDWHEL
• Compatibility: KUGOO KIRIN KuKirin A1 Electric Scooter
• Function: Throttle control, Electric Door Lock (Ignition Switch)
• Color: BLACK
• Item Weight: 1.6 ounces
• Package Dimensions: 4 x 4 x 2 inches
• UPC: 761850629710

Warranty and Support

For warranty information or technical support, please contact your original point of purchase or the manufacturer, SPEDWHEL. Keep your purchase receipt as proof of purchase.

For further assistance, please refer to the contact information provided by the seller or manufacturer.
