Teka TBC 63620 TTC Glass Ceramic Hob User Manual

Introduction

This manual provides comprehensive instructions for the safe and efficient use, installation, and maintenance of your Teka TBC 63620 TTC Glass Ceramic Hob. Please read this manual thoroughly before operating the appliance and retain it for future reference.

Important Safety Instructions

Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, burns, or injury.

• Read all instructions before using the hob.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.

Installation Instructions

Installation should only be carried out by a qualified technician in accordance with local regulations and standards.

Unpacking

Carefully remove the hob from its packaging. Check for any damage during transit. Keep packaging materials away from children.

Placement

The hob is designed for built-in installation into a kitchen countertop. Ensure adequate ventilation around the appliance. Maintain minimum distances from adjacent walls and cabinets as specified in the installation diagram (refer to separate installation guide for detailed measurements).

Electrical Connection

The appliance must be connected to the mains electricity supply by a qualified electrician. Ensure the voltage and frequency match the specifications on the rating plate. The hob must be properly earthed.

Note: This hob is designed for a freestanding installation method, as per product specifications. Ensure the chosen location supports this method and allows for proper electrical connection.

Operating Instructions

Your Teka TBC 63620 TTC Glass Ceramic Hob features three heating elements and a digital display for precise control.

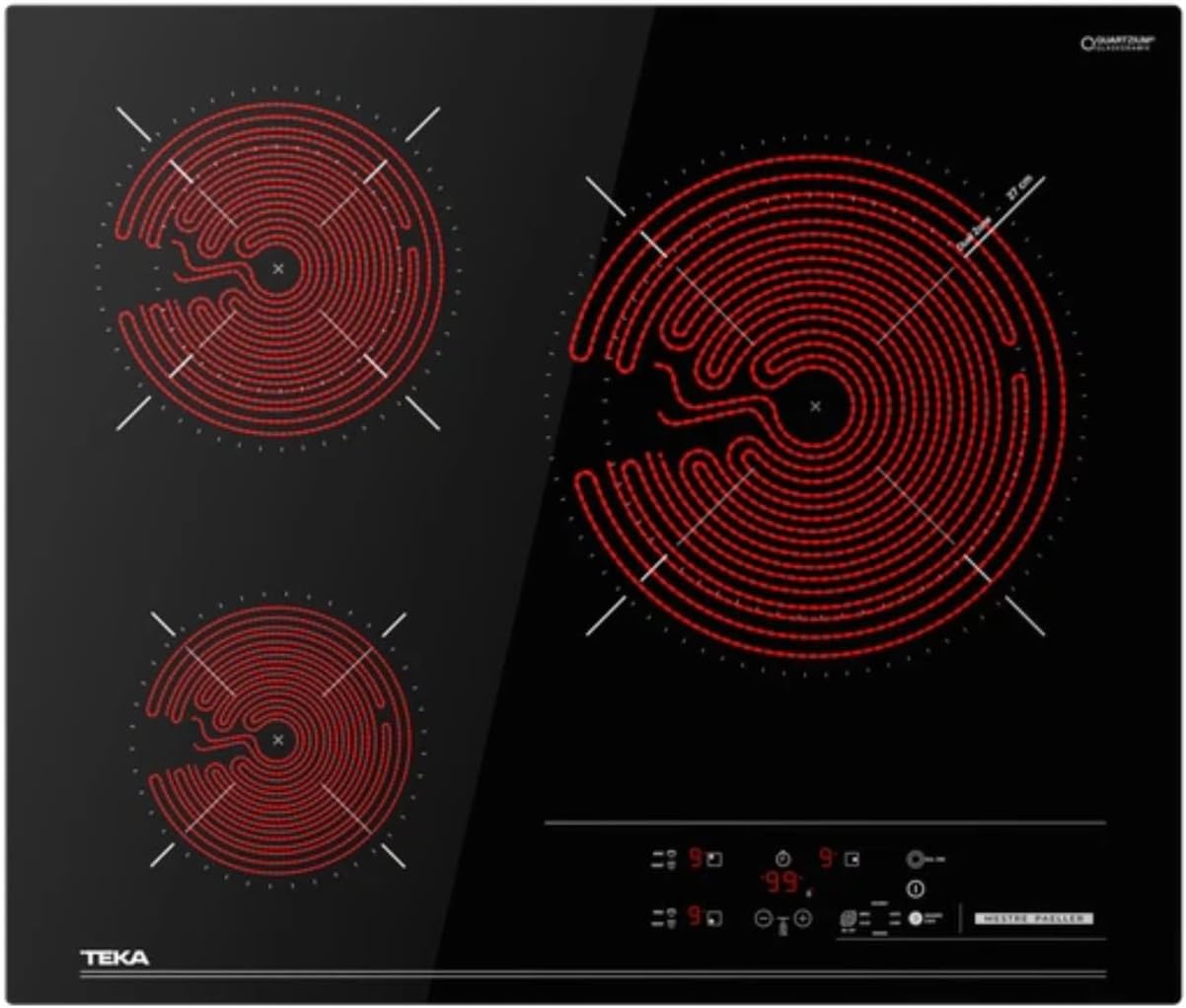

Figure 1: Overview of the Teka TBC 63620 TTC Glass Ceramic Hob. Shows the three heating zones and the touch control panel at the bottom right.

Control Panel Overview

The hob is operated via a touch-sensitive control panel located at the front. The digital display shows power levels and timer settings.

• Power On/Off: Touch the power symbol to turn the hob on or off.
• Zone Selection: Select the desired cooking zone by touching its corresponding indicator.
• Power Level Adjustment: Use the '+' and '-' symbols to increase or decrease the heat intensity from 1 to 9.
• Timer Function: Activate the timer for a specific cooking zone by selecting the zone and then touching the timer symbol. Adjust the time using '+' and '-'.
• Child Lock: To activate or deactivate the child lock, press and hold the lock symbol for a few seconds. This prevents accidental operation.

Cooking Zones

The hob features three ceramic cooking zones:

• One large dual-zone burner (27 cm) suitable for larger pots and pans, or for expanding the heating area.
• Two smaller burners for standard cooking tasks.

Ensure the base of your cookware completely covers the selected cooking zone for optimal efficiency and even heating.

Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your hob.

Daily Cleaning

• Always ensure the hob is cool before cleaning.
• Wipe the glass ceramic surface with a soft cloth and a mild detergent after each use.
• For stubborn stains, use a specialized ceramic hob cleaner and a scraper designed for glass ceramic surfaces.
• Rinse thoroughly and dry with a clean cloth to prevent water marks.

Avoid

• Abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch or damage the glass ceramic surface.
• Spilling sugary substances on the hot hob, as they can melt and cause permanent damage. Clean immediately if this occurs, using a scraper.

Troubleshooting

Before contacting customer service, please refer to the following common issues and their solutions:

If the problem persists after attempting these solutions, please contact Teka customer support.

Specifications

Warranty and Customer Support

For information regarding warranty coverage, service, or technical assistance, please refer to the warranty card included with your product or visit the official Teka website. Keep your proof of purchase for warranty claims.

Manufacturer: Teka Industrial S.A
