1. Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your Kslysuty GF-GMC8556 Ergonomic Gaming Chair. This chair is designed for extended use, featuring a pocket spring seat cushion, adjustable recline, retractable footrest, and a massage lumbar support for enhanced comfort during gaming, office work, or relaxation.

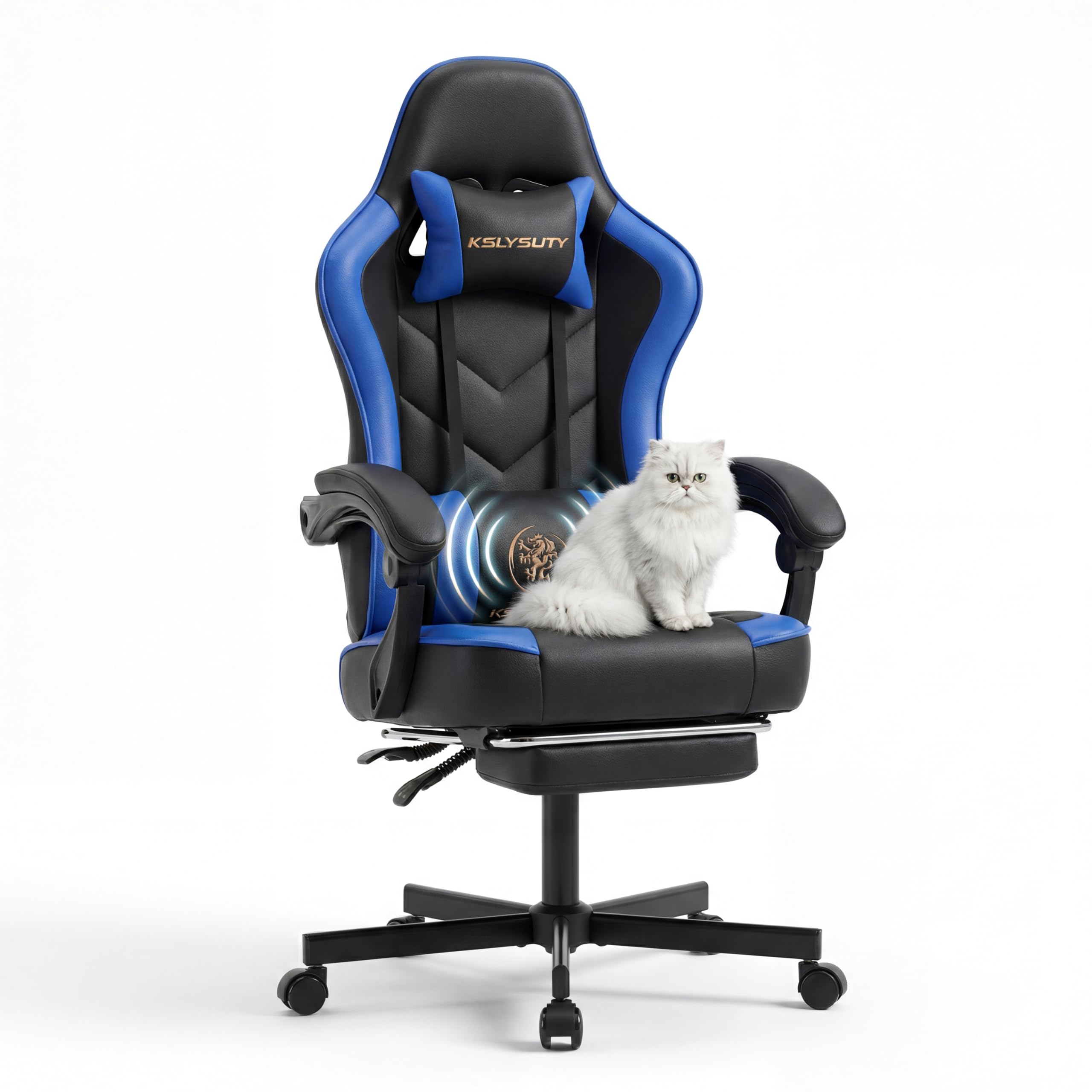

Figure 1: Kslysuty GF-GMC8556 Ergonomic Gaming Chair (Blue Leather)
2. Safety Information
- Maximum Weight Capacity: This chair is designed to support a maximum weight of 400 pounds (181 kg). Do not exceed this limit.
- Massage Function Power: The USB massage lumbar pillow must be powered by a portable power bank (not included). DO NOT plug it directly into a wall outlet, PC tower, or gaming console to prevent cable damage during chair movement.
- Assembly: Ensure all components are securely fastened according to the assembly instructions before use.
- Stability: Avoid standing on the chair or using it as a step stool. Maintain a balanced posture when reclining.
- Movement: Ensure the area around the chair is clear before moving or adjusting its position.
3. Package Contents
Verify that all parts are present and undamaged before beginning assembly. If any parts are missing or damaged, contact customer service.
- Backrest
- Seat Cushion with Footrest Mechanism
- Armrests (2)
- Star Base
- Gas Lift Cylinder
- Casters (5)
- Mechanism Plate
- Headrest Pillow
- Lumbar Support Pillow (with USB cable)
- Assembly Hardware (screws, washers, Allen wrench)
4. Assembly Instructions
Follow these steps to assemble your gaming chair. All necessary tools are included.
- Assemble the Base: Insert the five casters into the holes at the end of each leg of the star base. Ensure they click securely into place.
- Install the Gas Lift: Place the gas lift cylinder into the center hole of the assembled star base.
- Attach the Mechanism Plate: Secure the mechanism plate to the underside of the seat cushion using the provided screws. Ensure the front of the mechanism faces the front of the seat.
- Connect Seat to Gas Lift: Carefully place the assembled seat cushion onto the gas lift cylinder, ensuring it is centered and stable.
- Attach Armrests: Secure the armrests to the sides of the seat cushion and backrest using the designated screws. Note that these are interlocking armrests designed to move with the recline.
- Attach Backrest: Connect the backrest to the seat cushion and armrests using the remaining screws.
- Install Pillows: Attach the headrest pillow and lumbar support pillow to the backrest using their integrated straps. The lumbar pillow's height can be adjusted.
- Test Functions: Once fully assembled, test the chair's height adjustment, recline, and footrest functions to ensure proper operation.
Figure 2: Key Heavy-Duty Components
5. Operating Instructions
5.1. Height Adjustment
To adjust the chair's height, locate the lever on the right side beneath the seat. While seated, pull the lever upwards to lower the chair. To raise the chair, stand up slightly and pull the lever upwards. Release the lever to lock the height in place.
5.2. Recline Function
The chair features a stepless backrest adjustment. To recline, locate the lever on the left side beneath the seat. Pull the lever upwards and lean back to your desired angle. Release the lever to lock the backrest position. The interlocking armrests will automatically adjust their angle in sync with the backrest to maintain arm support.
Figure 3: Recline Adjustment and Armrest Synchronization
5.3. Retractable Footrest
To deploy the footrest, pull it out from beneath the seat. To retract it, push it back in until it is fully stored. The footrest provides additional support for your legs when reclining.
Figure 4: Relaxation Kit Features
5.4. Massage Lumbar Support
The lumbar support pillow includes a built-in vibration massage function. Connect the USB cable from the pillow to a portable power bank (not included) to activate the massage. Disconnect when not in use.
6. Maintenance
- Cleaning: Wipe the chair clean with a damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the leather material.
- Hardware: Periodically check all screws and bolts to ensure they are tight. Retighten as necessary.
- Casters: Keep casters free of debris (hair, dust) to ensure smooth rolling.
- Fabric Care: The chair is made of PU leather. Follow standard care guidelines for faux leather to prolong its lifespan.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Chair does not adjust height. | Gas lift cylinder not installed correctly or faulty. | Ensure gas lift is fully inserted into the base and mechanism. Contact support if issue persists. |
| Backrest does not recline or lock. | Recline lever not engaged or mechanism obstructed. | Ensure the recline lever is fully pulled/released. Check for obstructions. |
| Casters do not roll smoothly. | Debris caught in casters or casters damaged. | Remove any debris from the casters. Replace damaged casters if necessary. |
| Massage function not working. | USB cable not connected or power bank is low/off. | Ensure USB cable is securely connected to a charged portable power bank. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Kslysuty |
| Model Number | GF-GMC8556 |
| Color | Blue Leather (variant shown) |
| Material | PU Leather, Cotton, Sponge, Metal, Wood |
| Product Dimensions (D x W x H) | 20.87" x 26.38" x 46.06" |
| Item Weight | 37 Pounds (16.78 kg) |
| Maximum Weight Recommendation | 400 Pounds (181 kg) |
| Seat Back Interior Height | 46.65 Inches |
| Seat Height | 5 Inches (adjustable) |
| Seat Depth | 20.87 Inches |
| Chair Backrest Width | 22.05 Inches |
| Additional Features | Adjustable Height, Arm Rest, Ergonomic, Head Support, Swivel, Retractable Footrest, Massage Lumbar Support |
| Frame Material Type | Metal and Wood |
| Cushion Style | Pocket Spring Cushion, Massage Lumbar Support |
| Casters | Scratch-free, Silent PU Casters |
Figure 5: Chair Dimensions
Figure 6: Upgraded Cushion Construction
9. Warranty & Support
Kslysuty is committed to customer satisfaction. While specific warranty details are not provided in this manual, we offer a dedicated customer service team ready to assist you with any questions, concerns, or issues you may encounter with your product.
For support, please refer to the contact information provided with your purchase or visit the official Kslysuty website. Please have your model number (GF-GMC8556) and purchase details available when contacting support.
