1. Product Overview
The COWSAR 24 Inch Wine Cooler is designed to store up to 46 bottles of your favorite wines in assorted sizes, featuring dual-layer digital temperature control and removable wooden shelves. It can be installed as a freestanding unit or built into cabinetry, offering versatile placement options for your home.
Image 1.1: Front view of the COWSAR 24 Inch Wine Cooler, showcasing its capacity for both wine bottles and beverage cans on wooden shelves, illuminated by blue LED lighting.
This appliance features a frost-free stainless steel door with a double-pane tempered glass window, providing both durability and a clear view of your collection. The advanced cooling system ensures low noise and minimal vibration, preserving the quality of your wines.

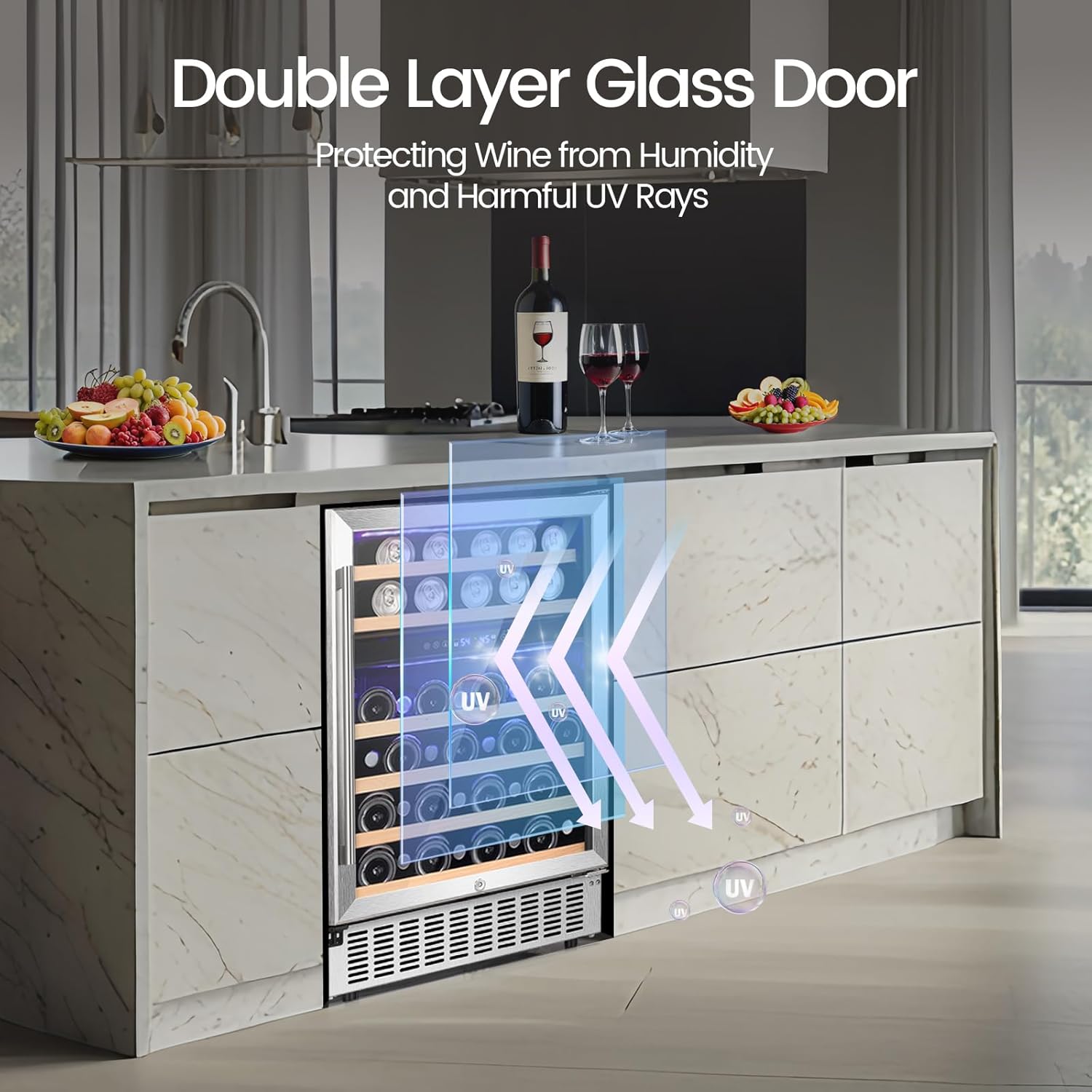

Image 1.2: Illustration of the double-layer glass door's UV protection, demonstrating how it shields wine from harmful light and humidity fluctuations.
2. Setup and Installation
2.1 Unpacking
Carefully remove all packaging materials from the wine cooler. Inspect the unit for any shipping damage. Retain packaging for future transport if needed. Ensure all accessories, such as shelves, are present.
2.2 Placement
The COWSAR Wine Cooler can be installed as a freestanding unit or built into existing cabinetry. For built-in installation, ensure adequate ventilation space around the unit as specified in the dimensions. The unit features front-exhausting vents, allowing for flush installation.

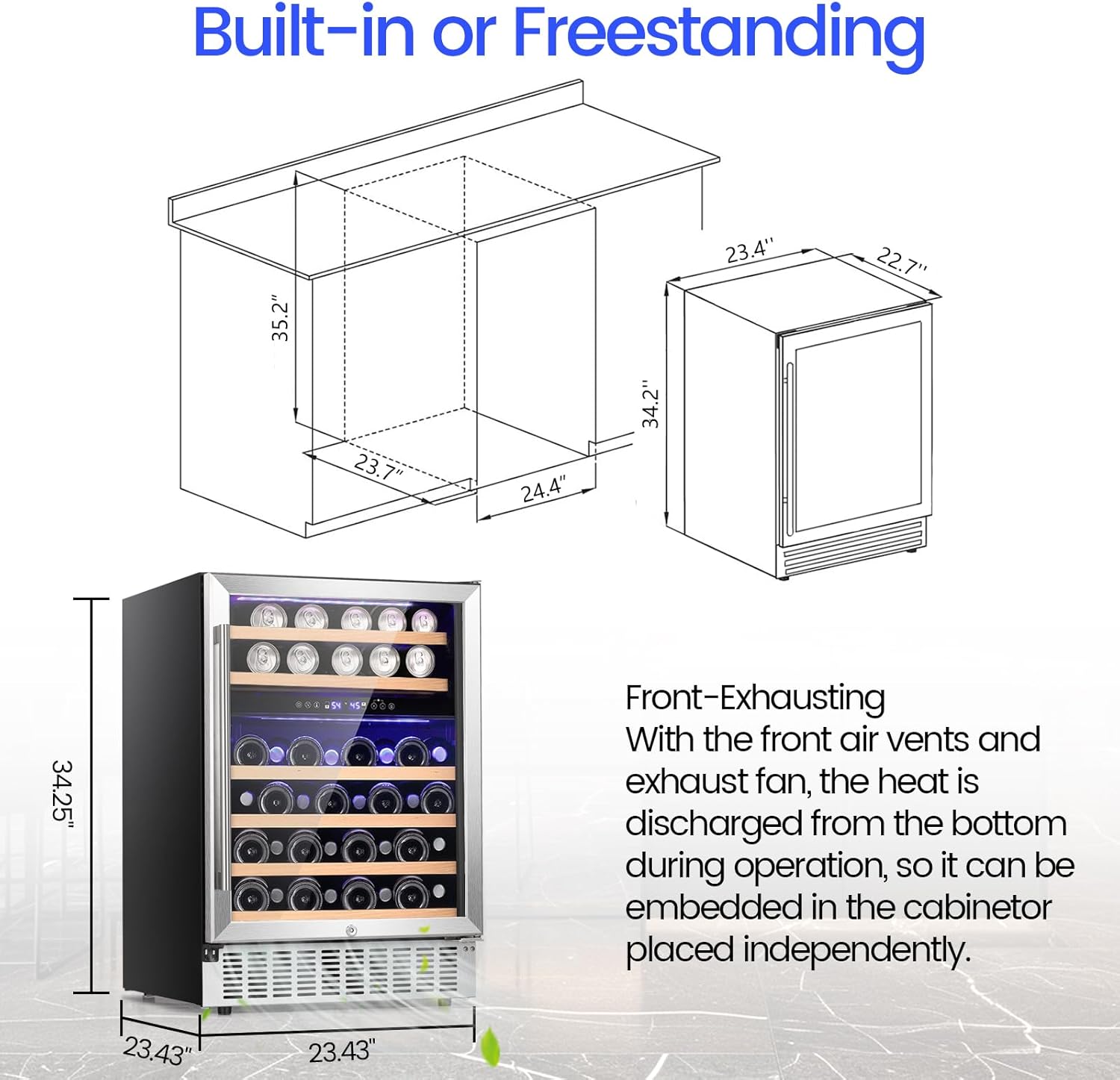

Image 2.1: Technical diagram illustrating the dimensions and ventilation requirements for both built-in and freestanding installation of the wine cooler.
- Place the unit on a flat, stable surface away from direct sunlight or heat sources.
- Allow at least 2 inches of space at the back and sides for proper air circulation if freestanding.
- For built-in applications, refer to the dimension diagram for precise cutout requirements.
2.3 Initial Power-Up
After placement, wait at least 2 hours before plugging the unit into a grounded electrical outlet. This allows the refrigerant to settle. The unit operates on 120 Volts.
3. Operating Instructions
3.1 Digital Touch Control Panel
The wine cooler features a digital touch control panel for precise temperature management of its dual zones. The upper compartment is ideal for beverages requiring cooler temperatures (e.g., milk, iced cola), while the lower compartment is suited for wines (e.g., champagne, red wine).
Image 3.1: Detailed view of the digital touch control panel, showing buttons for power, temperature adjustment, Celsius/Fahrenheit switch, and LED light control.
- Power Button: Press to turn the unit ON/OFF.
- Temperature Adjustment (+/-): Use these buttons to increase or decrease the desired temperature for each zone. The adjustable temperature range is 41°F to 68°F.
- °C/°F Switch: Toggle between Celsius and Fahrenheit temperature display.
- LED Light Button: Control the internal blue LED lighting.
Image 3.2: Visual guide to the dual-zone independent cooling, indicating optimal temperature ranges for the upper (41-54°F) and lower (54-68°F) compartments, along with examples for various beverages.
3.2 Automatic Lock Feature
The control panel features an automatic lock function to prevent accidental temperature changes, especially useful in households with children. The panel will automatically lock after 3 minutes of inactivity.
Image 3.3: Depiction of the double protection feature, highlighting the automatic lock on the control panel and the physical key lock for enhanced security against accidental adjustments.
To unlock the panel, press and hold the '+' and '-' buttons together for 3 seconds.
3.3 Adjusting Shelves
The wine cooler is equipped with smooth-sliding beechwood shelves that are removable to accommodate various bottle and can sizes. This flexibility allows for optimal storage configuration.

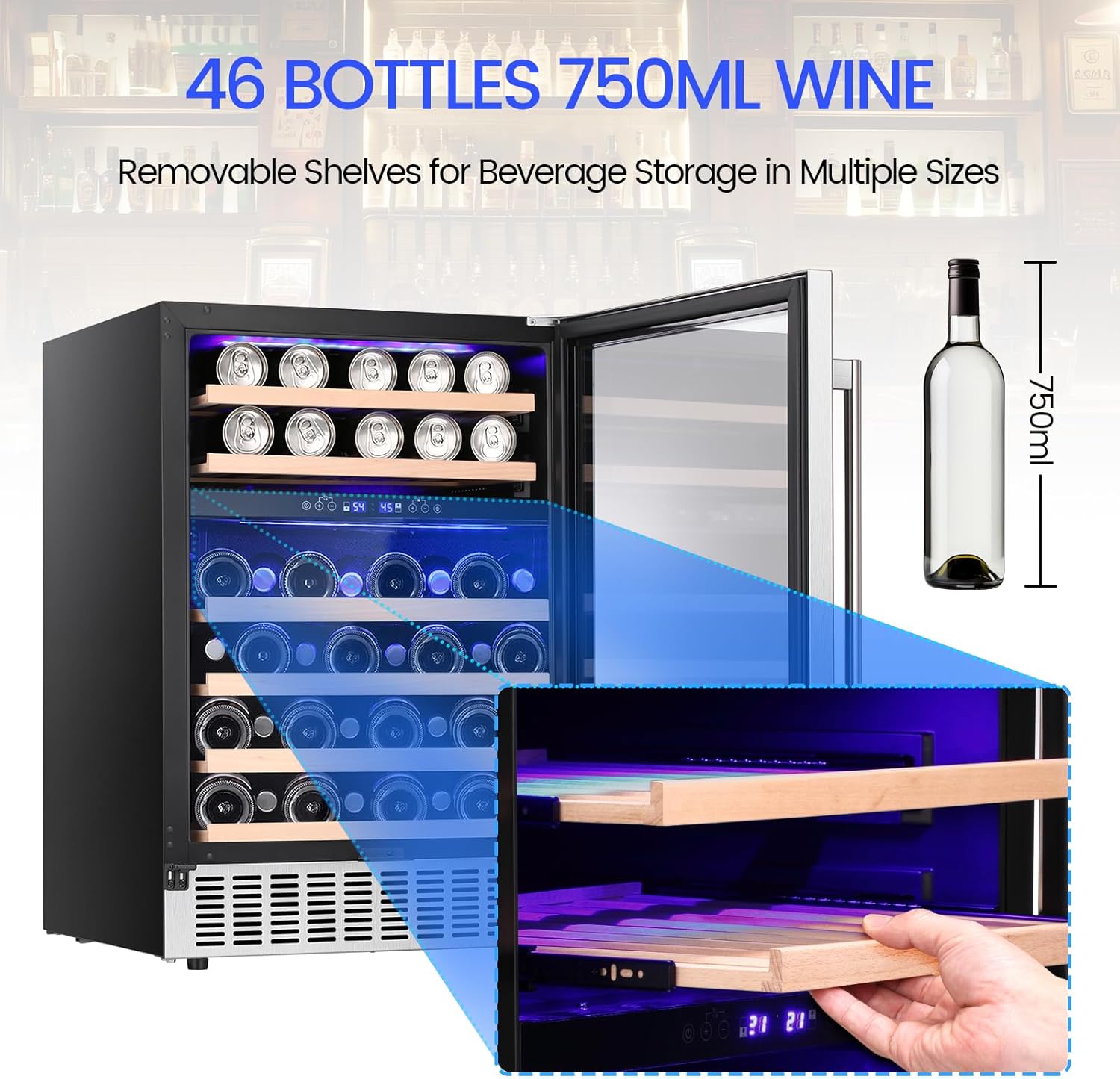

Image 3.4: View of the interior, demonstrating the removable wooden shelves and the cooler's capacity to hold up to 46 standard 750ml wine bottles, with space for other beverages.
To remove a shelf, gently pull it forward until it stops, then lift the front edge slightly and pull it out completely. To reinsert, align the shelf with the rails and push it back until it clicks into place.
4. Maintenance
4.1 Cleaning the Interior
Regular cleaning helps maintain hygiene and efficiency. Unplug the unit before cleaning. Use a soft cloth with a mild detergent and warm water to wipe down the interior surfaces. Avoid abrasive cleaners or solvents. Dry thoroughly before plugging the unit back in.
4.2 Cleaning the Exterior
Wipe the exterior surfaces, including the stainless steel door and glass, with a soft cloth and a non-abrasive cleaner. For the glass door, a glass cleaner can be used. Ensure no liquid enters the control panel or electrical components.
4.3 Defrosting
This unit features manual defrost. If ice buildup occurs, unplug the unit and allow the ice to melt naturally. Place towels at the bottom to absorb water. Do not use sharp objects to remove ice, as this can damage the cooling system.
4.4 Shelf Care
The beechwood shelves can be cleaned with a damp cloth. For stubborn stains, a mild wood cleaner can be used. Ensure shelves are completely dry before returning them to the unit.
5. Troubleshooting
Before contacting customer support, review the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not operate | No power; circuit breaker tripped; power cord not fully plugged in. | Check power supply, circuit breaker, and ensure cord is securely plugged in. |
| Temperature is not cold enough | Door not closed properly; excessive door opening; unit near heat source; ventilation blocked. | Ensure door is sealed; reduce door openings; relocate unit; clear ventilation. |
| Excessive noise | Unit not level; objects touching the unit; normal compressor operation. | Adjust leveling feet; ensure nothing is touching the unit. Note that some compressor noise is normal. |
| Vibration | Unit not level; bottles touching each other or shelves. | Adjust leveling feet. Ensure bottles are spaced to prevent contact. |
6. Specifications
| Feature | Detail |
|---|---|
| Brand | COWSAR |
| Model Name | Beverage Refrigerator-W51145B |
| Capacity | 46 Bottles (750ml) / 38 Gallons |
| Dimensions (D x W x H) | 22.76 x 23.43 x 34.25 inches |
| Item Weight | 99 Pounds |
| Voltage | 120 Volts |
| Annual Energy Consumption | 549 Watts |
| Installation Type | Freestanding / Built-in |
| Special Features | Adjustable Shelves, Digital Temperature Control, Energy Efficient, Humidity Control |
| Defrost System | Manual |
| Shelves | 6 Beechwood Shelves |
| Door Type | Double-pane Tempered Glass, Stainless Steel Frame |
7. Warranty and Support
For any questions, technical assistance, or warranty claims, please contact COWSAR customer support. Information regarding protection plans and return policies can be found on the product's purchase page.
- Customer Support: Refer to your purchase documentation or the retailer's website for contact details.
- Returns: This product typically offers 30-day easy returns.
- Protection Plans: Extended protection plans may be available for purchase.
