Introduction
Thank you for choosing the Moen Ronan 82022 Chrome Single-Handle Tub and Shower Faucet. This product features refined edges and smooth, tapered lines, bringing a sleek, transitional look to any bathroom. The showerhead provides outstanding water pressure and coverage and incorporates Moen’s innovative Magnetix technology for easy handheld use. This manual provides essential information for safe installation, proper operation, and effective maintenance to ensure long-lasting performance.
Safety Information
Please read all instructions carefully before installation and use. Failure to follow these instructions may result in personal injury or property damage.
- Always turn off the main water supply before beginning any installation or repair work.
- Wear appropriate personal protective equipment, such as safety glasses and gloves.
- Ensure all connections are secure to prevent leaks.
- If you are unsure about any part of the installation process, consult a qualified professional plumber.
- Do not use harsh chemicals or abrasive cleaners on the faucet finish.
Package Contents
Verify that all components are present before beginning installation:
- Handle with Escutcheon
- Handshower
- 60" Kink-Free Hose
- Magnetic Dock
- Rough-in Valve (Included)
- Shower Arm & Flange
- Tub Spout
- Installation Instructions

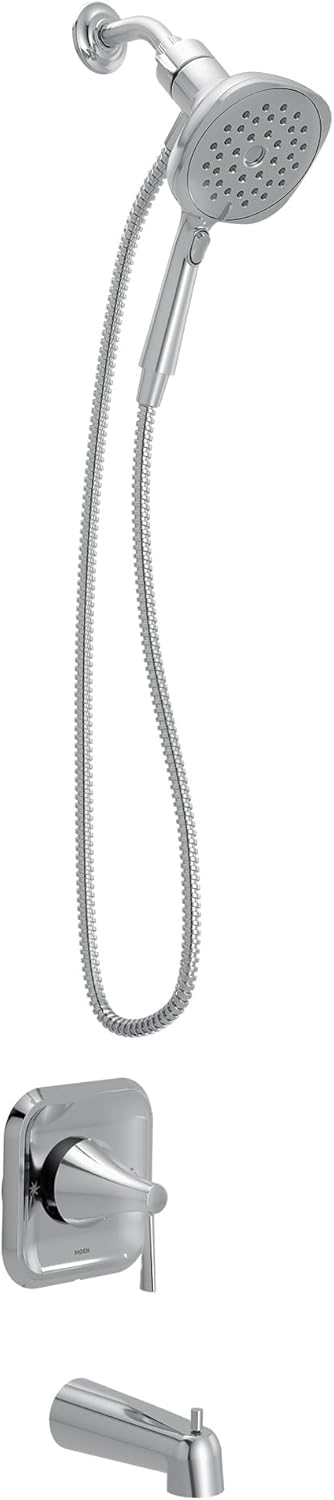

Figure 1: All components of the Moen Ronan Chrome Tub and Shower Faucet.
Setup (Installation)
The Moen Ronan tub and shower faucet is designed for wall-mount installation. For optimal results and to ensure proper function, professional installation by a licensed plumber is recommended.
Figure 2: Professional installation is recommended for the shower valve and trim.
General Installation Steps (Consult full installation guide for detailed instructions):
- Prepare the Area: Ensure the wall opening for the valve is correctly sized and positioned. Turn off the water supply.
- Install Rough-in Valve: Secure the rough-in valve within the wall according to local plumbing codes and the included instructions. Connect hot and cold water lines.
- Install Tub Spout: Attach the tub spout to the designated pipe connection. Ensure it is properly sealed and aligned.
- Install Shower Arm and Flange: Thread the shower arm into the wall fitting and secure the flange against the wall.
- Install Showerhead: Attach the main showerhead to the shower arm.
- Install Handheld Shower and Hose: Connect the 60" kink-free hose to the handheld shower and the water outlet. Mount the magnetic dock for the handheld shower in an accessible location.
- Install Handle and Escutcheon: Secure the escutcheon plate to the wall, then install the single handle onto the valve stem.
- Test for Leaks: Turn on the water supply and check all connections for leaks.

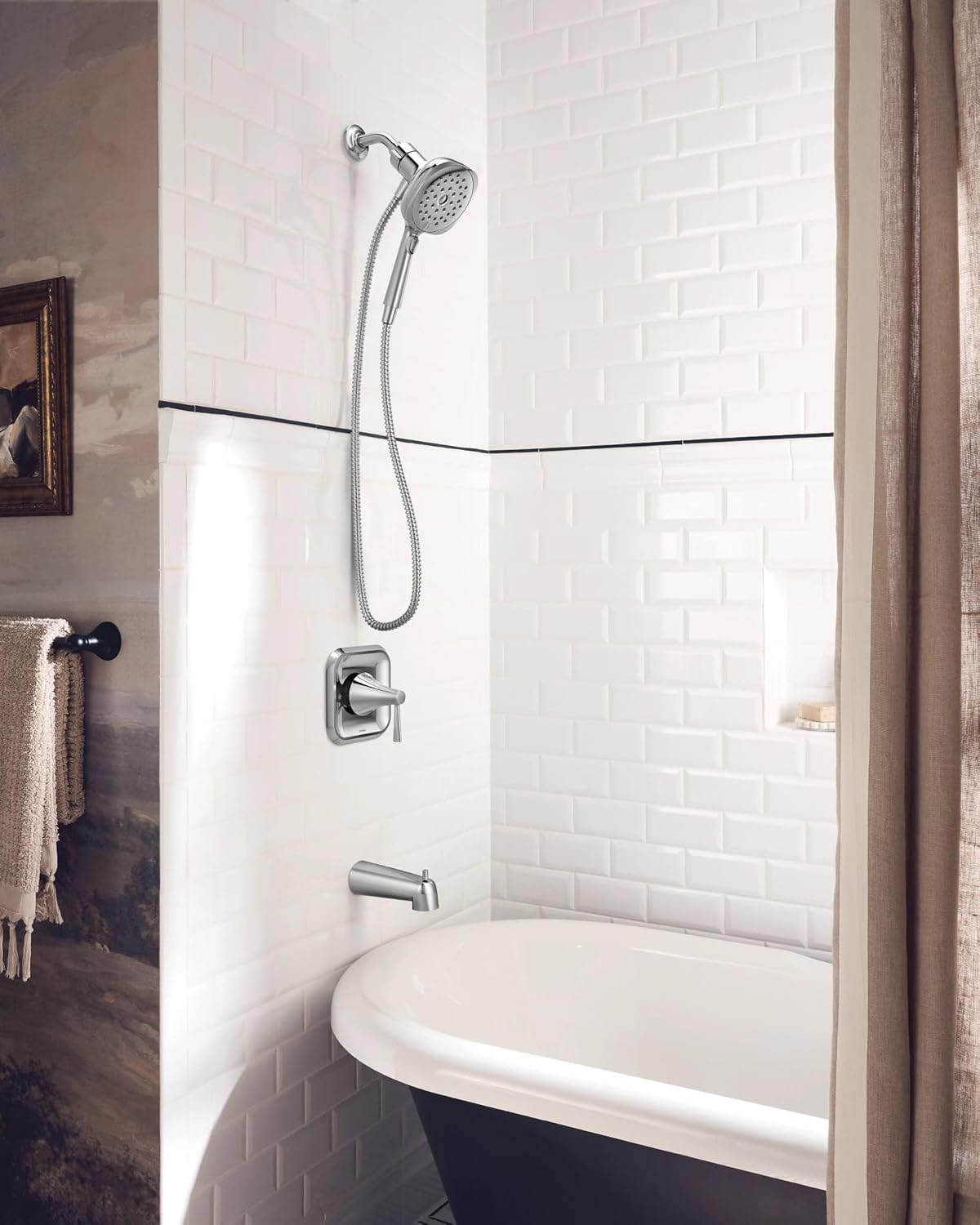

Figure 3: The Moen Ronan faucet system installed in a bathroom setting.
Operating Instructions
The Moen Ronan faucet features a single handle for controlling both water temperature and flow, and a versatile handheld shower with Magnetix technology.
- Water Flow and Temperature: Rotate the single handle to adjust water temperature (typically counter-clockwise for hotter, clockwise for colder). Pull the handle out to increase water flow and push it in to decrease or stop flow.
- Diverter: To switch water flow between the tub spout and the showerhead (or handheld), pull up the diverter knob located on the tub spout.
- Magnetix Handheld Shower: The handheld shower features a powerful magnetic dock. To use, simply pull the handheld shower from its dock. To return, guide it back towards the dock, and the magnet will securely snap it into place.
- Spray Settings: The showerhead and handheld shower offer multiple distinct spray settings. Rotate the spray face or use the selector on the showerhead to cycle through different spray patterns.
Figure 4: Utilizing the Magnetix docking system for the handheld shower.
Figure 5: The showerhead delivering a strong, consistent spray.
Maintenance
Proper care and cleaning will help maintain the finish and performance of your Moen Ronan faucet.
- Cleaning the Finish: Clean the chrome finish with a soft, damp cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
- Cleaning Showerhead Nozzles: If mineral deposits build up on the showerhead nozzles, gently rub them with your finger or a soft brush to dislodge the deposits.
- Hose Care: Periodically check the 60" kink-free hose for any signs of wear or damage.
Figure 6: The durable and easy-to-clean chrome finish.
Troubleshooting
If you encounter issues with your faucet, refer to the common problems and solutions below. For more complex issues, contact Moen customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Pressure | Clogged showerhead nozzles; partially closed shut-off valve; mineral buildup in valve. | Clean showerhead nozzles; ensure shut-off valves are fully open; flush the valve or consult a plumber. |
| Leaks from Handle or Spout | Loose connections; worn O-rings or cartridges. | Tighten connections; replace O-rings or cartridge (refer to Moen's parts diagram). |
| Water Temperature Issues | Incorrectly set temperature limit stop; issues with water heater. | Adjust the temperature limit stop on the valve; check water heater settings. |
| Handheld Shower Not Docking Securely | Debris on magnetic surface; damaged magnetic dock. | Clean magnetic surfaces; inspect dock for damage and replace if necessary. |
Specifications
Key specifications for the Moen Ronan 82022 Tub and Shower Faucet:
- Model Number: 82022
- Brand: Moen
- Color: Chrome
- Material: Zinc (Faucet Body), Metal (Handle)
- Finish Type: Polished
- Number of Handles: 1
- Mounting Type: Wall Mount
- Flow Rate: 1.75 GPM (Gallons Per Minute)
- Maximum Pressure: 100 PSI (Pound per Square Inch)
- Item Weight: 5.15 Pounds
- Head Size: Square (Showerhead)
- Spout Reach: 7 Inches
- Certifications: WaterSense Certified (Meets EPA criteria for water conservation)
Warranty and Support
Moen stands behind the quality of its products. For specific warranty details and to register your product, please visit the official Moen website or contact customer support.
Moen has a long-standing reputation for quality and reliability, having been a trusted brand for over 85 years and recognized as America's Most Trusted Faucet Brand for 10 consecutive years (2016-2025).
Figure 7: Moen's legacy of quality and innovation.
Figure 8: Moen recognized as America's Most Trusted Faucet Brand.
Contact Information:
For technical assistance, replacement parts, or warranty claims, please visit the official Moen website or call their customer service line.
Website: www.moen.com
Customer Service: Refer to your product packaging or the Moen website for regional contact numbers.
