1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and care of your Generic SC-205A Stand Mixer. Please read all instructions carefully before first use and retain this manual for future reference.
The Generic SC-205A Stand Mixer is a versatile kitchen appliance designed for mixing, kneading, and whipping various food ingredients. It features a 5-liter stainless steel bowl, a powerful 1200-watt motor, and 6 adjustable speed settings to accommodate a wide range of recipes.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:
- Read all instructions before operating the mixer.
- Do not immerse the motor unit, cord, or plug in water or other liquids.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use, before putting on or taking off parts, and before cleaning.
- Avoid contact with moving parts. Keep hands, hair, and clothing, as well as spatulas and other utensils, away from beaters during operation to prevent injury and/or damage to the mixer.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Contact customer service for examination, repair, or adjustment.
- The use of attachments not recommended or sold by the manufacturer may cause fire, electric shock, or injury.
- Do not use outdoors.
- Do not let the cord hang over the edge of a table or counter or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always ensure the mixer head is locked down before operation.
- Do not overfill the mixing bowl.
3. Product Components
Familiarize yourself with the parts of your Generic SC-205A Stand Mixer:
- Main Unit: Houses the motor, speed control dial, and tilt-head release button.
- Stainless Steel Mixing Bowl (5L): For holding ingredients during mixing.
- Dough Hook: Used for kneading heavy mixtures like bread dough.
- Beater (Stirring Rod): Ideal for medium-heavy mixtures such as cake batter, cookies, and frosting.
- Whisk (Egg Cage Beating): Designed for whipping eggs, cream, and light batters.
- Splash Guard: Helps prevent ingredients from splashing out of the bowl during operation.
- Egg White Separator: A separate tool for separating egg yolks from whites.

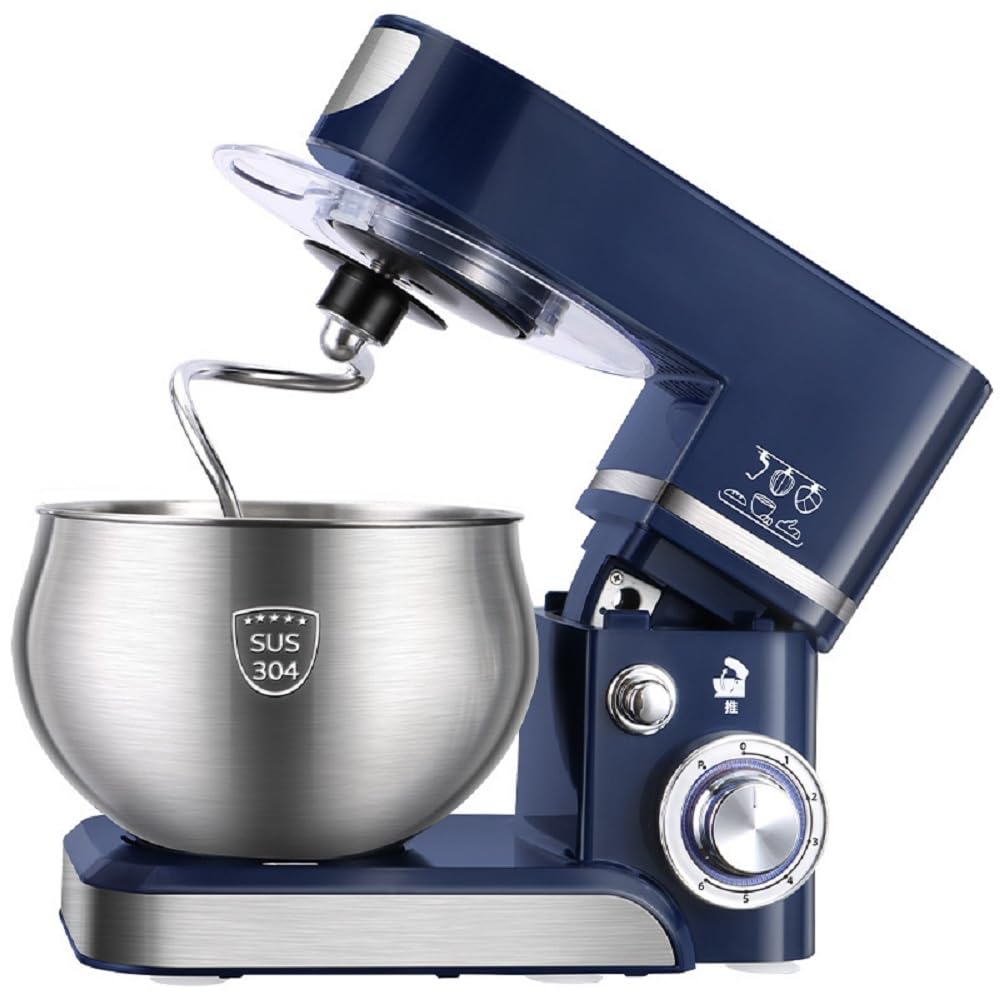

Image 3.1: The Generic SC-205A Stand Mixer with its main components.
Image 3.2: Included attachments: dough hook, beater, and whisk.
4. Setup
- Unpack: Carefully remove all components from the packaging. Dispose of packaging materials responsibly.
- Clean Before First Use: Wash the mixing bowl, dough hook, beater, whisk, and splash guard in warm, soapy water. Rinse thoroughly and dry completely. Wipe the main unit with a damp cloth.
- Placement: Place the mixer on a clean, dry, flat, and stable surface. Ensure there is adequate space around the mixer for ventilation and operation.
- Attach Mixing Bowl: Lift the mixer head by pressing the tilt-head release button. Place the stainless steel mixing bowl onto the base, twisting it clockwise until it locks securely into place.
- Attach Accessory: Select the appropriate attachment (dough hook, beater, or whisk) for your recipe. Insert the attachment into the accessory shaft and twist it upwards until it locks into place.
- Lower Mixer Head: Gently lower the mixer head until it clicks into its locked position. Ensure it is fully locked before proceeding.
- Attach Splash Guard (Optional): If desired, place the splash guard over the mixing bowl before lowering the mixer head.
5. Operating Instructions
Follow these steps for safe and effective operation of your stand mixer:
- Add Ingredients: Place all necessary ingredients into the mixing bowl. Do not exceed the maximum capacity of 5 liters.
- Select Attachment: Ensure the correct attachment (dough hook, beater, or whisk) is securely installed for your task.
- Plug In: Connect the power cord to a standard 110-volt electrical outlet.
- Set Speed: Turn the speed control dial to the desired setting. The mixer offers 6 adjustable speeds:
- Speed 1-2 (Low): For kneading heavy doughs (use dough hook).
- Speed 3-4 (Medium): For mixing batters, mashing potatoes, or combining ingredients (use beater).
- Speed 5-6 (High): For whipping cream, egg whites, or light batters (use whisk).
- Start Mixing: The mixer will begin operation at the selected speed.
- Monitor: Observe the mixing process. If necessary, stop the mixer, scrape down the sides of the bowl with a spatula, and resume mixing.
- Stop Mixing: Once mixing is complete, turn the speed control dial to the '0' (OFF) position.
- Unplug: Disconnect the power cord from the outlet.
- Remove Attachment and Bowl: Press the tilt-head release button to lift the mixer head. Remove the attachment by twisting it downwards. Unlock and remove the mixing bowl by twisting it counter-clockwise.
Image 5.1: Using the dough hook for kneading bread dough.
Image 5.2: Whipping egg whites with the whisk attachment.
6. Cleaning and Maintenance
Proper cleaning and maintenance will ensure the longevity and optimal performance of your stand mixer.
6.1. Cleaning
- Always unplug the mixer before cleaning.
- Mixing Bowl and Attachments (Dough Hook, Beater, Whisk): These parts are dishwasher safe or can be washed by hand in warm, soapy water. Rinse thoroughly and dry immediately to prevent water spots or corrosion.
- Main Unit: Wipe the exterior of the motor unit with a soft, damp cloth. Do not use abrasive cleaners or scourers. Never immerse the main unit in water or any other liquid.
- Splash Guard: Wash with warm, soapy water, rinse, and dry.
6.2. Storage
Ensure the mixer and all accessories are clean and dry before storing. Store the mixer in a dry place, away from direct sunlight and heat. The cord can be wrapped around the base for tidy storage.
7. Troubleshooting
If you encounter issues with your stand mixer, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Mixer does not start | Not plugged in; Power switch off; Mixer head not locked. | Ensure plug is securely in outlet; Turn speed dial to a setting other than '0'; Lower and lock mixer head. |
| Attachment not fitting correctly | Attachment not fully inserted or twisted. | Lift mixer head, re-insert attachment and twist upwards until it clicks into place. |
| Loud noise during operation | Overloaded; Mixer head not locked; Loose attachment. | Reduce ingredients; Ensure mixer head is locked; Check attachment is securely fastened. |
| Ingredients not mixing evenly | Incorrect attachment; Speed too low; Bowl not properly seated. | Use appropriate attachment for mixture; Increase speed; Ensure bowl is locked into base. |
If the problem persists after attempting these solutions, please contact customer support.
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | SC-205A |
| Brand | Generic |
| Capacity | 5 Liters |
| Wattage | 1200 Watts |
| Voltage | 110 Volts |
| Number of Speeds | 6 |
| Material | Plastic, Stainless Steel (Bowl, Blade) |
| Product Dimensions (D x W x H) | 13.7" x 7.4" x 11" |
| Item Weight | 9.7 pounds |
| Included Components | Dough Hook, Beater (Stirring Rod), Whisk (Egg Cage Beating), Egg White Separator |
9. Warranty and Support
Specific warranty details for the Generic SC-205A Stand Mixer are not provided in this manual. For information regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact the retailer/manufacturer directly.
For technical support, spare parts, or any other inquiries, please contact the manufacturer's customer service department. Contact information can typically be found on the product packaging or the manufacturer's official website.
