LabelCreate D450BT Bluetooth Thermal Shipping Label Printer User Manual

1. Introduction

Thank you for choosing the LabelCreate D450BT Bluetooth Thermal Shipping Label Printer. This manual provides comprehensive instructions to help you set up, operate, and maintain your printer effectively. Please read this manual thoroughly before using the device to ensure optimal performance and longevity.

2. Package Contents

Verify that all items listed below are included in your package. If any items are missing or damaged, please contact LabelCreate customer support.

• LabelCreate D450BT Thermal Label Printer
• Power Adapter
• USB Cable
• Quick Start Guide
• Sample Thermal Labels (4x6 inches)

Figure 2.1: Contents of the LabelCreate D450BT package, including the printer, sample labels, quick start guide, and a USB-C adapter.

3. Product Overview

The LabelCreate D450BT is a high-speed thermal label printer designed for efficiency and versatility. It supports both Bluetooth and USB connectivity, making it suitable for various operating environments.

Key Features:

• Wireless Bluetooth Connectivity: Connects to mobile devices within a 5-meter range.
• USB Connection: Compatible with computers via USB cable.
• High-Speed Printing: Prints at up to 150mm/s, producing approximately 72 sheets of 4"x6" labels per minute.
• Built-in Paper Slot: Accommodates up to 250 sheets of 4"x6" labels, eliminating the need for an external roll holder.
• Wide Label Compatibility: Supports thermal labels from 0.78" to 4.4" wide, ideal for 4"x6" shipping labels, barcodes, and other postal labels.
• Broad Platform Support: Compatible with major shipping platforms such as Shopify, Etsy, eBay, Amazon, Poshmark, FedEx, ShipStation, ShippingEasy, Shippo, and Ordoro.

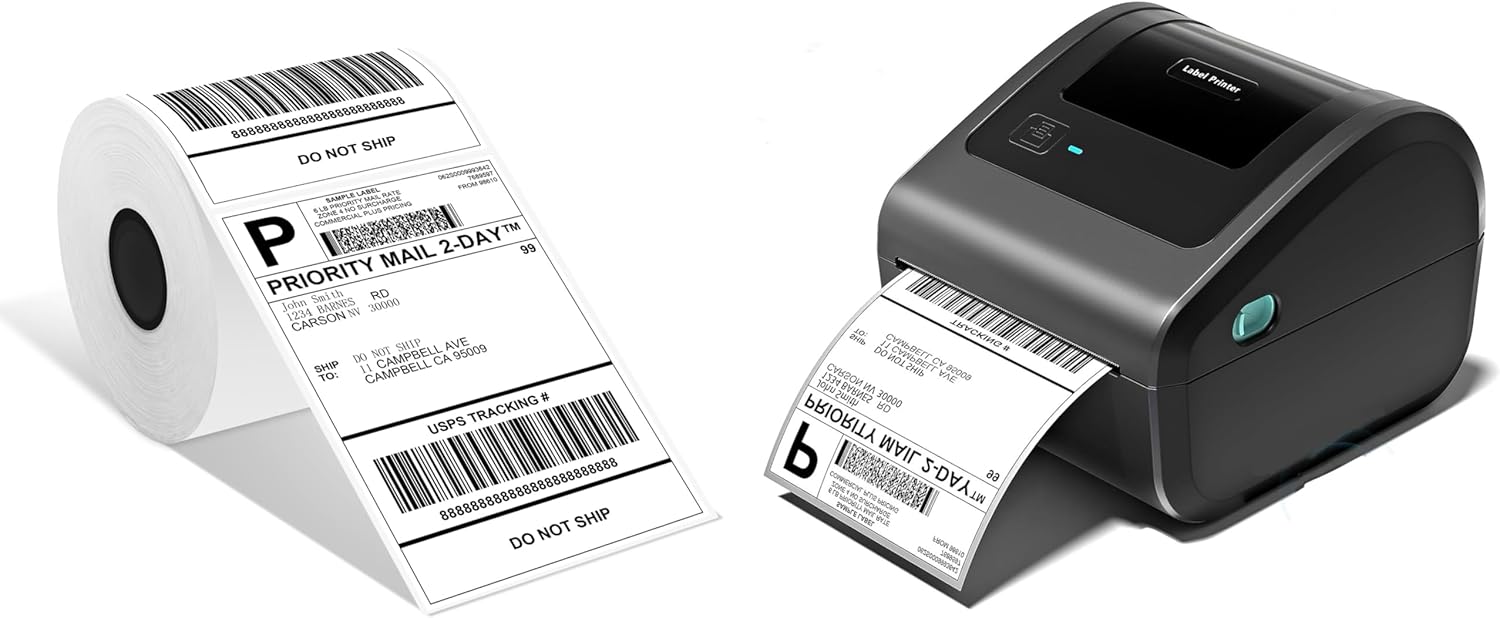

Figure 3.1: The LabelCreate D450BT printer shown with a roll of 4x6 inch shipping labels.

Figure 3.2: The D450BT supports both Bluetooth and USB connections, compatible with Android, iOS, iPad, Mac OS, Windows, Chrome OS, and Linux, often utilizing the Labelife application.

4. Setup Instructions

4.1. Hardware Connection

1. Connect the power adapter to the printer's power port and plug it into an electrical outlet.
2. For computer connection, plug one end of the USB cable into the printer and the other end into your computer's USB port.
3. Turn on the printer using the power button. The indicator light should illuminate.

4.2. Loading Labels

The D450BT printer supports both roll labels and folding labels, utilizing its built-in paper slot.

1. Open the printer cover.
2. For Roll Labels: Place the roll of thermal labels into the built-in paper slot. Ensure the labels feed smoothly from the bottom of the roll and the print side is facing up.
3. For Folding Labels: Place the stack of folding labels into the rear paper guide. Ensure the print side is facing up.
4. Adjust the paper guides to fit the label width snugly, without being too tight.
5. Close the printer cover. The printer will automatically detect and calibrate the label size.

Figure 4.1: The D450BT printer supports both roll labels (up to 250 in 4x6 inch tray) and folding labels, loaded via the built-in paper slot.

Figure 4.2: A roll of 250 4x6 inch thermal labels, suitable for the D450BT printer.

4.3. Software and Driver Installation

For optimal performance, install the appropriate drivers or mobile application.

For Windows/Mac Computers (USB Connection):

1. Visit the official LabelCreate website or refer to the Quick Start Guide for driver download links.
2. Download and install the printer driver compatible with your operating system.
3. Follow the on-screen instructions to complete the installation.

For Mobile Devices (Bluetooth Connection):

1. Download the "Labelife" application from your device's app store (App Store for iOS, Google Play Store for Android).
2. Ensure Bluetooth is enabled on your mobile device.
3. Open the Labelife app and follow the in-app instructions to connect to your D450BT printer.

Figure 4.3: The LabelCreate D450BT printer can be controlled via the Labelife app on a smartphone, shown alongside the quick start guide and sample labels.

5. Operating Instructions

5.1. Printing from a Computer (USB)

1. Ensure the printer is connected via USB and powered on.
2. Open the document or label file you wish to print (e.g., a shipping label PDF).
3. Go to File > Print.
4. Select the LabelCreate D450BT printer from the list of available printers.
5. Adjust print settings such as paper size (e.g., 4x6 inches) and orientation as needed.
6. Click Print.

5.2. Printing from a Mobile Device (Bluetooth)

1. Ensure the printer is powered on and connected to your mobile device via the Labelife app.
2. Open the Labelife app.
3. Import or create the label you wish to print within the app.
4. Adjust print settings as required (e.g., label size, quantity).
5. Tap the Print button within the app.

5.3. Supported Label Types

The D450BT printer is versatile and can print various types of thermal labels, including:

• Shipping Labels (e.g., 4x6 inches)
• Barcode Labels
• Postal Labels
• Product Labels
• Gift Labels
• Logistics Labels

Figure 5.1: Examples of various labels that can be printed with the D450BT, including logistics, gift, and product labels.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your LabelCreate D450BT printer.

6.1. Cleaning the Print Head

The print head is a critical component and should be cleaned periodically to prevent print quality issues.

1. Turn off the printer and unplug the power cord.
2. Open the printer cover.
3. Gently wipe the print head with an alcohol swab or a lint-free cloth lightly dampened with isopropyl alcohol.
4. Allow the print head to dry completely before closing the cover and powering on the printer.

6.2. General Cleaning

Wipe the exterior of the printer with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners.

7. Troubleshooting

If you encounter issues with your LabelCreate D450BT printer, refer to the following common problems and solutions.

7.1. Printer Not Responding

• Ensure the power cord is securely connected and the printer is turned on.
• Check the USB cable connection to your computer or the Bluetooth connection to your mobile device.
• Restart the printer and your computer/mobile device.
• Verify that the correct printer driver is installed and selected.

7.2. Poor Print Quality

• Clean the print head as described in Section 6.1.
• Ensure you are using high-quality thermal labels.
• Check print density settings in your printer preferences or the Labelife app.
• Ensure labels are loaded correctly and not wrinkled or damaged.

7.3. Labels Not Feeding Correctly

• Verify that labels are loaded correctly with the print side facing up.
• Adjust the paper guides to fit the label width properly.
• Ensure there are no obstructions in the paper path.
• Check if the label roll/stack is within the supported size and quantity limits (e.g., max 250 4x6 inch labels).

8. Specifications

9. Warranty and Support

LabelCreate products are designed for reliability and performance. For warranty information, please refer to the documentation included with your purchase or visit the official LabelCreate website.

If you require technical assistance or have questions about your D450BT printer, please contact LabelCreate customer support. You can find contact details on our official website or through your purchase platform.
