1. Introduction
This manual provides instructions for the safe and effective use of your H2ofloss HF-6 Cordless Portable Water Dental Flosser. This device is designed to enhance oral hygiene by delivering high-frequency water pulses to clean between teeth and below the gumline, complementing traditional brushing.
2. What's in the Box
Your H2ofloss HF-6 Water Dental Flosser package includes the following components:
- H2ofloss HF-6 Main Unit (with detachable water tank)
- Multiple Multifunctional Nozzles (e.g., standard jet tips, orthodontic tip, tongue cleaner, toothbrush tip)
- USB Charging Cable (adapter not included)
- Nozzle Storage Case
- Instruction Manual

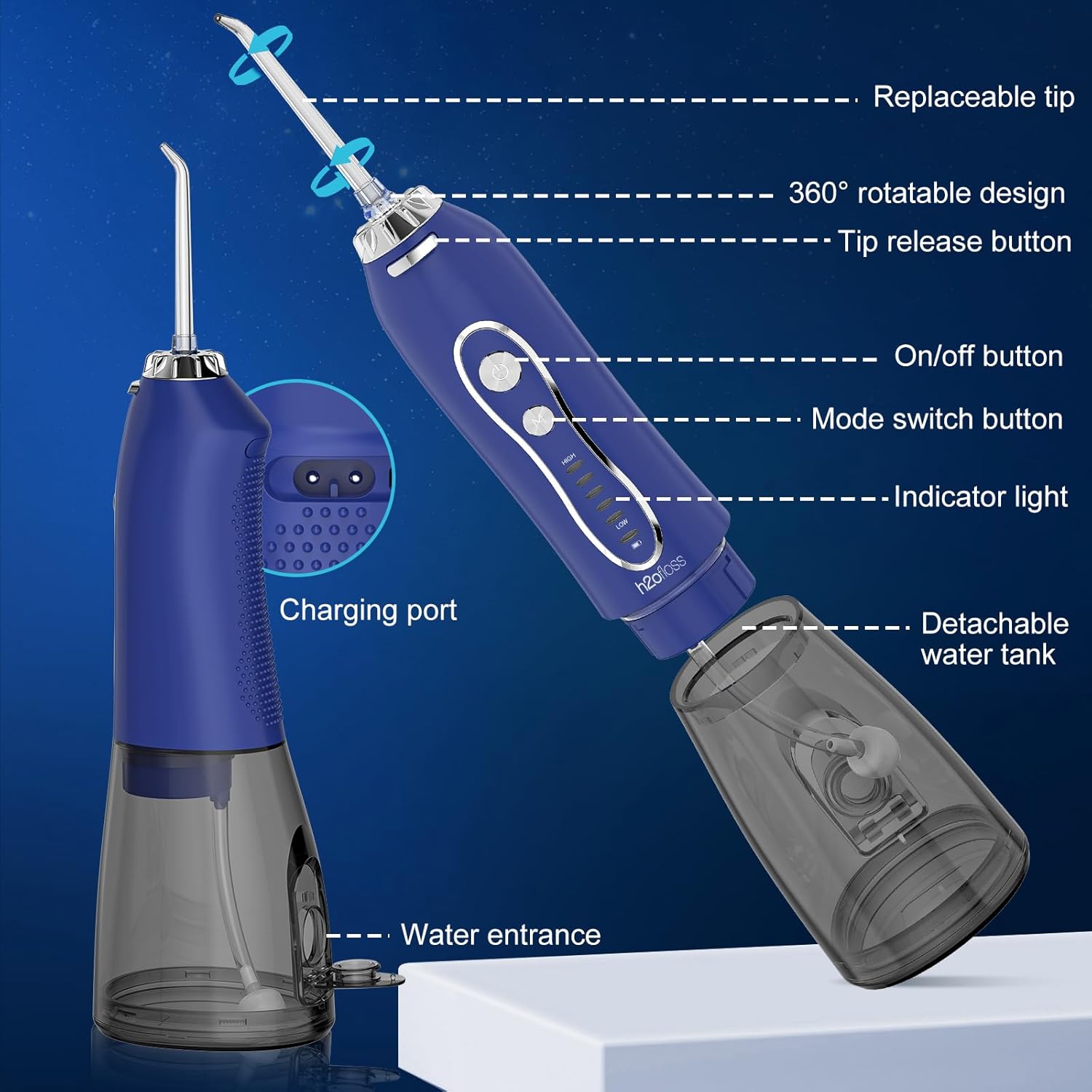

Image: H2ofloss HF-6 unit with labeled components including replaceable tip, 360° rotatable design, tip release button, On/Off button, Mode switch button, indicator lights, charging port, detachable water tank, and water entrance.
3. Product Features
- High-Frequency Pulses: Delivers 1,200-1,400 pulses per minute for effective cleaning.
- 5 Adjustable Modes: Includes Daily, Gentle, Deep, Custom, and Pulse modes to suit various oral care needs, from sensitive gums to deep cleaning. The device features a memory function to recall the last used setting.
- 300ML Detachable Water Tank: A large, BPA-free tank provides enough capacity for a 90-second continuous cleaning cycle. Its wide-mouth design facilitates easy filling and cleaning, helping prevent mold buildup.
- Long-Lasting Battery: Offers up to 30 uses on a single 5-hour charge, making it suitable for travel. Charges via USB cable (adapter not included).
- IPX7 Waterproof: Designed for safe use in the shower and easy cleaning, ensuring durability.
- Ergonomic Grip: Features a narrow, textured handle for comfortable and secure handling, reducing hand strain.
- 360° Rotatable Nozzle: Allows easy access to all areas of the mouth for thorough cleaning.
- Patented Gravity Ball Design: Ensures smooth water flow from any angle, even when tilted.
Image: Visual representation of the 5 pressure modes (Strong High, Moderate & Pulse, Sensitive & Soft) and pulse rate of 1300 pulses/min.
Image: Illustration of the 300ml water tank capacity and how the detachable reservoir can be easily removed for cleaning and refilling.
Image: Diagram showing the internal battery and indicating up to 30 days of battery life from a 5-hour charge, compared to other devices.
Image: The water flosser submerged in water, illustrating its IPX7 waterproof rating for safe use in wet environments.
4. Setup Instructions
- Charge the Device: Before first use, fully charge the water flosser. Open the silicone cover at the bottom of the unit to reveal the charging port. Connect the provided USB cable to the port and plug the other end into a USB power source (e.g., wall adapter, power bank, computer). The battery indicator lights will show charging progress.
- Attach Nozzle: Select your desired nozzle. Insert the nozzle into the hole at the top of the main unit until it clicks into place.
- Fill Water Tank: Open the water tank cover located at the back of the unit. Fill the 300ML tank with lukewarm water. You may add a small amount of mouthwash if desired. Close the cover securely.
Image: A visual guide showing the steps to add lukewarm water, insert the tip, select a mode, position the tip, and press the On button.
5. Operating Instructions
- Select Mode: Press the "M" (Mode) button to cycle through the 5 available pressure modes: Daily, Gentle, Deep, Custom, and Pulse. Choose the mode that best suits your comfort and cleaning needs. The device will remember your last selected mode for future use.
- Position the Nozzle: Lean over a sink and place the nozzle tip into your mouth, aiming it at a 90-degree angle to your gums.
- Start Flossing: Press the On/Off button to start the water flow. Keep your mouth slightly open to allow water to drain into the sink.
- Guide the Water Stream: Guide the water stream along your gumline and between each tooth. Pause briefly between teeth to ensure thorough cleaning.
- Finish: Once you have cleaned all areas of your mouth, press the On/Off button again to turn off the device.
Video: A demonstration of the H2ofloss water flosser in use, highlighting its effectiveness for deep cleaning gums and teeth.
6. Maintenance and Cleaning
- Empty and Dry Tank: After each use, empty any remaining water from the tank. Detach the tank and allow it to air dry to prevent mold and mildew buildup.
- Clean Nozzles: Remove the nozzle by pressing the tip release button. Rinse the nozzle under running water. For deeper cleaning, soak nozzles in a solution of 2 parts water to 1 part white vinegar for 5-10 minutes, then rinse thoroughly.
- Clean Main Unit: Wipe the exterior of the unit with a soft, damp cloth. Due to its IPX7 waterproof rating, the unit can be rinsed under water, but ensure the charging port cover is securely closed.
- Storage: Store the unit and nozzles in a clean, dry place. Use the provided nozzle storage case for hygiene and organization.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Low battery. | Charge the device fully using the provided USB cable. |
| Weak water pressure. | Incorrect mode selected; low water level; clogged nozzle. | Select a higher pressure mode. Refill the water tank. Clean or replace the nozzle. |
| Water tank leaks. | Water tank cover not securely closed; tank not properly attached. | Ensure the water tank cover is firmly closed. Reattach the water tank to the main unit, ensuring it clicks into place. |
| Mold or mildew in tank. | Improper drying after use. | Thoroughly clean the tank with warm soapy water and a brush. Rinse well and allow to air dry completely after each use. |
8. Specifications
- Model Number: HF-6
- Water Tank Capacity: 300 ML
- Water Pressure Range: 20-110 PSI (Adjustable)
- Pulse Rate: 1,200-1,400 pulses/minute
- Battery: Rechargeable (USB cable included). Note: Product specifications in source data mention "1 AA batteries required. (included)", which contradicts the rechargeable nature described in feature bullets. This manual assumes the device is rechargeable via USB as indicated by other product details.
- Charging Time: Approximately 5 hours for a full charge
- Usage Time: Up to 30 uses per charge
- Waterproof Rating: IPX7
- Product Dimensions: 3.23 x 2.52 x 8.78 inches
- Item Weight: 13.4 ounces
- Manufacturer: H2ofloss
9. Warranty and Support
For warranty information and customer support, please refer to the documentation included with your product or contact H2ofloss directly through their official website or the retailer where the product was purchased. The product typically includes a manufacturer's warranty covering defects in materials and workmanship for a specified period. Please retain your proof of purchase for warranty claims.
Return Policy: This product is subject to a 30-day refund/replacement return policy from the date of purchase.
Legal Disclaimer: Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition. This product is intended for oral hygiene purposes only.
