1. Introduction and Overview

This manual provides essential information for the safe and efficient use of your V-Guard Luxecube Avo DG 25 Litre Digital Water Heater. Please read these instructions carefully before installation and operation, and retain them for future reference. The Luxecube Avo DG is designed to provide hot water efficiently, featuring Advanced Thermocline Technology (ATT) and a digital display for precise temperature control.

Image: Front view of the V-Guard Luxecube Avo DG 25 Litre Digital Water Heater, showcasing its digital display and modern design.

2. Safety Information

Adherence to safety guidelines is crucial for preventing injury and damage. This appliance incorporates multi-layered advanced safety features, but proper installation and usage are paramount.

• Electrical Safety: Ensure the water heater is connected to a properly grounded electrical outlet. Do not use extension cords. All electrical work must be performed by a qualified electrician.
• Overheat Protection: The unit features an Advanced Thermostat and Thermal Cut-out Mechanism for dual overheat protection. Do not tamper with these safety devices.
• Pressure Relief: A 5-in-1 Multi-function Safety Valve is included to prevent excessive pressure build-up, vacuum formation, and reverse water flow. Ensure this valve is installed correctly and not obstructed.
• Water Connections: Ensure all water inlet and outlet connections are secure and leak-free.
• Installation Location: Install the water heater in a location where it is protected from freezing temperatures and direct exposure to water spray.

Image: Visual representation of the multi-layered safety features including Dual Overheat Protection, Thermal Cut-Out Mechanism, Advanced Adjustable Thermostat, 5-in-1 Multi-Function Safety Valve, Silicone-Grade Wiring, and Single Weld Line Inner Tank.

3. Product Features

The V-Guard Luxecube Avo DG water heater is engineered with advanced features for performance and durability:

• Advanced Thermocline Technology (ATT): Delivers up to 38% more hot water by minimizing the mixing of hot and cold water layers within the tank.
• Digital Display: Provides real-time water temperature readings for precise control.
• Energy Efficiency: High-density, extra-thick PUF insulation ensures maximum heat retention and energy savings. The insulation material is CFC-free.
• Titanium-Infused Vitreous Enamel Coated Tank: The inner tank is fortified with a uniform titanium-infused vitreous enamel coating, protecting against hard water and corrosion.
• Nickel-enriched Incoloy 800 Heating Element: Designed to withstand tough water conditions, resisting high temperatures, oxidation, and corrosion for long-lasting performance.
• Multi-layered Safety: Includes dual overheat protection, a 5-in-1 multi-function safety valve, silicone-grade internal wiring, and a single weld line inner tank design.
• High-Rise Building Compatibility: Capable of handling up to 0.8 MPa water pressure, suitable for buildings up to 35 floors.
• Hard Water Suitability: Anti-corrosive and anti-scalant features make it suitable for Indian water conditions.
• Luxe Glow Illumination: A unique dual-color indicator that glows green during heating and red on standby.

Image: Illustration of Advanced Thermocline Technology (ATT) delivering up to 38% more hot water.

Image: Detailed view of the Titanium-Infused Vitreous Enamel Coated Tank, highlighting its corrosion resistance.

4. Setup and Installation

The V-Guard Luxecube Avo DG water heater requires professional installation to ensure safety and optimal performance. Free PAN India installation is provided by V-Guard.

4.1 Pre-Installation Checks

• Verify that the installation location can support the weight of the water heater when full (approximately 38 kg for 25 Litre model).
• Ensure adequate space around the unit for maintenance and air circulation.
• Confirm that the water supply pressure is within the acceptable range (up to 0.8 MPa).
• Ensure a dedicated and properly grounded electrical circuit is available.

4.2 Installation Steps (Professional Installation Recommended)

1. Mount the water heater securely on a wall using the provided wall mounting kit.
2. Connect the cold water inlet and hot water outlet pipes. Free durable stainless-steel inlet and outlet pipes (1.5 ft × 2) are provided during installation.
3. Install the multi-function safety valve on the cold water inlet line as per the diagram.
4. Fill the tank with water completely before connecting to the electrical supply. Open a hot water tap to allow air to escape until water flows steadily.
5. Connect the water heater to the electrical supply.

Image: Map illustrating V-Guard's nationwide service coverage for installation and support.

5. Operating Instructions

Operating your V-Guard Luxecube Avo DG water heater is straightforward:

1. Power On: Ensure the water heater is filled with water and then switch on the electrical supply.
2. Temperature Setting: Use the control knob or digital interface to set your desired water temperature. The digital display will show the current water temperature inside the tank.
3. Luxe Glow Indicator: Observe the unique dual-color Luxe Glow Indicator. It will glow green when the water heater is actively heating and red when it is on standby or has reached the set temperature.
4. Heating Cycle: The water heater will automatically begin heating the water to the set temperature. Once the temperature is reached, the heating element will switch off, and the indicator will turn red.
5. Power Off: After use, it is recommended to switch off the electrical supply to the water heater.

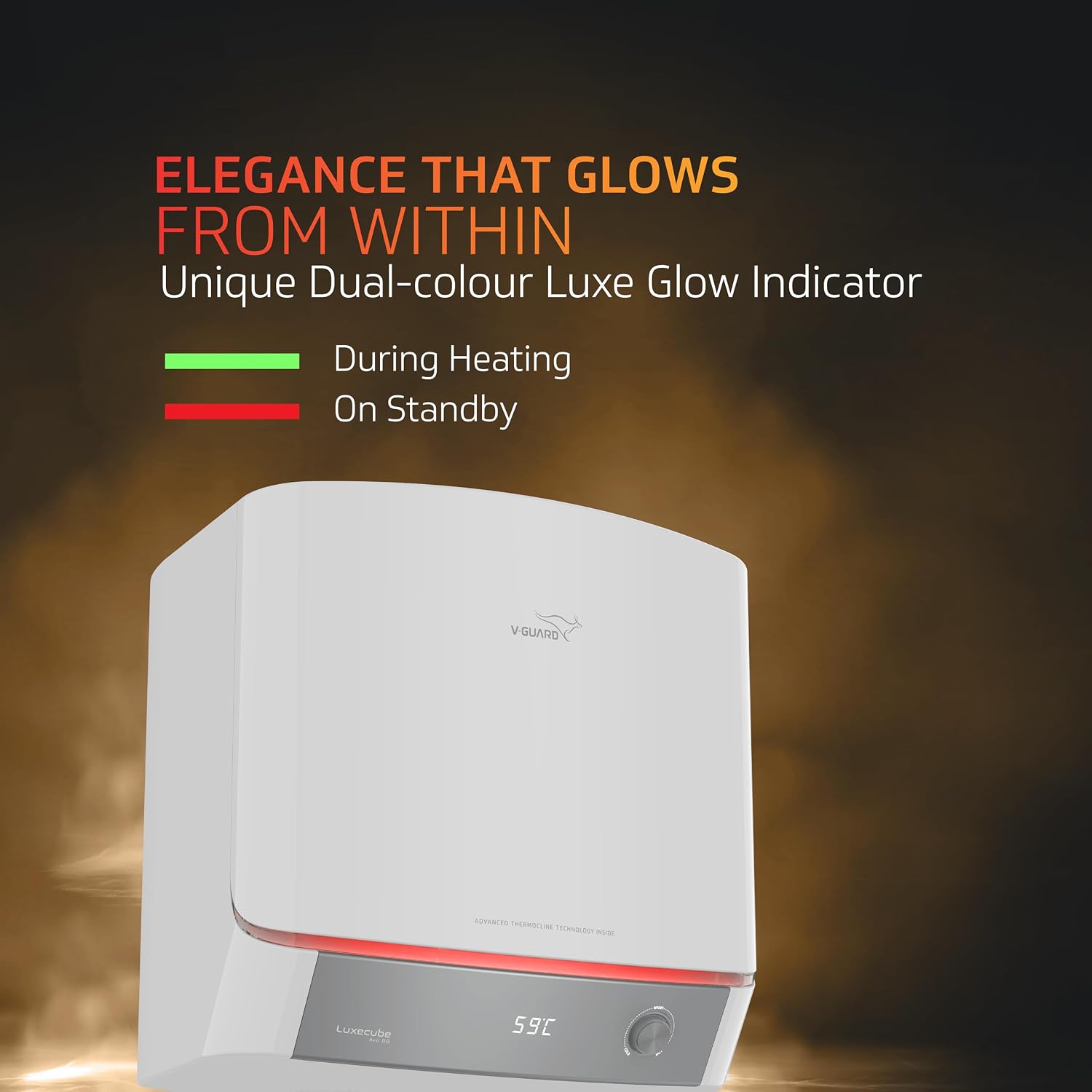

Image: The V-Guard Luxecube Avo DG water heater with its Luxe Glow Indicator illuminated, showing the current temperature.

6. Maintenance

Regular maintenance ensures the longevity and efficiency of your water heater.

• Cleaning: Periodically wipe the exterior of the water heater with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Safety Valve Check: Annually, manually operate the pressure relief valve (part of the multi-function safety valve) to ensure it is not blocked. Follow the instructions provided with the valve.
• Anode Rod Inspection: For optimal protection against corrosion, especially in hard water areas, have the anode rod inspected and replaced by a qualified technician every 1-2 years.
• Descaling: While the titanium-infused tank and Incoloy 800 heating element are designed for hard water, periodic descaling by a professional service technician may be beneficial in areas with extremely hard water.
• Leak Checks: Regularly inspect all pipe connections for any signs of leaks. Address any leaks immediately to prevent damage.

7. Troubleshooting

If you encounter issues with your water heater, refer to the following common troubleshooting steps. For complex problems, contact V-Guard customer support.

8. Specifications

Technical specifications for the V-Guard Luxecube Avo DG 25 Litre Digital Water Heater:

9. Warranty and Support

V-Guard provides comprehensive warranty coverage and support for your Luxecube Avo DG water heater.

9.1 Warranty Details

• 7 Year Coverage: On the Inner Tank.
• 4 Year Coverage: On the Heating Element.
• 2 Year Coverage: On the entire Product.

Please retain your purchase receipt for warranty claims. The warranty period is calculated from the date of purchase.

Image: Diagram showing the warranty coverage for the inner tank (7 years), heating element (4 years), and product (2 years).

9.2 Customer Support

For installation requests, service, or any queries, please contact V-Guard customer support. Free PAN India installation is available at all serviceable PIN codes.

Manufacturer: V-Guard Industries Ltd. 42/962, Vennala High School Road, Vennala, Kochi- 682028, Kerala, India.

Please refer to the official V-Guard website or your product packaging for the most current contact information.
