HOCANFLO 700W Upflush Macerating Toilet User Manual

1. Introduction

The HOCANFLO 700W Upflush Macerating Toilet is an innovative solution for installing plumbing fixtures in locations where traditional gravity drainage is not feasible, such as basements or additions. Its powerful macerating pump efficiently grinds and pumps waste upwards, eliminating the need for extensive pipework modifications. This system is designed for durability and ease of use, featuring a nano-glazed finish for easy cleaning and multiple inlets for connecting various fixtures.

Figure 1.1: The HOCANFLO 700W Upflush Macerating Toilet in a typical bathroom installation, showcasing its compact design and integration with existing plumbing.

2. Setup and Installation

Proper installation is crucial for the optimal performance and longevity of your HOCANFLO Macerating Toilet. Please follow these steps carefully. For a visual guide, refer to the installation video below.

2.1 Component Overview

The macerator pump and its accessories are displayed in the accompanying image. Familiarize yourself with all components before beginning installation.

Figure 2.1: The macerator pump unit and its various accessories, including different pipe fittings and clamps, laid out for inspection.

2.2 Exhaust Vent Setup

Locate the exhaust vent on the macerator pump. Open the cover, insert the activated carbon bag, and then securely close the cover. This activated carbon helps in odor control.

2.3 Outlet Pipe Connection

Use hose clamps to secure the check valve and the elbow jointed fitting in place at the pump's outlet. The one-way valve elbow from the drain outlet can rotate 360 degrees, offering flexibility to meet various installation needs. The elbow can be connected to drainage pipes with diameters of 1 inch, 1-1/4 inch, and 1-1/2 inch. Note: A 2-inch drainage pipe cannot be used. It is recommended to use a 1-1/4 inch drainage pipe for optimal performance. Ensure the distance between the top row of the pump and any horizontal pipes below it is no more than 12 inches.

Figure 2.2: Detail of the macerator pump's internal check valve and sharp stainless steel impeller blades, designed to prevent blockages and ensure smooth operation.

2.4 Side Inlet Connections (Optional)

If you need to connect additional fixtures like a shower room, washbasin, or washing machine, you will use the side inlets. Simply remove the cap at the inlet by firmly pushing downwards in the direction of the arrow. Cut open the hose using a blade, then connect a 1-1/2 inch inlet pipe and secure both ends of the hose tightly with two clamps. Install a 1-1/2 inch PVC inlet pipe with a slope of 1 to 3 degrees to ensure proper drainage.

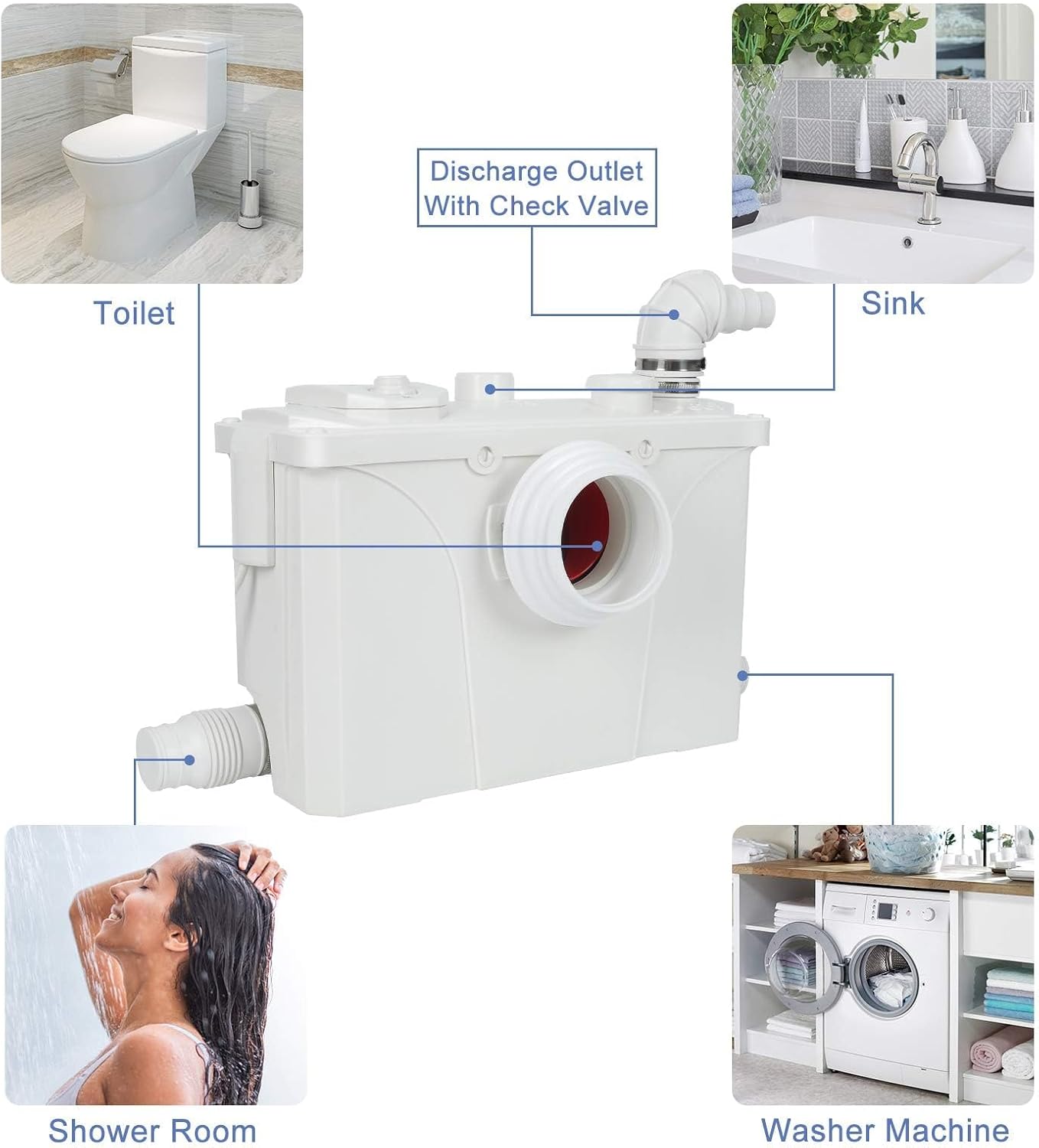

Figure 2.3: The versatile connection options of the HOCANFLO macerator pump, featuring four water inlets and two drainage outlets, allowing for integration with multiple bathroom and utility fixtures.

If there is no need to connect other drainage devices to a side inlet, there is no need to open the cover at that side inlet. If you don't want to connect the toilet, you can use a cover to block the water inlet of the toilet. Secure the seal with a clamp.

2.5 Toilet Connection

Connect the rubber hose from the macerator pump to the toilet drain and secure it firmly with a clamp. If you need to install the machine on the other side of the wall, you will need to purchase an extension pipe.

Figure 2.4: Key features of the HOCANFLO toilet, including its dual siphon flush for efficient water usage, a quick-release seat for easy cleaning, and a soft-close mechanism for quiet operation.

3. Operating Instructions

The HOCANFLO 700W Upflush Macerating Toilet operates with efficient upflush technology, allowing waste to be pumped upwards without needing to break existing pipework. The system features a dual siphon flush, offering both 0.8 GPF (Gallons Per Flush) for half flush and 1.28 GPF for full flush, ensuring water efficiency.

Figure 3.1: The dual flush system provides options for water conservation, with a half flush at 0.8 GPF and a full flush at 1.28 GPF.

The macerating pump is equipped with sharp stainless steel impeller blades that effectively cut waste, preventing blockages and ensuring smooth water flow. This design extends the serviceable life of the unit by minimizing clogging.

4. Maintenance

Regular maintenance ensures the longevity and efficient operation of your HOCANFLO Macerating Toilet. The integrated activated carbon ventilator promotes efficient air circulation, contributing to a clean and pleasant bathroom environment. The micro switch, a critical component, is conveniently replaceable at the top of the unit. If the water pump malfunctions, you can simply replace the micro switch without needing to dismantle the entire water pump.

Figure 4.1: The macerator pump offers two deodorization methods: activated carbon for direct odor absorption and a ventilation duct connection for external venting.

The nano-glazed finish of the toilet bowl makes it easy to clean and maintain hygiene. For optimal performance of the macerating pump, avoid flushing non-biodegradable items or excessive amounts of toilet paper.

5. Troubleshooting

While this manual does not contain a dedicated troubleshooting section, common issues with macerating toilets often relate to blockages from improper flushing or electrical supply problems. Ensure the unit is properly plugged in and that only appropriate waste is flushed. If you encounter any issues, please refer to the customer support information in Section 7.

6. Specifications

Figure 6.1: Detailed dimensions of the HOCANFLO 700W Upflush Macerating Toilet, including height, width, and depth for proper installation planning.

7. Warranty and Support

HOCANFLO offers reliable customer service. Please contact us directly if you have any questions when you received the package or need any help with installations. The product comes with a 2-year manufacturer warranty for replacement and a 2-year manufacturer warranty for repair. We are committed to helping you solve any issues within 24 hours.

For support, please visit the HOCANFLO Store on Amazon.
