Introduction
This manual provides instructions for the Effireli DG11J1-31 replacement remote control, designed for use with Hisense air conditioner models DG11J1-32 and DG11J1-31. This remote offers direct functionality without the need for programming.
For optimal performance, please read these instructions carefully before use.
Product Overview
The Effireli DG11J1-31 is a direct replacement remote control for specific Hisense air conditioner units. It is designed for immediate use upon battery installation.

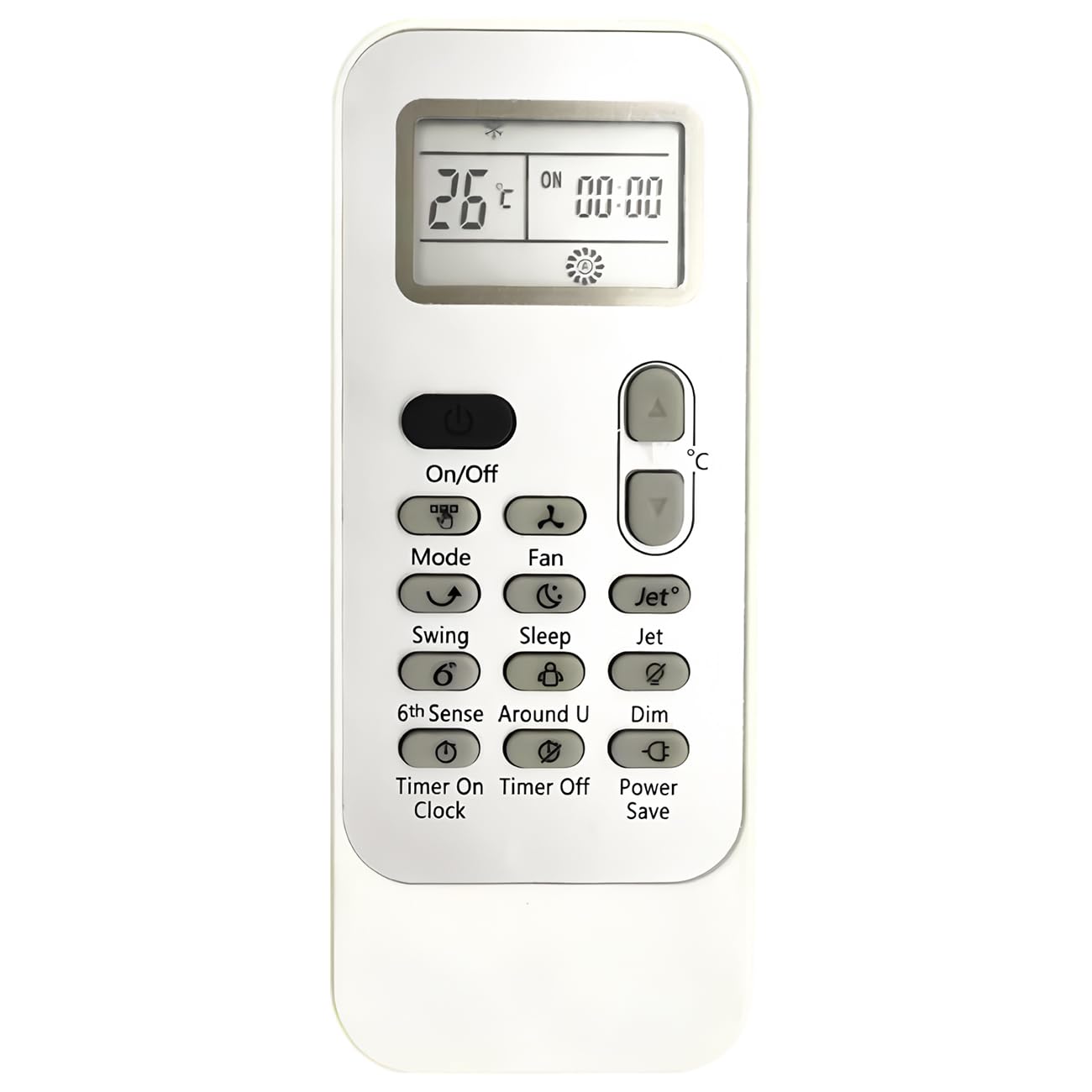

This image shows the Effireli DG11J1-31 replacement remote control. It features a standard layout with buttons for power, mode selection, temperature adjustment, fan speed, and timer functions.
Setup
Battery Installation
- Locate the battery compartment cover on the back of the remote control.
- Slide the cover downwards or in the direction indicated by an arrow to open it.
- Insert two new AAA batteries (not included), ensuring the positive (+) and negative (-) terminals match the diagrams inside the compartment.
- Replace the battery compartment cover by sliding it back into position until it clicks securely.
Note: No programming or pairing is required for this remote control. It is ready for use once batteries are installed.
Operating Instructions
Point the remote control directly at the Hisense air conditioner unit's infrared receiver. Ensure there are no obstructions between the remote and the air conditioner.
Basic Functions
- Power Button: Press to turn the air conditioner ON or OFF.
- Mode Button: Press repeatedly to cycle through available operating modes (e.g., Cool, Heat, Fan, Dry, Auto).
- Temperature Adjustment Buttons (▲/▼): Press to increase or decrease the desired temperature setting.
- Fan Speed Button: Press to adjust the fan speed (e.g., Low, Medium, High, Auto).
- Timer Button: Use to set a timer for the air conditioner to turn ON or OFF automatically. Refer to your air conditioner's main manual for specific timer settings.
- Swing Button: Activates or deactivates the louver swing function.
- Sleep Button: Activates or deactivates the sleep mode for quieter operation and adjusted temperature curves.
Important: The specific functions and their availability may vary depending on your Hisense air conditioner model.
Maintenance
Battery Replacement
Replace batteries when the remote control's range decreases or if it becomes unresponsive. Always replace both batteries simultaneously with new ones of the same type.
Cleaning
Wipe the remote control with a soft, dry cloth. Do not use liquid cleaners or abrasive materials, as they may damage the remote.
Storage
If the remote control will not be used for an extended period, remove the batteries to prevent leakage and potential damage.
Troubleshooting
- Remote not responding:
- Check if the batteries are inserted correctly with the correct polarity.
- Replace old batteries with new ones.
- Ensure there are no obstructions between the remote and the air conditioner's receiver.
- Confirm the remote is pointed directly at the air conditioner.
- Limited range:
- Replace batteries.
- Ensure the remote is within the effective operating range (typically up to 8 meters) and line of sight.
- Specific functions not working:
- Verify that your air conditioner model supports the specific function you are trying to use.
- Some advanced functions might require the original remote or specific settings on the air conditioner unit itself.
If issues persist, please refer to the "Warranty and Support" section for contact information.
Specifications
| Feature | Detail |
|---|---|
| Model Number | YK-DG11J1-31 |
| Compatible Models | Hisense DG11J1-32, DG11J1-31 |
| Brand | Effireli |
| Connectivity Technology | Infrared |
| Special Feature | No Programming Required |
| Power Source | 2 x AAA Batteries (not included) |
| Max Number of Supported Devices | 1 |
| Compatible Devices | Air Conditioner |
Warranty and Support
This Effireli remote control comes with a 12-month warranty covering manufacturing defects from the date of purchase.
A 30-day money-back guarantee is also offered. Returns and exchanges are accepted within the warranty period for manufacturing defects.
If your air conditioner model number is not explicitly listed as compatible (DG11J1-32, DG11J1-31) or if your original remote control appears significantly different, please contact the seller directly to confirm compatibility before purchase or for support.
For warranty claims or technical assistance, please contact your retailer or the Effireli customer support channel provided at the point of purchase.
