Product Overview
This ANCTOR 24-inch laundry sink cabinet features a durable 304 stainless steel tub and a functional cabinet for storage. It includes a pull-out hot/cold faucet and convenient metal hooks. This unit is designed for use in laundry rooms, utility rooms, kitchens, and garages, offering a practical solution for various tasks.

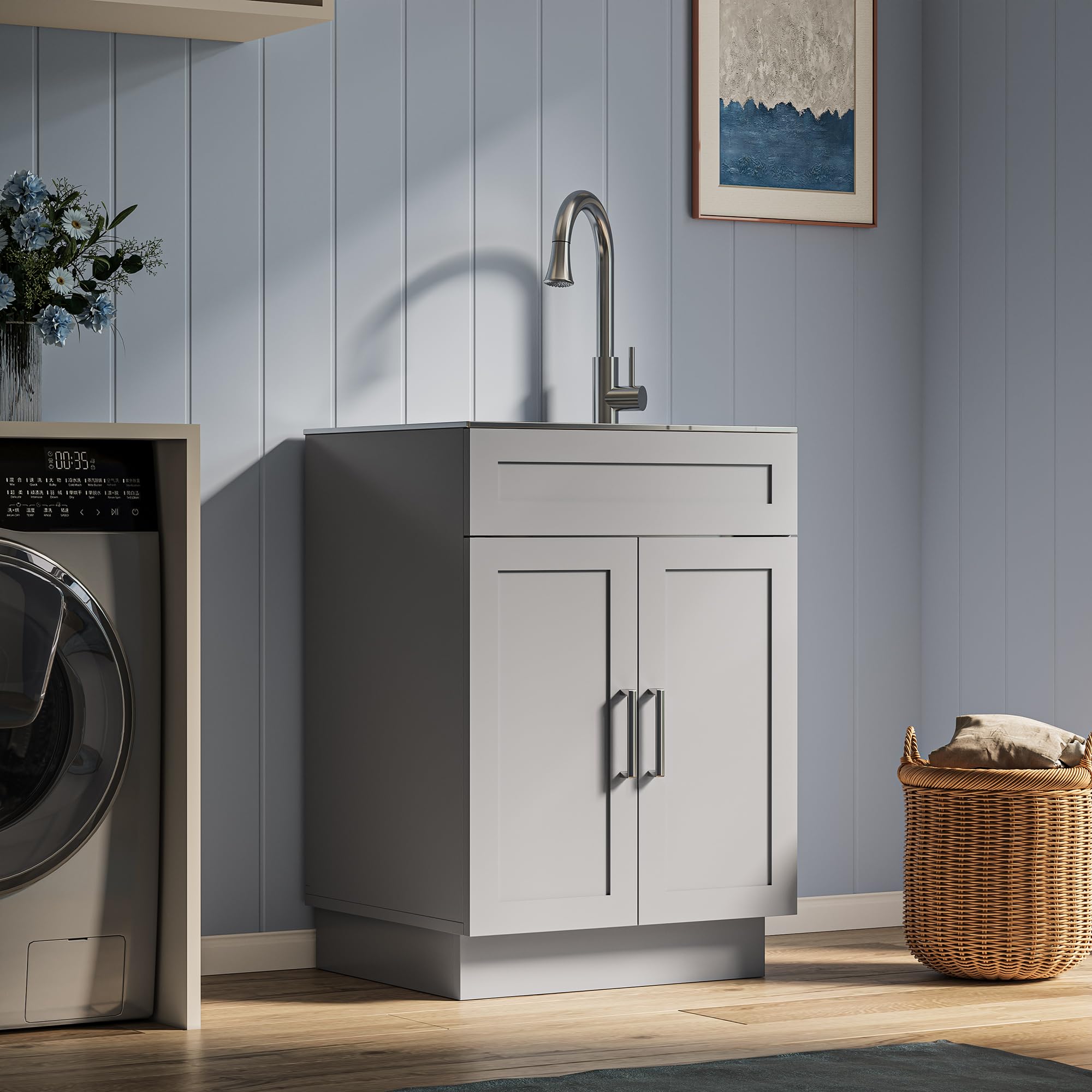

Image: ANCTOR 24-inch laundry sink cabinet with key dimensions. Overall dimensions are approximately 21.4"D x 24.1"W x 34.9"H. The sink basin measures 24.2" x 21.4" x 9.9" deep.
Video: An overview of the ANCTOR laundry sink with cabinet and pull-out hot/cold faucet, showcasing its features and design.
Included Components
- 1 x Cabinet
- 1 x Stainless Steel Sink
- 1 x User Manual
- 1 x Pull-Out Hot/Cold Faucet
- 2 x Metal Hooks
Setup and Installation
The ANCTOR laundry room utility sink is designed for straightforward assembly. Please follow the provided instructions carefully to ensure proper installation.
Cabinet Assembly
Assemble the cabinet components according to the detailed instructions included in the package. Ensure all screws and fasteners are tightened securely for stability.
Sink and Faucet Installation
Place the 304 stainless steel sink into the designated opening on the cabinet. Install the pull-out hot/cold faucet onto the sink. Connect all water lines, ensuring that connections are tight to prevent any leaks. It is recommended to use plumber's tape on threaded connections.
Image: Close-up view of the 304 stainless steel sink basin, highlighting its 9.9-inch depth and R10 rounded corners for easy cleaning.
Image: Diagram illustrating the features of the 304 stainless steel pull-out faucet, including 360-degree rotation, instant temperature adjustment, and dual water dispensing modes (stream/spray).
Water Supply Connection
The faucet is designed for connection to 1/2-inch water supply pipes. If your existing water pipe interface is 3/8-inch, a conversion joint will be required. This conversion joint is not included with the product and must be acquired separately.
Image: Illustration showing the 1/2-inch water supply pipe connection point. A note indicates that a 3/8-inch interface requires a conversion joint.
Operating Instructions
Faucet Operation
- The pull-out faucet head provides extended reach and flexibility for various washing tasks.
- Adjust water temperature by moving the single lever handle between the hot (red indicator) and cold (blue indicator) positions.
- Switch between the steady stream and powerful spray modes using the button located on the faucet head.
Cabinet Storage
The spacious two-door cabinet offers ample storage for detergents, cleaning supplies, and other household items, helping to keep your space organized. The included side metal hooks provide convenient hanging points for brushes, towels, or other tools.
Image: The cabinet with its two doors open, showcasing the internal storage space for laundry supplies. Details of smooth metal hinges and metal handles are also visible.
Image: Close-up of the dual metal utility hooks, designed to keep cleaning tools within easy reach on the side of the cabinet.
Maintenance
Sink Cleaning
The 304 stainless steel sink features R10 rounded corners, which are designed to facilitate easy cleaning. To maintain its appearance and hygiene, regularly wipe down the sink with a soft cloth and a mild, non-abrasive detergent. Rinse thoroughly after cleaning to prevent water spots or residue buildup. The basket-type drainer helps prevent clogging and can be removed for cleaning.
Image: Detail of the basket-type drainer in the sink, designed for fast draining and anti-clogging.
Cabinet Care
The cabinet is constructed from engineered wood. Clean cabinet surfaces with a damp, soft cloth. Avoid using harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.
Troubleshooting
Cabinet Door Adjustment
If the cabinet doors are not aligned correctly or do not close smoothly, you can adjust the hinges to achieve a perfect fit. The hinges allow for three-dimensional adjustment:
- Front and Back Adjustment: If there is an uneven side gap between the door and the cabinet frame, adjust the front and back position of the door. This is typically done by turning the screw located on the hinge arm. Turning clockwise or counter-clockwise will move the door closer to or further from the cabinet frame.
- Left and Right Adjustment: If the doors overlap or there is an inconsistent gap between the two doors, adjust the left and right position. This adjustment is usually made by turning the front screw depth on the hinge.
- Up and Down Adjustment: If the two doors are not aligned vertically (one door is higher or lower than the other), you can adjust the height of the door. This is achieved by loosening and then tightening the screws at the top and bottom of the hinge plate, allowing you to slide the door up or down before re-securing.
Video: Detailed instructions on how to adjust cabinet hinges for a perfect fit, covering front/back, left/right, and up/down adjustments.
Specifications
| Feature | Detail |
|---|---|
| Brand | ANCTOR |
| Model Number | HK-XST24-YN05 |
| Color | Grey |
| Cabinet Material | Engineered Wood |
| Sink Material | 304 Stainless Steel |
| Product Dimensions (D x W x H) | 21.4" x 24.1" x 34.9" |
| Sink Basin Dimensions | 24.2" x 21.4" x 9.9" (Deep) |
| Item Weight | 56.2 Pounds |
| Mounting Type | Freestanding, Floor Mount |
| Number of Shelves | 1 |
| Recommended Uses | Laundry Room, Utility Room, Kitchen, Garage |
| Required Assembly | Yes |
Warranty and Support
For detailed warranty information regarding your ANCTOR laundry sink cabinet, please refer to the documentation provided with your purchase. You may also contact ANCTOR customer service directly for support or inquiries. Additional protection plans may be available for purchase separately.
