1. Introduction
This manual provides instructions for the safe and effective operation of your HIRO SKG 1200 Hypochlorous Acid Generator. This device is designed to produce hypochlorous acid (HOCL) or sodium hypochlorite solution through the electrolysis of a sodium chloride solution. Please read this manual thoroughly before first use and retain it for future reference.
The type of solution generated depends on the pH level of the sodium chloride solution used. A pH value between 5 and 6 will produce hypochlorous acid, while a higher pH will result in sodium hypochlorite solution. The generator offers three distinct strength settings for varying application needs.
2. Safety Information
- Always use the device on a stable, flat surface.
- Keep out of reach of children and pets.
- Do not immerse the main unit in water or any other liquid.
- Ensure the power cord is not damaged and is properly connected to a suitable power outlet.
- Do not use the device if any part is damaged. Contact customer support for assistance.
- Use only recommended ingredients (water, non-iodized salt, distilled white vinegar for pH adjustment).
- Avoid direct contact with the generated solution, especially with eyes. In case of contact, rinse thoroughly with water.
- Store generated solutions in opaque, sealed containers away from direct sunlight.
3. Package Contents
Verify that all items are present in the package:
- HIRO SKG 1200 Generator Unit
- Measuring Cup
- Measuring Spoon
- pH Test Strips
- Power Cord
- User Manual (this document)
4. Product Overview
Image: Front view of the HIRO SKG 1200 generator, showing the transparent reservoir with MIN/MAX markings and control panel.

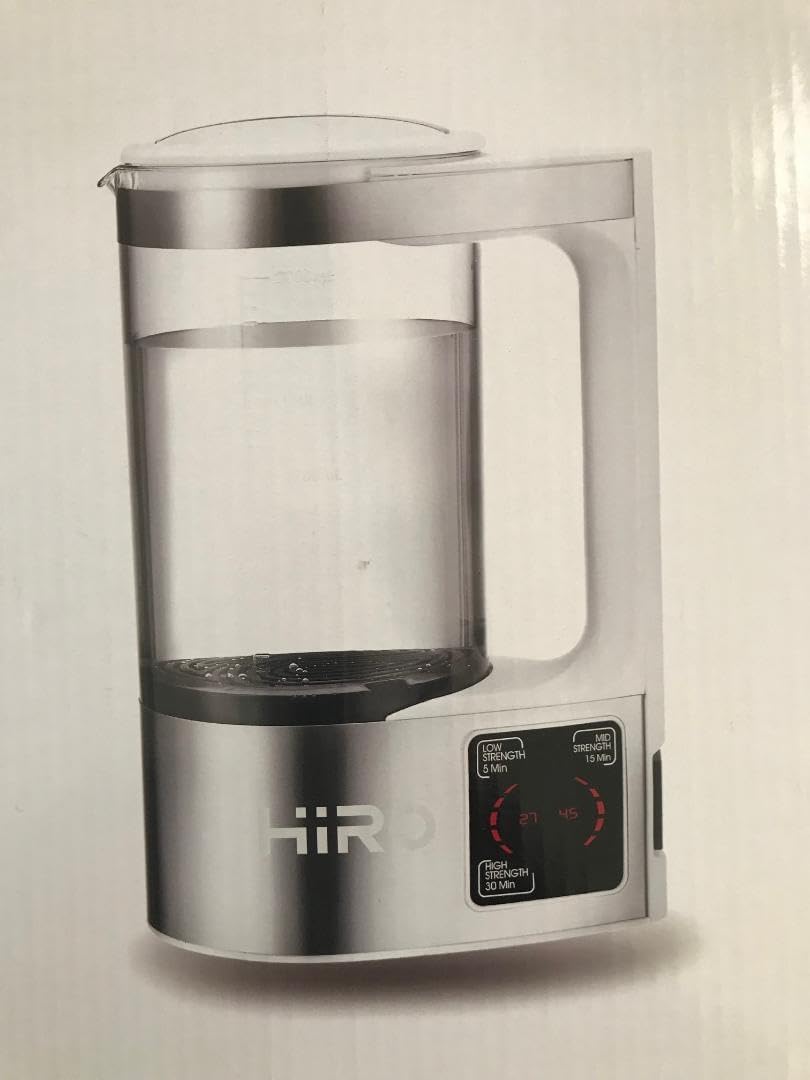

Image: Side view of the HIRO SKG 1200 generator, highlighting the handle and control panel with strength settings.
The HIRO SKG 1200 features a transparent reservoir with clear MIN and MAX fill lines, a sturdy handle for easy pouring, and a control panel with three strength settings: Low (5 minutes), Mid (10 minutes), and High (30 minutes).
5. Setup and Preparation
- Unpack: Carefully remove all components from the packaging.
- Placement: Place the generator on a clean, stable, and dry surface.
- Connect Power: Plug the power cord into the generator and then into a standard electrical outlet.
- Prepare Solution:
- Fill the generator's reservoir with clean water up to the MAX line.
- Add the appropriate amount of non-iodized salt using the provided measuring spoon. Refer to the table below for recommended salt quantities based on desired strength.
- If producing Hypochlorous Acid (HOCL), add a small amount of distilled white vinegar to adjust the pH of the solution. Use the provided pH test strips to ensure the pH is between 5 and 6. For Sodium Hypochlorite (bleach), no vinegar is typically needed, and the pH will naturally be higher.
- Stir the solution gently until the salt is dissolved.
Recommended Solution Ratios:
| Strength Setting | Water Volume | Salt Quantity | Vinegar (for HOCL) |
|---|---|---|---|
| Low (5 min) | 1 Liter | 1 Measuring Spoon | Adjust pH to 5-6 |
| Mid (10 min) | 1 Liter | 2 Measuring Spoons | Adjust pH to 5-6 |
| High (30 min) | 1 Liter | 3 Measuring Spoons | Adjust pH to 5-6 |
Note: The exact amount of vinegar needed to achieve a pH of 5-6 may vary depending on your water source. Always test with pH strips.
6. Operating Instructions
- Start Generation: After preparing the solution in the reservoir, select the desired strength setting (Low, Mid, or High) on the control panel. The device will begin the electrolysis process.
- Monitor Process: The device will operate for the selected duration (5, 10, or 30 minutes). A timer or indicator light may be present to show progress.
- Completion: Once the cycle is complete, the device will automatically shut off or indicate completion.
- Dispense Solution: Carefully pour the newly generated solution into a suitable storage container.
Video: How to Use the HIRO Sidekik Generator
Video demonstrating the process of preparing the solution and operating the HIRO Sidekik Generator. This video shows adding salt and water, then initiating the generation cycle.
Note: Generated solutions are most effective when used within a short period after creation. Store in a cool, dark place.
7. Maintenance
- Cleaning: After each use, rinse the reservoir thoroughly with clean water to remove any residue. Do not use abrasive cleaners.
- Drying: Allow all components to air dry completely before storing.
- Storage: Store the generator in a cool, dry place away from direct sunlight.
- Electrode Care: Periodically inspect the electrodes for mineral buildup. If buildup occurs, gently clean with a soft brush and a mild descaling solution (e.g., diluted vinegar), then rinse thoroughly.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | No power supply. | Check if the power cord is securely plugged into the device and the outlet. Test the outlet with another appliance. |
| No visible activity during generation. | Insufficient salt or incorrect solution. | Ensure correct salt quantity is added. Verify water level. |
| Solution pH is not as expected. | Incorrect vinegar/salt ratio or water type. | Re-check salt and vinegar measurements. Use distilled water for more consistent results. Re-test pH with strips. |
| Unusual odor or sound. | Malfunction or improper use. | Immediately unplug the device. Do not attempt to repair. Contact customer support. |
9. Specifications
- Model: SKG 1200
- Manufacturer: HIRO
- Capacity: 1 Liter (approximately 34.0 Fluid Ounces)
- Item Weight: 5 Pounds
- Package Dimensions: 15 x 10 x 7 inches
- Generation Settings: Low (5 min), Mid (10 min), High (30 min)
- Input Materials: Water, Non-iodized Salt, Distilled White Vinegar (for pH adjustment)
- Output: Hypochlorous Acid (HOCL) or Sodium Hypochlorite Solution
10. Warranty and Support
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the manufacturer's official website. Keep your proof of purchase for warranty claims.
Manufacturer: HIRO
ASIN: B0F9MRZTXJ
