1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the ClimaTek L4064R-1175 Furnace Combination Fan Limit Switch. This component is designed as an OEM upgraded replacement part for furnace systems, including those originally equipped with Honeywell parts. Please read these instructions thoroughly before proceeding with installation or service.

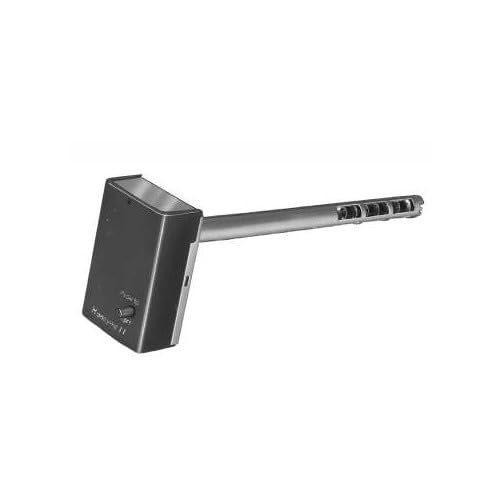

Figure 1: ClimaTek L4064R-1175 Furnace Combination Fan Limit Switch. This image displays the main unit with its rectangular control box and the extended probe, which features ventilation slots along its length.
2. Product Overview and Features
The ClimaTek L4064R-1175 is a combination fan and limit switch designed for use in furnace applications. Its primary functions are to control the furnace blower fan based on plenum temperature and to act as a high-limit safety device, preventing the furnace from overheating.
- Direct OEM replacement for part # L4064R-1175.
- Functions as both a fan control and a high-limit safety switch.
- Compatible with various furnace brands, including those originally using Honeywell components.
- Engineered for durability and reliable performance in HVAC systems.
3. Specifications
| Specification | Detail |
|---|---|
| Model Number | L4064R-1175 |
| Product Dimensions | Approximately 1 x 15 x 11 inches |
| Item Weight | Approximately 1.13 Pounds |
| Manufacturer | HYWL |
| ASIN | B0F9LGYWXB |
4. Safety Information and Installation
WARNING: Installation and servicing of heating, ventilation, and air conditioning (HVAC) equipment can be hazardous and requires specific knowledge and training. Improper installation, adjustment, alteration, service, or maintenance can cause property damage, personal injury, or loss of life. Always disconnect power to the furnace before beginning any installation or service procedures.
4.1 Pre-Installation Checks
- Verify that the replacement part, ClimaTek L4064R-1175, matches the specifications and requirements of your furnace system.
- Ensure all necessary tools are available.
- Turn off all electrical power to the furnace at the main service panel.
4.2 Installation Steps (General Guidance)
- Disconnect Power: Ensure power to the furnace is completely off.
- Access Old Switch: Locate and carefully remove the existing fan limit switch from the furnace plenum. Note its orientation and wiring connections.
- Disconnect Wiring: Label and disconnect all wires from the old switch. Take a photograph for reference if needed.
- Mount New Switch: Install the ClimaTek L4064R-1175 into the plenum opening, ensuring it is securely fastened and oriented correctly.
- Connect Wiring: Reconnect the wires to the new switch according to the labels or photograph taken earlier. Ensure all connections are tight and secure.
- Restore Power: Once installation is complete and verified, restore electrical power to the furnace.
- Test Operation: Initiate a heating cycle to confirm proper operation of the fan and limit functions.
It is highly recommended that installation be performed by a qualified HVAC technician to ensure safety and proper functionality.
5. Operating Instructions
The ClimaTek L4064R-1175 combination fan limit switch operates automatically within your furnace system. It does not require manual adjustment during normal operation. Its primary functions are:
- Fan Control: The switch monitors the temperature within the furnace plenum. When the plenum temperature rises to a set point after the burner ignites, the fan control activates the furnace blower to distribute heated air. When the temperature drops after the burner cycles off, the fan control deactivates the blower.
- High Limit Safety: This feature acts as a safety mechanism. If the plenum temperature exceeds a predetermined safe limit, the high-limit switch will shut off the furnace burner to prevent overheating and potential damage. The burner will restart once the temperature falls back within safe operating parameters.
Ensure your thermostat is set to the desired temperature for heating. The fan limit switch will manage the furnace fan operation automatically based on the internal furnace temperature.
6. Maintenance
The ClimaTek L4064R-1175 is designed for reliable, long-term operation with minimal maintenance. However, periodic checks of the overall furnace system are recommended.
- Annual Inspection: It is advisable to have your furnace system, including the fan limit switch, inspected annually by a qualified HVAC technician.
- Wiring Connections: During inspections, ensure all electrical connections to the switch are secure and free from corrosion.
- Clearance: Ensure the area around the fan limit switch probe within the plenum is clear of obstructions to allow for accurate temperature sensing.
- Cleaning: Do not attempt to clean the internal components of the switch. If dust or debris accumulates on the exterior, gently wipe it with a dry cloth after disconnecting power.
7. Troubleshooting
If your furnace is experiencing issues related to fan operation or overheating, the fan limit switch may be a factor. Always ensure power is disconnected before inspecting components.
- Fan Not Turning On: Check if the furnace is heating. If the burner is on but the fan is not, the fan control portion of the switch might be faulty, or there could be a wiring issue.
- Fan Not Turning Off: If the fan runs continuously even when the furnace is not heating, the fan control might be stuck in the 'on' position, or the temperature sensor may be malfunctioning.
- Furnace Overheating / Cycling Off: If the furnace frequently shuts down due to overheating, the high-limit safety portion of the switch may be activating. This could indicate a faulty switch, restricted airflow (e.g., dirty filter, blocked vents), or an issue with the burner.
- No Heat: If the furnace does not ignite or produce heat, and the fan limit switch is suspected, it could be preventing the burner from operating due to a perceived overheating condition or a fault within the switch itself.
For any persistent issues, it is strongly recommended to contact a certified HVAC technician for diagnosis and repair. Do not attempt complex repairs if you are not qualified.
8. Warranty and Support
For information regarding the warranty period, terms, and conditions for your ClimaTek L4064R-1175 Furnace Combination Fan Limit Switch, please refer to the product packaging or contact the seller or manufacturer directly. Keep your proof of purchase for warranty claims.
For technical support or assistance with product-related inquiries, please reach out to the ClimaTek customer service department or your authorized dealer.
