Aairsk SU7 Electric Bike User Manual
Model: SU7 24" White
1. Introduction
Welcome to the Aairsk SU7 Electric Bike user manual. This guide provides essential information for the safe and efficient operation, assembly, and maintenance of your new electric bicycle. The Aairsk SU7 is designed for adults and teens, offering a powerful 748W peak motor, a top speed of 23 MPH, and a range of up to 40 miles with its 468Wh removable battery. It features a 7-speed transmission and is ideal for city commuting, exercise, and outdoor exploration.

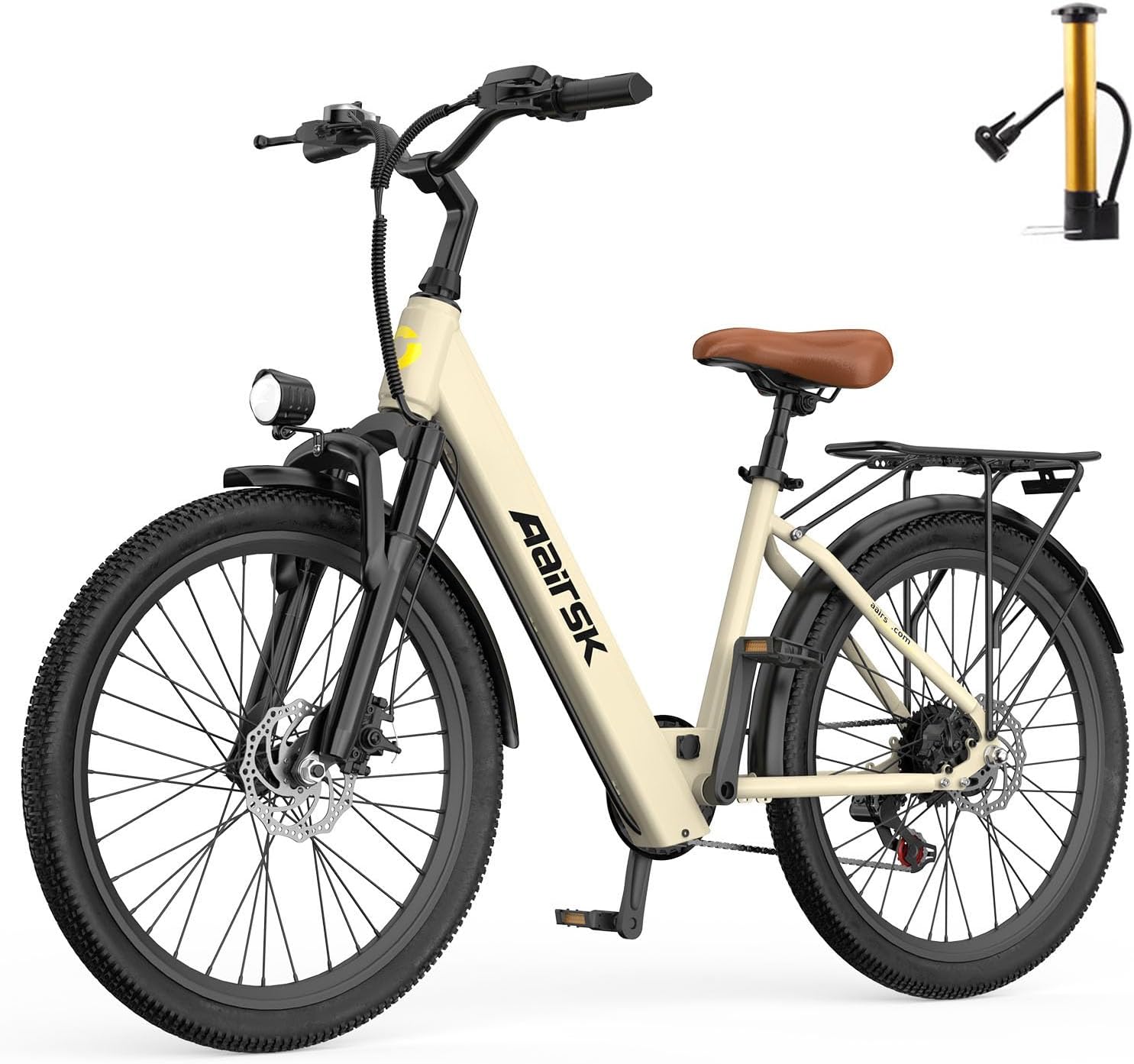

Figure 1.1: Aairsk SU7 Electric Bike, showcasing its design and included pump.
2. Safety Information
Your safety is paramount. Please read and understand all safety warnings and instructions before operating the Aairsk SU7 Electric Bike. Always wear a helmet and appropriate safety gear. Ensure all components are properly installed and secured before each ride.
2.1 General Safety Guidelines
- Always wear a certified helmet.
- Obey all local traffic laws and regulations.
- Perform a pre-ride inspection: check tire pressure, brake function, and battery level.
- Do not ride under the influence of alcohol or drugs.
- Be aware of your surroundings and potential hazards.
- Ensure the headlight and taillight are functional, especially when riding in low light conditions.
2.2 Braking System
The Aairsk SU7 is equipped with dual disc brakes for precise and instant braking. Regularly check the brake pads and rotors for wear and tear. Ensure brake levers are easily accessible and provide firm, responsive braking.
3. Components and Features
Familiarize yourself with the key components of your Aairsk SU7 Electric Bike:
- Motor: 750W peak brushless motor, capable of climbing 20° slopes.
- Battery: 36V 13Ah (468Wh) removable Li-ion battery with BMS system.
- Display: Multi-function LCD display for tracking speed, mileage, battery, and PAS level.
- Gears: Professional 7-speed transmission system.
- Tires: 24"x1.95" inch tires.
- Suspension: Lockable front suspension.
- Brakes: Dual disc brakes.
- Accessories: Headlight, Taillight, Sturdy Rear Rack, Kickstand, Mudguard, Reflectors.
Figure 3.1: The 36V 468WH Li-ion removable battery, offering long range.

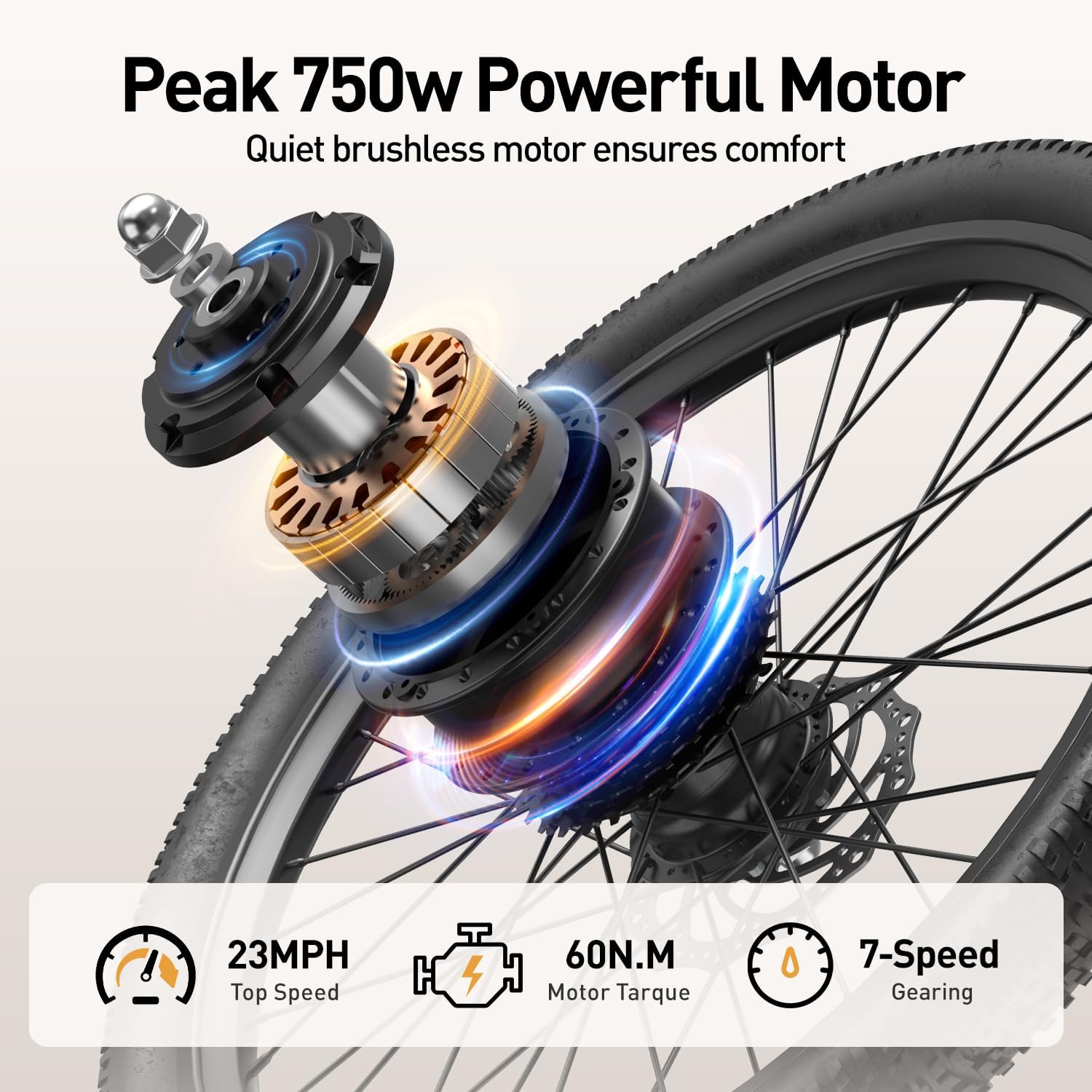

Figure 3.2: Detailed view of the Peak 750W Powerful Motor.
Figure 3.3: Key comfort and safety features including the bright headlight, strong taillight, and comfortable, height-adjustable seat.
4. Setup and Assembly
The Aairsk SU7 Electric Bike comes 90% pre-assembled, simplifying the setup process. Basic assembly typically involves attaching the front wheel, handlebars, pedals, and seat. A detailed installation video is usually available on the product page to guide you through the final steps.
4.1 Included Components for Assembly
- Aairsk SU7 Electric Bike (partially assembled)
- Charger for battery
- Tool Kit
- Cargo Rack
- Kickstand
- Mudguard
- Reflectors
Ensure all components are present and undamaged before beginning assembly. Refer to the installation video for step-by-step instructions.
5. Operating Instructions
The Aairsk SU7 offers a versatile riding experience with multiple modes and an intuitive control interface.
5.1 Riding Modes
Choose from three distinct riding modes:
- Electric-Only Mode (Pure Electric): Provides power solely from the motor, with speeds ranging from 18-23 MPH.
- Pedal Assist Mode (PAS): The motor provides assistance as you pedal. There are 5 speed levels (10 mph, 13 mph, 16 mph, 20 mph, 23 mph) in this mode, offering a range of 25-40 miles.
- Manual Pedal Mode: Ride the bike like a traditional bicycle without motor assistance.
5.2 Multi-function LCD Display
The LCD display provides real-time riding data and allows for setting adjustments:
- Current Speed: Displays your instantaneous speed.
- Total Ride Mileage: Tracks the total distance traveled.
- Battery Power: Shows the remaining battery charge.
- PAS Level: Indicates the current pedal assist level (1-5).
Figure 5.1: Easy-to-operate interface with LCD display, brake levers, and 7-speed shifter.
5.3 Gear Shifting
The professional 7-speed transmission allows you to easily shift gears to adapt to various terrains and riding conditions, ensuring a smooth and controllable ride.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Aairsk SU7 Electric Bike.
6.1 Battery Care
- Charging: Fully charge the battery in 5-6 hours using the provided charger.
- Storage: If storing the bike for extended periods, charge the battery to 50-70% and store it in a cool, dry place. Recharge every 2-3 months.
- Safety: Do not expose the battery to extreme temperatures or direct sunlight.
6.2 General Maintenance
- Tires: Regularly check tire pressure and inflate to the recommended PSI (usually indicated on the tire sidewall).
- Brakes: Inspect brake pads for wear and ensure proper brake lever function. Adjust as needed.
- Chain: Keep the chain clean and lubricated to ensure smooth gear changes and prevent rust.
- Fasteners: Periodically check all bolts and nuts for tightness, especially on the handlebars, seat post, and wheels.
- Cleaning: Clean the bike with a damp cloth and mild soap. Avoid high-pressure washing directly on electrical components.
7. Troubleshooting
This section addresses common issues you might encounter with your Aairsk SU7 Electric Bike.
7.1 Common Issues and Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike not powering on | Battery not charged or not properly seated; power cable loose. | Ensure battery is fully charged and securely inserted. Check all cable connections. |
| Motor not assisting | PAS level set to 0; brake levers engaged; motor connection loose. | Increase PAS level on the display. Release brake levers. Check motor cable connection. |
| Brakes feel weak | Worn brake pads; loose brake cable; air in hydraulic system (if applicable). | Inspect and replace brake pads if worn. Adjust brake cable tension. For hydraulic brakes, professional service may be required. |
| Gears not shifting smoothly | Derailleur out of adjustment; dirty or dry chain. | Clean and lubricate the chain. Adjust derailleur limits and cable tension. |
For any persistent issues or complex problems, please refer to the warranty and support section for contact information. It is recommended to send an email with video or pictures to assist in diagnosis.
8. Specifications
Detailed technical specifications for the Aairsk SU7 Electric Bike:
- Model Number: 2025
- Age Range: 14+
- Bike Type: Commuting Bike, Electric Bike
- Brake Type: Disc
- Colour: White
- Size: 24-inch Tire
- Frame Size: Standard
- Material: Carbon Steel
- Number of Speeds: 7
- Power Source: Electric motor
- Wattage: 400 watts (rated)
- Special Features: Adjustable Handlebars, Dual Disc Brake, Fenders, Multi-Speed
- Usage: Commuting, Trail, Touring
- Suspension: Front
- Wheel Size: 24 Inches
- Included Components: Cargo Rack, Kickstand, Mudguard, Reflectors, Tool Kit
- Load Capacity: 264 lbs (Sturdy Rear Rack)
9. Warranty and Support
Aairsk provides comprehensive support for your SU7 Electric Bike.
9.1 Warranty Information
The Aairsk SU7 Electric Bike comes with a 60-Months (5 Years) manufacturer warranty. This warranty covers free replacement parts for manufacturing defects. Please retain your original packaging for at least one month in case of a return.
9.2 Technical Support
Lifetime technical support is provided, including fault diagnosis. If you encounter any issues with your bike, please contact us via email with a video or picture detailing the problem.
Contact Email: foreversanmi@163.com
