Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Rivetec MR2442-LUU Bicycle Bottom Bracket Bearing. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.
The MR2442-LUU bearing is designed for bicycle bottom bracket applications, offering reliable rotation with its ABEC-3 precision grade and durable alloy steel construction. Its dimensions are 24mm inner diameter, 42mm outer diameter, and 7mm width, featuring a grooved inner ring for secure fitting.
Product Overview

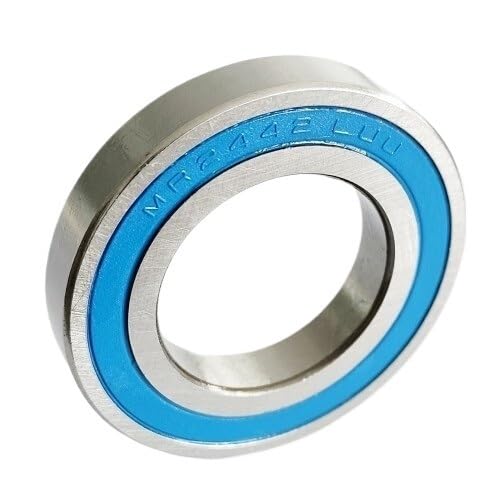

Figure 1: Front view of the Rivetec MR2442-LUU bearing, showing the blue seal and model number inscription.

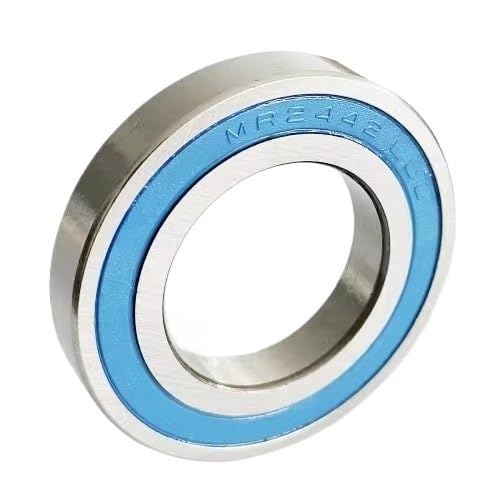

Figure 2: Angled view of the Rivetec MR2442-LUU bearing, highlighting its compact design and precision finish.
Key Features:
- Dimensions: 24mm Inner Diameter (ID), 42mm Outer Diameter (OD), 7mm Width.
- Application: Specifically designed for bicycle bottom bracket systems.
- Precision Grade: ABEC-3 for stable and reliable operation.
- Construction: Durable alloy steel with a grooved inner ring for secure fitting.
- Packaging: Supplied as a single piece per order.
Setup and Installation
Proper installation is crucial for the performance and lifespan of the bearing. It is recommended that installation be performed by a qualified bicycle mechanic.
- Preparation: Ensure the bottom bracket shell is clean, free of debris, and properly faced. Apply a thin layer of appropriate grease to the bearing seats.
- Bearing Orientation: Note the orientation of the bearing. The side with the model number inscription (MR2442-LUU) typically faces outwards or as per your specific bottom bracket system's requirements.
- Pressing the Bearing: Use a dedicated bearing press tool to gently and evenly press the bearing into the bottom bracket shell. Do not use a hammer or apply force directly to the inner race or seals, as this can damage the bearing.
- Verification: Once installed, ensure the bearing sits flush and rotates smoothly without any binding or excessive play.
Caution: Incorrect installation can lead to premature bearing failure and potential damage to your bicycle components.
Operating Guidelines
The Rivetec MR2442-LUU bearing is designed for maintenance-free operation under normal cycling conditions. Once installed, no specific operational steps are required beyond regular cycling use.
- Normal Use: The bearing is designed to withstand typical cycling loads and environmental conditions.
- Avoid Extreme Conditions: While durable, prolonged exposure to extreme water immersion, excessive dirt, or high-pressure washing directly on the seals should be minimized to preserve bearing life.
Maintenance
The MR2442-LUU bearing features sealed races, minimizing the need for frequent maintenance. However, periodic inspection is recommended.
- Regular Inspection: Periodically check the bottom bracket for any signs of play, grinding noises, or resistance during pedal rotation.
- Cleaning: Keep the area around the bottom bracket clean. Wipe away any accumulated dirt or grime from the exterior of the bearing seals.
- Lubrication: The bearing is pre-lubricated and sealed. Do not attempt to open or re-lubricate the bearing, as this can compromise the seals and introduce contaminants.
- Replacement: If the bearing exhibits significant play, roughness, or noise, it indicates wear and should be replaced.
Troubleshooting
This section addresses common issues that may arise with bicycle bottom bracket bearings.
| Symptom | Possible Cause | Solution |
|---|---|---|
| Creaking or Clicking Noise | Loose bottom bracket cups, contaminated bearing, worn bearing, improper installation. | Check bottom bracket cup tightness. Inspect bearing for contamination or wear. Re-install if necessary, ensuring proper torque and cleanliness. |
| Roughness or Grinding Sensation | Contaminated bearing, worn bearing races or balls. | This indicates internal damage. The bearing should be replaced. |
| Excessive Play in Crankset | Worn bearing, loose crank arm bolts, incorrect spacers. | Check crank arm bolt tightness. Verify correct spacer configuration. If play persists, replace the bearing. |
If issues persist after troubleshooting, consult a professional bicycle mechanic.
Specifications
| Attribute | Value |
|---|---|
| Model Number | MR2442-LUU |
| Brand | Rivetec |
| Inner Diameter (ID) | 24 mm |
| Outer Diameter (OD) | 42 mm |
| Width / Thickness | 7 mm |
| Precision Grade | ABEC-3 |
| Material | Alloy Steel |
| UPC | 760689489359 |
| Manufacturer | Jieshuang |
Warranty and Support
For warranty information and customer support, please refer to the retailer or manufacturer's official website. Keep your proof of purchase for any warranty claims.
Manufacturer: Jieshuang
Brand: Rivetec
Model: MR2442-LUU
For further assistance, please contact your point of purchase or the manufacturer directly.
