Introduction

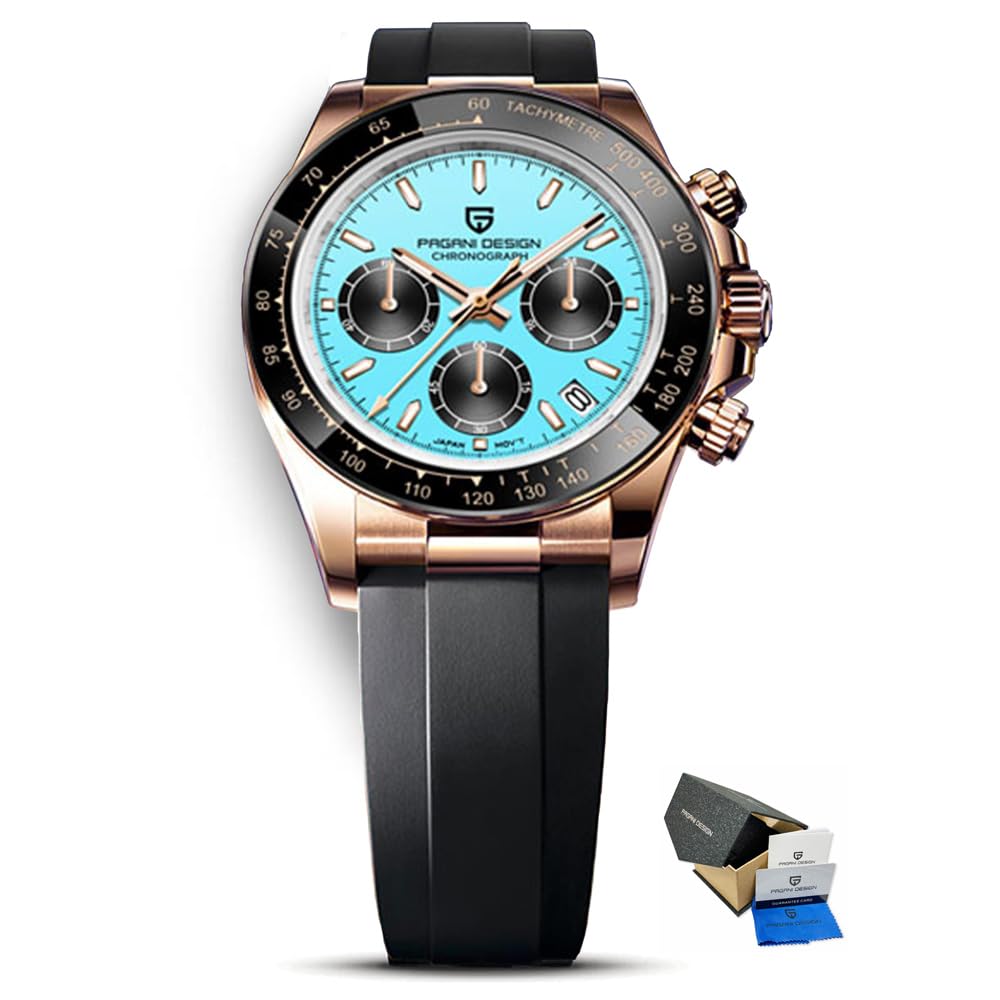

Welcome to your new Pagani Design PD1644 Chronograph Quartz Watch. This timepiece combines precision engineering with durable materials, featuring a reliable VK63 quartz movement, sapphire crystal, and 100-meter water resistance. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your watch.
Setup
Setting the Time
- Pull the crown out to the second click position.
- Turn the crown to set the hour and minute hands.
- Push the crown back to the normal position.
Setting the Date
- Pull the crown out to the first click position.
- Turn the crown clockwise or counter-clockwise to set the date.
- Avoid setting the date between 9 PM and 3 AM, as this can interfere with the date change mechanism. If the date needs to be set during this period, first set the time outside this range, adjust the date, then reset the time.
- Push the crown back to the normal position.
Operating the Chronograph
The PD1644 features a VK63 quartz chronograph movement, allowing for precise time measurement.
Chronograph Functions:
- Start/Stop Button (A): Press the top pusher (A) to start the chronograph. Press it again to stop the chronograph.
- Reset Button (B): With the chronograph stopped, press the bottom pusher (B) to reset all chronograph hands to their zero positions.
Chronograph Hand Adjustment (if hands do not reset to zero):
- Pull the crown out to the second click position.
- Press button A to adjust the 1/5 second chronograph hand.
- Press button B to adjust the chronograph minute hand.
- Once adjusted, push the crown back to the normal position.
Water Resistance
The Pagani Design PD1644 watch is water-resistant up to 100 meters (10 ATM). This makes it suitable for daily use, showering, swimming, and snorkeling. It is not suitable for diving.
Important: Do not operate the crown or pushers when the watch is wet or submerged in water. Ensure the crown is fully pushed in before exposing the watch to water.
Maintenance
Cleaning:
- Wipe the watch case and strap regularly with a soft, dry cloth. For water-resistant models, a slightly damp cloth can be used, followed by a dry cloth.
- Avoid using chemical cleaners, as they can damage the watch's finish and seals.
Battery Replacement:
- This watch is powered by a quartz movement. When the battery runs low, the second hand may start skipping seconds (End-of-Life indicator).
- Battery replacement should be performed by a qualified watch technician to ensure proper sealing and water resistance.
Storage:
- When not wearing the watch for extended periods, store it in a cool, dry place, away from direct sunlight and strong magnetic fields.
Troubleshooting
Watch Not Running:
- Check if the crown is fully pushed in. If it is pulled out, the watch will not run.
- The battery may need replacement. Consult a professional watch technician.
Chronograph Hands Not Resetting to Zero:
- Follow the "Chronograph Hand Adjustment" steps in the Operating section.
Date Not Changing:
- Ensure the time is set correctly, especially the AM/PM cycle. The date changes around midnight.
- Avoid setting the date between 9 PM and 3 AM.
Specifications
The following are the general specifications for the Pagani Design PD1644 watch:
- Model Number: PD-1644
- Movement: Japanese VK63 Quartz Chronograph
- Case Material: 316L Stainless Steel
- Dial Window Material: Sapphire Crystal
- Case Diameter: 40 mm
- Case Thickness: 12 mm
- Band Width: 20 mm
- Band Length: 220 mm
- Water Resistance: 100 Meters (10 ATM)
- Weight: Approximately 110 Grams
- Special Features: Chronograph, Luminous Hands
Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your purchase or contact your retailer. The manufacturer, RollsTimi, provides support for this product.
Return Policy: This product may be eligible for returns within 7 days of purchase, subject to the retailer's return policy.
