Walsunny Floor Storage Cabinet SHX6030 User Manual

1. Introduction

Thank you for choosing the Walsunny Floor Storage Cabinet. This manual provides essential information for the safe assembly, operation, and maintenance of your new storage unit. Please read these instructions carefully before beginning assembly and retain them for future reference.

This cabinet is designed to provide versatile storage solutions for various rooms, including bathrooms, living rooms, kitchens, and entryways. It features two drawers, an open compartment, and a bottom cabinet with doors, along with an adjustable shelf.

Figure 1: Assembled Walsunny Floor Storage Cabinet in Grey.

Figure 2: Walsunny Storage Cabinets in various room settings.

2. Safety Information

• Read all instructions: Ensure you understand all assembly steps before proceeding.
• Adult assembly required: This product should be assembled by adults.
• Use on a level surface: Assemble the cabinet on a clean, flat, and stable surface to prevent damage.
• Do not overtighten screws: Overtightening can strip screws or crack panels.
• Keep small parts away from children: Small components can be a choking hazard.
• Secure to wall (recommended): For added stability and safety, especially in homes with children or pets, consider securing the cabinet to a wall using appropriate hardware (not always included).
• Weight limits: Do not exceed the recommended weight limits for shelves and drawers (35 lbs per shelf).
• Handle with care: Once assembled, move the cabinet carefully, especially if loaded, to prevent structural damage.

3. Package Contents

Before assembly, verify that all parts and hardware are present. Refer to the included parts list in your packaging. If any parts are missing or damaged, contact customer support.

4. Assembly Instructions

Follow these steps carefully for proper assembly. It is recommended to have two people for assembly.

4.1. Prepare for Assembly

• Clear a spacious, clean, and level area for assembly.
• Unpack all components and hardware. Organize them by type and label.
• Identify all parts using the provided parts list.
• Gather necessary tools (e.g., screwdriver, hammer - usually not included).

4.2. Step-by-Step Assembly

1. Assemble the Base: Attach the side panels to the bottom panel using the designated hardware. Ensure all connections are secure.
2. Install Back Panel: Slide or fasten the back panel into the grooves or attach it to the rear of the cabinet structure.
3. Construct the Upper Section: Attach the top panel and any internal dividers for the open compartment.
4. Assemble Drawers: Follow the specific instructions for drawer assembly, ensuring the metal stoppers are correctly installed to prevent drawers from falling out.
5. Install Drawers: Insert the assembled drawers into their respective slots.
6. Attach Doors: Mount the cabinet doors to the lower section using the provided hinges. Adjust hinges as needed for proper alignment.
7. Insert Adjustable Shelf: Place the adjustable shelf into the desired height within the lower cabinet. The shelf can be adjusted to 5 different heights.
8. Final Checks: Ensure all screws are tightened, and the cabinet is stable.

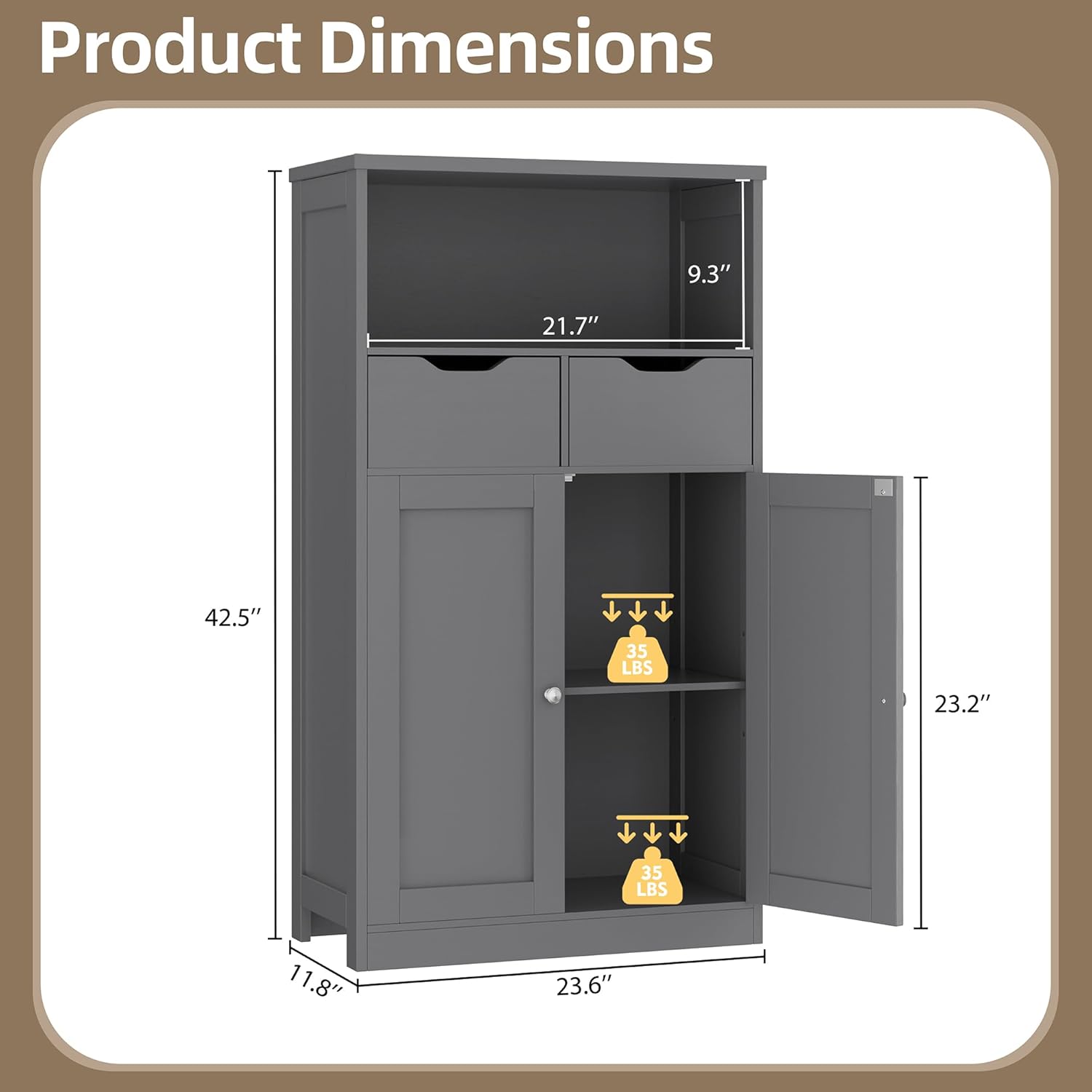

Figure 3: Product Dimensions and Shelf Weight Capacity.

Figure 4: Adjustable Shelf Feature.

5. Operating Instructions

5.1. Using the Drawers

The two drawers are designed for smooth operation. Pull the integrated handle to open and push to close. Each drawer is equipped with metal stoppers to prevent accidental removal.

5.2. Using the Cabinet Doors

The lower cabinet features two doors. Use the knobs to open and close them. Ensure doors are fully closed to protect contents from dust and maintain a tidy appearance.

5.3. Adjusting the Shelf

The internal shelf in the lower cabinet can be adjusted to 5 different height positions. To adjust, remove all items from the shelf, lift the shelf, and reposition the shelf pins into the desired holes on the cabinet sides. Then, place the shelf back onto the pins.

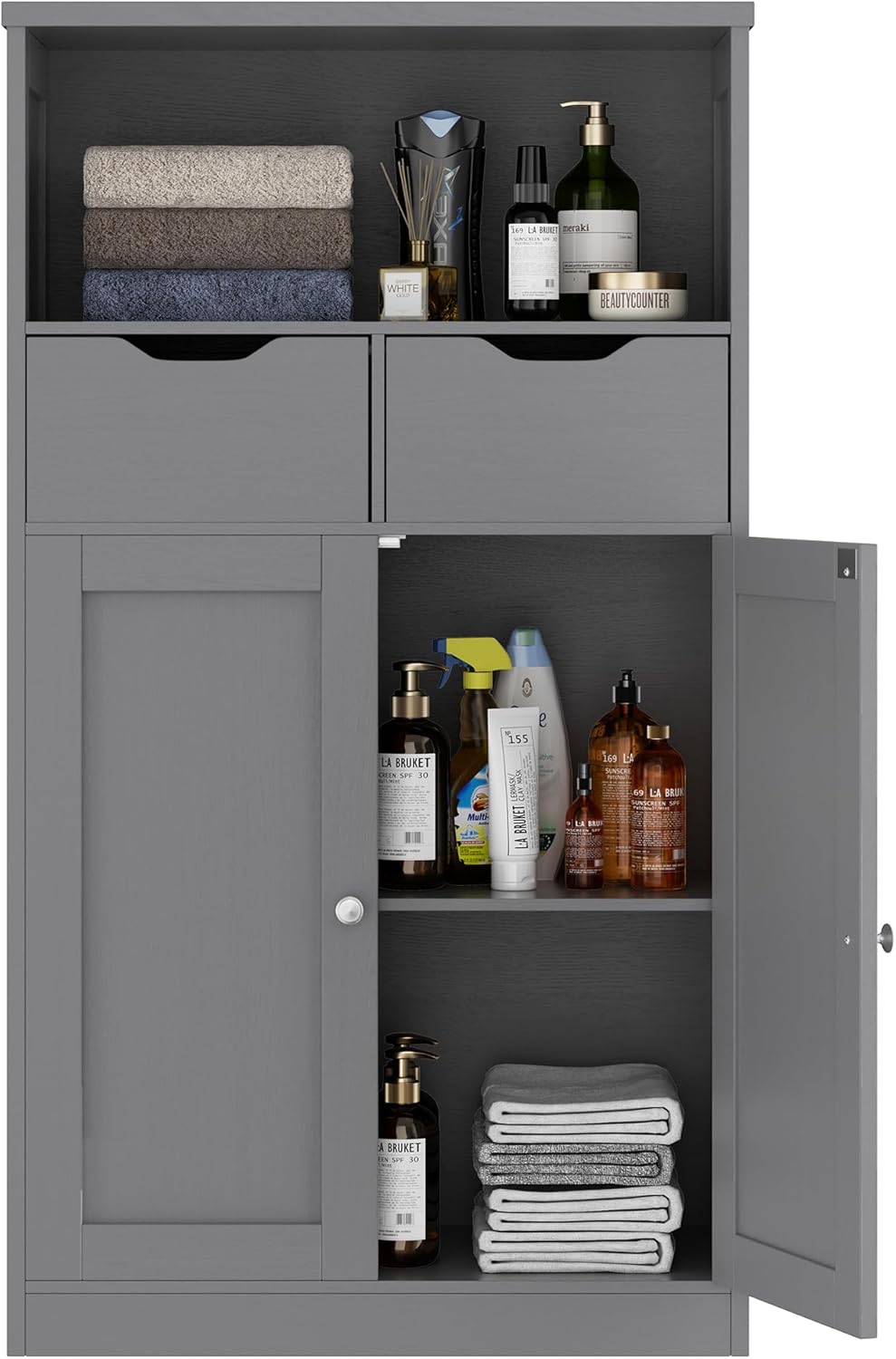

Figure 5: Cabinet in a Bathroom Setting, demonstrating storage capacity.

Figure 6: Cabinet in a Laundry Room Setting, demonstrating versatility.

6. Maintenance

6.1. Cleaning

• Wipe surfaces with a soft, damp cloth.
• Avoid using harsh chemicals, abrasive cleaners, or polishes, as these can damage the painted surface.
• For spills, wipe immediately to prevent staining or moisture damage. The cabinet features a waterproof coating for easier cleaning.

6.2. General Care

• Periodically check all hardware connections and tighten if necessary.
• Avoid placing excessively hot or cold items directly on the cabinet surface without protection.
• Do not overload shelves or drawers beyond their stated weight capacity (35 lbs per shelf).
• Keep the cabinet away from direct sunlight and extreme temperature changes to prevent material degradation.

7. Troubleshooting

8. Specifications

• Brand: Walsunny
• Model Name: CABINET6030
• Item Model Number: SHX6030
• Color: Grey
• Product Dimensions: 23.6"D x 11.8"W x 42.5"H
• Item Weight: 40.3 Pounds
• Mounting Type: Floor Mount
• Special Feature: Adjustable Shelf (5 height options)
• Included Components: Modern Storage Cabinet with Drawer and Adjustable Shelf
• Assembly Required: Yes
• UPC: 850072837376

Figure 7: Key Features and Dimensions Overview.

Figure 8: Available Color Options.

9. Warranty and Customer Support

9.1. Warranty Information

Walsunny products are manufactured with quality and durability in mind. For specific warranty details regarding your Floor Storage Cabinet, please refer to the warranty card included with your purchase or visit the official Walsunny website. Keep your proof of purchase for warranty claims.

9.2. Customer Support

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Walsunny customer support. Contact information can typically be found on the product packaging, the official Walsunny website, or through your retailer's support channels.

For online support, you may visit the Walsunny Store on Amazon.
