1. Introduction
Thank you for choosing the MZB 13 Gallon Ultra Quiet Air Compressor. This manual provides essential information for the safe operation, maintenance, and troubleshooting of your new air compressor. Please read it thoroughly before use and retain it for future reference.
This air compressor is designed for various applications including tire inflation, pneumatic tool operation, and spray painting, offering a maximum pressure of 115 PSI and an ultra-quiet operation at 72 dB.

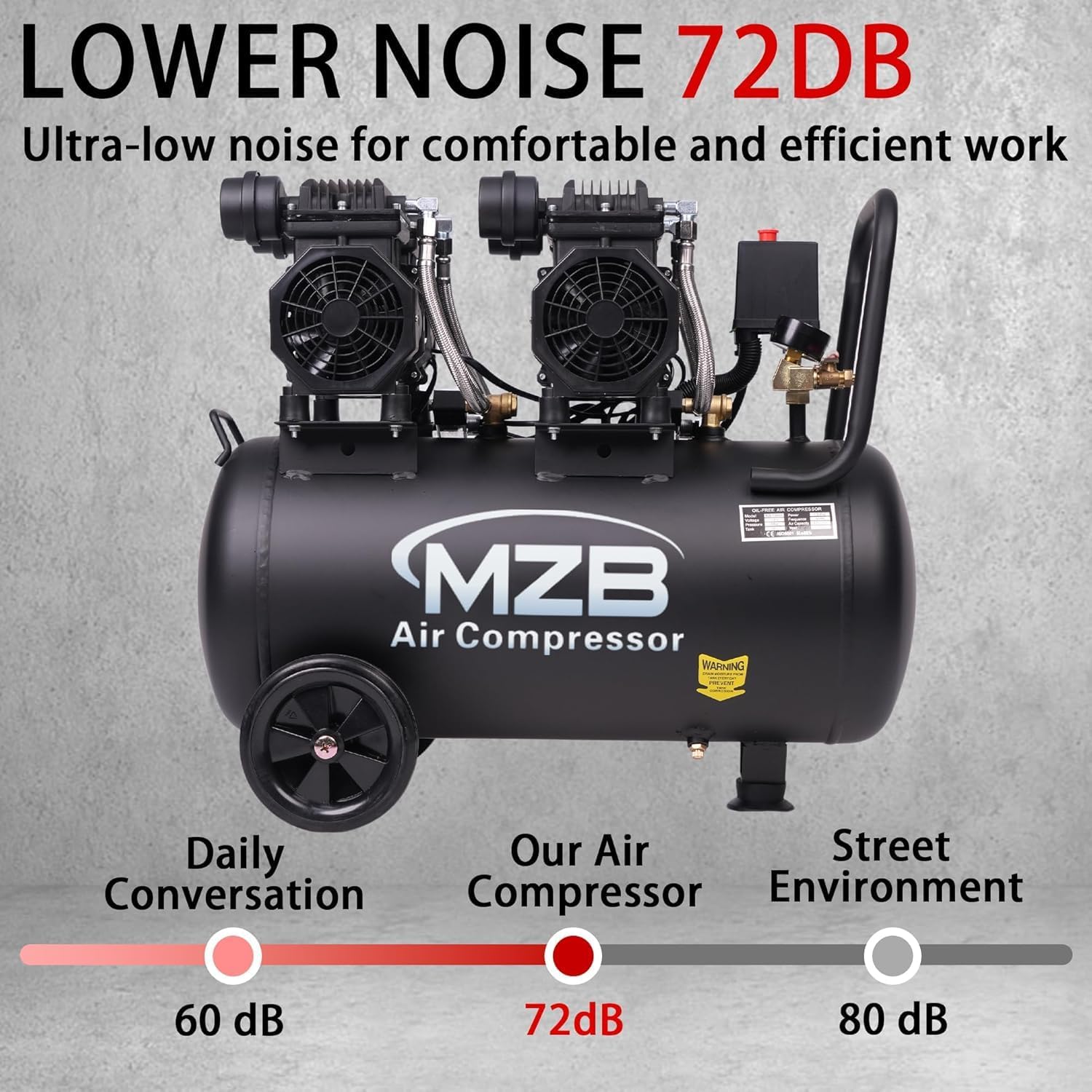

Figure 1: MZB 13 Gallon Ultra Quiet Air Compressor, showing its main components including the tank, motor, wheels, and handle.
2. Important Safety Instructions
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury. Read all instructions before using this product.
General Safety Warnings:
- Electrical Safety: Ensure the compressor is connected to a grounded 110V, 20-amp circuit. Do not use extension cords unless absolutely necessary and ensure they are rated for the compressor's power requirements.
- Personal Safety: Always wear appropriate personal protective equipment (PPE) such as safety glasses or goggles, hearing protection, and gloves.
- Operating Environment: Use the compressor in a well-ventilated area. Keep children and bystanders away from the operating area. Do not operate in damp or wet conditions.
- Pressure Safety: Never exceed the maximum operating pressure of 115 PSI. Do not attempt to modify the pressure switch or safety valve.
- Maintenance: Disconnect power before performing any maintenance or adjustments.
- Hot Surfaces: The compressor motor and pump can become hot during operation. Avoid contact with these surfaces.
- Air Tank: Do not weld or modify the air tank. Regularly drain moisture from the tank to prevent corrosion.
3. Package Contents
Verify that all items are present upon unpacking:
- 1 x MZB Air Compressor Unit
- 1 x User Manual (this document)
- 1 x Accessory Bag (may contain wheels, foot pads, air filters, and mounting hardware)
Figure 2: The MZB Air Compressor featuring its 2.2KW oil-free power motor, designed for low maintenance.
4. Setup and Assembly
Follow these steps for initial setup:
- Attach Wheels: Securely attach the wheels to the compressor frame using the provided hardware.
- Install Foot Pads: Mount the rubber foot pads to the opposite end of the compressor tank to ensure stability.
- Install Air Filters: Screw the intake air filters/mufflers into the designated ports on the compressor pump heads.
- Positioning: Place the compressor on a flat, stable surface in a well-ventilated area. Ensure there is adequate space around the unit for air circulation.
- Electrical Connection: Connect the power cord to a dedicated 110V, 20-amp grounded electrical outlet.
Figure 3: The MZB Air Compressor highlighting its heavy-duty mobility features, including sturdy wheels and a robust handle for easy transport.
5. Operating Instructions
5.1 Initial Start-Up
- Ensure the drain valve at the bottom of the tank is closed.
- Turn the pressure switch to the "ON" position. The compressor will begin to fill the tank.
- Allow the compressor to reach its maximum pressure (115 PSI) and shut off automatically. This confirms proper operation of the pressure switch.
- Check for any air leaks by listening for hissing sounds or using a soapy water solution on connections.
5.2 Connecting Air Tools
- Attach your air hose to the quick-connect coupler on the compressor.
- Connect your pneumatic tool to the other end of the air hose.
- Adjust the output pressure using the regulator knob to the recommended PSI for your specific tool. The gauge will display the regulated output pressure.
5.3 Shutting Down
- Turn the pressure switch to the "OFF" position.
- Disconnect the air hose and tools.
- Slowly open the drain valve at the bottom of the tank to release any condensed moisture and residual air pressure. Close the drain valve after the tank is empty.
Figure 4: Close-up view of the MZB Air Compressor's control panel, including adjustable pressure regulator, safety valve, and pressure switch for secure operation.
Figure 5: Examples of wide applications for the MZB Air Compressor, demonstrating its versatility for home and commercial needs such as home decoration, woodworking spraying, pneumatic tools, and tire inflation.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your air compressor.
- Drain Air Tank: Daily or after each use, open the drain valve at the bottom of the tank to release accumulated moisture. This prevents rust and extends tank life.
- Clean Air Filters: Periodically inspect and clean or replace the air intake filters. Dirty filters can reduce compressor efficiency.
- Check for Leaks: Regularly inspect all hoses, fittings, and connections for air leaks. Tighten any loose connections.
- Oil-Free Pump: This compressor features an oil-free pump, eliminating the need for oil changes.
- General Cleaning: Keep the exterior of the compressor clean and free of dust and debris.
Figure 6: Diagram illustrating the 13.2 gallon tank capacity and internal air flow, emphasizing efficient and durable design for quick inflation.
7. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Compressor does not start or trips circuit breaker. |
|
|
| Air leaks. |
|
|
| Compressor runs continuously. |
|
|
8. Product Specifications
| Feature | Detail |
|---|---|
| Brand | MZB AIR COMPRESSOR |
| Model Name | Air Compressor (MZB-1100H-50-01) |
| Tank Volume | 13.2 Gallons (50 Liters) |
| Maximum Operating Pressure | 115 PSI (8 bar) |
| Motor Horsepower | 3 HP |
| Wattage | 2.2 KW |
| Voltage | 110 Volts |
| Frequency | 60 Hz |
| Noise Level | 72 dB |
| Air Flow Capacity (Exhaust Volume) | 14.83 CFM (400 L/min) |
| Power Source | Corded Electric |
| Special Feature | Automatic Shut-Off, Oil-Free |
| Product Dimensions | 24"L x 13"W x 26"H |
| Item Weight | 72 Pounds |
| Material | Metal (Steel Tanks) |
| Recommended Uses | Auto Repair, Carpentry Decoration, Tire Inflation, Spraying, Nailing |
Figure 7: Visual representation of the MZB Air Compressor's key product specifications, including input voltage, frequency, power, tank capacity, working pressure, exhaust volume, rotation speed, air intake timing, and noise level.
9. Warranty and Support
Specific warranty details are typically provided with your purchase documentation. Please refer to the warranty card or contact the manufacturer directly for information regarding warranty coverage and terms.
For technical assistance, parts, or service inquiries, please contact MZB AIR COMPRESSOR customer support through their official channels or the retailer where the product was purchased.
Visit the official MZB AIR COMPRESSOR Store for more information: MZB AIR COMPRESSOR Store
