KEIKI Twin Sized Loft Metal Bed with Desk and Stairs (Model KY00121) Instruction Manual

1. Introduction

Thank you for choosing the KEIKI Twin Sized Loft Metal Bed with Desk and Stairs. This manual provides detailed instructions for safe assembly, operation, maintenance, and troubleshooting to ensure optimal use and longevity of your product. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

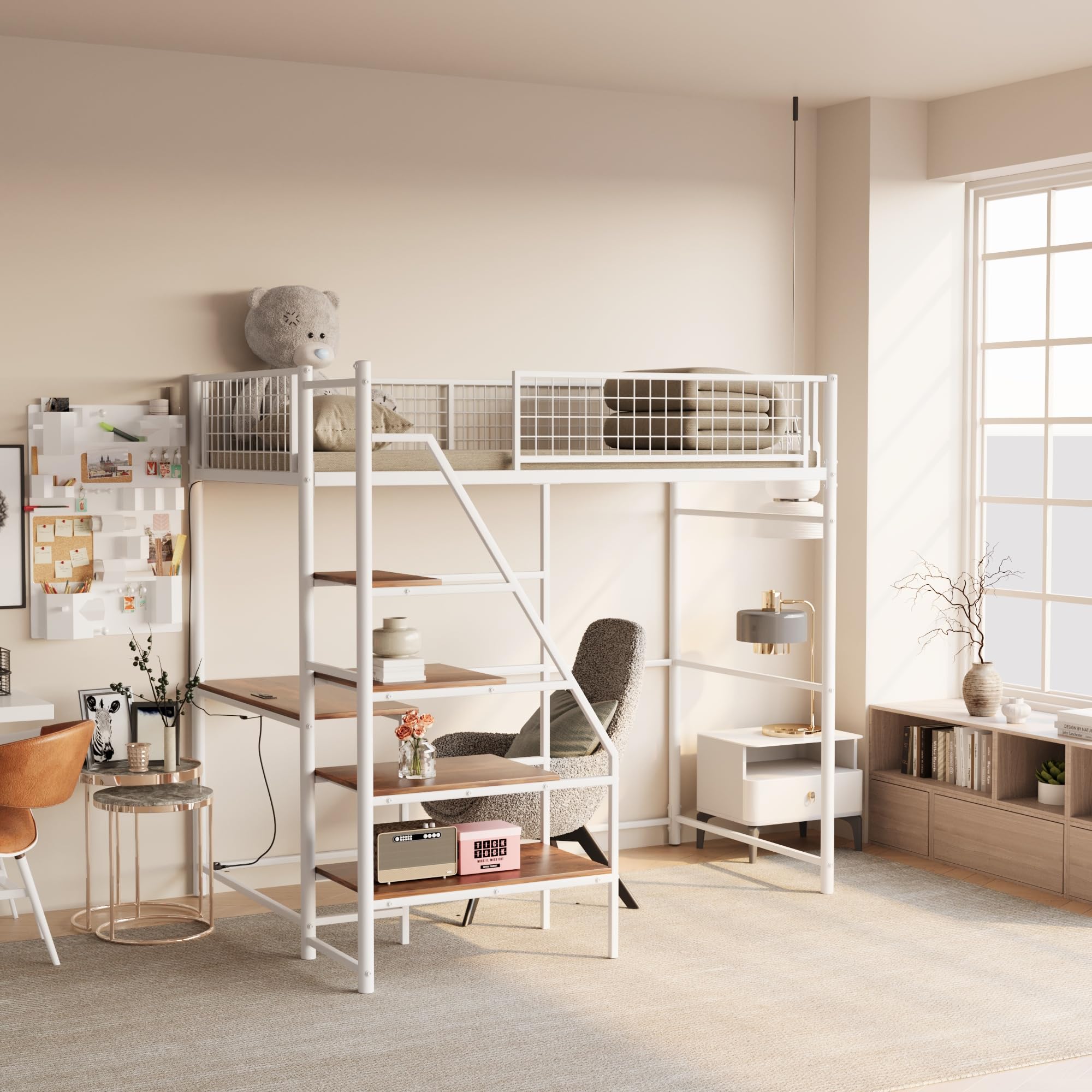

Figure 1: Fully assembled KEIKI Twin Sized Loft Metal Bed with Desk and Stairs.

2. Safety Information

Your safety is paramount. Please adhere to the following guidelines:

• Anti-Tipping Nails: Always secure the bed to the wall using the provided Anti-Tipping Nails to prevent tipping.
• Mattress Height: Ensure the top of the mattress is at least 5 inches (12.7 cm) from the edge of the guardrail to prevent falls.
• Child Supervision: Never leave children unattended on the top bunk.
• Guardrails: The top bunk is equipped with full-length and heightened guardrails for structural stability and user safety. Do not remove or modify them.
• Weight Capacity: The maximum bearing capacity for the bed is 400 pounds (181 kg). Do not exceed this limit.
• Recommended Mattress: Use a Twin size mattress, 4-6 inches (10-15 cm) thick.
• Assembly: Assembly should be performed by at least two adults. Ensure all components are securely fastened before use.
• Regular Inspection: Periodically check all bolts and connections to ensure they remain tight.

3. Package Contents

Before assembly, verify that all parts listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.

• Metal Bed Frame Components (various bars, posts, and mesh panels)
• Wooden Desk Surface
• Wooden Stair Shelves (multiple)
• Built-in Charging Station (with power outlets and USB ports)
• LED Lighting Strip
• Two Storable Cloth Bags
• Hardware Pack (screws, washers, Allen wrench, Anti-Tipping Nails)
• S-Hooks for hanging items

4. Assembly Instructions

Follow these steps carefully for proper assembly. It is recommended to have at least two people for assembly.

1. Unpack and Identify Parts: Lay out all components on a clean, soft surface to prevent scratches. Refer to the parts list to ensure everything is present.
2. Assemble Bed Frame Base: Connect the horizontal and vertical metal bars for the bed frame base using the provided screws and Allen wrench. Ensure all connections are snug but do not overtighten until the entire frame is assembled.
3. Attach Side Panels: Secure the mesh side panels to the main bed frame structure.
4. Install Bed Slats: Place and secure the metal bed slats onto the frame. These provide mattress support.
5. Assemble Stairs Frame: Connect the metal bars for the stair structure.
6. Attach Desk and Shelves: Mount the wooden desk surface and the wooden stair shelves to their designated positions on the frame.
7. Install Charging Station: Insert the built-in charging station into the pre-cut opening on the desk surface and secure it. Connect the power cable.
8. Attach Storage Bags: Hang the two storable cloth bags onto the mesh panels as desired.
9. Install LED Lighting: Affix the LED lighting strip to the underside of the top bunk or desk area, connecting it to the charging station or a separate power source as instructed.
10. Final Tightening: Once all components are in place, systematically tighten all screws and bolts.
11. Secure to Wall: Use the provided Anti-Tipping Nails to securely fasten the bed to the wall for added safety.

5. Features and Usage

The KEIKI Loft Bed is designed for functionality and space-saving.

• Integrated Desk: A spacious desk area is located beneath the top bunk, ideal for studying, working, or gaming.
• Charging Station: The desk includes a built-in charging station with power outlets and USB ports for convenient device charging.


  Figure 2: Detail of the integrated charging station.

• LED Lighting: An LED lighting strip provides illumination for the desk area or general ambiance.
• Stairs with Storage: The stairs are designed with widened steps that double as shelves, offering additional storage space for books, decor, or personal items.


  Figure 3: Stairs featuring integrated storage shelves.
• Storage Bags: Two removable cloth bags can be attached to the bed's mesh panels for organizing smaller items.
• Guardrails: Full-length guardrails on the top bunk ensure safety during sleep.

6. Specifications

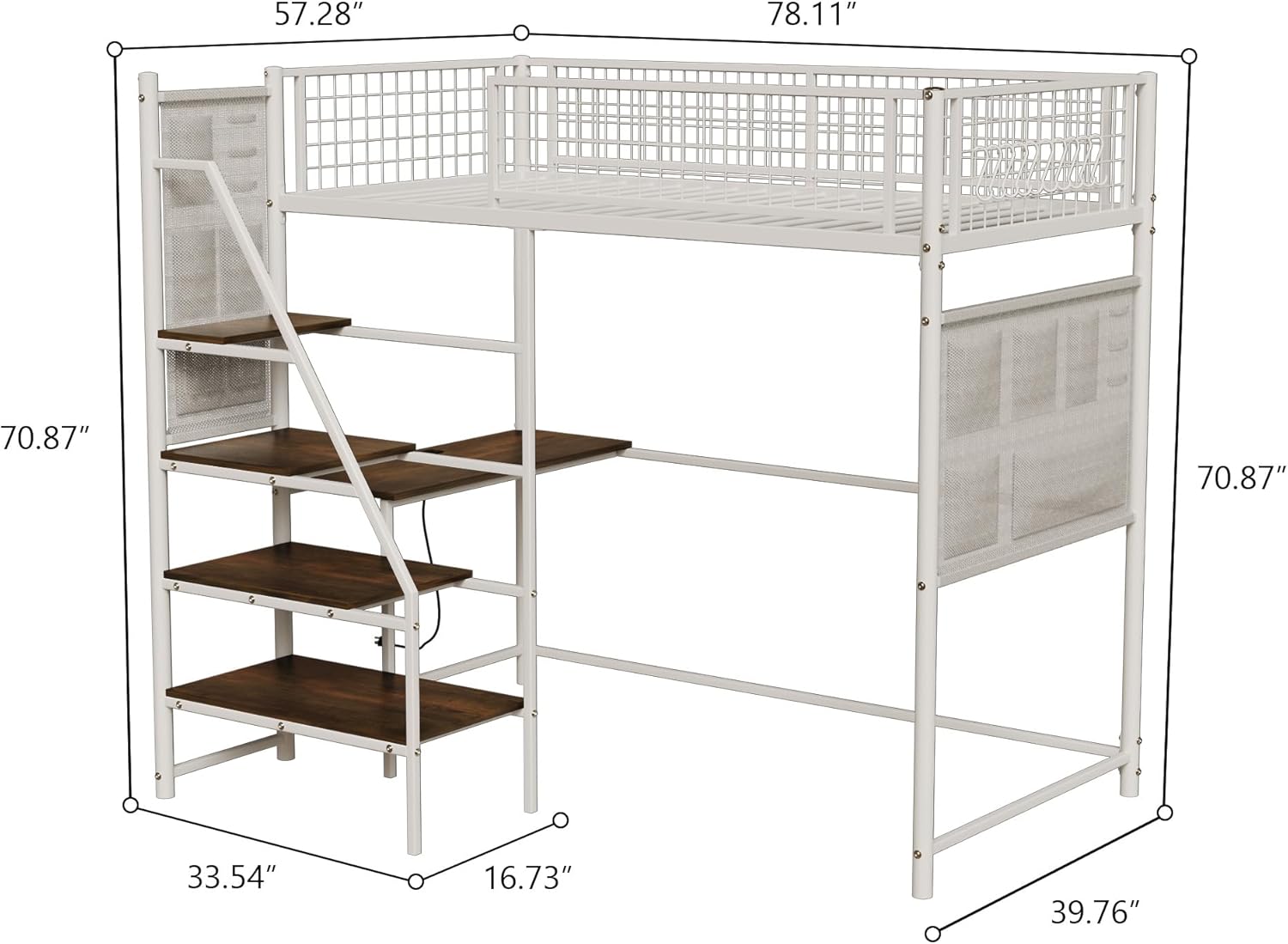

Figure 4: Product dimensions overview.

7. Maintenance

Regular maintenance will help preserve the condition and safety of your loft bed.

• Cleaning: Wipe metal surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish. Wooden surfaces can be cleaned with a wood-safe cleaner.
• Hardware Check: Periodically inspect all bolts, screws, and connections to ensure they are tight. Retighten as necessary to maintain stability.
• Charging Station: Keep the charging station free of dust and debris. Do not expose it to liquids.
• Storage Bags: The cloth storage bags can be removed and hand-washed if needed.

8. Troubleshooting

If you encounter any issues with your KEIKI Loft Bed, refer to the following common problems and solutions:

• Bed Wobbles: Ensure all bolts and screws are fully tightened. Check that the bed is placed on a level surface. Verify that the Anti-Tipping Nails are properly installed and securing the bed to the wall.
• Missing Parts: If any parts were missing upon delivery, please contact KEIKI customer support immediately with your purchase details.
• Difficulty Assembling: Review the assembly instructions and video carefully. Ensure parts are oriented correctly. Do not force components together. If issues persist, contact customer support.
• Charging Station Not Working: Check that the power cable is securely plugged into both the charging station and a functional wall outlet. Ensure the wall outlet has power.

9. Warranty and Support

For warranty information or to obtain replacement parts, please contact KEIKI customer support. Keep your purchase receipt and model number (KY00121) handy for faster service.

Customer Support: Refer to your purchase documentation or the KEIKI brand store on Amazon for contact details.
