OKIN OKIMAT Electric Double Bed Motor with Wireless Remote Control User Manual

1. Product Overview

About the OKIN OKIMAT Electric Double Bed Motor

The OKIN OKIMAT electric relaxation bed motor provides an innovative solution for sleep comfort. This sophisticated motorized system offers precise control via its convenient wireless remote control. Featuring bar spacing of 581 mm and a diameter of 25 mm, this robust mechanism is designed to adapt perfectly to your bed frame. Impressive thrust forces of 2 x 4000 N allow for smooth and silent adjustments. Travel distances of 87 mm for the torso and 69 mm for the feet enable you to find the ideal position for reading, watching television, or simply relaxing. Compatible with a 230V - 50/60 Hz power supply, this electric bed motor is manufactured with precision for optimal durability, transforming your ordinary bed into a customizable comfort space.

Figure 1: The OKIN OKIMAT Electric Double Bed Motor with its wireless remote control.

2. Important Safety Information

Assemble with caution to avoid any risk of instability or collapse. Do not load more than 600 kilograms. Pay attention to sharp edges.

• Ensure all connections are secure before operation.
• Keep children and pets away from moving parts.
• Do not attempt to modify the motor or its components.
• Disconnect power before performing any maintenance or cleaning.

3. Package Contents

Verify that all components listed below are present in the package:

• Power Cable
• Electric Motor
• Wireless Remote Control

Figure 2: Top view of the electric motor showing the power cable connection points.

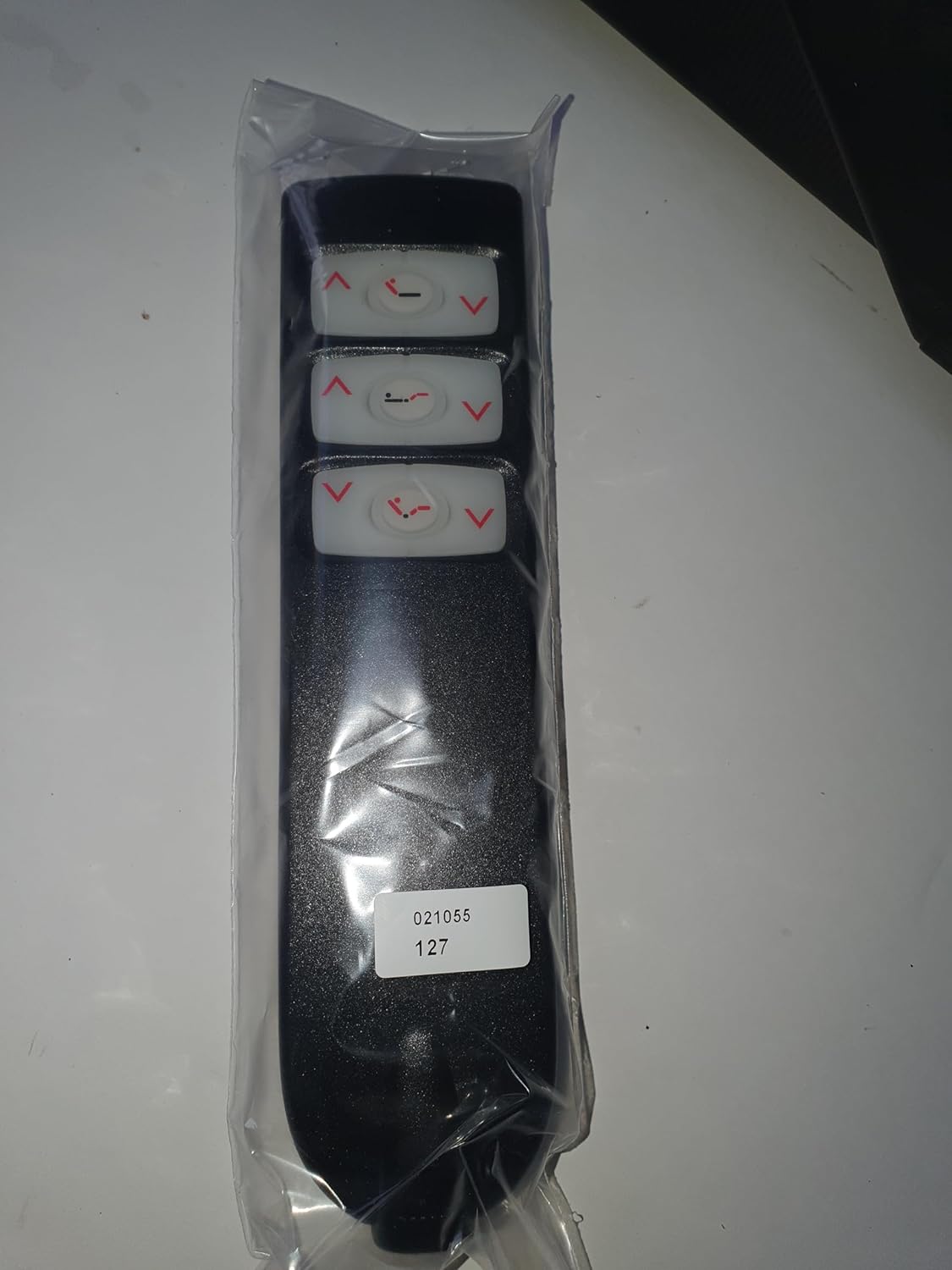

Figure 3: The wireless remote control for adjusting bed positions.

4. Setup and Installation

Follow these steps to properly install your OKIN OKIMAT Electric Double Bed Motor:

1. Unpack Components: Carefully remove all items from the packaging and place them on a clean, flat surface.
2. Position the Motor: Align the motor with the designated mounting points on your adjustable bed frame. The motor is designed for bar spacing of 581 mm and a diameter of 25 mm.
3. Secure to Bed Frame: Insert the motor's bars into the corresponding slots on the bed frame. It may require some force or the use of a clamp to fully seat the bars into the motor's notches. Ensure a snug and secure fit to prevent instability.
4. Connect Power: Plug the power cable into the motor and then into a standard 230V - 50/60 Hz electrical outlet.

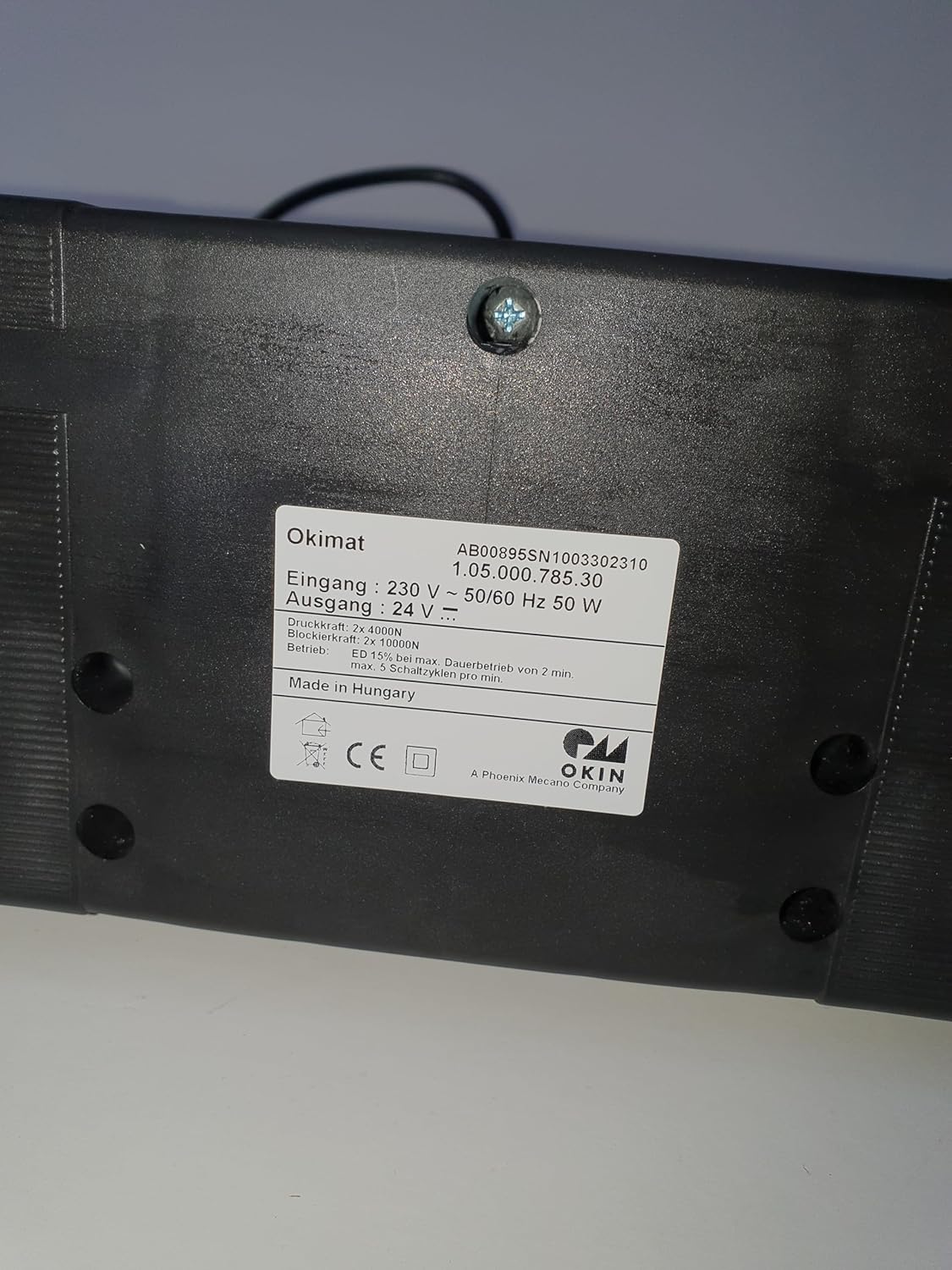

Figure 4: Product label on the motor, indicating model number and electrical specifications.

5. Operating the Electric Bed Motor

The bed motor is controlled using the provided wireless remote control. Familiarize yourself with the buttons on the remote:

• Torso Adjustment: Use the designated buttons to raise or lower the torso section of the bed. The motor allows for a maximum travel of 87 mm for the torso.
• Feet Adjustment: Use the designated buttons to raise or lower the feet section of the bed. The motor allows for a maximum travel of 69 mm for the feet.
• Press and hold the buttons for continuous adjustment, and release to stop at the desired position.

Figure 5: The wireless remote control with buttons for adjusting bed sections.

6. Maintenance and Care

To ensure the longevity and optimal performance of your electric bed motor, follow these maintenance guidelines:

• Cleaning: Clean with a dry cloth.
• Moisture Exposure: Avoid exposure to humidity.
• Regular Inspection: Periodically check all connections and mounting points for tightness and wear.

7. Troubleshooting

If you encounter issues with your electric bed motor, consider the following common troubleshooting steps:

• No Power: Ensure the power cable is securely plugged into both the motor and a functioning electrical outlet. Check if the outlet is receiving power.
• Remote Not Responding: Check the batteries in the wireless remote control. Ensure there are no obstructions between the remote and the motor's receiver.
• Motor Not Moving Smoothly: Inspect the bed frame and motor for any obstructions or binding points. Ensure the weight limit of 600 kg is not exceeded.
• Unusual Noises: Disconnect power and inspect the motor and bed frame for any loose parts or foreign objects. If the noise persists after reconnecting power, contact customer support.

If these steps do not resolve the issue, please refer to the support information in Section 9.

8. Technical Specifications

9. Warranty and Support

OKIN provides spare parts availability for 5 years from the date of purchase. For technical support, warranty claims, or further assistance, please contact your retailer or the official OKIN support channels. Ensure you have your model number (1.05.000.785.30) and proof of purchase available when contacting support.
