1. Introduction
Thank you for purchasing the Elett Handy Polisher with Extension Handle. This versatile cleaning tool is designed to simplify your cleaning tasks with its interchangeable brush heads and convenient extension handle. Please read this manual thoroughly before first use to ensure proper operation, maintenance, and safety.
2. Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, and personal injury.
- Keep the device away from children and pets.
- Do not immerse the main unit in water or other liquids. The device is not waterproof.
- Ensure batteries are inserted with correct polarity. Remove batteries if the device will not be used for an extended period.
- Do not mix old and new batteries, or different types of batteries.
- Use only the specified type and number of batteries (4 x AA dry cell batteries, sold separately).
- Do not use the polisher on delicate surfaces that may be scratched or damaged by abrasive cleaning. Test on an inconspicuous area first.
- Turn off the device before changing brush heads or performing any maintenance.
- Do not attempt to repair or modify the device yourself. Contact customer support for assistance.
3. Package Contents
Verify that all items listed below are included in your package:
- Elett Handy Polisher Main Unit
- Extension Handle
- Brush Head (Standard)
- Sponge Brush Head
- Brush Cover
- User Manual (this document)

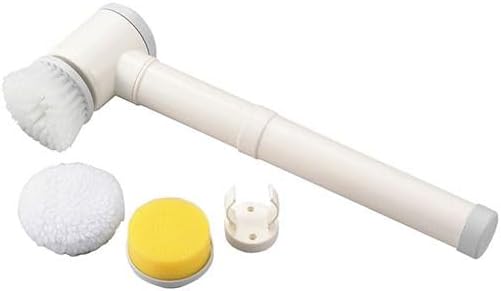

Image 1: Elett Handy Polisher and its included accessories. The main unit is white with grey accents, featuring a handle and a rotating head. Below it are a white fluffy brush, a yellow sponge brush, and a white plastic brush cover.
4. Setup
4.1 Battery Installation
- Locate the battery compartment on the main unit.
- Open the battery compartment cover.
- Insert 4 AA dry cell batteries (sold separately) according to the polarity indicators (+/-) inside the compartment.
- Close the battery compartment cover securely.
4.2 Attaching Brush Heads
- Select the desired brush head (standard brush or sponge brush) for your cleaning task.
- Align the brush head with the rotating spindle on the main unit.
- Gently push and twist the brush head until it clicks securely into place.
- To remove, twist the brush head counter-clockwise and pull it off.
4.3 Attaching the Extension Handle
For extended reach, attach the extension handle:
- Align the end of the main unit with the opening of the extension handle.
- Push the main unit firmly into the extension handle until it locks into place.
- To detach, press the release button (if present) or twist and pull the main unit from the extension handle.
5. Operating Instructions
5.1 Powering On/Off
Press the power button located on the handle of the main unit to turn the polisher ON. Press it again to turn the polisher OFF.
5.2 Cleaning Procedure
- Ensure the correct brush head is securely attached for the surface you intend to clean.
- Apply a small amount of appropriate cleaning solution directly to the surface or to the brush head.
- Turn on the Elett Handy Polisher.
- Gently place the rotating brush head onto the surface to be cleaned. Apply light pressure and move the polisher slowly over the area.
- For stubborn stains, allow the brush to work for a few seconds before moving on.
- After cleaning, turn off the polisher and wipe the cleaned surface with a clean cloth if necessary.
Image 2: The Elett Handy Polisher in operation, demonstrating its use on a textured surface. The brush head is actively rotating, creating foam as it cleans.
5.3 Brush Head Selection Guide
| Brush Type | Recommended Use |
|---|---|
| Standard Brush | General cleaning of hard surfaces like tiles, grout, sinks, and bathtubs. Effective for scrubbing away dirt and grime. |
| Sponge Brush | Gentle cleaning and polishing of delicate surfaces, or for applying cleaning solutions evenly. Suitable for glass, mirrors, and polished surfaces. |
6. Maintenance and Care
6.1 Cleaning the Unit
- After each use, turn off the polisher and remove the brush head.
- Wipe the main unit with a damp cloth. Do not rinse the main unit under water.
- Ensure the unit is completely dry before storing.
6.2 Cleaning Brush Heads
- Rinse the brush heads under running water to remove any cleaning solution or debris.
- For thorough cleaning, use mild soap and water.
- Allow brush heads to air dry completely before reattaching or storing.
6.3 Storage
Store the Elett Handy Polisher and its accessories in a cool, dry place, away from direct sunlight and moisture. If storing for an extended period, remove the batteries from the main unit.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not turn on. | Batteries are dead or incorrectly inserted. | Replace batteries with new ones, ensuring correct polarity. |
| Brush head does not rotate or rotates slowly. | Low battery power; brush head not properly attached; excessive pressure applied. | Replace batteries; reattach brush head securely; reduce pressure during use. |
| Poor cleaning performance. | Incorrect brush head for the task; insufficient cleaning solution; brush head is worn. | Select appropriate brush head; apply more cleaning solution; replace worn brush heads. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | ET-07H, C6132515 |
| Dimensions (approx.) | 6.5 × 12 × 41 cm (2.56 × 4.72 × 16.14 inches) |
| Material | ABS Resin |
| Power Source | 4 x AA Dry Cell Batteries (not included) |
| Country of Origin | China |
9. Warranty and Support
This product is designed for durability and performance. For any questions regarding product operation, maintenance, or troubleshooting not covered in this manual, please contact your retailer or the point of purchase for support. Please retain your proof of purchase for warranty claims, if applicable.
For further assistance, please visit our website or contact our customer service department. Contact details may be found on the product packaging or the retailer's website.
