1. Introduction
Thank you for choosing the SANODESK Electric Standing Desk. This height-adjustable desk is designed to enhance your workspace ergonomics, allowing you to seamlessly switch between sitting and standing positions. This manual provides essential information for the proper assembly, operation, maintenance, and troubleshooting of your new desk.
2. Important Safety Information
- Always assemble the desk according to the provided instructions.
- Do not exceed the maximum weight recommendation of 154 lbs to maintain stability.
- Ensure the desk is properly anchored to the floor to prevent tipping.
- Keep the work surface clear of obstacles to prevent accidents during height adjustments.
- Avoid placing liquids directly on the control panel or near electrical components.
3. Package Contents
Your SANODESK Electric Standing Desk will be delivered in two separate packages. Please ensure all components are present before beginning assembly. The packages typically include:
- Desktop (79 x 32 inches, White Tabletop)
- Electric Lifting Frame (White Frame)
- 6-Button LED Memory Control Panel
- Power Adapter and Cables
- Assembly Hardware (screws, tools, etc.)
- Instruction Manual
4. Setup and Assembly
Assembly of the SANODESK Electric Standing Desk is designed to be straightforward. Follow the detailed instructions provided in the included manual for a smooth setup process. The desk features a single-piece tabletop for enhanced stability and a clean aesthetic, avoiding seams found in multi-piece designs.
The robust frame includes a metal rod connecting both legs, ensuring synchronized and stable movement during height adjustments. Cable management accessories are provided to help organize power cords and maintain a tidy workspace.
Figure 4.1: Fully assembled SANODESK Electric Standing Desk.
Figure 4.2: Product dimensions of the SANODESK Electric Standing Desk.
5. Operating Instructions
Your SANODESK features an intuitive 6-button LED Memory Control Panel for effortless height adjustment.
5.1. Control Panel Functions
- Up/Down Arrows: Press and hold to manually adjust the desk height.
- Memory Presets (1, 2, 3, 4): Program and recall your preferred sitting and standing heights. To set a preset, adjust the desk to your desired height, then press and hold a numbered button until the display flashes or beeps. To recall a preset, simply press the corresponding numbered button.
The desk offers a height adjustment range from 28.3 inches to 47.6 inches, accommodating various user preferences and activities. The electric lifting system operates smoothly and quietly, typically below 50dB, ensuring minimal disruption to your work environment.
Figure 5.1: LED Memory Control Panel.

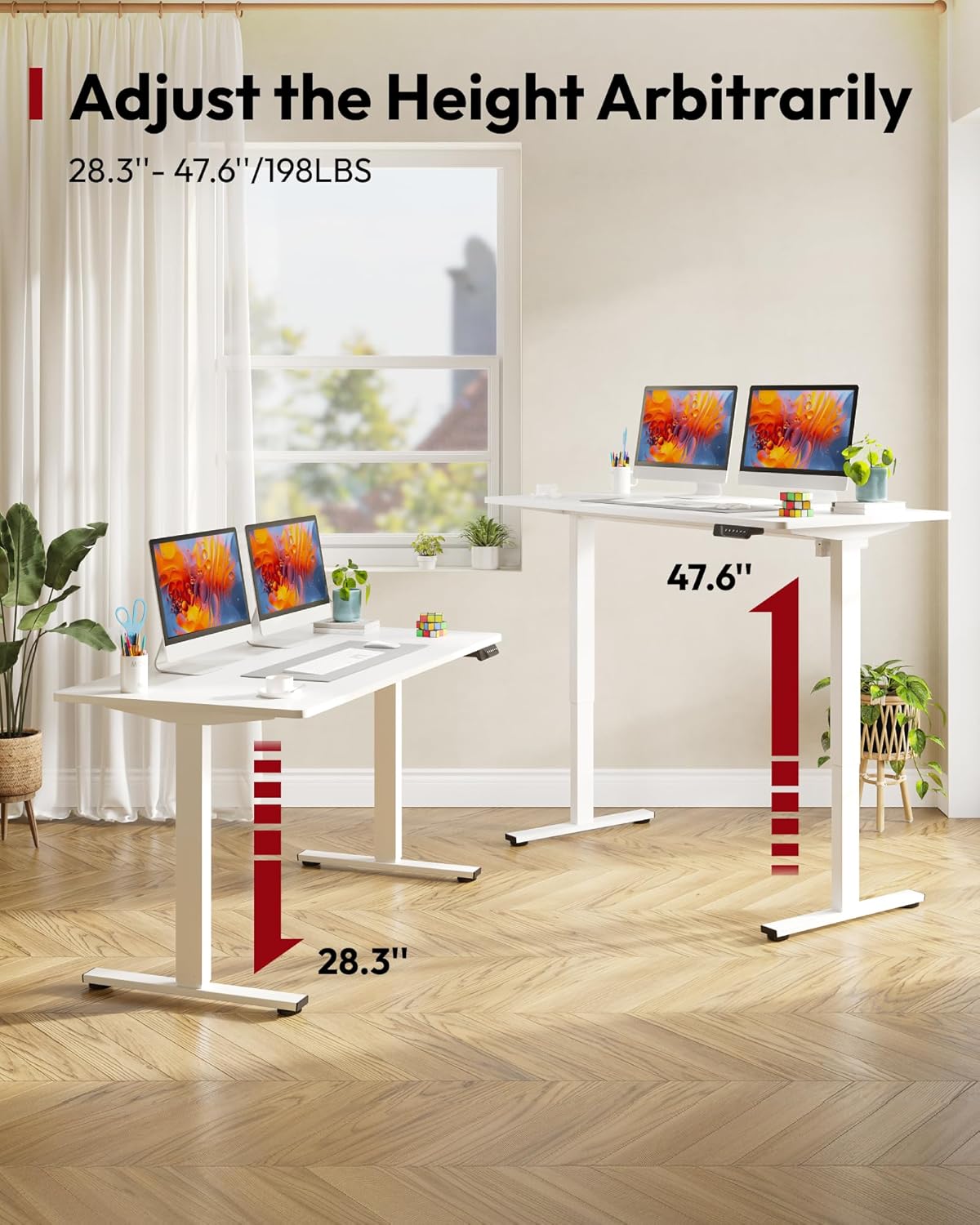

Figure 5.2: Height adjustment range.
Figure 5.3: Quiet operation of the desk.
6. Maintenance
To ensure the longevity and optimal performance of your SANODESK Electric Standing Desk, follow these simple maintenance guidelines:
- Cleaning: The frame surface is coated with fine and smooth paint that is waterproof and rustproof. Wipe the tabletop and frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Inspection: Periodically check all screws and connections to ensure they are secure. Tighten any loose fasteners.
- Cable Management: Regularly inspect cables for any signs of wear or damage. Ensure cables are neatly organized to prevent snagging during height adjustments.
7. Troubleshooting
If you encounter any issues with your SANODESK Electric Standing Desk, please refer to the following common solutions:
- Desk Not Adjusting / Error Code: If the desk stops adjusting or displays an error code, try the following:
- Power Cycle: Unplug the desk from the power outlet, wait for 30 seconds, then plug it back in.
- Remove Weight: Ensure no excessive weight is on the desk.
- Full Cycle Reset: Press and hold the down arrow button until the desk reaches its lowest position, then release. Press and hold the down arrow again for 5-10 seconds until it slightly lowers and rises, indicating a reset.
- Uneven Height Adjustment: If one side of the desk is not moving correctly, perform a full cycle reset as described above. Ensure the desk is not overloaded on one side.
- Noise During Operation: While the desk is designed for quiet operation, minor noises can occur. Ensure all assembly bolts are tightened. If unusual or loud noises persist, contact customer service.
If these steps do not resolve the issue, please contact customer service for further assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | SANODESK |
| Model Name | 156E |
| Product Dimensions (D x W x H) | 79"D x 32"W x 28.3"H |
| Minimum Height | 28.3 inches |
| Maximum Height | 47.6 inches |
| Maximum Weight Recommendation | 198 lbs (Note: Feature bullets state 198lbs, important info states 154lbs. Using 198lbs as it's more recent in feature bullets) |
| Top Material Type | Wood |
| Base Material | Alloy Steel |
| Color | White Frame + White Top |
| Control Panel | 6-Button LED Memory Controller |
| Assembly Required | Yes |
| UPC | 840460468749 |
9. Warranty and Support
Your SANODESK Electric Standing Desk comes with a Limited Warranty. For specific details regarding the warranty period and coverage, please refer to the warranty card included with your product or contact customer service.
Customer Service: Your satisfaction is our priority. If you encounter any problems when you receive the product or during its use, we provide a 30-day return or exchange service. Please contact customer service through your order page for assistance. We are very much willing to offer support.
