WUBEN G5 Rechargeable EDC Flashlight User Manual

Introduction

The WUBEN G5 is a compact and powerful Everyday Carry (EDC) flashlight designed for versatile use. It features dual light sources, multiple lighting modes, and a robust build, making it suitable for various scenarios from outdoor adventures to daily tasks and emergencies. Its small size and lightweight design ensure easy portability.

Product Features

Compact and Versatile Design

The WUBEN G5 is engineered for portability and adaptability. Measuring 1.47 inches x 0.59 inches x 2.44 inches and weighing only 52.3g, it is comparable in size to a pocket lighter, making it easy to carry in pockets, backpacks, or attached to keychains.

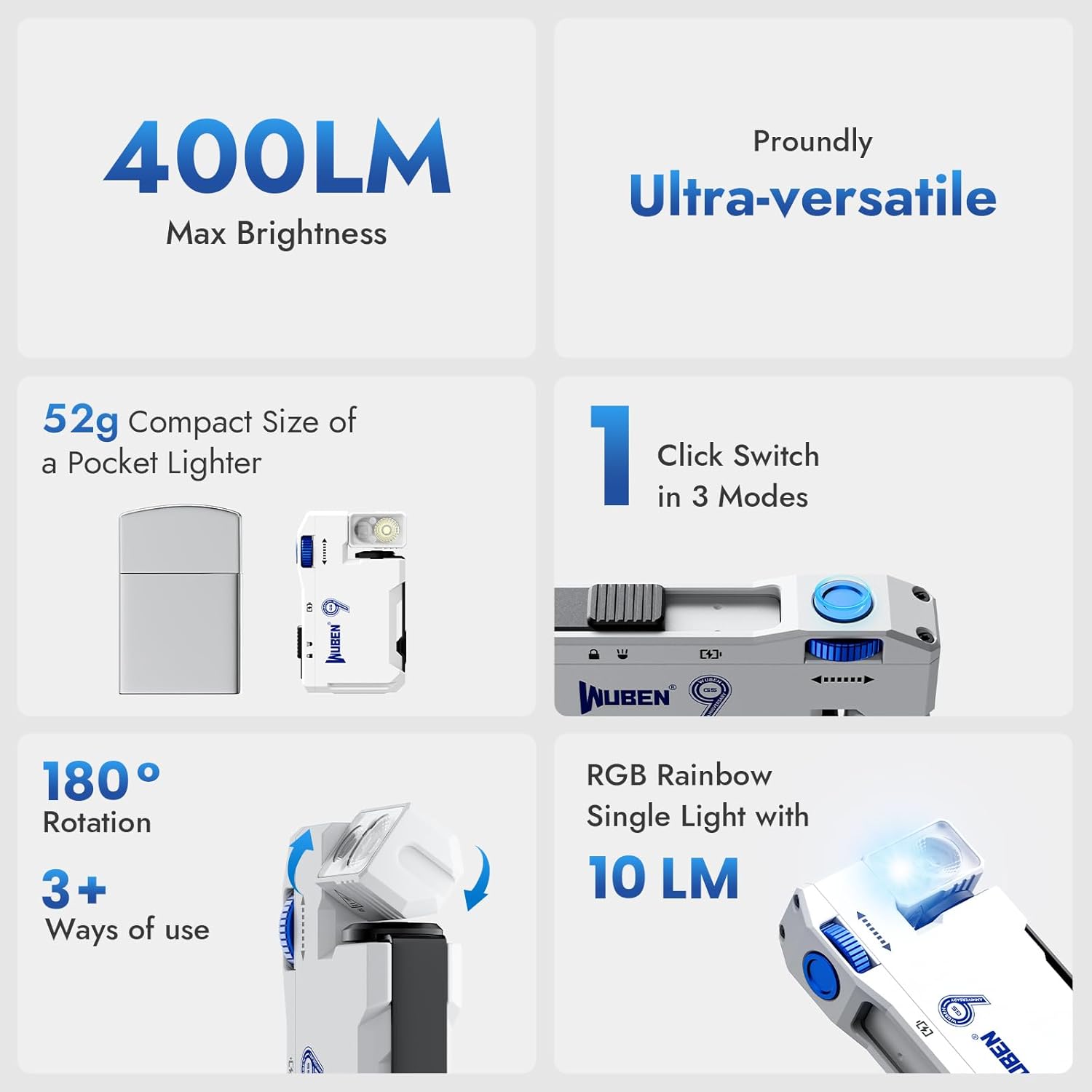

Figure 1: Key features of the WUBEN G5, highlighting its 400 lumens maximum brightness, ultra-versatile design, compact size (like a pocket lighter), 3-mode click switch, 180-degree rotation for multiple uses, and 10-lumen RGB rainbow light.

Figure 2: Compact dimensions of the WUBEN G5 flashlight, emphasizing its small and refined design for effortless carry and comfortable grip.

Dual Light Sources & Multiple Modes

The G5 features an LED dual-bead system. The main light provides cold white light with 3 adjustable modes (low, medium, high), easily switched by a pulley. The auxiliary RGB light offers 7 colors (red, orange, yellow, green, cyan, blue, purple) that can be cycled through. Special modes include Beacon Mode (double-click in RGB mode for flashing) and Warning Light Mode (double-click from off state for RGB warning flash).

Figure 3: Overview of the 7 color options for the RGB light and the 3 available beacon modes (Red-Blue, Red-Green, Red-Yellow) for signaling.

Rotatable Lamp Head & Magnetic Base

The innovative 180-degree rotatable lamp head and adjustable clip allow for flexible adjustment of the lighting direction, meeting diverse scenario needs. The magnetic base enables hands-free operation by attaching to metal surfaces, ideal for tasks like vehicle maintenance or equipment inspection.

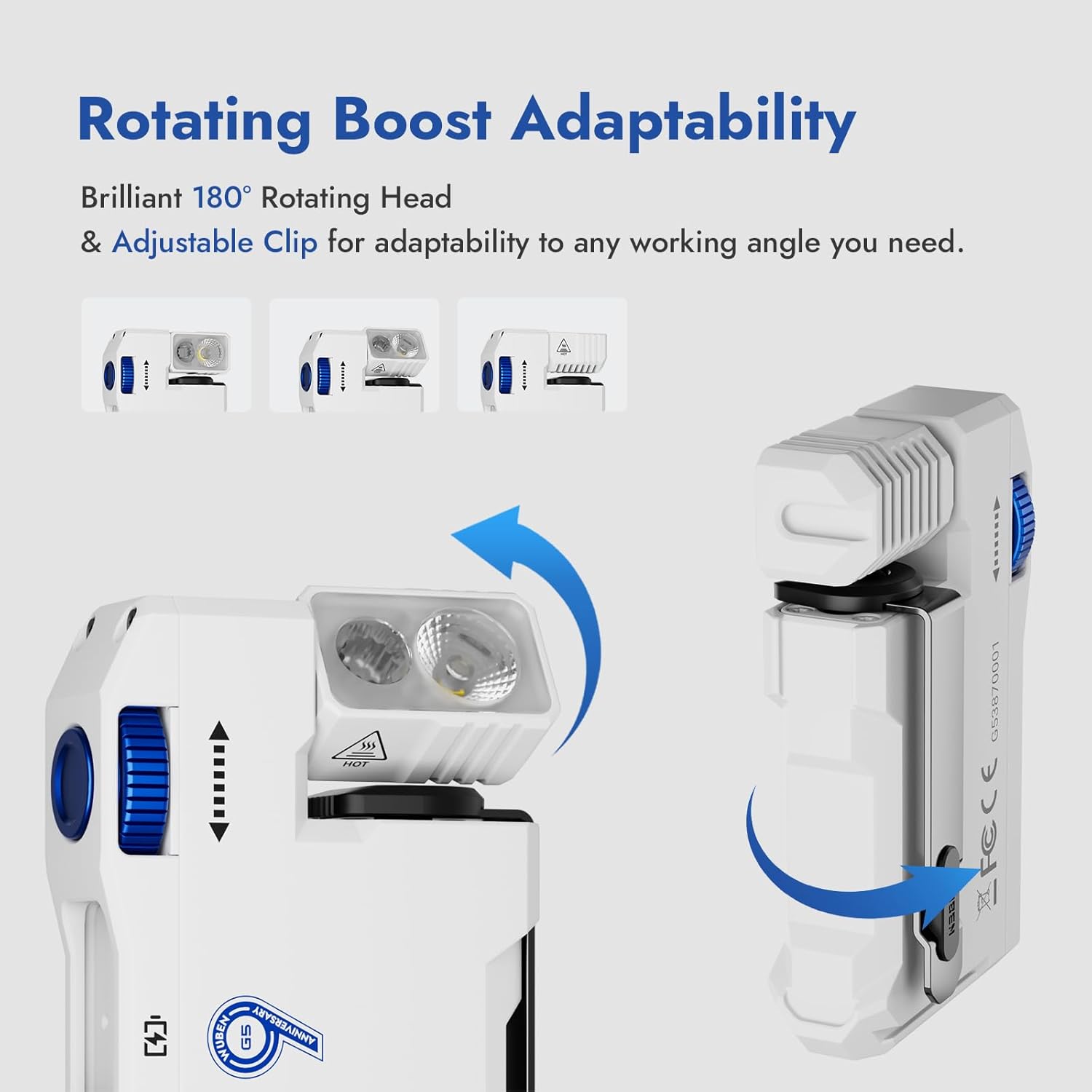

Figure 4: The rotatable lamp head and adjustable clip provide 180-degree rotation for versatile lighting angles, adapting to various working environments.

Figure 5: The ultra-lightweight WUBEN G5 (52g) offers ultimate convenience and adaptability, shown magnetically attached, clipped to a strap, clipped to a hat, and on a keychain.

Setup

Initial Charging

Before first use, fully charge your WUBEN G5 flashlight. It supports Type-C fast charging and takes approximately 1.5 hours to fully charge. The flashlight can last up to 65 hours on the lowest brightness setting.

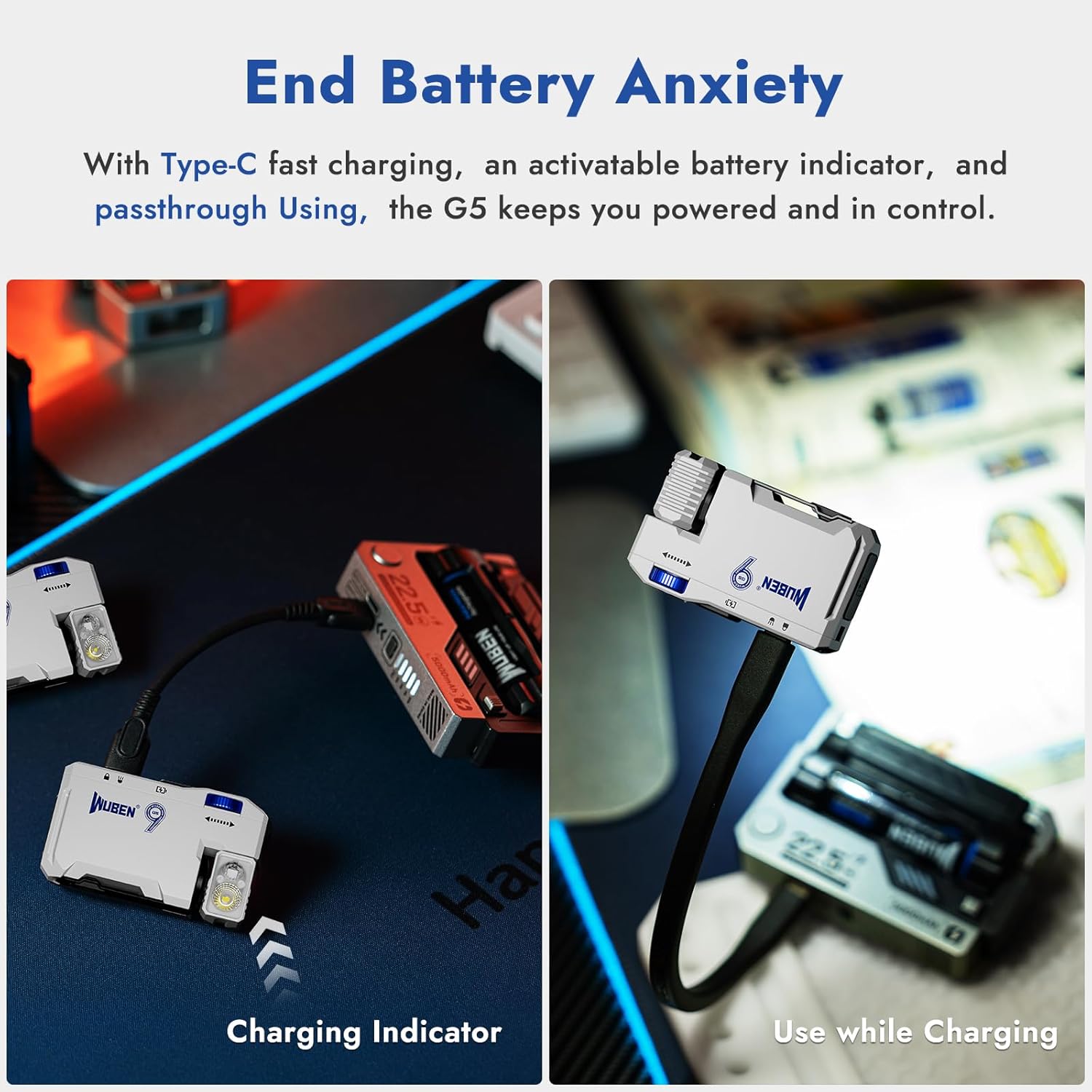

Figure 6: The WUBEN G5 boasts Type-C fast charging with an activatable battery indicator. It can also be used while charging, ensuring continuous power.

Lockout Function

The flashlight features an innovative 2-in-1 quick-release switch that also acts as a lockout mechanism. To prevent accidental activation, slide the switch to the locked position. This also hides the USB-C port for superior protection.

Figure 7: The innovative locking mechanism provides a one-touch lock feature and conceals the USB-C port for enhanced protection and ease of use.

Operating Modes

The WUBEN G5 offers intuitive controls for its various lighting modes.

White Light Operation

• Turn On/Off: Press the side button once.
• Stepless Dimming: While the white light is on, rotate the knob clockwise to adjust brightness from low (2 lumens) to high (400 lumens). The light will blink once at the minimum and maximum brightness levels to indicate the limit.
• Instant Turbo: Double-click the knob to activate the ultra-bright (Turbo) state. Double-click again to return to the previous state.

Figure 8: Stepless dimming allows precise brightness control (1%-100%) for the white light. Instant Turbo mode provides maximum brightness with a quick double-click.

RGB Light Operation

• Switch to RGB: From white light mode, long press the side button for 2 seconds to switch to RGB mode.
• Cycle Colors: While in RGB mode, rotate the knob to cycle through the 7 available colors (red, orange, yellow, green, cyan, blue, purple).
• Beacon Mode: In RGB mode, double-click the side button to activate the beacon flashing function of the current color. Double-click again to return to solid RGB.
• Warning Light Mode: From the off state, double-click the side button to enter the RGB warning flashing function (Red-Blue, Red-Green, Red-Yellow). Double-click to cycle through these warning modes.

Figure 9: Detailed operation method for RGB light, including switching from white light, cycling through colors, and activating various beacon and warning flash functions.

Maintenance

The WUBEN G5 is built for durability and resilience.

• Durable Construction: The flashlight features a rugged aluminum body designed to withstand daily wear and tear.
• Waterproof Rating: With an IP68 waterproof rating, the G5 can endure harsh environments and is protected against dust and continuous immersion in water up to 2 meters for 1 hour.
• Cold Resistance: The device is designed with excellent cold-resistant toughness, ensuring reliable performance in low temperatures.

Figure 10: The G5 boasts superior durability with a sturdy metal shell and IP68 waterproof rating, ensuring lasting performance even in extreme conditions.

Troubleshooting

• Light Not Turning On: Ensure the quick-release switch is not in the lockout position. Slide it to the unlocked position to enable operation.
• Low Brightness/Short Runtime: The battery may be low. Recharge the flashlight using the provided Type-C cable.
• Inconsistent Mode Switching: Familiarize yourself with the operation method flowchart in the manual. Practice switching between modes to ensure smooth transitions.

Specifications

Warranty and Support

For warranty information, technical support, or any inquiries regarding your WUBEN G5 flashlight, please refer to the contact details provided in the product packaging or visit the official WUBEN website.
