Product Overview
The anwickjeff Portable Evaporative Air Cooler is a versatile 3-in-1 unit designed to provide cooling, natural air circulation, and humidification. This appliance is suitable for various indoor environments such as bedrooms, offices, and living rooms, offering customizable comfort with quiet operation. It features multiple cooling modes, adjustable fan speeds, and a 90-degree oscillation function for even air distribution.
Figure 1: The anwickjeff Portable Evaporative Air Cooler demonstrating its three functions: Fan (without water), Humidifier (add cool water), and Air Cooler (add ice boxes).
Important Safety Instructions
- Read all instructions before using this appliance.
- Do not operate any appliance with a damaged cord or plug.
- Do not use outdoors or on wet surfaces.
- Always unplug the unit before cleaning, filling, or performing maintenance.
- Keep the appliance away from heat sources and open flames.
- Ensure the voltage specified on the appliance matches your local power supply.
- Do not block air inlets or outlets.
- Keep children and pets away from the appliance during operation.
- Do not tilt or move the unit when the water tank is full.
Package Contents
Verify that all items are present in the package:
- Portable Evaporative Air Cooler (1 unit)
- Remote Control (1 unit)
- User Manual (this document)
Product Diagram
Figure 2: Dimensions of the anwickjeff Portable Evaporative Air Cooler.
Familiarize yourself with the components of your air cooler:
- Control Panel
- Air Outlet Grille
- Water Tank
- Casters (Wheels)
- Air Inlet Grille / Filter Cover
- Handle
Setup Instructions
- Unpacking: Carefully remove the air cooler from its packaging. Retain packaging for future storage or transport.
- Placement: Place the unit on a flat, stable surface. Ensure there is adequate space around the unit for proper airflow (at least 8 inches from walls or furniture).
- Fill Water Tank: Pull out the water tank from the bottom of the unit. Fill the tank with clean, cool water. For enhanced cooling, you may add frozen ice packs to the water tank. Do not exceed the maximum fill line.
- Insert Water Tank: Carefully slide the water tank back into the unit until it is securely in place.
- Power Connection: Plug the power cord into a standard 110V electrical outlet.
Operating Instructions
The air cooler can be operated using the control panel on top of the unit or the included remote control.
Control Panel and Remote Control Functions
- Power Button: Turns the unit ON or OFF.
- Mode Button: Cycles through Cooling, Natural, and Sleep modes.
- Speed Button: Adjusts fan speed (Low, Medium, High).
- Oscillation Button: Activates or deactivates 90-degree oscillation.
- Timer Button: Sets the auto-off timer from 1 to 7 hours.
Using Cooling Modes and Fan Speeds
Figure 3: Available wind modes and fan speeds.
- Press the Power button to turn on the unit.
- Press the Mode button repeatedly to select your desired mode:
- Cooling Mode: Uses water evaporation to cool the air. Ensure the water tank is filled.
- Natural Mode: Simulates a natural breeze with varying fan speeds.
- Sleep Mode: Operates quietly with reduced fan speed and dimmed display for undisturbed rest.
- Press the Speed button to choose between Low, Medium, or High fan speeds.
Oscillation Function
Figure 4: The 90-degree oscillation feature for wide air distribution.
To activate the 90-degree oscillation, press the Oscillation button. The unit will begin to swing horizontally, distributing cool air across a wider area. Press the button again to stop oscillation.
Setting the Timer

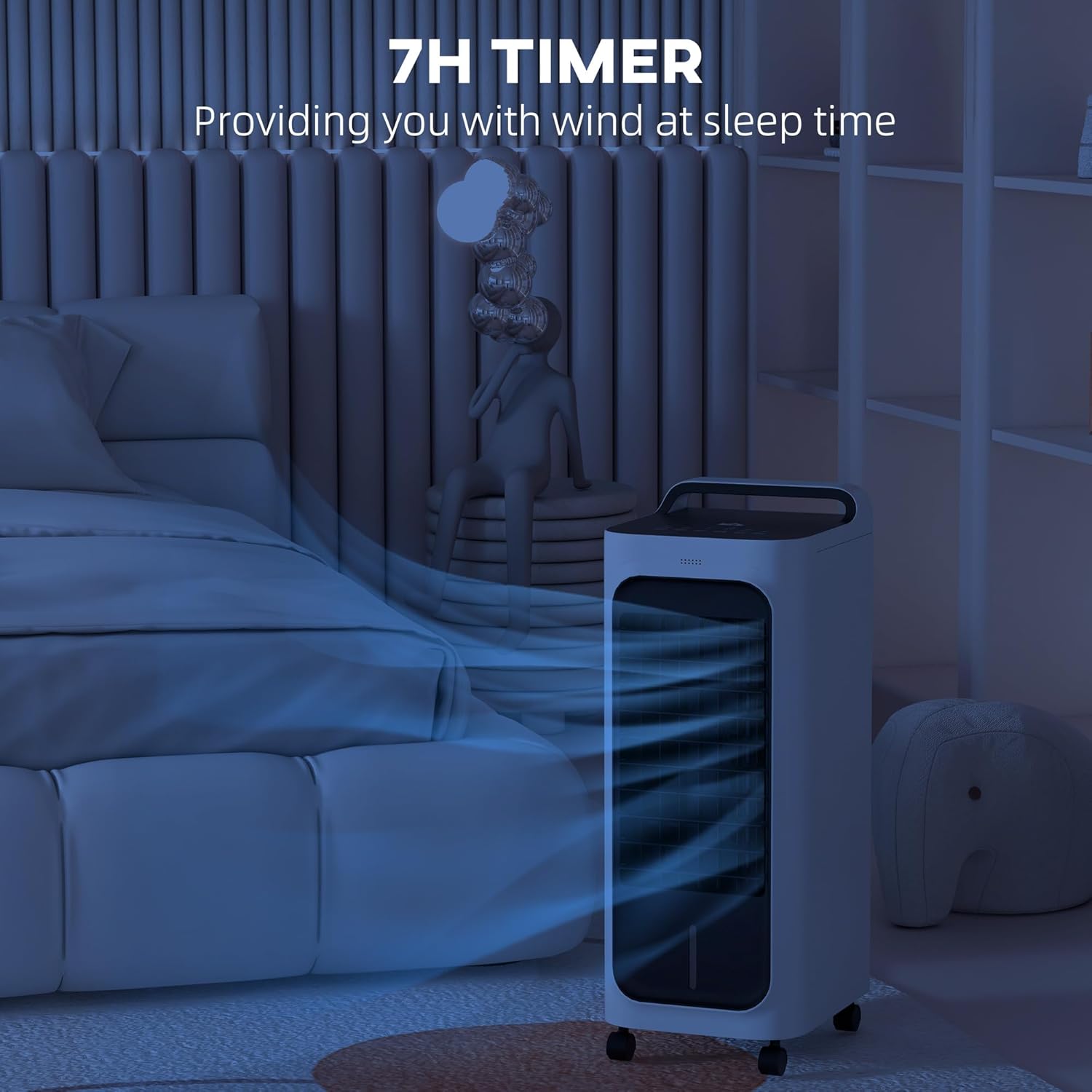

Figure 5: The 7-hour timer function for scheduled operation.
The timer allows you to set the unit to automatically turn off after a specified period (1-7 hours). Press the Timer button repeatedly to select the desired duration. The display will show the set time, and the unit will power off once the time elapses.
Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your air cooler.
Cleaning the Water Tank
- Unplug the unit from the power outlet.
- Remove the water tank.
- Empty any remaining water.
- Clean the tank with a soft cloth and mild detergent. Rinse thoroughly with clean water.
- Allow the tank to air dry completely before reinserting.
Cleaning the Air Filter and Cooling Pads

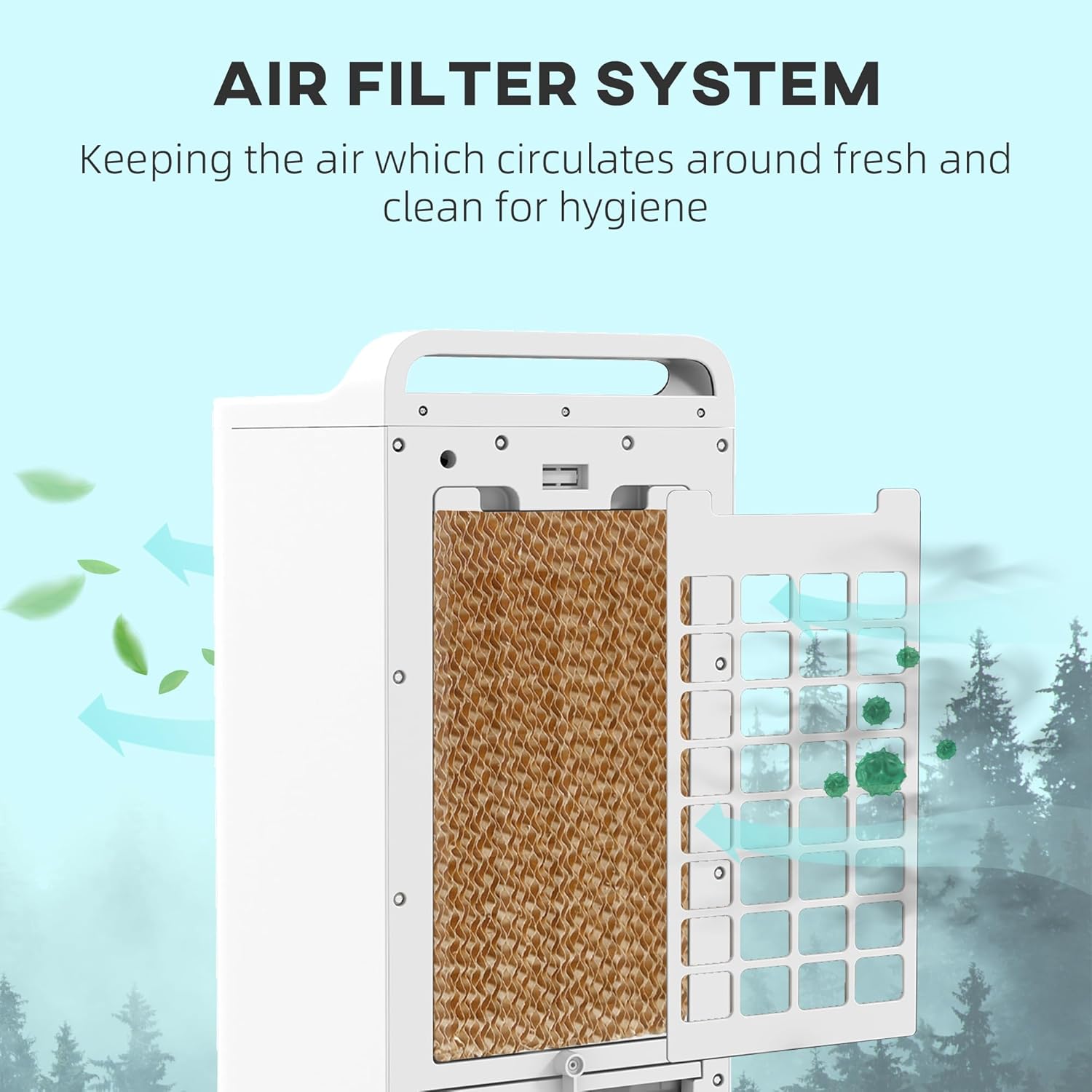

Figure 6: The removable air filter system for easy cleaning.
- Unplug the unit.
- Locate the air filter cover on the back of the unit and remove it.
- Carefully remove the cooling pads.
- Wash the air filter and cooling pads with clean water and a soft brush. For stubborn dirt, use a mild detergent.
- Rinse thoroughly and allow them to air dry completely before reinstallation.
- Reinstall the cooling pads and air filter cover.
Exterior Cleaning
Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
Troubleshooting
Refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on. | No power supply; Power cord not properly plugged in. | Ensure the unit is plugged into a working 110V outlet. Check the power cord connection. |
| No cool air / Weak cooling effect. | Water tank is empty; Cooling pads are dirty; Room humidity is too high; Air inlets/outlets are blocked. | Fill the water tank. Clean the cooling pads. Evaporative coolers are less effective in high humidity. Ensure proper ventilation and clear any obstructions. Consider adding ice packs to the water tank. |
| Unit is noisy. | Unit is not on a flat surface; Fan blades are obstructed; Water pump issue. | Place the unit on a flat, stable surface. Check for any foreign objects obstructing the fan. If noise persists, contact customer support. |
| Remote control not working. | Batteries are dead or incorrectly inserted; Obstruction between remote and unit. | Replace batteries with new ones, ensuring correct polarity. Remove any obstructions. Ensure remote is pointed at the unit's receiver. |
Specifications
| Feature | Detail |
|---|---|
| Brand | anwickjeff |
| Model Name | small portable ac |
| Model Number | portable airconditioners |
| Product Dimensions (D x W x H) | 11.2"D x 10"W x 26.2"H |
| Item Weight | 8 Pounds |
| Voltage | 110 Volts |
| Wattage | 85 watts |
| Noise Level | 36 Decibels |
| Cooling Power | 65 British Thermal Units |
| Capacity (Water Tank) | 1.3 Gallons (approx. 26 Cubic Inches) |
| Timer | 7-hour auto-off |
| Oscillation | 90-degree wide-angle |
| Control Type | Remote Control, Top Panel Buttons |
| Installation Type | Freestanding |
| Color | White |
| UPC/GTIN | 737985700822 |
Warranty and Support
Warranty Information: The manufacturer's warranty description states "No". Please refer to your purchase documentation for any retailer-specific return or warranty policies.
Customer Support: For any questions, technical assistance, or issues not covered in this manual, please contact the retailer or manufacturer directly. Keep your purchase receipt and model number handy for faster service.
