1. Introduction
Thank you for choosing the RAF 5.8L 1500W Air Fryer. This appliance is designed to cook your favorite foods with little to no oil, providing a healthier alternative to traditional frying. Please read this manual thoroughly before using the appliance to ensure safe and optimal performance. Keep this manual for future reference.
2. Important Safety Instructions
WARNING: To reduce the risk of fire, electric shock, or injury, always follow basic safety precautions.
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Ensure the voltage indicated on the appliance corresponds to your local mains voltage before connecting.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- Keep the appliance and its cord out of reach of children.
- Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
- Always unplug the appliance when not in use and before cleaning. Allow it to cool down before handling.
- Do not place the appliance against a wall or against other appliances. Leave at least 10 cm free space on the back and sides and 10 cm free space above the appliance.
- Hot air is released through the air outlet opening. Keep your hands and face at a safe distance from the steam and from the air outlet openings.
- Do not fill the pan with oil as this may cause a fire hazard.
- This appliance is for household use only.
3. Product Overview

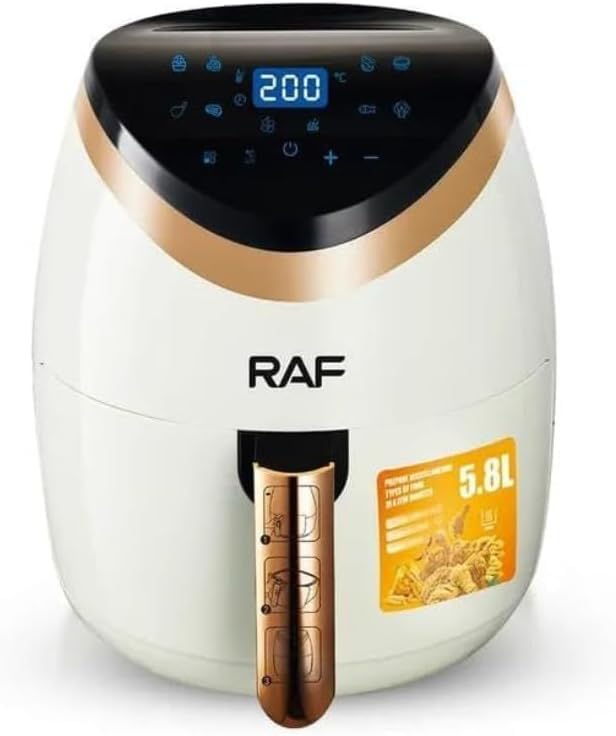

Figure 3.1: Front view of the RAF 5.8L Air Fryer, showcasing its sleek design and digital control panel.
Figure 3.2: The air fryer with its cooking basket partially pulled out, demonstrating the removable design for easy food placement and cleaning.
Figure 3.3: A close-up view of the digital control panel, featuring an LCD screen displaying temperature and time, along with various cooking presets and control buttons.
Components:
- Main Unit
- Digital Control Panel with LCD Screen
- Removable Frying Basket
- Basket Handle
- Air Inlet
- Air Outlet
4. Setup and First Use
Before First Use:
- Remove all packaging materials, stickers, and labels from the appliance.
- Clean the frying basket and pan with hot water, some dishwashing liquid, and a non-abrasive sponge.
- Wipe the inside and outside of the appliance with a moist cloth.
- Place the appliance on a stable, horizontal, and level surface. Do not place the appliance on non-heat-resistant surfaces.
- Ensure there is adequate ventilation around the appliance.
5. Operating Instructions
Basic Operation:
- Plug the main plug into a grounded wall outlet.
- Carefully pull the frying basket out of the air fryer.
- Place the ingredients into the frying basket. Do not exceed the MAX indication.
- Slide the frying basket back into the air fryer.
- Use the digital control panel to set the desired temperature and cooking time. The LCD screen will display the current settings.
- Press the start button to begin the cooking process. The light indicator will illuminate.
- Some ingredients require shaking halfway through the preparation time. To shake the ingredients, pull the pan out of the appliance by the handle and shake it. Then slide the pan back into the air fryer.
- When you hear the timer bell, the set preparation time has elapsed. Pull the pan out of the appliance and place it on a heat-resistant surface.
- Check if the ingredients are ready. If not, simply slide the pan back into the appliance and set the timer for a few extra minutes.
- Empty the basket into a bowl or onto a plate.
Adjusting Temperature and Time:
Use the '+' and '-' buttons on the control panel to increase or decrease the temperature and cooking time. The LCD screen provides real-time feedback on your selections.
6. Maintenance and Cleaning
WARNING: Always unplug the appliance and allow it to cool completely before cleaning.
- Clean the appliance after every use.
- The frying basket and pan have a non-stick coating. Do not use metal kitchen utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.
- Wipe the outside of the appliance with a moist cloth.
- Clean the frying basket and pan with hot water, dishwashing liquid, and a non-abrasive sponge.
- For stubborn dirt, soak the pan and basket in hot water with some dishwashing liquid for approximately 10 minutes.
- Clean the inside of the appliance with hot water and a non-abrasive sponge.
- Clean the heating element with a cleaning brush to remove any food residues.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| The air fryer does not work. | The appliance is not plugged in. | Plug the main plug into a grounded wall socket. |
| Food is not cooked evenly. | Too much food in the basket; food not shaken. | Reduce the amount of food; shake the basket halfway through cooking. |
| White smoke comes out of the appliance. | Fat residues from previous use; pan contains too much oil. | Clean the pan and basket thoroughly; ensure no excess oil is in the pan. |
| Fresh fries are not crispy. | Not enough oil used; incorrect potato type. | Add a little oil to the fries; use fresh potatoes suitable for frying. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | RAF |
| Model | R.5234 |
| Color | White |
| Capacity | 5.8 Liters |
| Power / Wattage | 1500 Watts |
| Voltage | 240 Volts |
| Material | Plastic |
| Product Dimensions (D x W x H) | 32 x 30 x 34 cm |
| Item Weight | 3.7 Kilograms |
| Special Features | Adjustable Temperature Control, Non-stick Surface, Overheat Protection, LCD Screen |
| Recommended Uses | Baking |
9. Warranty and Support
This RAF Air Fryer comes with a standard manufacturer's warranty. For detailed warranty information, please refer to the warranty card included with your product or contact your local retailer. For technical support, spare parts, or service inquiries, please contact the customer service department of your purchase point or visit the official RAF website.
Please retain your proof of purchase for warranty claims.
