Mounto Replacement Filter Instruction Manual

Product Overview

This manual provides essential information for the installation, maintenance, and optimal use of your MOUNTO Replacement Filter set. This set includes two H13 HEPA Replacement Filters designed to ensure clean and fresh air in your home or workspace.

Compatibility: These filters are fully compatible with the following air purifier models:

MOUNTO Extra Large Air Purifier
Gocheer GH-Monster Air Purifier
CLEANFORCE MEGA1000 Air Purifier

What's in the Box:

2 x H13 HEPA Replacement Filters

Two Mounto replacement air filters, one showing the black carbon filter side and the other showing the light blue HEPA filter side.

Image: Two MOUNTO replacement filters, illustrating both the activated carbon and HEPA filter components.

Setup and Installation

Follow these steps to properly install your new MOUNTO Replacement Filters:

Power Off: Before beginning, ensure your air purifier is turned off and unplugged from the power outlet.
Access Filter Compartment: Refer to your air purifier's specific user manual for instructions on how to open the filter compartment. This typically involves removing a front or back panel.
Remove Old Filters: Carefully remove the used filters from the air purifier. Dispose of them according to local regulations.
Unpack New Filters: The new MOUNTO filters are sealed in plastic to maintain their shelf life. It is crucial to remove all plastic packaging from both filters before installation.
Insert New Filters: Place the new MOUNTO filters into the designated slots within your air purifier. Ensure they are oriented correctly as indicated by your air purifier's manual or markings on the filter.
Close Compartment: Securely close the filter compartment panel.
Restore Power: Plug your air purifier back into the power outlet and turn it on.
Reset Filter Indicator (if applicable): If your air purifier has a filter replacement indicator, follow its instructions to reset it.

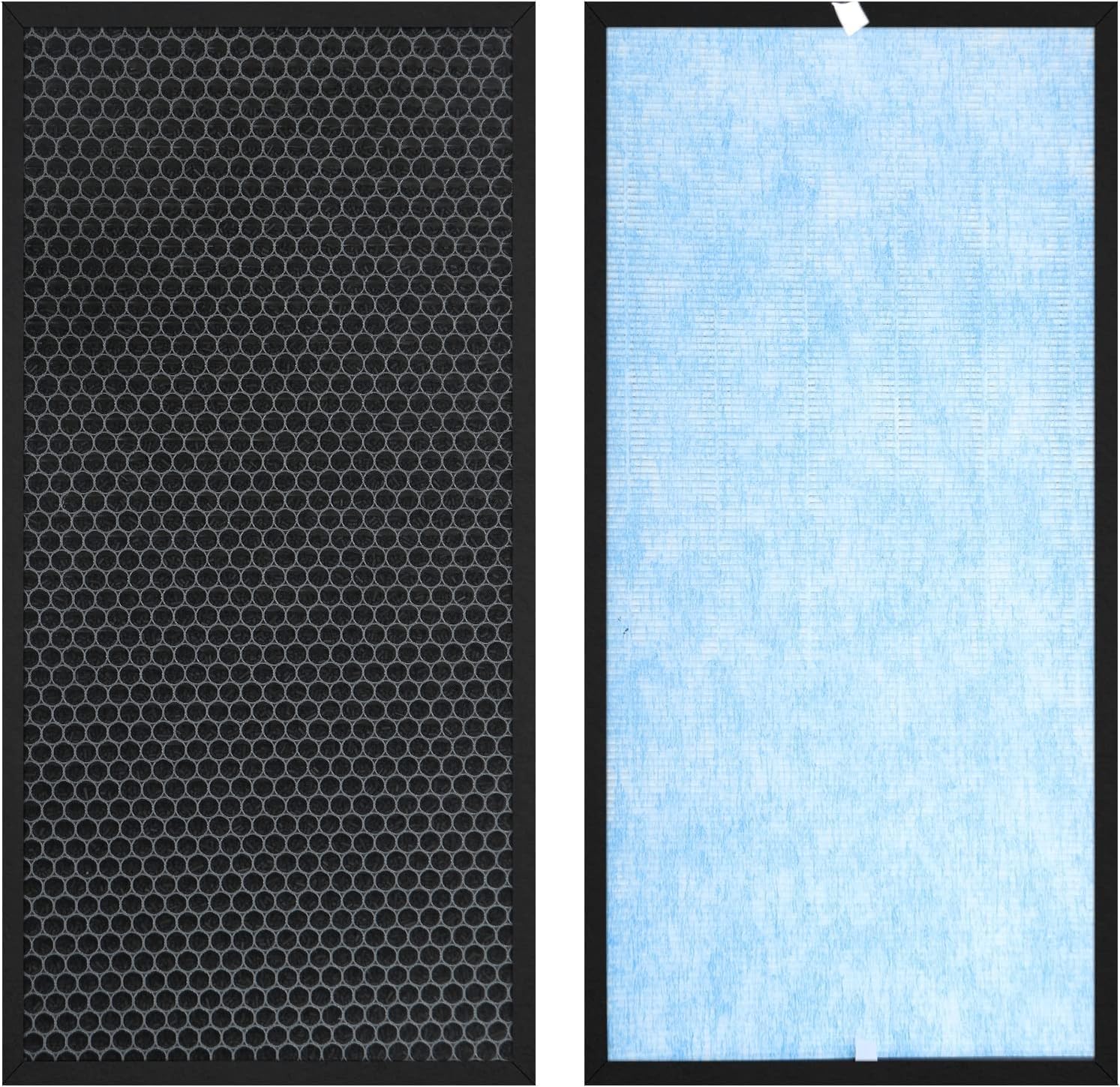

Close-up view of the two sides of a Mounto replacement filter: one side shows the black honeycomb pattern of the activated carbon filter, and the other side shows the light blue pleated material of the HEPA filter.

Image: Detailed view of the activated carbon and HEPA filter components of the replacement filter.

Operating Principles

The MOUNTO Replacement Filter set utilizes a multi-stage filtration system to purify the air:

H13 True HEPA Filter: This filter captures 99.97% of airborne particles as small as 0.3 microns. This includes dust, mold spores, pollen, pet dander, and other common allergens and pollutants.
Activated Carbon Filter: This layer is designed to absorb various unwanted odors and fumes. It effectively reduces chemicals, Volatile Organic Compounds (VOCs), tobacco smoke, and common household odors such as cooking smells.

Close-up of the activated carbon filter, showing its honeycomb structure. Text overlay indicates 'Activated Carbon Filter' and describes its function: 'Absorbs various unwanted odors and fumes such as cooking smells, cigarette smoke, and VOCs'.

Image: Detail of the Activated Carbon Filter, highlighting its odor-absorbing capabilities.

Close-up of the H13 True HEPA filter, showing its pleated white material. Text overlay indicates 'H13 TRUE HEPA FILTER' and describes its function: 'Filters dust, mold spores, pollen, pet dander, and other small particles'.

Image: Detail of the H13 True HEPA Filter, illustrating its particle filtration function.

Maintenance

Regular maintenance of your filters ensures optimal performance of your air purifier and extends the life of the filters.

Filter Lifespan: For best results and to maintain air purification effectiveness, replace the filter every 6 to 12 months. The exact replacement interval may vary depending on usage frequency and environmental air quality.
Monthly Cleaning: To prolong filter efficiency, it is recommended to remove the filter once a month and gently clean it. Use a soft brush or a vacuum cleaner on a low setting to remove accumulated dust and debris from the exterior surfaces of the filter. Do not wash the filters with water.

A Mounto replacement filter shown with its dimensions: 24 inches in height, 1.9 inches in width, and 12.3 inches in length. An icon indicates a '6-12 MONTHS Service Life'.

Image: Product dimensions and recommended service life of the filter.

Troubleshooting

If you encounter issues after replacing your filters, consider the following:

Air Purifier Not Turning On: Ensure the air purifier is securely plugged into a working power outlet. Check if the filter compartment is fully closed and latched, as some purifiers have safety switches that prevent operation if the compartment is open.
Reduced Airflow or Odor Persistence: Verify that all plastic packaging has been completely removed from both new filters. If packaging remains, it will obstruct airflow and filtration. Ensure filters are installed correctly according to your air purifier's manual.
Filter Indicator Light Remains On: After replacing filters, you may need to manually reset the filter indicator light on your air purifier. Refer to your air purifier's user manual for specific instructions on how to perform this reset.

Specifications

Feature	Detail
Brand	MOUNTO
Model Number	AF650HF (Part Number: af600hf001)
Filter Type	H13 True HEPA and Activated Carbon
Dimensions (L x W x H)	12.3" x 1.9" x 24"
Item Weight	7 pounds (for the set)
Recommended Replacement	Every 6-12 months
Included Components	2 HEPA filter replacements

Warranty and Support

MOUNTO stands behind the quality of its products. If you require assistance, have questions about your replacement filters, or encounter any issues, please do not hesitate to contact MOUNTO customer support.

For support, please visit the official MOUNTO store on Amazon or use the contact information provided with your original air purifier purchase or on the MOUNTO website.

Note: This filter is a consumable item. Its lifespan is dependent on usage and environmental conditions. Regular replacement is necessary for optimal air purification.

MOUNTO AF650HF
