1. Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Moen Reyes 87932 Chrome Pulldown Kitchen Faucet with Power Boost and included soap dispenser. The Moen Reyes faucet combines a high arc design with practical features for an efficient kitchen experience. Its single-handle operation allows for easy control of water temperature and flow. The integrated pulldown spray head features Moen's Power Boost technology for enhanced cleaning and filling capabilities, and the Reflex system ensures smooth retraction and secure docking.
2. Safety Information
Please read all instructions carefully before beginning installation. Failure to follow these instructions may result in personal injury, property damage, or voiding of the warranty. Always turn off the main water supply before installing or servicing the faucet. Wear appropriate personal protective equipment, such as safety glasses, during installation. If you are unsure about any part of the installation process, consult a qualified plumber.
3. Package Contents
Verify that all components are present before beginning installation:
- Kitchen Faucet (Moen Reyes 87932)
- Soap Dispenser
- Deck Plate (optional, for 2 or 4-hole installations)
- Flexible Supply Lines with 3/8" Compression Fittings
- Instruction Manual (this document)

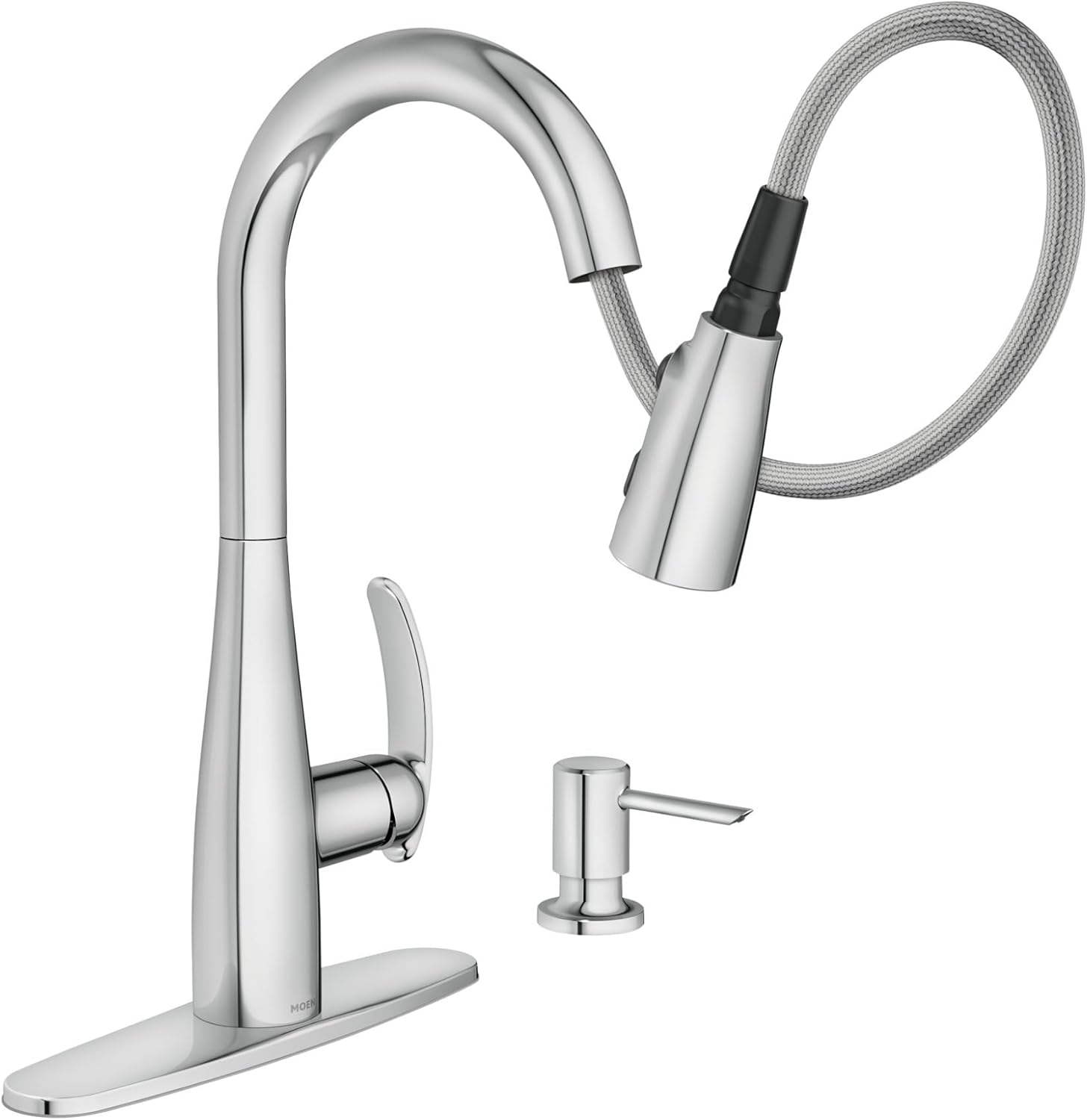

Image: Moen Reyes 87932 Chrome Pulldown Kitchen Faucet with included deck plate and soap dispenser.
4. Specifications
| Brand | Moen |
| Model Name | Reyes |
| Model Number | 87932 |
| Color | Chrome |
| Finish Type | Polished |
| Material | Zinc, Metal (Handle) |
| Mounting Type | Deck Mount |
| Number of Handles | 1 |
| Hole Count | 1 (designed for 2 or 4 holes with optional deckplate) |
| Flow Rate | 1.5 Gallons Per Minute |
| Hose Length | 68 Inches |
| Item Dimensions (D x W x H) | 4"D x 10.25"W x 15.69"H |
| Item Weight | 4.5 Pounds |
| Special Features | Duralock Quick-Connect System, Easy Installation, Pull Down Sprayer, Reflex Secure Docking, Power Boost |
Image: Dimensional diagram of the Moen Reyes 87932 faucet.
5. Installation (Setup)
The Moen Reyes 87932 faucet is designed for easy installation, compatible with 1-hole, 2-hole, or 4-hole sink configurations using the included optional deck plate. The Duralock quick connect system simplifies the connection of water supply lines.
5.1 Before You Begin
- Ensure main water supply is turned off.
- Clear the area under the sink for access.
- Gather necessary tools (adjustable wrench, screwdriver, plumber's putty/silicone sealant).
5.2 Faucet Installation Steps
- Prepare the Sink: If using the deck plate, apply a bead of plumber's putty or silicone sealant around the underside of the deck plate and position it on the sink holes.
- Install the Faucet: Insert the faucet body through the center hole of the sink (and deck plate, if used). From underneath the sink, secure the faucet with the mounting hardware provided.
- Connect Water Supply Lines: Attach the flexible supply lines from the faucet to your hot and cold water supply valves. The Duralock quick connect system allows for a tool-free connection for the spray hose.
- Install Soap Dispenser: Insert the soap dispenser body into an available sink hole. Secure it from underneath with the provided nut. Fill the dispenser from the top.
- Test for Leaks: Once all connections are secure, slowly turn on the main water supply and check for any leaks.
Image: The Duralock Quick Connect system for simplified installation.
6. Operation
Your Moen Reyes faucet is designed for intuitive use with its single-handle control and versatile pulldown spray head.
6.1 Water Flow and Temperature Control
- Turn On/Off: Lift the single lever handle to turn on the water. Push down to turn off.
- Adjust Temperature: Move the lever handle left for hot water and right for cold water.
- Adjust Flow: Lift the lever handle higher for increased water flow.
6.2 Pulldown Sprayer Features
The pulldown spray head offers flexibility and multiple spray functions:
- Reflex System: The spray head retracts automatically and docks securely back into the spout after use.
- Power Boost: Press the Power Boost button on the spray head to increase water flow for faster filling of pots or more powerful cleaning.
- Multiple Spray Modes: Toggle between a steady stream and a powerful spray for various tasks.
Image: The Moen Reyes faucet demonstrating Reflex and Power Boost technologies.
Image: Using the pulldown spray head for rinsing tasks.
6.3 Soap Dispenser Use
The included soap dispenser can be filled from the top by simply lifting the pump head. Press the pump head to dispense soap.

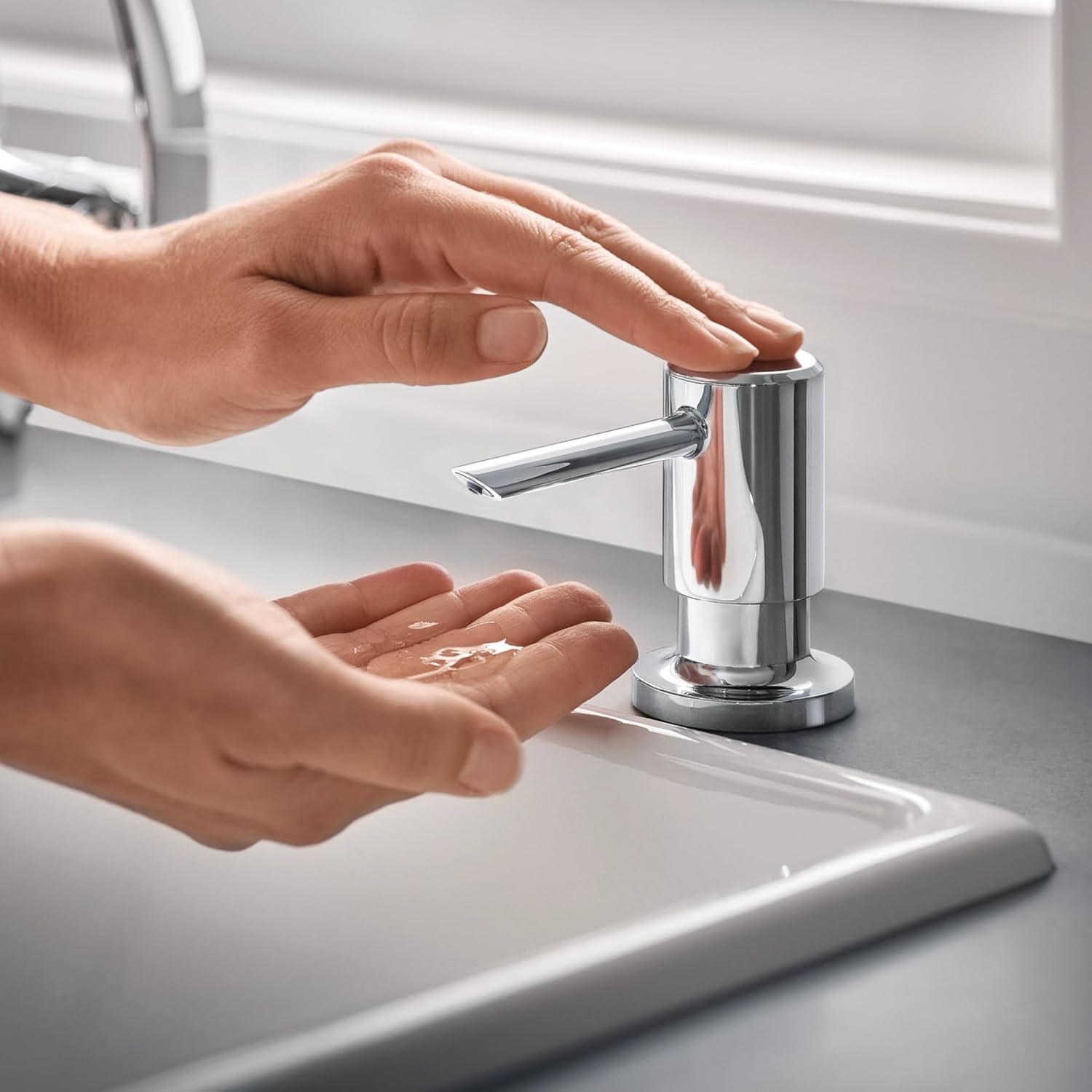

Image: Operating the included soap dispenser.
7. Maintenance
Proper care and maintenance will ensure the longevity and performance of your Moen Reyes faucet.
7.1 Cleaning the Faucet
To maintain the chrome finish, clean with a soft, damp cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish. The chrome finish is highly reflective and designed to complement various kitchen styles.
Image: Close-up of the polished chrome finish.
7.2 Water Safety Standards
All Moen residential kitchen and bath faucets, including the Reyes 87932, comply with the Federal Safe Drinking Water Act and NSF 61 standards. This certification ensures that the faucet is a safe choice for clean drinking water.
Image: Moen's certification for U.S. Water Safety Standards.
8. Troubleshooting
If you encounter any issues with your Moen Reyes faucet, refer to the following common troubleshooting tips:
- Low Water Flow: Check if the aerator is clogged with debris. Unscrew and clean the aerator. Also, ensure that the water supply valves are fully open.
- Leaks: Verify all connections are tight. If leaks persist, check the O-rings and gaskets for proper seating or damage.
- Sprayer Not Retracting: Ensure the hose weight under the sink is positioned correctly and not obstructed. The Reflex system relies on this weight for smooth retraction.
- No Hot/Cold Water: Confirm that both hot and cold water supply lines are connected and their respective shut-off valves are open.
For more complex issues or if troubleshooting steps do not resolve the problem, please contact Moen customer support.
9. Warranty and Support
Moen offers a Lifetime Limited Warranty on its faucets, covering defects in material and manufacturing workmanship. This warranty reflects Moen's commitment to quality and durability, ensuring your faucet performs reliably for decades. For detailed warranty information, product registration, or technical assistance, please visit the official Moen website or contact their customer service department.
Image: Moen Lifetime Limited Warranty.
