1. Introduction
This manual provides essential information for the assembly, operation, and maintenance of your Poliman Núria Kitchen Kit. Designed for practicality and efficiency, this kitchen kit features 9 doors and 1 drawer, offering versatile storage solutions for any kitchen environment. Please read these instructions carefully before proceeding with assembly or use.

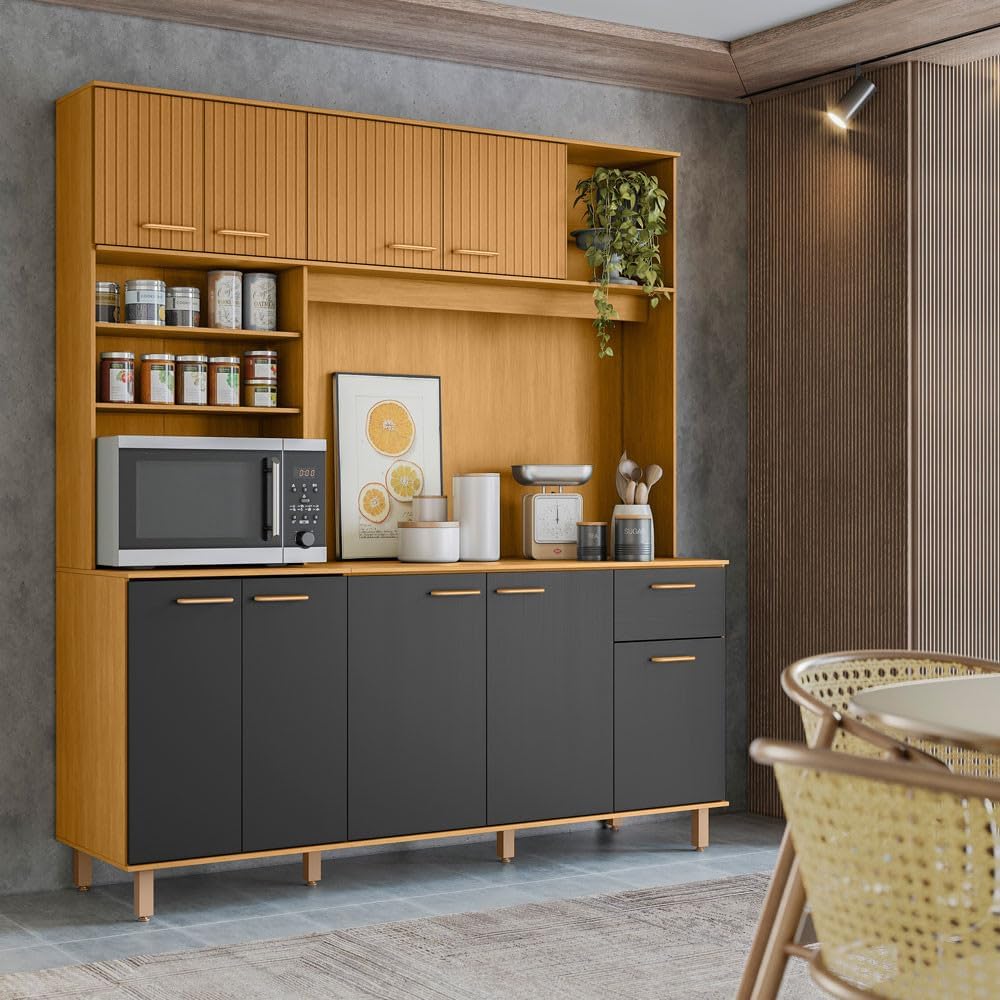

Image 1.1: The Poliman Núria Kitchen Kit in Freijo ribbed with satin graphite finish, showcasing its design and storage capabilities within a kitchen environment.
Image 1.2: The Poliman Núria Kitchen Kit shown with a person for scale, illustrating its overall height and presence.
2. Setup and Assembly
Assembly of the Poliman Núria Kitchen Kit is required. Please ensure all components are present before beginning. It is recommended to assemble the unit on a soft, clean surface to prevent scratches.
2.1 Included Components and Features
- 9 Swing Doors (4 with ribbed graphic design)
- 1 Drawer with telescopic slides for full opening
- 4 Internal Shelves
- 18 Metal 26mm Hinges
- 10 Matte Gold Polymer Handles
- 6 Adjustable PVC Feet (13cm height)
- Decorative Niches
- Construction Material: MDP Perffect Touch (15mm and 12mm) and HDF (3mm)
The product is designed to be flexible, allowing for the adaptation of a sink/countertop by removing the included back panel and top. Refer to the separate assembly manual provided with your product for detailed, step-by-step instructions.

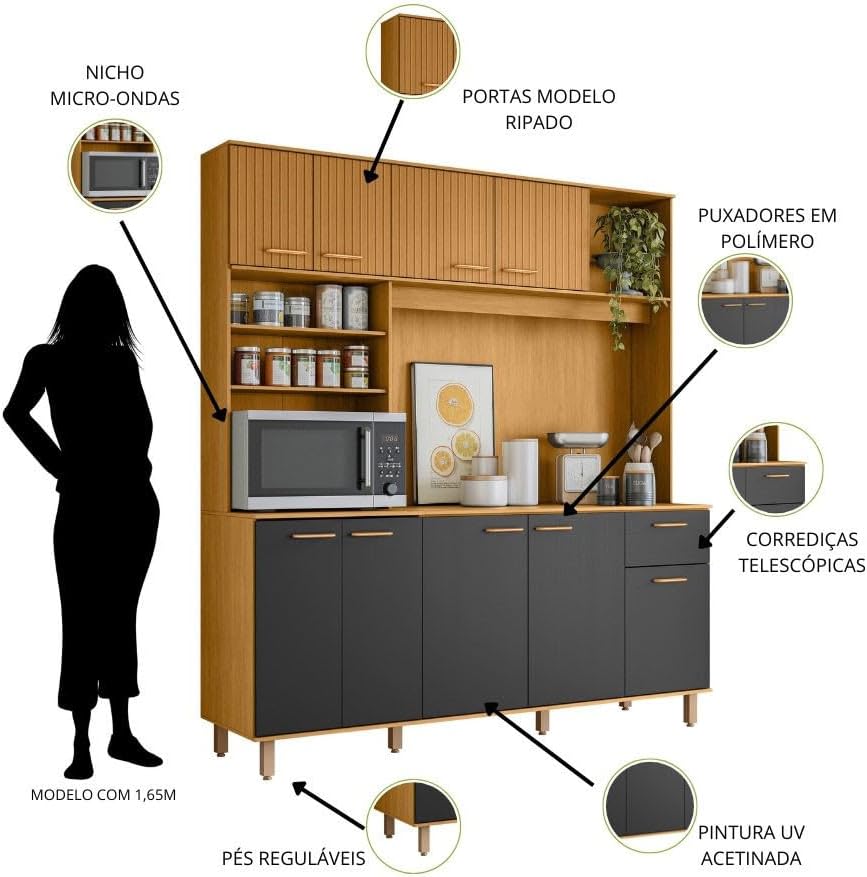

Image 2.1: Annotated diagram highlighting key features such as the microwave niche, ribbed doors, polymer handles, telescopic slides, UV satin paint, and adjustable feet.
3. Operation
3.1 Doors and Drawer
The kitchen kit features 9 swing doors and 1 drawer. The doors are equipped with resistant metal hinges for smooth opening and closing. The drawer utilizes telescopic slides, allowing for full extension and easy access to contents. Avoid forcing doors or drawers beyond their natural range of motion.
3.2 Adjustable Feet
The unit is supported by 6 adjustable PVC feet, each 13cm in height. These feet allow for perfect leveling of the kitchen kit on uneven floors. To adjust, carefully lift or tilt the unit slightly and rotate the base of each foot clockwise or counter-clockwise until the desired height and stability are achieved. Ensure the unit is stable before placing items inside.
4. Maintenance and Care
Proper care will extend the life and maintain the appearance of your Poliman Núria Kitchen Kit.
4.1 Cleaning Instructions
- For general cleaning, use a soft cloth lightly dampened with water.
- Immediately follow with a dry cloth to remove any moisture.
- Do not use chemical cleaners, abrasive products, or harsh scouring pads, as these can damage the finish and material.
4.2 Material Protection
The MDP Perffect Touch material includes Bacterban protection, which inhibits the proliferation of fungi and bacteria on the furniture surface. This feature contributes to a more hygienic environment.
5. Troubleshooting
This section addresses common issues you might encounter with your kitchen kit.
5.1 Unit is Wobbly or Uneven
If the kitchen kit feels unstable, adjust the PVC feet. Ensure each foot is making firm contact with the floor and is adjusted to compensate for any unevenness. Refer to section 3.2 for instructions on adjusting the feet.
5.2 Drawer or Door Not Closing Smoothly
Check for any obstructions within the drawer slides or door hinges. Ensure that the unit is level, as an uneven surface can affect the alignment of doors and drawers. If the issue persists, inspect the hinges and slides for damage or loose screws and tighten as necessary.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | Poliman |
| Model Number | Núria |
| Color | Freijo ribbed with satin graphite |
| Material Type | Engineered wood (MDP Perffect Touch 15mm/12mm, HDF 3mm) |
| Finish Type | Painted (UV satin on doors) |
| Number of Doors | 9 (swing doors) |
| Number of Drawers | 1 (with telescopic slides) |
| Number of Shelves | 4 |
| Adjustable Feet | 6 PVC feet, 13cm height |
| Assembled Dimensions (H x W x D) | 203 cm x 180 cm x 50 cm |
| Product Weight | 76.900 kg |
| Assembly Required | Yes |
Image 6.1: Dimensional diagram of the Poliman Núria Kitchen Kit, indicating a total height of 203cm, width of 180cm, upper depth of 28cm, and lower depth of 50cm.
7. Warranty Information
The Poliman Núria Kitchen Kit comes with a 3-month supplier warranty against manufacturing defects. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for any warranty claims.
For specific terms and conditions, or to inquire about extended warranty options, please refer to your purchase documentation or contact the seller directly.
8. Customer Support
Should you have any questions regarding the assembly, operation, or maintenance of your Poliman Núria Kitchen Kit, or if you encounter any issues not covered in this manual, please contact your retailer or the Poliman customer support team. Have your product model number (Núria) and proof of purchase ready when contacting support.
