AOKIA 4-in-1 Cordless Garden Tool Set Instruction Manual

Introduction

This manual provides comprehensive instructions for the safe and effective use of your AOKIA 4-in-1 Cordless Garden Tool Set. This versatile kit includes a 6-inch mini chainsaw, a 33mm electric pruner, and a telescopic pole, all powered by rechargeable 2000mAh batteries. Please read this manual thoroughly before initial use and retain it for future reference.

General Safety Instructions

Always prioritize safety when operating power tools. Failure to follow these instructions may result in serious injury.

• Wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and sturdy footwear.
• Ensure the work area is clear of bystanders, children, and pets.
• Do not operate tools in wet conditions or near flammable liquids or gases.
• Keep hands and body parts away from moving blades and chains.
• Disconnect batteries before performing any assembly, adjustment, or maintenance.
• Store tools and batteries in a dry, secure location, out of reach of children.
• Use only original AOKIA batteries and chargers.

Package Contents

Verify that all items are present and undamaged upon unpacking:

• AOKIA 6-inch Mini Chainsaw
• AOKIA 33mm Electric Pruner
• Telescopic Pole (extendable 1.5m to 2.5m)
• 2 x 2000mAh Li-ion Batteries (21V)
• Battery Charger
• Chainsaw Chain (spare included)
• Pruner Blades (spare set included)
• Chain Guide Bar
• Wrench/Screwdriver for assembly
• User Manual

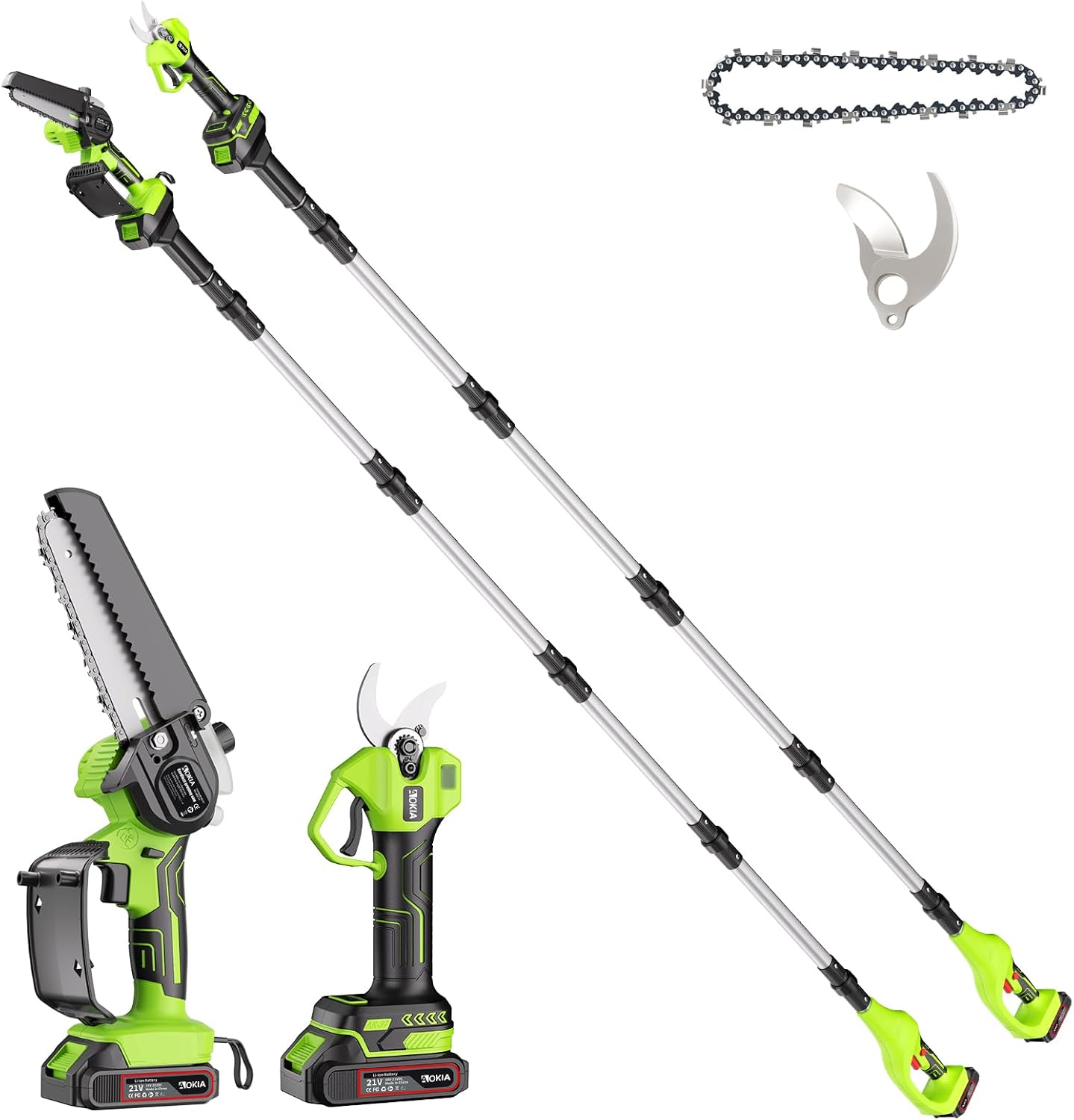

Image: Overview of the AOKIA 4-in-1 Cordless Garden Tool Set, showing the mini chainsaw, electric pruner, telescopic poles, spare chain, and hook attachment.

Setup and Assembly

1. Battery Charging

1. Insert a 2000mAh battery into the charger.
2. Plug the charger into a standard power outlet.
3. Allow the battery to fully charge before first use. The indicator light on the charger will change when charging is complete.

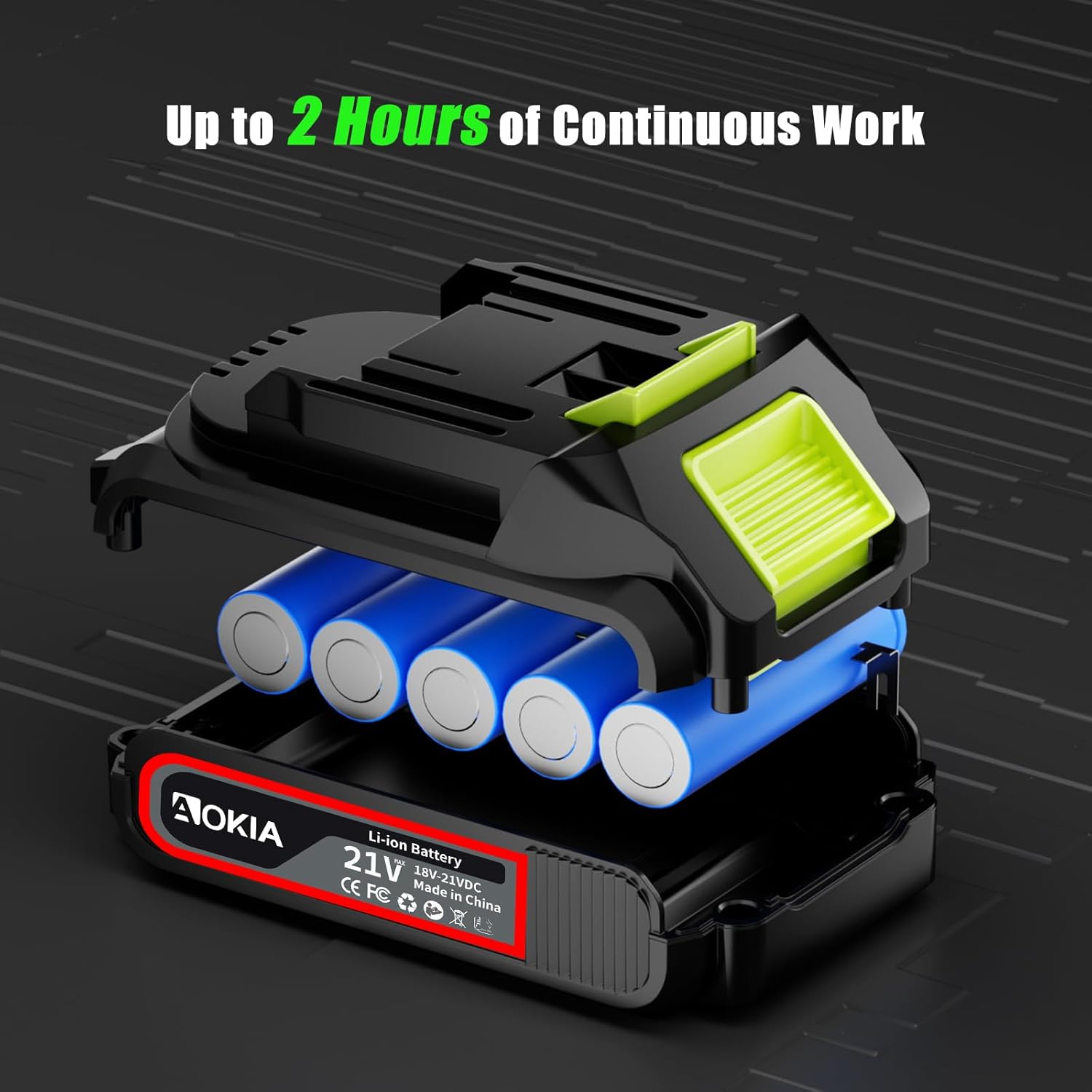

Image: A close-up view of the AOKIA 21V 2000mAh Li-ion battery, highlighting its specifications and design.

2. Mini Chainsaw Assembly

1. Ensure the battery is removed before assembly.
2. Attach the chain to the guide bar, ensuring the cutting edges face the correct direction.
3. Mount the chain and guide bar onto the chainsaw body.
4. Adjust the chain tension using the tool-free tensioning system until it is snug but can still be moved by hand.
5. Fill the 30ml oil reservoir with appropriate chain lubricant (not included).

Image: Detailed view of the AOKIA mini chainsaw, showing the oil reservoir for chain lubrication and the tool-free chain tensioning system.

3. Attaching Tools to the Telescopic Pole

1. Select either the mini chainsaw or the electric pruner.
2. Align the tool's attachment point with the end of the telescopic pole.
3. Securely fasten the tool to the pole using the provided locking mechanism. Ensure it is firmly attached before use.
4. Extend the pole to the desired length (1.5m to 2.5m) and lock it in place. This allows for a maximum reach of up to 4.5m, depending on user height.

Image: A user demonstrating the AOKIA mini chainsaw attached to the telescopic pole, reaching high branches for pruning.

Operating Instructions

1. Mini Chainsaw Operation

1. Insert a charged battery into the chainsaw.
2. Engage the safety lock to prevent accidental startup.
3. To start, disengage the safety lock and press the trigger. The chain speed can reach up to 8m/s.
4. Apply the chainsaw to the branch with steady pressure. Avoid forcing the tool.
5. Ensure the chain is adequately lubricated during operation.
6. After use, engage the safety lock and remove the battery.

Image: A person using the AOKIA 6-inch mini chainsaw to cut a wooden log, demonstrating its cutting capability.

2. Electric Pruner Operation

1. Insert a charged battery into the pruner.
2. To activate, press the trigger twice in quick succession. This safety feature prevents accidental activation.
3. Position the pruner blades around the branch (up to 33mm diameter) and press the trigger to cut.
4. After use, hold the trigger for 3 to 5 seconds until the blades close automatically. This ensures safe storage.
5. Remove the battery after use.

Image: A close-up of the AOKIA electric pruner in action, cutting a small branch with precision.

3. Using with Telescopic Pole

1. Ensure the tool is securely attached to the pole and the pole is extended and locked at the desired length.
2. Maintain a firm grip on the pole with both hands.
3. Position yourself safely away from falling branches.
4. Operate the tool as described above, being mindful of the increased reach and potential for imbalance.

Image: A person using the AOKIA electric pruner attached to the telescopic pole to prune high branches, demonstrating safe and extended reach.

Maintenance

Regular maintenance ensures optimal performance and extends the lifespan of your tools.

• Cleaning: After each use, remove the battery and clean all tools with a dry cloth. Remove any sap, sawdust, or debris from blades, chain, and ventilation slots.
• Chainsaw Chain: Regularly check chain tension and adjust as needed. Keep the chain sharp; a dull chain reduces efficiency and increases wear. Ensure the oil reservoir is filled before each use.
• Pruner Blades: Keep blades clean and sharp. If necessary, replace with the spare blades provided.
• Battery Care: Store batteries in a cool, dry place. Do not expose them to extreme temperatures. Charge batteries fully before long-term storage and recharge every 3-6 months to maintain battery health.

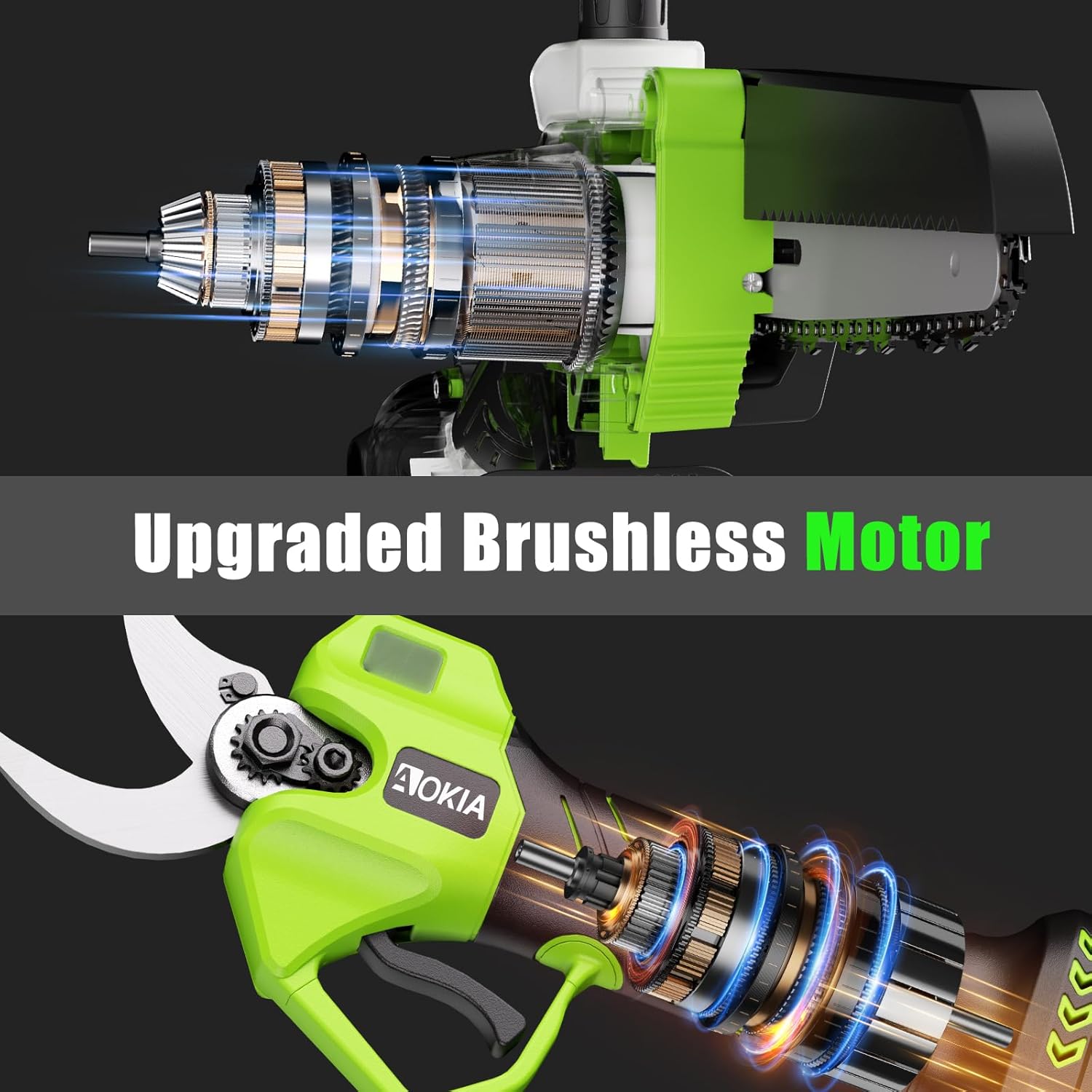

• Brushless Motors: The tools feature brushless motors for increased efficiency and longevity, requiring less maintenance compared to traditional brushed motors.

Image: Detailed view of the AOKIA mini chainsaw, showing the oil reservoir for chain lubrication, crucial for proper maintenance.

Troubleshooting

Specifications

Warranty and Support

AOKIA products are designed for durability and performance. For warranty information, technical support, or replacement parts, please contact your retailer or the AOKIA customer service department. Keep your purchase receipt as proof of purchase.

Return Policy: This product is subject to a 30-day return/replacement policy from the date of purchase.

Contact Information: Refer to the contact details provided with your purchase or visit the official AOKIA website for support.
