Moen Reyes Pulldown Kitchen Faucet

Introduction

The Moen Reyes 87932SRS Pulldown Kitchen Faucet is designed to enhance your kitchen experience with its high-arc design, single-handle operation, and advanced features. This manual provides essential information for the proper installation, operation, and maintenance of your new faucet, ensuring long-lasting performance and satisfaction.

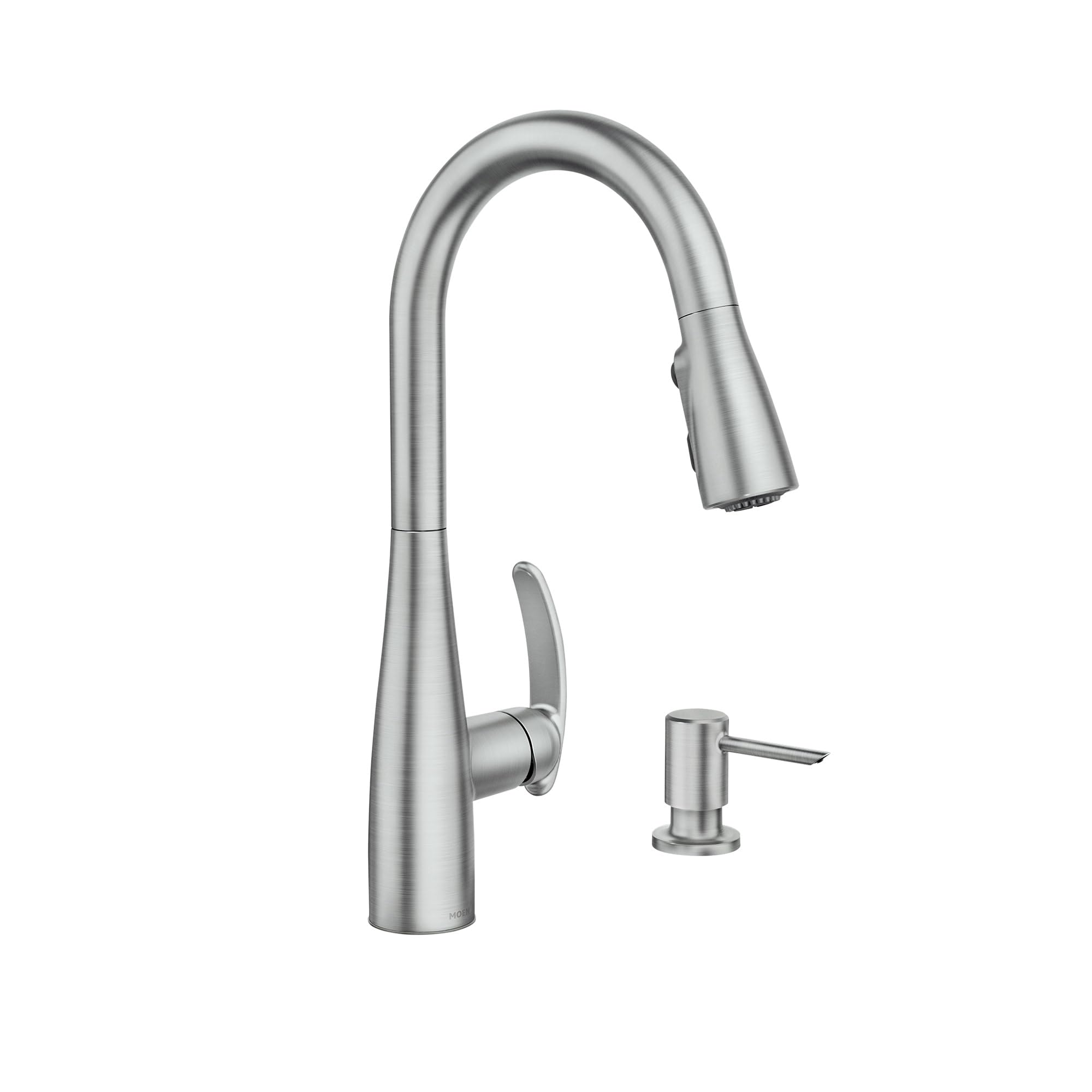

Image: The Moen Reyes 87932SRS Pulldown Kitchen Faucet in Spot Resist Stainless finish, showcasing its high-arc design and integrated soap dispenser.

Product Features

• Power Boost Technology: Delivers a faster clean and faster fill with the push of a button, increasing water flow for efficient tasks.
• Reflex System: Ensures smooth operation and secure docking of the pull-down spray head.
• Duralock Quick-Connect System: Facilitates easy and secure installation without the need for specialized tools.
• Spot Resist Stainless Finish: Resists fingerprints and water spots, maintaining a cleaner appearance.
• High-Arc Design: Provides ample clearance for washing large pots and pans.
• Single-Handle Operation: Allows for effortless control of water temperature and flow.
• Flexible Installation: Designed for installation through 2 or 4 holes, with an optional deckplate and soap dispenser included.
• Certified Safety: Complies with Federal Safe Drinking Water Act and NSF 61 standards for clean drinking water.

Image: The Moen Reyes faucet in a kitchen setting, demonstrating the pull-down wand retracting (Reflex), the Spot Resist finish, and the Power Boost feature for filling a vase.

Included Components

Your Moen Reyes faucet package includes the following items:

• Kitchen Faucet Assembly
• Soap Dispenser
• Deck Plate (optional for 2 or 4-hole installation)
• Flexible Supply Lines with 3/8" Compression Fittings
• Instruction Manual

Image: The Moen Reyes faucet assembly, including the main faucet, optional deckplate, and matching soap dispenser.

Setup & Installation

The Moen Reyes faucet features the Duralock Quick-Connect System for simplified installation. Please follow the detailed instructions provided in the separate installation guide included with your product. Ensure all local plumbing codes are met.

Key Installation Points:

• Hole Configuration: This faucet can be installed in 1, 2, 3, or 4-hole sinks. Use the included deck plate for 2, 3, or 4-hole installations.
• Water Supply: Connect the flexible supply lines to your 3/8" compression fittings.
• Duralock Connection: The quick-connect system allows for tool-free attachment of the spray hose to the supply line.

Image: A close-up view of hands connecting the Duralock Quick Connect system, illustrating the easy, tool-free installation process.

If you are unsure about any step, it is recommended to consult a qualified plumber.

Operating Instructions

Water Flow and Temperature Control:

The single lever handle controls both water flow and temperature. Move the handle up to increase flow and down to decrease. Pivot the handle left for hot water and right for cold water.

Pull-Down Sprayer:

Gently pull the spray head from the faucet spout. The Reflex system ensures smooth extension and secure retraction. The spray head offers multiple spray modes:

• Aerated Stream: Ideal for everyday cleaning and filling.
• Powerful Spray: For rinsing and tougher cleaning tasks.
• Power Boost: Press the Power Boost button on the spray head to temporarily increase water flow for faster filling or more powerful rinsing.

Image: A person using the pull-down sprayer of the Moen Reyes faucet to rinse vegetables in a kitchen sink.

Image: The Moen Reyes faucet in use, filling a glass with a steady stream of water.

Maintenance & Care

To maintain the appearance and functionality of your Moen Reyes faucet, follow these care guidelines:

• Cleaning the Finish: The Spot Resist Stainless finish is designed to resist fingerprints and water spots. Clean with a soft, damp cloth and mild soap. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the finish.
• Cleaning the Spray Head: Periodically clean the spray nozzles by gently rubbing them to remove mineral buildup.
• General Care: Regularly check for leaks and ensure all connections are secure.

Image: A visual comparison demonstrating how Moen's Spot Resist Technology prevents fingerprints and water spots on the faucet surface, keeping it cleaner than a standard finish.

Troubleshooting

If you encounter issues with your faucet, consider the following common troubleshooting steps:

• Low Water Flow: Check if the water supply valves are fully open. Inspect the aerator for mineral buildup and clean if necessary.
• Leaks: Ensure all connections are tightened properly. If leaks persist, the cartridge may need inspection or replacement.
• Spray Head Not Retracting: Check for obstructions under the sink that might be interfering with the hose or weight.

For persistent problems, refer to the detailed troubleshooting section in your installation guide or contact Moen customer support.

Specifications

Image: A technical diagram illustrating the key dimensions of the Moen Reyes kitchen faucet, including spout reach and overall height.

Warranty & Support

Your Moen Reyes faucet is backed by Moen's Lifetime Limited Warranty, ensuring quality and workmanship. This warranty covers defects in material and manufacturing for the original consumer purchaser.

Image: The Moen Lifetime Limited Warranty badge, signifying the product's quality and manufacturer support.

For detailed warranty information, product registration, or technical assistance, please visit the official Moen website or contact Moen customer service directly. Ensure you have your model number (87932SRS) available when seeking support.

Image: The Moen logo with text indicating certification to meet U.S. Water Safety Standards, emphasizing the product's commitment to safe drinking water.
