1. Introduction
This manual provides essential instructions for the proper use, maintenance, and care of your FEPPO Dust Collection Cup, specifically designed for the FEPPO Mattress Vacuum Cleaner Model LW-P1012. Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of the product.
2. Safety Information
- Always ensure the main vacuum cleaner is unplugged from the power outlet before installing, removing, or cleaning the dust collection cup.
- Do not operate the vacuum cleaner without the dust collection cup and filters properly installed.
- Keep the dust collection cup and filters dry. Do not wash electrical components.
- Regularly inspect the dust cup for damage. Replace if cracked or broken.
- Dispose of collected dust and debris responsibly.
3. Product Components
The FEPPO Dust Collection Cup assembly consists of the main transparent cup, a primary mesh filter, and a HEPA filter. Familiarize yourself with these components for proper handling and maintenance.

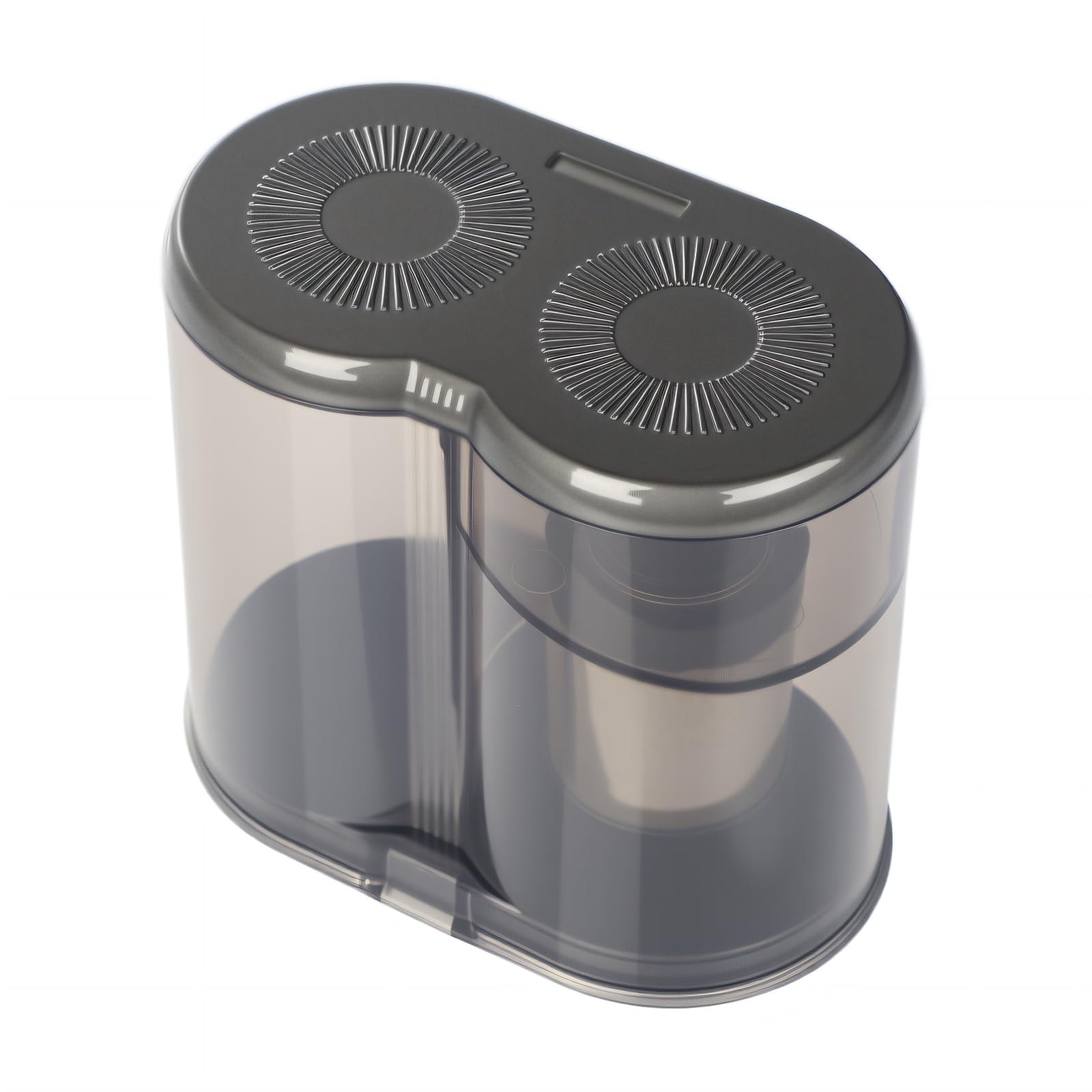

Figure 3.1: Top-front view of the FEPPO Dust Collection Cup. This image shows the overall design of the dust collection cup, highlighting its transparent body and the two circular filter covers on top.
Figure 3.2: Disassembled view of the dust collection cup. The main transparent cup is shown separated from the internal filter assembly, illustrating how the components fit together.
Figure 3.3: HEPA filter removed from its housing. This image details the pleated HEPA filter, which is crucial for capturing ultrafine particles, shown next to its mesh pre-filter housing.
4. Setup and Installation
Follow these steps to properly install the dust collection cup into your FEPPO Mattress Vacuum Cleaner Model LW-P1012.
- Ensure Power is Off: Before beginning, make sure the FEPPO Mattress Vacuum Cleaner is unplugged from the power outlet.
- Locate Dust Cup Slot: Identify the designated slot or attachment point for the dust collection cup on your vacuum cleaner. Refer to your main vacuum cleaner's manual if unsure.
- Align and Insert: Carefully align the dust collection cup with the vacuum's attachment point. Push firmly until it clicks securely into place. Ensure there are no gaps.
- Verify Security: Gently tug on the installed dust cup to confirm it is securely attached and will not detach during operation.
Note: The dust collection cup is designed for a snug fit to maintain optimal suction and filtration. Do not force it if it doesn't align easily; re-check alignment.
5. Operating Guidelines
Once installed, the dust collection cup operates as an integral part of your FEPPO Mattress Vacuum Cleaner. Observe the following guidelines for effective use:
- Monitor Dust Level: The transparent design allows you to easily see the accumulated dust. Empty the cup when it reaches the "MAX" fill line or before it becomes completely full to maintain suction power.
- Regular Emptying: For best performance, empty the dust cup after each significant use, especially when cleaning heavily soiled areas.
- Avoid Overfilling: Overfilling can reduce suction efficiency and place undue strain on the vacuum motor.
6. Maintenance and Cleaning
Regular cleaning of the dust collection cup and its filters is essential for maintaining the vacuum cleaner's performance and extending its lifespan.
- Remove Dust Cup: Unplug the vacuum cleaner. Press the release button (if applicable) and carefully detach the dust collection cup from the main unit.
- Empty Debris: Hold the dust cup over a trash receptacle and open the bottom flap or twist to release the collected dust and debris.
- Disassemble Filters: Twist or pull to separate the filter assembly from the dust cup. Then, carefully remove the HEPA filter from its mesh housing.
- Clean Mesh Filter: Tap the mesh filter gently to dislodge dust. If heavily soiled, rinse under cool running water. Ensure it is completely dry before reassembly.
- Clean HEPA Filter: Tap the HEPA filter gently against a hard surface to remove fine dust. Do not wash the HEPA filter with water, as this can damage its filtration capabilities. Replace the HEPA filter every 3-6 months, or sooner if suction significantly decreases or it appears heavily soiled.
- Clean Dust Cup: Wipe the inside of the transparent dust cup with a damp cloth. Ensure it is completely dry before reassembly.
- Reassemble: Once all components are clean and dry, reassemble the filters into the dust cup, ensuring they are correctly seated. Then, reattach the dust cup to the vacuum cleaner.
Figure 6.1: Filter assembly for the dust collection cup. This image shows the mesh pre-filter and the separate HEPA filter, illustrating the components that require regular cleaning and replacement.
7. Troubleshooting
If you encounter issues with your dust collection cup, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Suction | Dust cup is full. Filters are clogged. Dust cup not properly installed. | Empty the dust cup. Clean or replace filters. Reinstall the dust cup securely. |
| Dust Leaking | Dust cup not properly sealed. Damage to dust cup or seals. | Ensure dust cup is securely attached. Inspect for cracks or damage; replace if necessary. |
| Difficulty Removing/Installing Dust Cup | Misalignment. Debris obstructing mechanism. | Ensure correct alignment. Check for and remove any debris around the attachment points. |
If the problem persists after attempting these solutions, please contact FEPPO customer support.
8. Specifications
- Model Compatibility: FEPPO Mattress Vacuum Cleaner LW-P1012
- Capacity: Approximately 1.1 Pounds (of dust/debris)
- Filtration System: Multi-stage, including Mesh Pre-filter and HEPA Filter
- Dimensions (L x W x H): 4.72"L x 4.72"W x 2.75"H (Dust Collection Cup only)
- Item Weight: 0.34 Pounds (Dust Collection Cup only)
- Material: Durable transparent plastic, metal mesh, pleated HEPA material
- Color: Violet/Grey
9. Warranty and Support
This FEPPO Dust Collection Cup is covered by the standard warranty provided with your FEPPO Mattress Vacuum Cleaner Model LW-P1012. For detailed warranty information, please refer to the original vacuum cleaner manual or visit the official FEPPO website.
For technical support, replacement parts, or further assistance, please contact FEPPO customer service through their official channels. Always provide your product model number (LW-P1012) when seeking support.
