POXURIO 1HP Sump Pump Instruction Manual

Introduction

Thank you for choosing the POXURIO 1HP Sump Pump. This submersible utility water pump is designed for efficient water transfer and drainage in various applications, including swimming pools, basements, garden ponds, window wells, and rainwater buckets. With a powerful 1HP motor, it can achieve a maximum flow rate of 5000 gallons per hour (GPH) and lift water up to 30 feet. This manual provides essential information for safe installation, operation, and maintenance of your pump.

Safety Instructions

Please read and understand all safety instructions before operating the pump. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Electrical Safety: Always disconnect the pump from the power source before performing any maintenance, cleaning, or when the pump is not in use. Ensure the power cord and plug are in good condition and free from damage. Do not operate the pump with a damaged cord or plug. The pump must be properly grounded.
• Water Temperature: Do not use the pump to transfer water exceeding 95°F (35°C).
• Flammable Liquids: Never pump flammable, explosive, or corrosive liquids such as gasoline, fuel oil, kerosene, or solvents. This pump is designed for water only.
• Submersion: The pump is designed for submersible use only. Ensure it is fully submerged during operation to prevent overheating.
• Thermal Overload Protection: The pump features a built-in automatic thermal overload protector. If the pump overheats, it will automatically shut off. Disconnect power, allow the pump to cool down for at least 15 minutes, and then reconnect. Identify and resolve the cause of overheating before restarting.
• IPX8 Waterproof Rating: The pump has an IPX8 waterproof rating, ensuring safe operation when fully submerged in water.
• Children and Pets: Keep children and pets away from the pump and the area of operation.
• Stable Placement: Ensure the pump is placed on a stable, level surface, free from debris that could obstruct the intake.

Package Contents

Verify that all items are present and undamaged upon unpacking.

• POXURIO 1HP Sump Pump Unit
• Multi-diameter Hose Adapters (Ø1”, Ø1-1/4”, 1” NPT, 3/4”NPT)
• Screw bolt
• Instruction Manual

Specifications

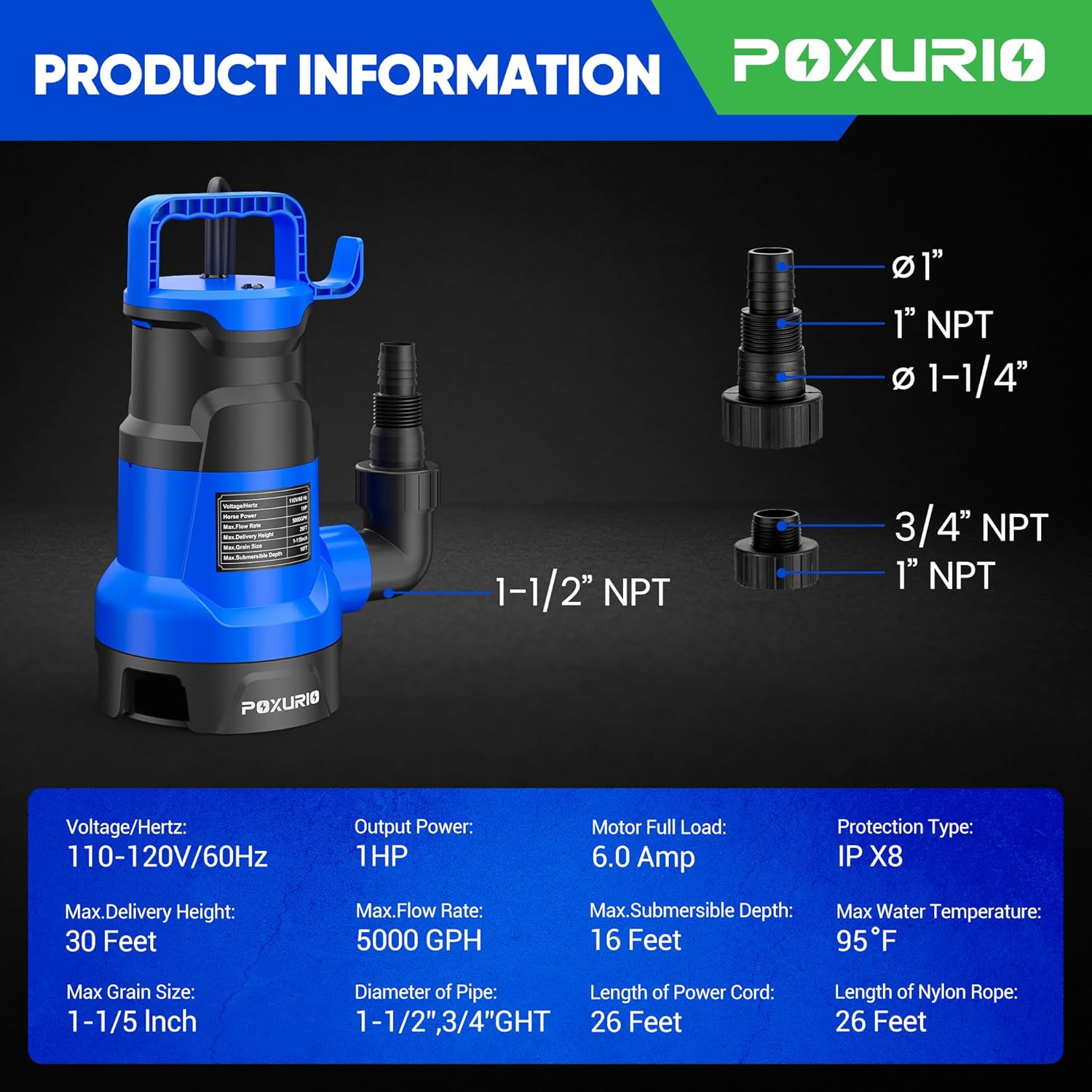

Image: Product information graphic detailing pump specifications and available outlet sizes.

Image: Performance curve illustrating the pump's flow rate (GPH) at different delivery heights (H).

Setup

1. Unpacking and Inspection: Carefully remove the pump and all accessories from the packaging. Inspect for any signs of damage during transit. If any damage is found, do not proceed with installation and contact customer support.
2. Connecting the Discharge Hose: Select the appropriate hose adapter (Ø1”, Ø1-1/4”, 1” NPT, or 3/4”NPT) that matches your discharge hose. Securely attach the adapter to the pump's outlet. Then, connect your discharge hose to the adapter. Ensure all connections are tight to prevent leaks.
3. Pump Placement: Place the pump on a stable, level surface in the area to be drained. Ensure the intake area at the bottom of the pump is clear of any debris that could block water flow. The pump's higher bottom plate design helps prevent debris collection.
4. Electrical Connection: Ensure the power outlet is a standard 110-120V/60Hz grounded outlet. Plug the pump's 26-foot power cord into the outlet. Do not use extension cords unless absolutely necessary, and ensure any extension cord is rated for outdoor use and the pump's power requirements.

Image: The sump pump positioned in a swimming pool, illustrating the long power cord for extended reach.

Operating Instructions

1. Submerge the Pump: Carefully lower the pump into the water to be drained. Ensure the pump is fully submerged before powering it on. The maximum submersible depth is 16 feet.
2. Start Pumping: Once the pump is submerged and the discharge hose is properly routed, plug the pump into a grounded electrical outlet. The pump will begin to operate, transferring water through the discharge hose.
3. Monitor Operation: Observe the pump's operation to ensure water is being discharged effectively and there are no leaks.
4. Stop Pumping: To stop the pump, simply unplug it from the electrical outlet.
5. Drainage Completion: Once the desired water level is reached, or the area is drained, unplug the pump. Lift the pump out of the water, allowing any remaining water to drain from the unit.

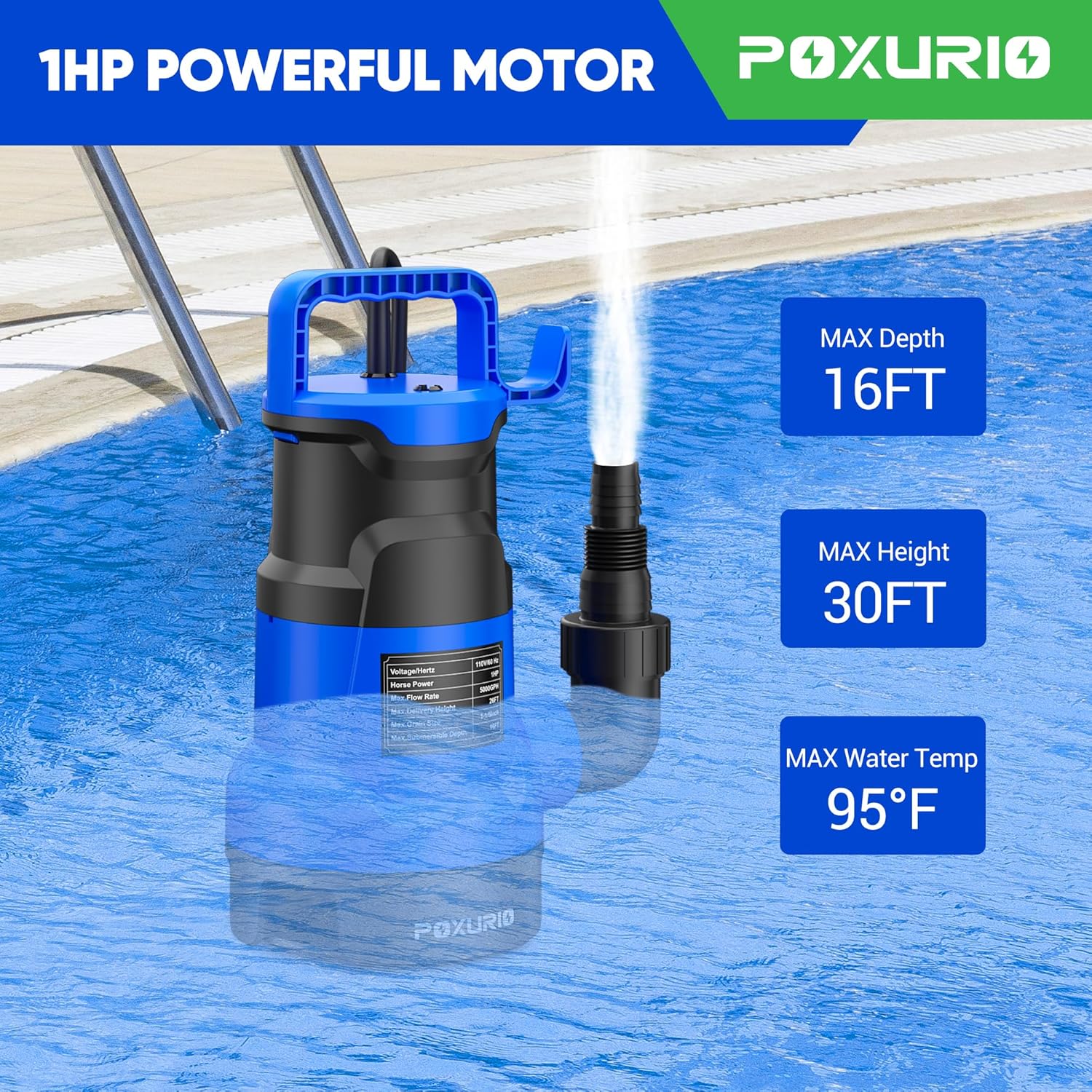

Image: The pump actively discharging water from a pool, highlighting its maximum depth and height capabilities.

Maintenance

Regular maintenance ensures optimal performance and extends the life of your pump. Always disconnect power before maintenance.

• Cleaning the Intake: Periodically inspect the pump's intake screen at the bottom for debris such as leaves, mud, or small stones. Clean any blockages to ensure unrestricted water flow.
• Hose Inspection: Check the discharge hose for kinks, blockages, or damage. Ensure it is securely attached to the pump.
• Power Cord and Housing: Inspect the power cord for cuts, fraying, or other damage. Check the pump's thermoplastic body for cracks or leaks.
• Storage: If storing the pump for an extended period, especially in freezing temperatures, ensure all water is drained from the pump and hose to prevent damage from ice expansion. Store in a dry, protected area.

Troubleshooting

If you encounter issues with your pump, refer to the following troubleshooting guide:

Warranty and Support

For warranty information, please refer to the documentation provided at the time of purchase or contact your retailer. If you encounter any problems during the use of your POXURIO Sump Pump, please contact our customer support for assistance.

Customer Support: Please refer to your purchase platform or retailer's contact information for support.
