1. Product Overview
The NUTRI FIT EK9380HR-W is a versatile digital kitchen scale designed for precise measurement of food ingredients. It features a durable tempered glass platform, a clear backlit LCD display, and a convenient USB-C rechargeable battery.
Image: The NUTRI FIT EK9380HR-W Digital Kitchen Scale in white, showing a bowl of cherry tomatoes being weighed.
2. Setup and Charging
2.1 Initial Setup
- Place the scale on a flat, stable surface.
- Ensure the scale is clean and free from debris before first use.
2.2 Charging the Battery
The scale is equipped with a rechargeable battery and charges via the included USB Type-C cable. This eliminates the need for disposable batteries.
- Connect the USB-C end of the cable to the scale's charging port.
- Connect the standard USB end to any compatible USB power source (e.g., computer, wall adapter, power bank).
- Allow the scale to charge fully before its first use.
Image: The NUTRI FIT scale connected to a USB-C charging cable.
Image: The USB-C charging cable provided with the scale.
3. Operating Instructions
3.1 Power On/Off
To power on the scale, press the ZERO button. The scale will automatically turn off after 30 seconds of inactivity to conserve battery life.
3.2 Unit Conversion
Press the UNIT button to cycle through the available measurement units: grams (g), pounds and ounces (lb:oz), fluid ounces (fl'oz), and milliliters (ml).
Video: Demonstrates the unit conversion feature of the NUTRI FIT kitchen scale, showing how to switch between grams, pounds/ounces, fluid ounces, and milliliters for various ingredients like water and milk.
3.3 Tare Function (Zero Adjustment)
The tare function allows you to subtract the weight of a container or previous ingredients, enabling you to measure multiple items in the same bowl accurately.
- Place an empty container on the scale. The display will show its weight.
- Press the ZERO button. The display will reset to zero.
- Add your ingredients to the container. The display will show only the weight of the added ingredients.
Image: Visual guide demonstrating the tare function for accurate ingredient measurement.
3.4 Weighing Ingredients
Place the item(s) to be weighed directly onto the tempered glass platform or into a container (using the tare function). The backlit LCD display will show the weight clearly.
Image: The scale in use, accurately weighing cherry tomatoes.
4. Maintenance and Storage
4.1 Cleaning
The tempered glass platform is designed for easy cleaning.
- Wipe the surface with a damp cloth.
- For stubborn stains, use a mild detergent and then wipe clean with a dry cloth.
- Avoid abrasive cleaners or submerging the scale in water.
- To prolong battery life, wipe any water stains from the surface before daily storage.

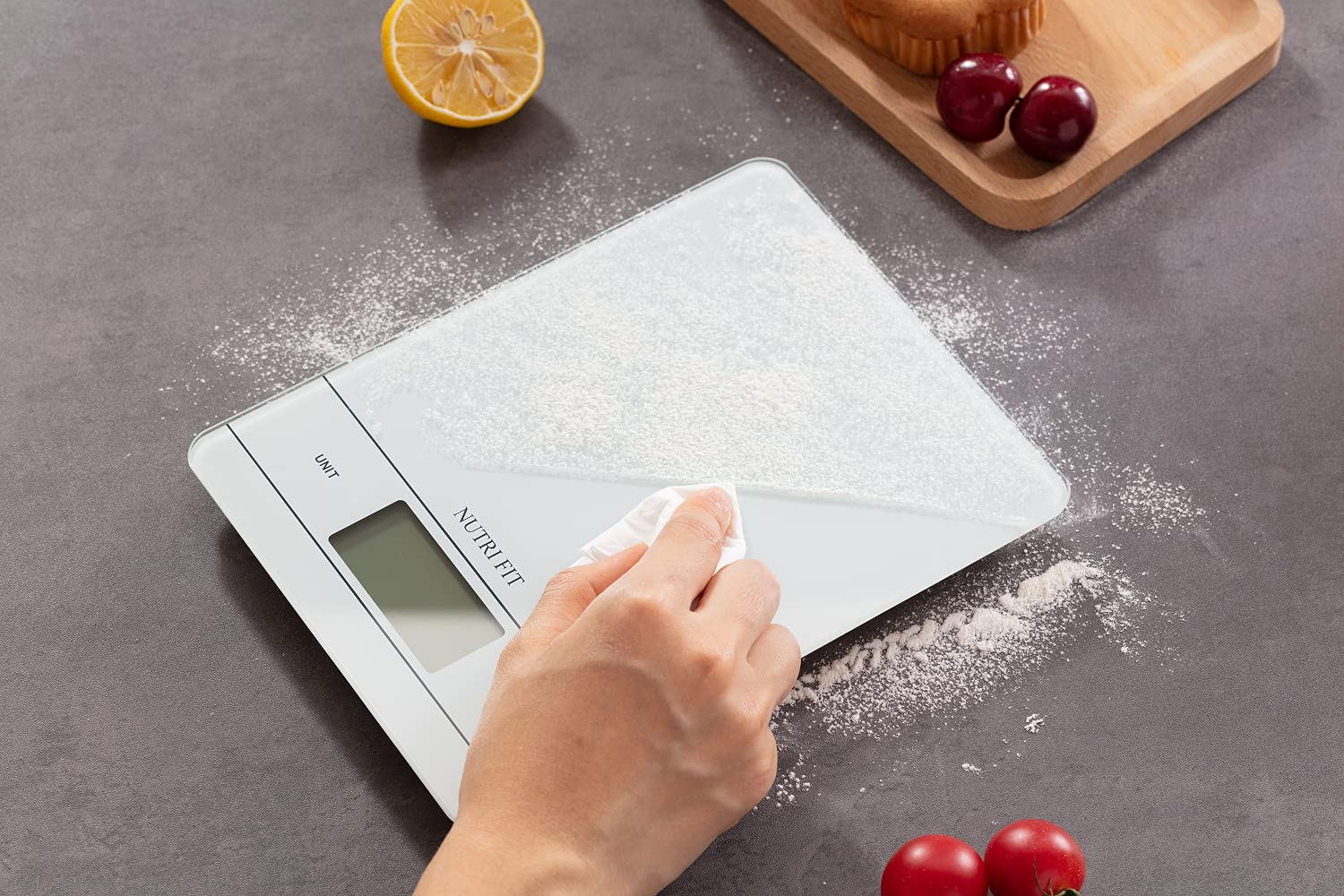

Image: Cleaning the tempered glass surface of the scale.
4.2 Storage
The slim design of the scale allows for convenient storage.
- Store the scale in a dry place.
- It can be easily stored in a drawer or hung on a wall hook.
Image: The scale being hung for storage on a kitchen wall.
5. Troubleshooting
- Scale not turning on: Ensure the battery is charged. Connect the scale to a USB power source using the provided cable.
- Inaccurate readings: Ensure the scale is on a flat, stable surface. Avoid placing it near strong electromagnetic fields. Recalibrate by turning it off and on, then performing a tare function.
- Display shows 'Lo': The battery is low and needs recharging.
- Display shows 'Err': The scale is overloaded. Remove items immediately to prevent damage.
- Backlight turns off quickly: The backlight is designed to turn off after 30 seconds of inactivity to save battery. This is normal operation.
6. Specifications
| Feature | Detail |
|---|---|
| Model Number | EK9380HR-W |
| Brand | NUTRI FIT |
| Maximum Weight Capacity | 11 lb / 5 kg |
| Reading Accuracy | 1 g / 0.1 oz |
| Measurement Units | g, lb:oz, fl'oz, ml |
| Display Type | Backlit LCD (45.5 x 21.5 mm) |
| Power Source | Rechargeable via USB Type-C |
| Material | Tempered Glass (3 mm thick) |
| Product Dimensions | 21.08 x 16 x 1.78 cm (8.3 x 6.3 x 0.7 inches) |
| Product Weight | 399 g (0.88 lbs) |
| Special Features | Automatic Shut-off, Tare Function |
Image: Dimensions of the NUTRI FIT EK9380HR-W Digital Kitchen Scale.
7. Warranty and Support
For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official NUTRI FIT website. Keep your proof of purchase for any warranty claims.
