HOMCOM Aluminum Rollator Walker User Manual

Introduction

This manual provides essential information for the safe and effective use of your HOMCOM Aluminum Rollator Walker. Please read these instructions thoroughly before assembly and operation to ensure proper function and user safety. This rollator walker is designed to provide mobility assistance for seniors and adults, offering stability, a comfortable seat, and convenient storage.

Safety Information

WARNING:

• Always ensure all locking mechanisms are engaged before using the walker.
• Do not exceed the maximum weight capacity of 300 lbs (136 kg).
• Use the hand brakes to control speed and to secure the walker when sitting or standing.
• Avoid using the walker on uneven or slippery surfaces.
• Regularly inspect the walker for loose parts, worn wheels, or damaged components. Do not use if damaged.
• This product is intended as a mobility aid; it is not a toy. Keep out of reach of children when not in use by an adult.
• Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

Parts List

Before assembly, verify that all parts are present and undamaged. Refer to the diagram below for identification.

Figure 1: Key Components of the Rollator Walker. This image illustrates the main parts including the hand brake, PVC wheels, aluminum frame, and the fabric seat and backrest.

• Main Frame Assembly (with pre-attached wheels, seat, and backrest)
• Adjustable Handles (2)
• Storage Bag (1)
• Cane Holder (1)
• Cup Holder (1) (if included)

Setup and Assembly

1. Unfolding the Walker:

   Carefully remove the walker from its packaging. Stand the walker upright and gently pull the sides apart until the frame locks into place. Ensure the seat is fully lowered and secured.

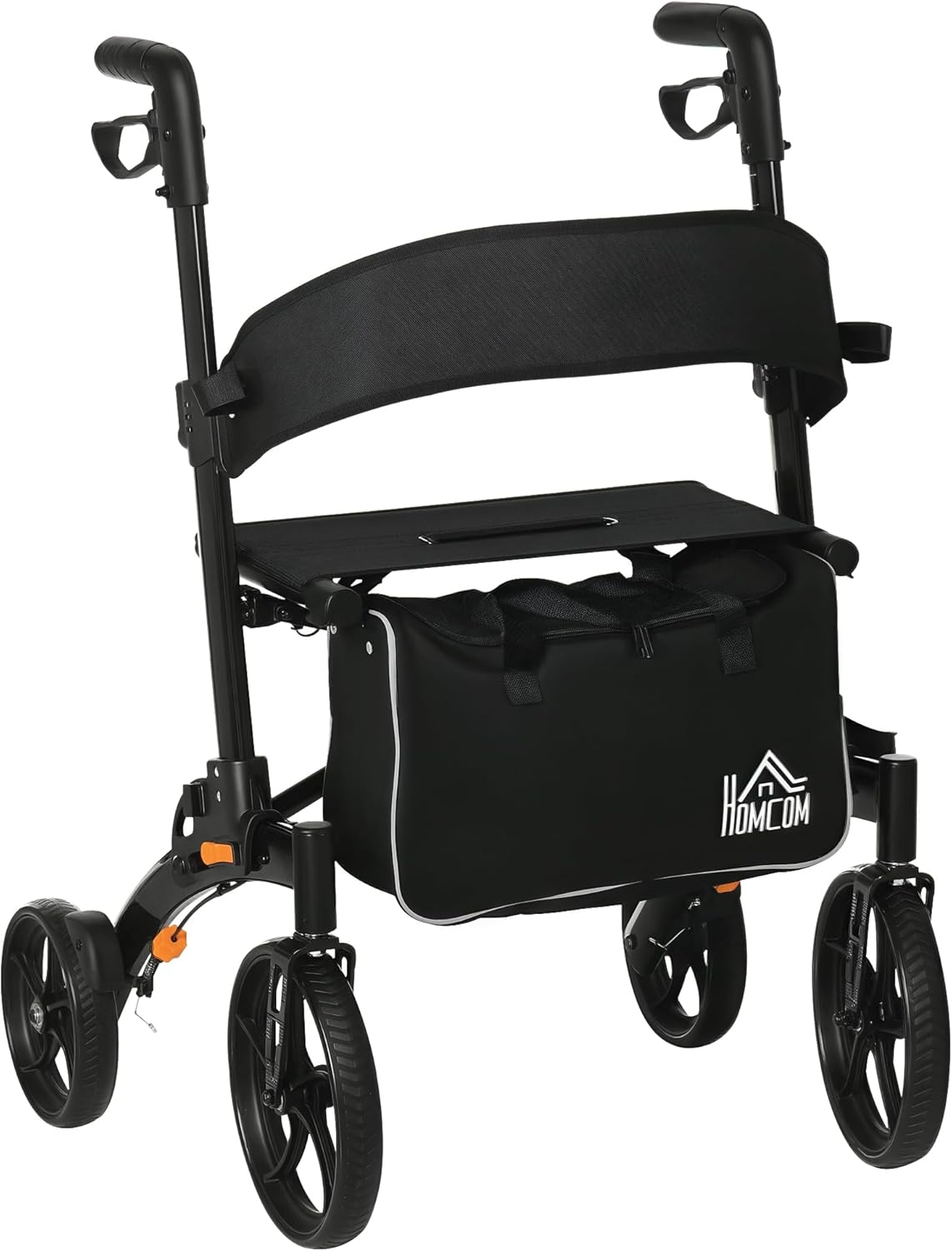

   Figure 2: The rollator walker in its fully unfolded and ready-to-use position, showing the seat, backrest, and storage bag.

2. Adjusting Handle Height:

   Locate the adjustment pins or levers on the handle tubes. Press the pin or open the lever and slide the handle up or down to your desired height. Ensure the handles are at a comfortable level, allowing for a slight bend in your elbows when standing upright. Release the pin/close the lever to lock the handles in place. Ensure both handles are adjusted to the same height.



   Figure 3: Detail of the adjustable handle height mechanism, showing the numbered settings for precise adjustment.

3. Attaching Storage Bag:

   The storage bag attaches to the frame beneath the seat. Use the plastic clips or straps provided on the bag to secure it firmly to the walker's frame.

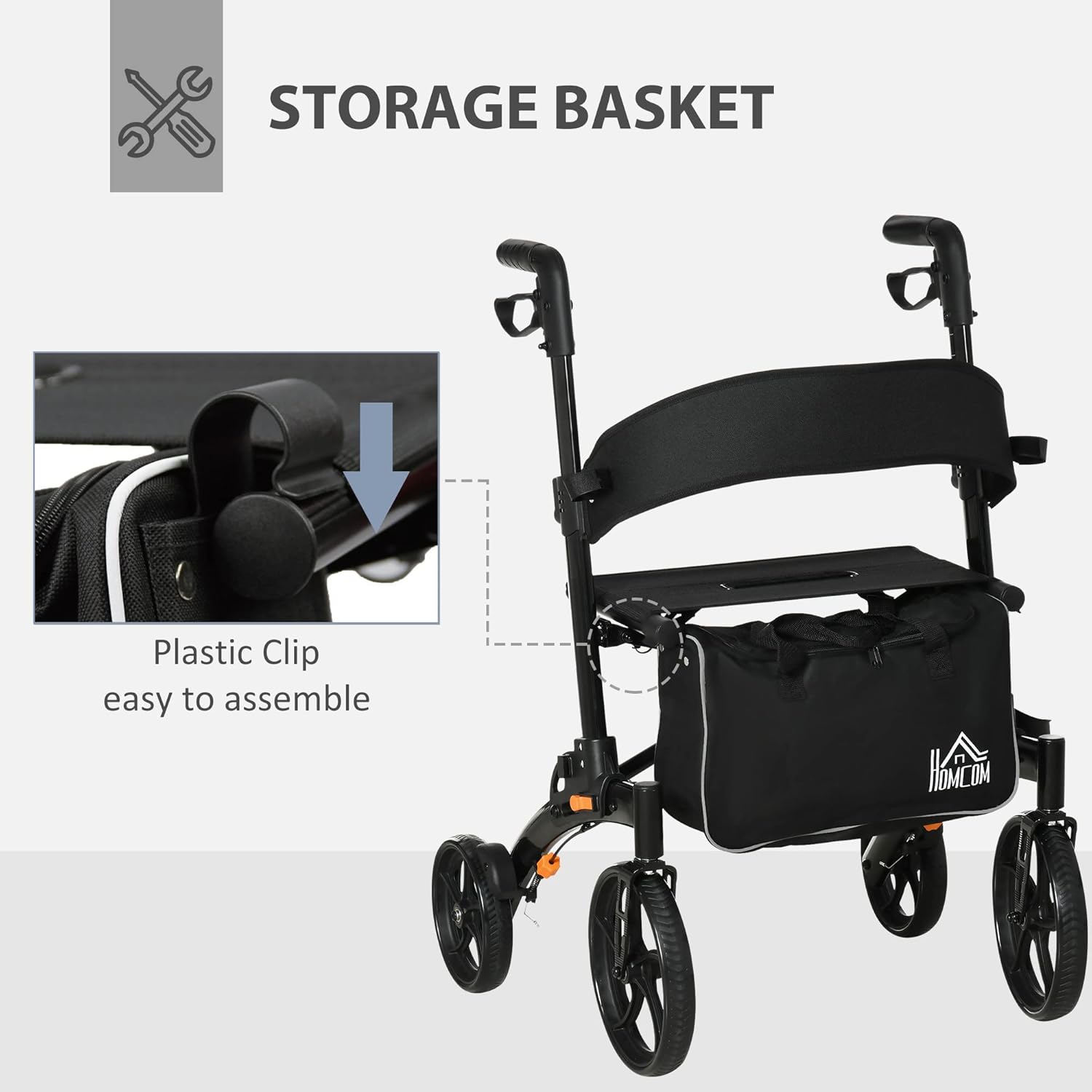

   Figure 4: Illustration of how the storage basket attaches to the walker frame using a plastic clip for easy assembly.

4. Attaching Cane Holder (Optional):

   If your model includes a cane holder, attach it to the designated point on the frame, typically near one of the handles, following the specific instructions provided with the accessory.

5. Attaching Cup Holder (Optional):

   If your model includes a cup holder, attach it to the designated point on the frame, typically near one of the handles, following the specific instructions provided with the accessory.

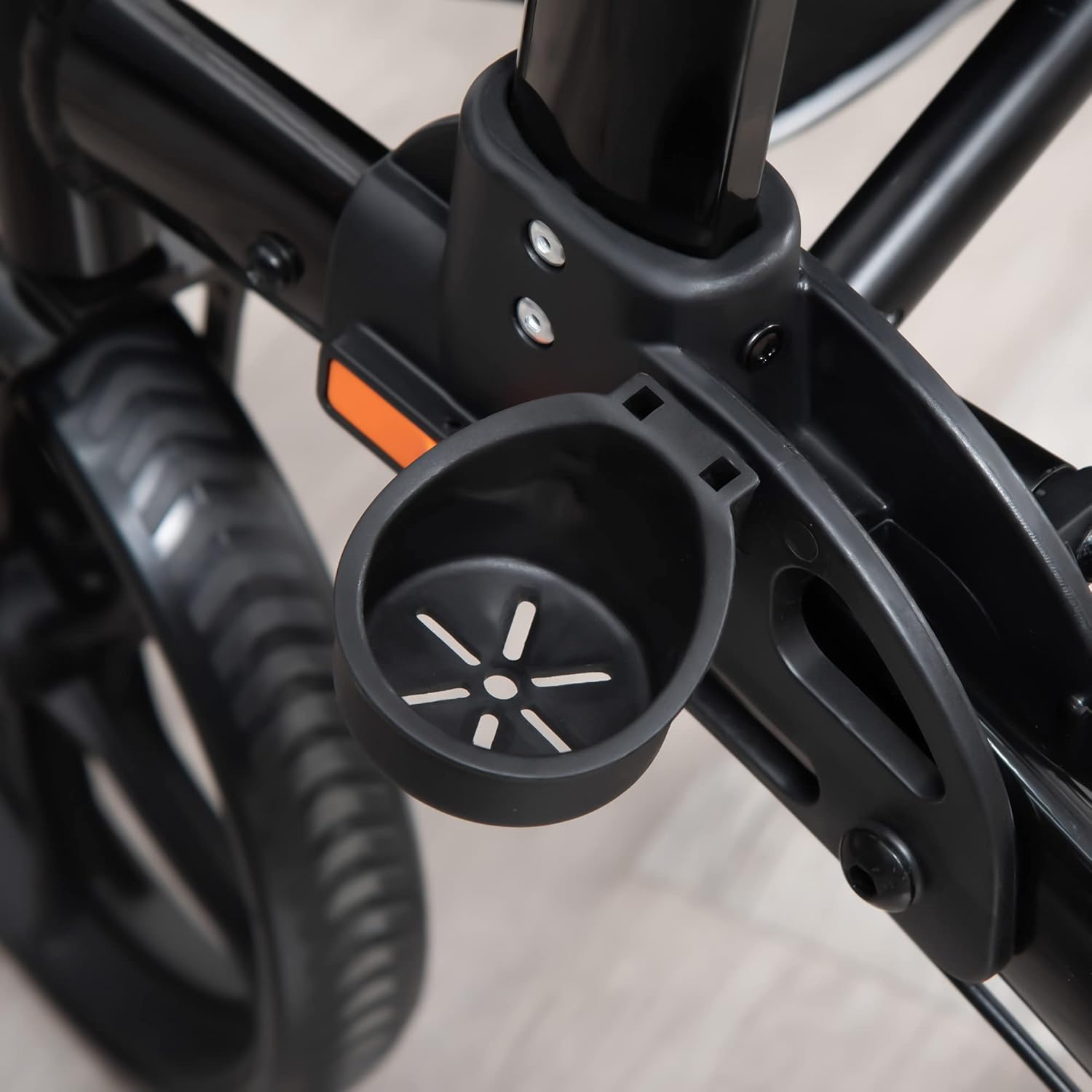

   Figure 5: Close-up view of the cup holder attached to the walker's frame, designed for convenient beverage access.

Operating Instructions

1. Walking with the Rollator:

   Stand behind the rollator, grasping both handles firmly. Push the walker forward a short distance, then step forward with one foot, followed by the other. Maintain an upright posture and keep your weight centered over the walker for stability. The large 10-inch wheels are designed for smooth movement.



   Figure 6: An individual demonstrating proper use of the rollator walker outdoors, maintaining balance and support.

2. Using the Hand Brakes:

   To slow down or stop, gently squeeze the hand brake levers located on the handles. To engage the parking brake (to lock the wheels), push the brake levers down until they click into place. Ensure the parking brakes are engaged before sitting on the seat or when the walker is stationary.

3. Sitting on the Seat:

   Before sitting, ensure the parking brakes are fully engaged on both sides. Turn around so your back is facing the seat. Slowly lower yourself onto the seat, using the handles for support if needed. The backrest provides additional comfort.

4. Folding for Storage and Transport:

   To fold the walker, first remove any items from the storage bag. Lift the folding mechanism (usually a strap or handle on the seat) upwards. The walker will collapse inward. Secure the folded walker with any provided clips or straps to prevent it from unfolding during transport.



   Figure 7: The folding design of the rollator walker, demonstrating how it can be compactly stored in a car trunk for convenient transport.

Maintenance

• Cleaning:

  Wipe down the frame and seat with a damp cloth and mild detergent. Do not use abrasive cleaners or solvents. Ensure all parts are dry before storage or next use.

• Inspection:

  Regularly check all screws, bolts, and fasteners to ensure they are tight. Inspect the wheels for wear and tear, and ensure they rotate freely. Check brake cables for fraying or damage and ensure brakes engage properly.

• Storage:

  Store the walker in a dry, clean place away from direct sunlight and extreme temperatures.

Troubleshooting

Specifications

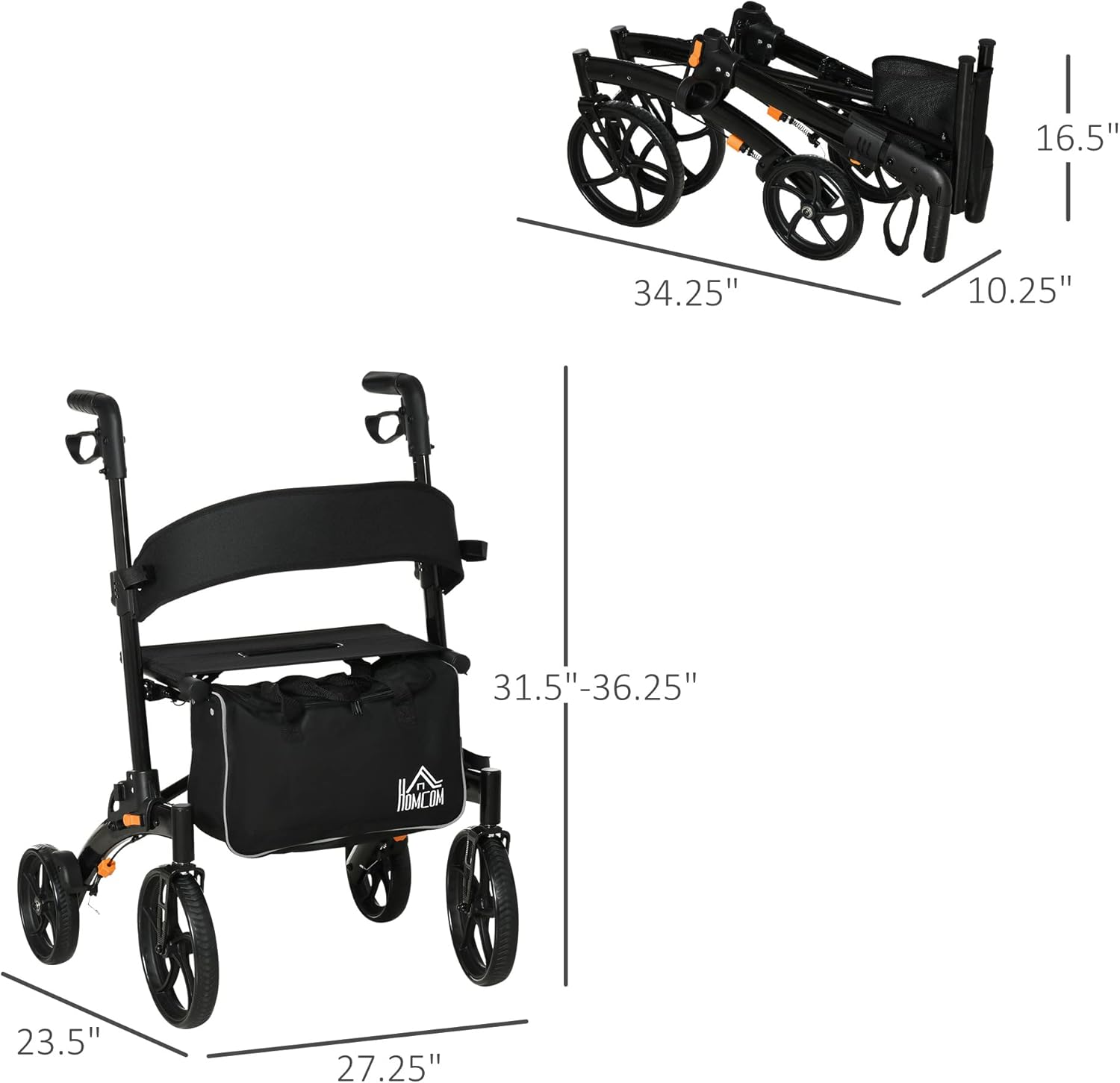

Figure 8: Detailed dimensions of the HOMCOM Aluminum Rollator Walker, including height, length, and width.

Figure 9: Close-up view of the solid tire design, highlighting that it does not require inflation.

Warranty and Support

For warranty information or technical support, please contact HOMCOM customer service. Keep your purchase receipt and model number (712-050V01BK) readily available when contacting support.

Contact Information:

• Visit the official HOMCOM website for contact details.
• Refer to your product packaging for specific customer service phone numbers or email addresses.
