Introduction
Thank you for choosing the Lamomo Motion Sensor Outdoor Post Light. This manual provides essential information for the safe installation, operation, and maintenance of your new outdoor lighting fixture. Please read these instructions carefully before installation and retain them for future reference.
Safety Information
- Always turn off the power at the circuit breaker before installation or servicing.
- Consult a qualified electrician if you are unsure about the installation process.
- Ensure all connections are secure and properly insulated.
- This product is designed for outdoor use only.
- Do not exceed the maximum wattage of 60W for the E26 bulb (bulb not included).
What's in the Box
Verify that all components are present before beginning installation:
- Lamomo Motion Sensor Outdoor Post Light Fixture
- Mounting Hardware
- Instruction Manual (this document)
Specifications
| Feature | Detail |
|---|---|
| Brand | Lamomo |
| Model | 16Inch-1Pack White |
| Material | Aluminum, Tempered Glass |
| Color | White |
| Power Source | AC |
| Voltage | 120 volts |
| Wattage (Max) | 60 watts |
| Bulb Base | E26 (Bulb not included) |
| Light Source Compatibility | LED, Incandescent, CFL |
| Special Features | Motion Sensor, Dusk to Dawn, Waterproof |
| Motion Detection Range | 0 to 35 feet (max 35ft at 6ft installation height) |
| Motion Detection Angle | 360 degrees |
| Mounting Type | Pole Mount, Pier Mount |
| Weather Resistance | Waterproof, High Temperature Resistance, Snowproof, Storm Resistance |
Setup and Installation
The Lamomo Motion Sensor Outdoor Post Light offers two primary mounting methods: Pole Mount and Pier Mount. All necessary mounting hardware is included. A 3-inch mounting base or post/pole is required (not included).
Installation Steps:
- Prepare the Mounting Surface: Ensure the chosen pole or pier mount is stable and can support the fixture. The fixture fits a 3-inch diameter post or pier mount.
- Turn Off Power: Before starting, turn off the electrical power at the main circuit breaker to avoid electrical shock.
- Wire Connections: Connect the fixture's wires to your household wiring according to local electrical codes. Typically, this involves connecting live to live, neutral to neutral, and ground to ground. Use wire nuts to secure connections.
- Secure the Fixture: Attach the light fixture to the 3-inch post or pier mount using the provided mounting hardware. Ensure it is firmly secured and stable.
- Install Bulb: Screw an E26 base bulb (LED, incandescent, or CFL, max 60W) into the socket. (Bulb not included).
- Restore Power: Once installation is complete and all connections are secure, restore power at the circuit breaker.
Mounting Options Visual Guide
Figure 1: Illustration of the two mounting methods: Pole Mount (for a 3-inch lamp post) and Pier Mount (for a 3-inch pier base).
Figure 2: The Lamomo post light installed using a pier mount, suitable for garden walls or pillars.
Figure 3: Several Lamomo post lights installed on poles, illuminating an outdoor pathway.
Operating Modes
The Lamomo Motion Sensor Outdoor Post Light features four distinct operating modes, selectable via controls on the fixture:
- AUTO Mode (Motion Sensor): In this mode, the light automatically turns on at dusk when motion is detected within its coverage area. It remains on while motion is detected. After motion stops, the light will stay on for a predetermined time (adjustable from 20 seconds to 5 minutes) before turning off automatically.
- PC Mode (Dusk to Dawn): The light automatically turns on at dusk and turns off at dawn, providing continuous illumination throughout the night.
- On Mode: The light stays on continuously, day and night. It can be manually turned off using an external wall switch.
- TEST Mode: This mode allows you to adjust the sensitivity of the motion detector. When motion is detected, the light turns on for approximately 5 seconds, regardless of ambient light conditions. This is useful for verifying sensor placement and range.
Adjusting Settings
The motion sensor unit on the fixture includes controls for adjusting sensitivity and the duration the light stays on after motion ceases in AUTO mode. Refer to the markings on the sensor for specific adjustments.
Figure 4: Visual representation of the four operational modes and their behavior.
Figure 5: The motion sensor's 360-degree sensing angle and up to 35-foot detection range.
Operational Videos
Video 1: Demonstration of the light's appearance and functionality during both day and night conditions.
Video 2: Explanation of the two primary ways to utilize the motion sensor post light's features.
Maintenance
Regular maintenance ensures optimal performance and longevity of your Lamomo Outdoor Post Light.
Cleaning
To clean the fixture, ensure the power is off at the circuit breaker. Use a soft, damp cloth to wipe down the aluminum body and tempered glass. Avoid abrasive cleaners or solvents that could damage the finish or glass.
Bulb Replacement
To replace the bulb, turn off the power at the circuit breaker. Carefully unscrew the old bulb and replace it with a new E26 base bulb (max 60W). Ensure the new bulb is securely seated before restoring power.
Weather Resistance
The fixture is constructed from 100% heavy-duty die-cast aluminum alloy and solid tempered clear glass, designed to withstand various weather conditions including rain, snow, high/low temperatures, and storms. Periodically inspect the fixture for any signs of wear or damage, especially after severe weather events.
Figure 6: The Lamomo post light demonstrating its waterproof and weather-resistant design.

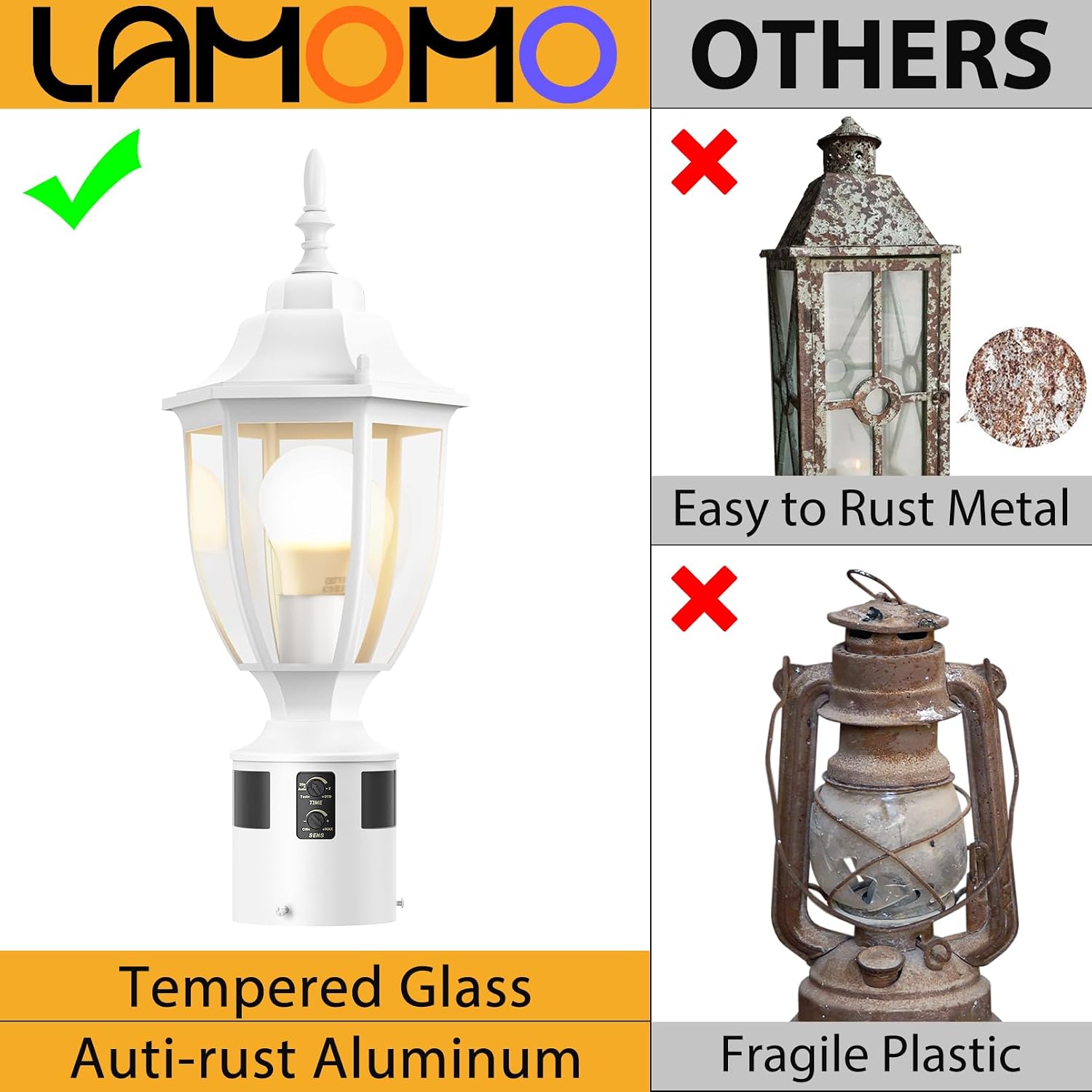

Figure 7: Highlighting the durable construction with tempered glass and anti-rust aluminum.
Troubleshooting
If you encounter issues with your Lamomo Motion Sensor Outdoor Post Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on at night. | 1. Power is off. 2. Bulb is faulty or loose. 3. Sensor is obstructed or in PC Mode during daytime. | 1. Check circuit breaker. 2. Replace or tighten bulb. 3. Ensure sensor is clear. Switch to TEST Mode to verify sensor function. |
| Light stays on continuously. | 1. Set to On Mode. 2. Constant motion in sensor range. 3. Sensor malfunction. | 1. Switch to AUTO or PC Mode. 2. Adjust sensor sensitivity or reposition fixture. 3. Contact customer support. |
| Motion sensor not detecting. | 1. Sensitivity set too low. 2. Obstruction in sensor's field of view. 3. Sensor covered. | 1. Adjust sensitivity to a higher level (use TEST Mode). 2. Clear any obstructions. 3. Remove any covers from the sensor. |
| Light flickers or dims. | 1. Loose wiring. 2. Faulty bulb. 3. Incompatible bulb type. | 1. Turn off power and check wiring connections. 2. Replace bulb. 3. Ensure bulb is E26 base and within 60W limit. |
Warranty Information
Lamomo products are manufactured to high-quality standards. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your purchase or visit the official Lamomo website. Please retain your proof of purchase for any warranty claims.
Customer Support
If you have any questions, require technical assistance, or need to report an issue with your Lamomo Motion Sensor Outdoor Post Light, please contact Lamomo customer support through the following channels:
- Online: Visit the Lamomo Store on Amazon for FAQs and contact options.
- Email: Refer to your product packaging or the Lamomo website for the most current customer service email address.
When contacting support, please have your product model number (16Inch-1Pack White) and purchase date available.
