1. Product Overview
The Morvat Brass 2-Way Y Hose Splitter is designed to efficiently manage your outdoor water supply. This heavy-duty, lead-free brass connector allows you to convert a single water faucet or spigot into two independent outlets, each with its own on/off valve. It is engineered for maximum water flow and a leak-proof connection, suitable for various gardening and outdoor watering applications.

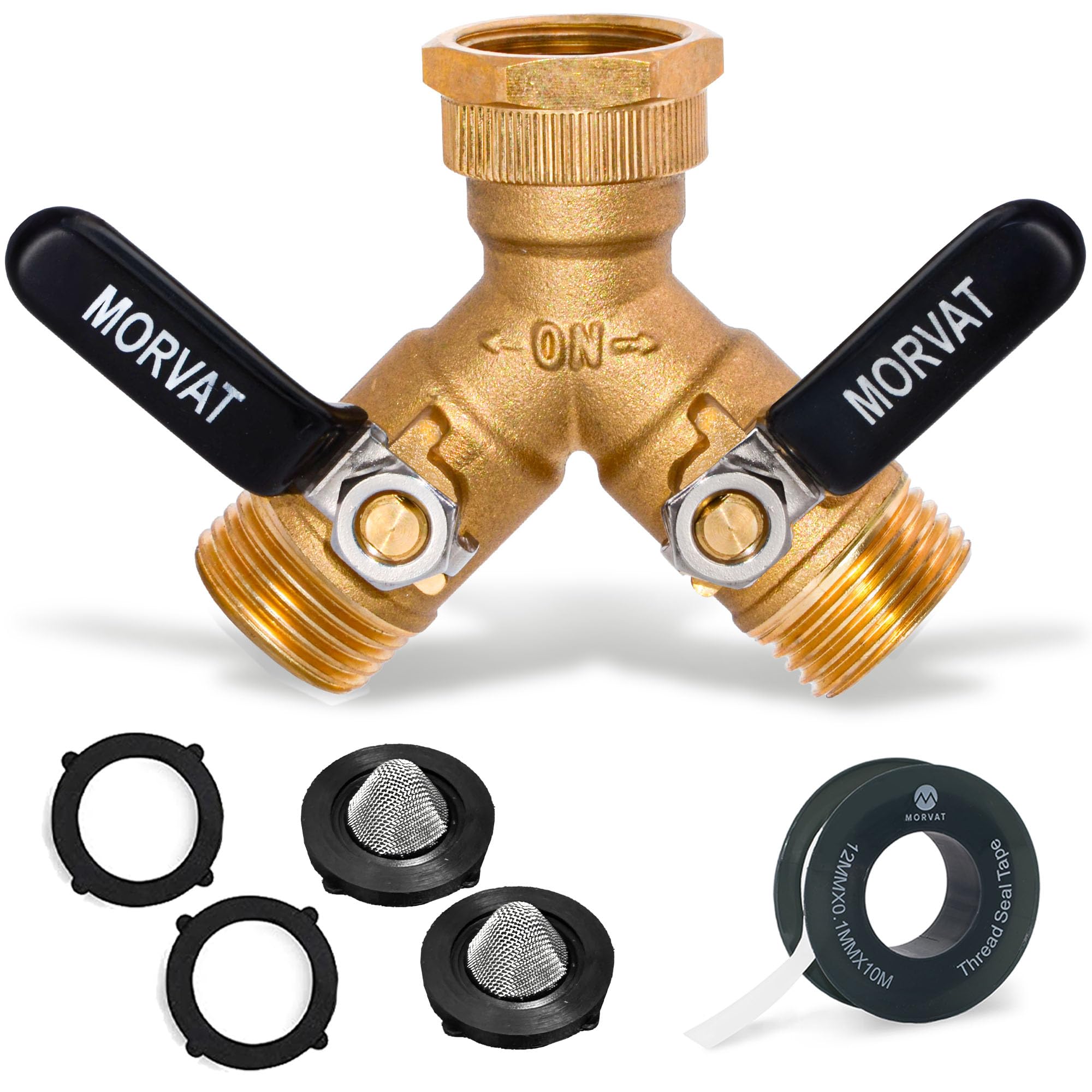

Image 1.1: Morvat Brass 2-Way Y Hose Splitter, showing its robust brass construction and dual outlets.
2. Key Features
- Dual Water Outlets: Instantly creates two independent tap outlets from a single water source, allowing simultaneous use of multiple hoses or watering devices.
- Independent On/Off Valves: Features extra-long butterfly comfort grip handles for easy operation, enabling individual control over each water outlet.
- Maximum Water Flow: Upgraded with an enlarged inlet diameter and a full-port ball valve design to ensure unrestricted water flow, delivering nearly twice the flow rate compared to standard garden splitters.
- 100% Leak-Proof Design: Constructed from high-quality, lead-free brass with expertly machined fittings and high-quality valves to provide a watertight seal, preventing leaks.
- Heavy-Duty Construction: Made from solid brass for superior durability and longevity, resistant to breaking, rusting, and corroding.
- Easy Connection: Equipped with a 360° swivel hexagonal top connection for easy and secure attachment to your water faucet or spigot.
- Included Accessories: Comes with 2 extra rubber washers and 2 filter washers, plus Teflon tape for enhanced leak prevention and convenience.
Image 2.1: Detailed view of the splitter's high-quality ball valves, solid brass body, and included accessories for leak protection.
Image 2.2: Illustration of the easy-to-grip handles and 360° rotation feature for secure, leak-proof connection.
3. Setup and Installation
Follow these steps to properly install your Morvat Brass 2-Way Y Hose Splitter:
- Prepare the Faucet: Ensure your outdoor water faucet or spigot is clean and free of debris. Turn off the water supply before installation.
- Apply Teflon Tape (Optional but Recommended): For an extra secure and leak-proof seal, wrap the threads of your water faucet with the provided Teflon tape. Wrap clockwise 2-3 times.
- Attach the Splitter: Screw the Morvat Brass 2-Way Y Hose Splitter onto the water faucet. Hand-tighten until snug. The 360° swivel hexagonal top connection allows for easy alignment without overtightening.
- Connect Hoses: Attach your garden hoses or other watering accessories to the two outlets of the splitter. Ensure a rubber washer is properly seated in each hose connection before tightening.
- Check for Leaks: Slowly turn on the water supply to the faucet. Check all connections for any leaks. If leaks occur, tighten connections further or reapply Teflon tape and ensure washers are correctly seated.
Image 3.1: Visual guide for connecting the splitter to a faucet and attaching hoses.
Video 3.1: Official Morvat video demonstrating the use and benefits of Morvat watering products, including hose splitters. (Relevant segment for installation is around 0:11-0:13 and 0:16-0:18)
4. Operating Instructions
The Morvat Brass 2-Way Y Hose Splitter features independent on/off valves for each outlet, allowing you to control water flow to individual hoses.
- Turning Water On: To open a specific outlet, rotate the butterfly handle for that outlet 90 degrees until it is aligned with the hose, indicating the "ON" position.
- Turning Water Off: To close an outlet, rotate the butterfly handle 90 degrees until it is perpendicular to the hose, indicating the "OFF" position.
- You can operate both outlets simultaneously or independently as needed.
Image 4.1: The splitter connected to a faucet with hoses, demonstrating water flow from both outlets.
5. Maintenance
Proper maintenance ensures the longevity and optimal performance of your Morvat Brass 2-Way Y Hose Splitter.
- Regular Inspection: Periodically check all connections for wear or damage. Ensure rubber washers are in good condition and replace them if they appear cracked or worn.
- Leak Prevention: If you notice any leaks, first ensure all connections are tightened properly. If leaks persist, disassemble the connection, inspect the washer, and reapply Teflon tape if necessary.
- Winterization: In freezing climates, disconnect the splitter from the faucet and hoses before the first frost. Store it indoors in a dry place to prevent damage from freezing water expansion.
- Cleaning: Clean the brass body with a soft cloth and mild soap if needed. Avoid abrasive cleaners that could damage the finish.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water Leakage at Faucet Connection | Loose connection, worn washer, insufficient Teflon tape. | Tighten the splitter connection to the faucet. Replace the rubber washer if damaged. Reapply Teflon tape to the faucet threads. |
| Water Leakage at Hose Outlet | Loose hose connection, worn hose washer. | Ensure the hose is securely tightened to the splitter outlet. Replace the hose washer if damaged. |
| Reduced Water Flow | Partially closed valve, debris in the splitter or hose. | Ensure both butterfly valves are fully open. Disconnect hoses and check for any obstructions in the splitter or hose. |
| Difficulty Turning Valves | Mineral buildup, lack of lubrication. | Flush the splitter with water. If persistent, a small amount of silicone grease can be applied to the valve mechanism (ensure it's safe for potable water if applicable). |
7. Product Specifications
- Model Number: MOR-BCONNECTOR-2-BF-A
- Material: Lead-Free Brass
- Color: Gold
- Size: 1 Pack
- Connector Type: Adapter (Y-Splitter)
- Thread Type: Standard Garden Hose Thread
- Item Dimensions (L x W x H): 5.4 x 3.5 x 2 inches
- Working Pressure: Up to 115 PSI
- Included Components: Brass Splitter, 2 Extra Rubber Washers, 2 Filter Washers, Teflon Tape
- UPC: 850024089273
8. Warranty and Support
This Morvat Brass 2-Way Y Hose Splitter comes with a 1-Year Manufacturer Warranty.
For any questions, concerns, or warranty claims, please contact Morvat customer support through the retailer's platform or visit the official Morvat website for assistance. Please retain your proof of purchase for warranty validation.
We are committed to providing top-quality products and exceptional customer experience.
