QRD FERROX M5 Wireless Controller Instruction Manual

1. Introduction

Thank you for choosing the QRD FERROX M5 Wireless Controller. This manual provides detailed instructions for setting up, operating, and maintaining your controller. The FERROX M5 is designed for a versatile gaming experience across multiple platforms, including Xbox Series X|S, Xbox One, Nintendo Switch, and PC, featuring advanced technologies like Hall-Effect joysticks and customizable controls.

2. Package Contents

Please verify that all items are present in your package:

• QRD FERROX M5 Wireless Controller x 1
• 2.4GHz USB Dongle x 1
• USB-C to USB-A Charging/Data Cable (2.5m) x 1
• User Manual (this document)

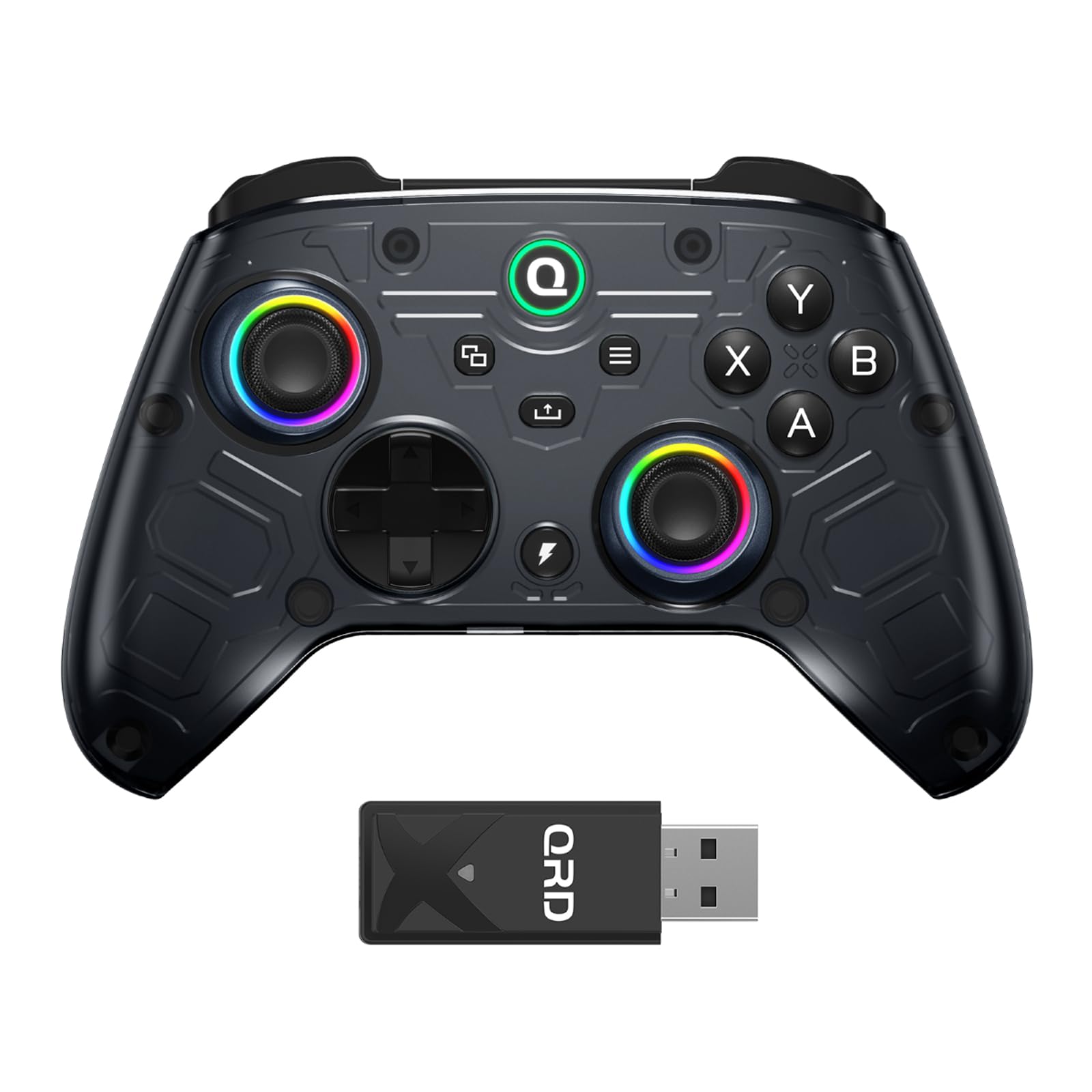

3. Controller Layout

Familiarize yourself with the buttons and features of your QRD FERROX M5 controller:

• Hall-Effect Joysticks: Magnetic analog sticks for precise control and reduced stick drift.
• A/B/X/Y Buttons: Standard action buttons.
• D-Pad: Directional pad for navigation.
• Q Button (Home): Power on/off, access system menus.
• Menu/View Buttons: Access game and system menus.
• LB/RB (Shoulder Buttons): Left and Right Bumper buttons.
• LT/RT (Trigger Buttons): Left and Right Analog Triggers with adjustable trigger stops.
• M1-M4 (Rear Buttons): Four programmable back buttons for macro recording.
• Turbo Button: Activates rapid-fire function.
• Power Switch: Located on the back of the controller.
• 3.5mm Headset Jack: For audio and microphone.

4. Setup and Connection

4.1. Connecting to Xbox Series X|S / Xbox One

1. Connect the wireless USB adapter (dongle) to an available USB port on your Xbox console.
2. Press the pairing button on the USB dongle. The indicator light on the dongle will flash rapidly.
3. Ensure the controller's power switch on the back is turned ON.
4. Press and hold the "Q" (Home) button on the controller for 2-3 seconds until its indicator light flashes rapidly to enter pairing mode.
5. Wait for 2-3 seconds for the controller and dongle to pair. Once successfully paired, the indicator lights will become solid.

4.2. Connecting to Nintendo Switch

1. Prepare a USB-C to USB-A adapter.
2. Plug the wireless USB dongle into the USB-A end of the adapter, then connect the USB-C end to your Nintendo Switch console.
3. Press the pairing button on the USB dongle. The indicator light on the dongle will flash rapidly.
4. Ensure the controller's power switch on the back is turned ON.
5. Press and hold the "Q" (Home) button on the controller for 2-3 seconds until its indicator light flashes rapidly to enter pairing mode.
6. Wait for 2-3 seconds for the controller and dongle to pair. Once successfully paired, the indicator lights will become solid.
7. On your Nintendo Switch, navigate to System Settings > Controllers and Sensors > Pro Controller Wired Communication and ensure it is set to "On" for optimal performance.

4.3. Connecting to PC

1. Connect the wireless USB adapter (dongle) to an available USB port on your PC.
2. Press the pairing button on the USB dongle. The indicator light on the dongle will flash rapidly.
3. Ensure the controller's power switch on the back is turned ON.
4. Press and hold the "Q" (Home) button on the controller for 2-3 seconds until its indicator light flashes rapidly to enter pairing mode.
5. Wait for 2-3 seconds for the controller and dongle to pair. Once successfully paired, the indicator lights will become solid.
6. For optimal performance, especially in competitive games, consider using a USB extension cable for the dongle to avoid interference if the PC's USB ports are in a confined or hot area.

4.4. Connecting to Mobile (Android/iOS)

For mobile devices, a wired connection is typically required. Connect the controller to your mobile device using a USB-C to USB-C cable (or appropriate adapter for iOS devices). The controller should be recognized automatically.

5. Operating Instructions

5.1. Hall-Effect Joysticks and Adjustable Deadzone

The QRD FERROX M5 features Hall-Effect joysticks, which use magnetic sensors instead of physical contacts, significantly reducing wear and preventing stick drift over time. You can customize deadzone levels for Xbox, PC, and mobile. If you experience any drift, increase the deadzone setting or use the built-in calibration mode to restore precise center positioning.

5.2. Trigger Stops

The controller includes built-in trigger stops for the LT/RT buttons. These stops reduce the travel distance of the triggers, allowing for quicker firing, aiming, and braking actions. This feature provides a competitive advantage in fast-paced games like shooters and racing titles.

5.3. Macro and Turbo Control System

The four rear buttons (M1-M4) support on-controller macro recording, allowing you to assign complex sequences of button presses to a single button. The Turbo mode can be activated for A/B/X/Y/LB/RB/LT/RT buttons, enabling rapid-fire and combo actions without requiring PC software.

5.4. Audio, Vibration, and Smart Power

• Audio: Features 3.5mm headset support for both microphone input and game audio output.
• Vibration: Adjustable vibration levels provide immersive feedback during gameplay.
• Battery: Equipped with an 800mAh rechargeable battery, offering reliable long gaming sessions. Includes a low-power warning indicator and a one-button power control.

6. Maintenance

6.1. Firmware Updates

To ensure optimal performance and access to the latest features, regularly check for and install firmware updates for your controller and USB dongle. Firmware updates can resolve potential issues and improve compatibility.

1. Visit the official QRD website to download the latest firmware program file for the FERROX M5 controller and dongle.
2. Before opening the firmware update tool, disable your firewall and any third-party antivirus software to prevent download failure or program interception.
3. For the dongle update: Press and hold the "PAIR" button on the USB dongle. While holding the button, insert the USB dongle into your PC. After the dongle is fully inserted, release the "PAIR" button.
4. For the controller update: Switch the back power switch to "ON" and ensure the controller is completely powered off (no LED lights illuminated, in full standby mode). Press and hold the [Y] button firmly and do not release it. While holding [Y], connect the controller to your PC using a USB cable. Keep holding [Y] until the "UPDATE" button appears in the firmware program interface.
5. In the updater tool, click "Update". The firmware flashing process will begin automatically. Do not remove the dongle or controller during the update.
6. When complete, a "Success" message will be displayed. The update is completed successfully when the controller reactivates its LED lights and power functions automatically.

6.2. Manual Calibration (Joysticks and Triggers)

If you experience stick drift or inconsistent trigger response, you can manually calibrate the controller:

1. Ensure the controller is powered ON but NOT connected to anything (disconnect USB cable, unplug USB wireless dongle). Then turn the controller ON again. The HOME LED will flash yellow.
2. STEP 1: Activate Calibration Mode. Hold "T + MENU" buttons simultaneously for 3 seconds. The HOME LED will flash yellow.
3. STEP 2: Rotate Both Analog Sticks. Slowly rotate both the Left Stick (LS) and Right Stick (RS) over 4 times in a full circle.
4. STEP 3: Press Triggers Fully. Slowly pull both the Right Trigger (RT) and Left Trigger (LT) to their maximum positions 3 times.
5. STEP 4: Exit Calibration. Press the MENU button once to exit. The controller saves the calibration instantly.

7. Troubleshooting

• Connection Issues: Ensure the USB dongle is securely plugged in and the controller is fully charged. Re-attempt the pairing process as described in Section 4. If using a PC, try a different USB port or a USB extension cable.
• Stick Drift/Inaccurate Input: Perform a manual calibration as described in Section 6.2. Ensure the controller firmware is up to date.
• Buttons Not Responding: Check for physical obstructions. Ensure the controller is fully charged. If the issue persists, try updating the firmware.
• No Power: Ensure the power switch on the back of the controller is ON. Charge the controller using the provided USB cable.
• Firmware Update Failure: Temporarily disable your firewall and antivirus software before attempting the firmware update again. Ensure a stable internet connection.

If you experience any persistent connection, drift, or performance issues, please contact our customer support team for assistance with troubleshooting and product guidance.

8. Specifications

9. Warranty and Support

QRD is committed to providing high-quality products and customer satisfaction. For any questions, technical support, or warranty claims, please contact our customer support team. We are available to assist you with troubleshooting and product guidance.

Please refer to the contact information provided on the product packaging or the official QRD website for the most up-to-date support details.
