Introduction
The SLOPEHILL D17T Dog Training Collar is designed to assist in effective dog training with a range of humane modes. This upgraded system offers Beep, Vibration, Safe Shock, Flash Light, and No Shock modes, enabling users to teach basic commands and address behavioral issues. With an IP68 waterproof receiver and a remote range of up to 4200ft, it provides flexibility for training in various environments. This manual provides detailed instructions for setup, operation, maintenance, and safety to ensure optimal use of your training collar.
Video providing an overview of the SLOPEHILL 4200ft Dog Training Collar.
Package Contents
- Remote Control (1)
- Receiver Collars (2)
- USB Charging Cable (1)
- Leash (1)
- Long Conductive Silicone Prongs (2 sets)
- Short Conductive Silicone Prongs (2 sets)
- Test Light Tool (1)
- User Manual (1)
Product Overview
The SLOPEHILL D17T system consists of a handheld remote control and two receiver collars. The remote features an LCD screen displaying mode levels and battery status, along with dedicated buttons for Beep, Vibration, Shock, and Flashlight functions. A side switch allows selection between two dog channels, and a safety switch prevents accidental shock. The receiver collars are compact, IP68 waterproof, and include a power button and contact points for stimulation.
Setup
1. Charging the Devices
Both the remote and receiver collars are rechargeable. Use the provided USB charging cable to charge both devices. A full charge takes approximately 2 hours. The collar can operate for 15-20 days on a single charge, while the remote can last up to 45 days.
2. Pairing the Collar(s)
- Long press the receiver button on the collar.
- After a beep, the green light on the receiver will flash continuously.
- Press any function button (Beep, Vibration, or Shock) on the remote control.
- The receiver will emit a beep again when pairing is successful.
Video demonstrating the detailed functional operations and pairing process of the Slopehill Dog Shock Collar.

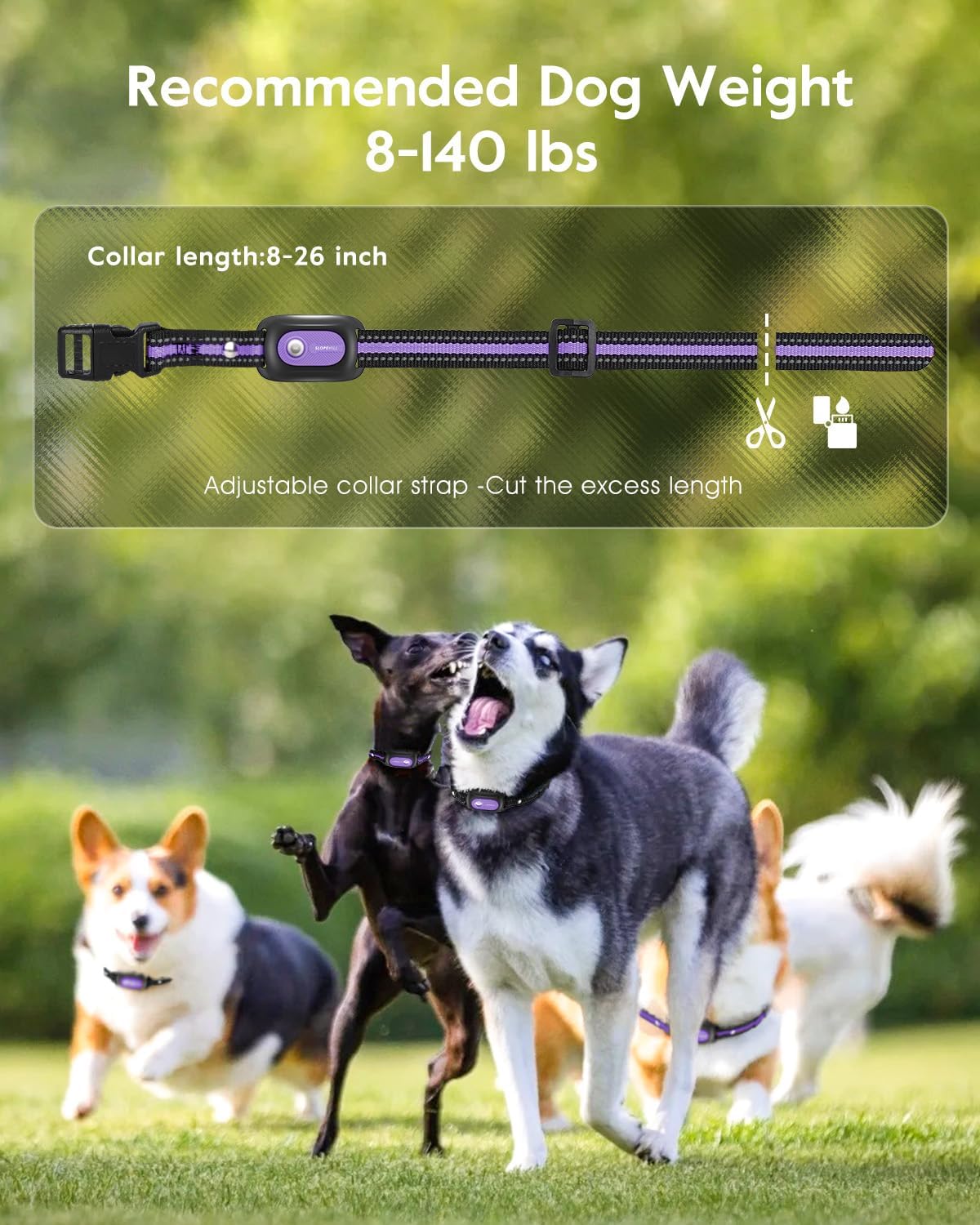

3. Fitting the Collar
The collar strap is adjustable from 8 to 26 inches, suitable for dogs weighing 8 to 140 lbs. Ensure the collar fits snugly but comfortably around your dog's neck. You should be able to insert one finger or your thumb between the collar strap and your dog's neck. For dogs with thick fur, use a comb to separate the fur to ensure the contact points touch the skin effectively. Always ensure the dog is standing comfortably when fitting the collar.
4. Replacing Electrode Columns
- Remove the two conductive silicone caps from the existing electrode columns.
- Use the hexagonal holes on the electric shock test lamp to unscrew the two electrode columns.
- Replace the electric shock column with another length (short or long, depending on your dog's fur length) and tighten it.
- Finally, install the conductive silicone cap over the new electrode columns.
Video tutorial on how to replace the electrode columns on the receiver collar.
Operating Modes
The SLOPEHILL D17T offers five distinct training modes:
- Beep Mode: Provides an audible tone. Adjustable from 1-8 levels.
- Vibration Mode: Delivers a tactile vibration. Adjustable from 1-8 levels.
- Safe Shock Mode: Provides static stimulation. Adjustable from 0-99 levels. The remote has a dedicated "No Shock" mode to prevent accidental activation.
- Flash Light Mode: Activates a solid white light or flashing lights on the receiver collar for visibility in low-light conditions.
- No Shock Mode: A safety feature that disables the shock function, allowing only beep and vibration modes to be used.
To adjust the mode levels, press the top knob on the remote to select the desired mode (Beep, Vibration, or Shock), then rotate the knob to increase or decrease the intensity level.
Video demonstrating how to test the electric shock function using the provided test light.
Training Tips
This training collar is a tool to assist in teaching your dog basic commands and correcting unwanted behaviors. It is crucial to use it responsibly and humanely. Always pair corrections with verbal commands and positive reinforcement. Start with the lowest effective stimulation level and gradually increase if necessary. The goal is to gain your dog's attention and redirect behavior, not to cause distress. Praise and reward desired behaviors immediately after a correction to help your dog understand what is expected.
Maintenance
- Do not leave the collar on your dog for more than 8 hours per day to prevent skin irritation.
- Regularly check your dog's neck for any signs of irritation or discomfort.
- Clean the receiver and contact points periodically with a damp cloth to ensure proper function and hygiene.
Troubleshooting
If you encounter any issues with your SLOPEHILL Dog Training Collar, please refer to the following general troubleshooting steps:
- Ensure both the remote and receiver collars are fully charged.
- Verify that the remote and receiver are properly paired (refer to the "Pairing the Collar(s)" section).
- Check that the collar is fitted correctly and the contact points are making proper contact with your dog's skin.
- Confirm that the "No Shock" mode is not activated if you intend to use static stimulation.
- If the issue persists, please contact customer support for further assistance.
Specifications
- Model Name: dog training collar
- Item Model Number: D17T
- Remote Range: Up to 4200ft
- Waterproof Rating: IP68 (Receiver Collar)
- Adjustable Collar Strap Length: 8 to 26 inches
- Recommended Dog Weight: 8 to 140 lbs
- Battery: 3 CR123A batteries required (included)
- Charging Time: Approximately 2 hours
- Receiver Battery Life: 15-20 days
- Remote Battery Life: Up to 45 days
- Material: Nylon
- Item Weight: 15.2 ounces
- Item Dimensions (LxWxH): 5.5 x 1.77 x 0.1 inches
Warranty & Support
The SLOPEHILL Dog Training Collar comes with a 1-year manufacturer warranty.
For any questions, concerns, or technical support, please contact:
- Email: support@islopehill.com
- Phone: +1-732-762-2943
Our customer service team is available 7 days a week, 24 hours a day to assist you.
Safety Information
- Do not leave the collar on your dog for more than 8 hours per day to prevent skin irritation.
- Ensure proper fit to avoid excessive pressure on the dog's neck.
- Always use the lowest effective stimulation level.
- Regularly inspect your dog's neck for any signs of redness, sores, or discomfort.
- This device is intended for training purposes only and should not be used as a punishment tool.
- Keep out of reach of children.
