Gemilai G3007L Espresso Machine Instruction Manual

1. Introduction

Thank you for choosing the Gemilai G3007L Espresso Machine. This professional 15-bar coffee maker is designed to bring cafe-quality espresso, lattes, and cappuccinos directly to your home. Featuring a hybrid boiler system, precise temperature control, and an upgraded steam wand, this machine ensures a superior brewing experience. Please read this manual thoroughly before operation to ensure safe and optimal performance.

2. Important Safety Instructions

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against fire, electric shock, and injury to persons, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• This appliance is for household use only.

3. Product Overview and Components

Familiarize yourself with the various parts of your Gemilai G3007L Espresso Machine.

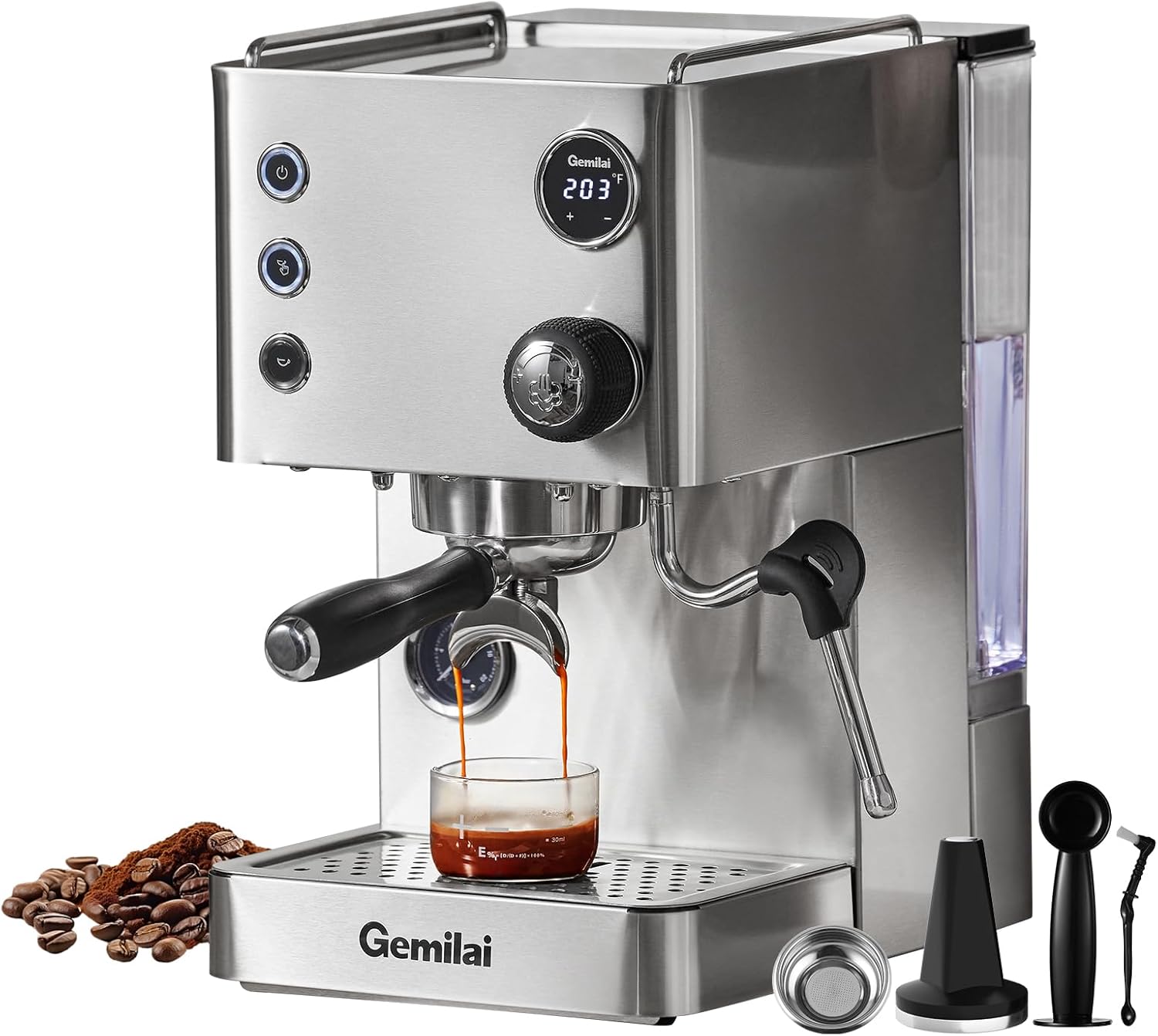

Figure 3.1: Front view of the Gemilai G3007L Espresso Machine.

Figure 3.2: Dimensions of the Gemilai G3007L Espresso Machine (8.7"D x 11.2"W x 14.6"H).

3.1 Included Components

Figure 3.3: What's included with your G3007L Espresso Machine.

1. G3007L Espresso Machine
2. Double Cup Portafilter
3. Coffee Scoop
4. 58 mm Filter Basket (Single Cup)
5. Cleaning Disc
6. Screwdriver
7. Brush
8. Tamper
9. Instruction Manual
10. User Guide

4. Setup and First Use

4.1 Unpacking

Carefully remove all components from the packaging. Retain packaging materials for future storage or transport. Ensure all listed components are present.

4.2 Initial Cleaning

• Wash the water tank, portafilter, and filter basket with warm soapy water. Rinse thoroughly and dry.
• Wipe the exterior of the machine with a damp cloth. Do not immerse the main unit in water.

4.3 Filling the Water Tank

• Remove the 57oz transparent water tank from the back of the machine.
• Fill the tank with fresh, cold, filtered water up to the MAX line.
• Place the water tank back into its position, ensuring it is seated correctly.

4.4 Priming the Machine (First Use)

Before making your first coffee, it is essential to prime the machine to ensure water flows through all internal components.

1. Ensure the water tank is filled.
2. Place a large cup or container under the group head and the steam wand.
3. Plug the machine into a grounded electrical outlet.
4. Press the Power Switch button (⏻) to turn on the machine. The display will illuminate.
5. Allow the machine to preheat until the temperature display stabilizes (approx. 176-215°F).
6. Press the Manual Extraction Button (☕) to run water through the group head for about 30 seconds.
7. Turn the Steam Knob to release steam through the steam wand for about 30 seconds to clear any air. Close the steam knob.
8. Repeat steps 5 and 6 if necessary until a steady flow of water and steam is observed.

5. Operating Instructions

5.1 Making Espresso

Achieving the perfect espresso shot requires attention to detail. The G3007L offers precise control for optimal flavor.

Figure 5.1: The 58mm commercial brewing system ensures efficient extraction.

1. Preheat: Ensure the machine is powered on and has reached the desired brewing temperature (176-215°F). The integrated touch screen displays the temperature.
2. Grind Coffee: Use fresh, finely ground coffee. For a single shot, use 9-12g; for a double shot, use 17-20g.
3. Fill Portafilter: Place the appropriate filter basket into the 58mm portafilter. Fill with ground coffee.
4. Tamp: Use the tamper to press the coffee grounds firmly and evenly. Aim for consistent pressure.
5. Attach Portafilter: Insert the portafilter into the group head and twist firmly to secure it.
6. Place Cup: Position your espresso cup(s) under the portafilter spouts.
7. Extract Espresso:
   • For automatic extraction, press the Automatic Extraction Button (☕☕).
   • For manual control, press the Manual Extraction Button (☕) to start and press again to stop.
   The ideal extraction time is 25±5 seconds for a balanced shot.
8. Monitor Pressure: The pressure gauge on the machine provides real-time feedback on brewing pressure. Aim for 9-12 bar for optimal extraction.

5.2 Adjusting Brewing Parameters

The G3007L allows customization of brewing parameters for your preferred taste.

Figure 5.2: Dual display with touch screen for temperature and pressure gauge for monitoring.

• Brewing Temperature: Adjustable range of 176-215°F (80-102°C). Use the touch screen to set.
• Pre-infusion Time: Adjustable from 0-30 seconds. This allows the coffee grounds to bloom before full pressure extraction.
• Brewing Time: Adjustable from 10-120 seconds for fine-tuning extraction.

Refer to the detailed user guide for specific instructions on accessing and adjusting these settings via the touch screen interface.

5.3 Milk Frothing with Steam Wand

The upgraded three-hole stainless steel steam wand creates silky, delicate milk foam for lattes and cappuccinos.

Figure 5.3: The three-hole steam nozzle allows for efficient milk frothing.

1. Fill a stainless steel frothing pitcher with cold milk (dairy or non-dairy) to just below the spout.
2. Position the steam wand over the drip tray and open the Steam Knob briefly to purge any condensed water. Close the knob.
3. Immerse the tip of the steam wand just below the surface of the milk.
4. Open the Steam Knob fully. You will hear a hissing sound as air is incorporated into the milk.
5. As the milk volume increases and warms, lower the pitcher slightly to keep the tip just below the surface.
6. Once the milk reaches the desired temperature (around 140-150°F or 60-65°C) and texture, close the Steam Knob.
7. Immediately wipe the steam wand with a damp cloth to prevent milk residue from drying.

Figure 5.4: Convenient one-touch buttons for Power, Automatic Extraction, Manual Extraction, and Steam.

6. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your espresso machine.

6.1 Daily Cleaning

• Drip Tray: The detachable drip tray should be emptied and rinsed daily.


  Figure 6.1: Removable drip tray for easy cleaning.

• Portafilter and Filter Basket: After each use, remove spent coffee grounds and rinse the portafilter and filter basket under hot water. Use the included brush to clean any residue.
• Steam Wand: Immediately after frothing milk, wipe the steam wand with a damp cloth. Purge steam briefly to clear any internal milk residue.
• Group Head: After removing the portafilter, run a short burst of water through the group head to rinse away any loose coffee grounds.

6.2 Descaling

Depending on water hardness, descaling should be performed every 2-3 months to prevent mineral buildup. Use a commercial descaling solution designed for espresso machines and follow the product's instructions carefully.

1. Prepare the descaling solution according to the manufacturer's instructions and fill the water tank.
2. Place a large container under the group head and steam wand.
3. Run approximately half of the solution through the group head by pressing the manual extraction button.
4. Open the steam knob and run the remaining solution through the steam wand.
5. Rinse the water tank thoroughly and fill with fresh water.
6. Repeat steps 3 and 4 with fresh water to rinse the machine completely.

7. Troubleshooting

This section addresses common issues you might encounter with your Gemilai G3007L Espresso Machine.

For more detailed troubleshooting or issues not listed here, please refer to the online coffee-making tutorials provided by Gemilai or contact customer support.

8. Specifications

9. Warranty and Support

Gemilai products are manufactured to high-quality standards and are backed by a manufacturer's warranty. For specific warranty details, please refer to the warranty card included with your product or visit the official Gemilai website.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Gemilai customer service. Detailed instructional videos and online coffee-making tutorials are also available to help you maximize your barista potential.

Manufacturer: Guangdong Gemilai Intelligent Technology Co., Ltd.

Online Resources: Visit the Gemilai Store on Amazon
