SRIHOME 8MP 2.4/5GHz PTZ Outdoor WiFi Security Camera User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your SRIHOME 8MP 2.4/5GHz PTZ Outdoor WiFi Security Camera. Please read this manual thoroughly before use to ensure proper functionality and to maximize the camera's performance.

Package Contents

Verify that all items listed below are included in your package:

• SRIHOME 8MP PTZ Security Camera
• Power Adapter
• User Manual
• Mounting Screws

Product Overview and Features

The SRIHOME 8MP PTZ Outdoor WiFi Security Camera offers advanced surveillance capabilities. Key features include:

• 8MP HD and Three Night Vision Modes: Equipped with an 8MP HD CMOS sensor (3860x2160P) for clear images in low light. Features 6 white lights and 6 infrared lights for three night vision modes: infrared, full-color, and smart detection. When human figures are detected at night, the camera automatically activates white light for color imaging.

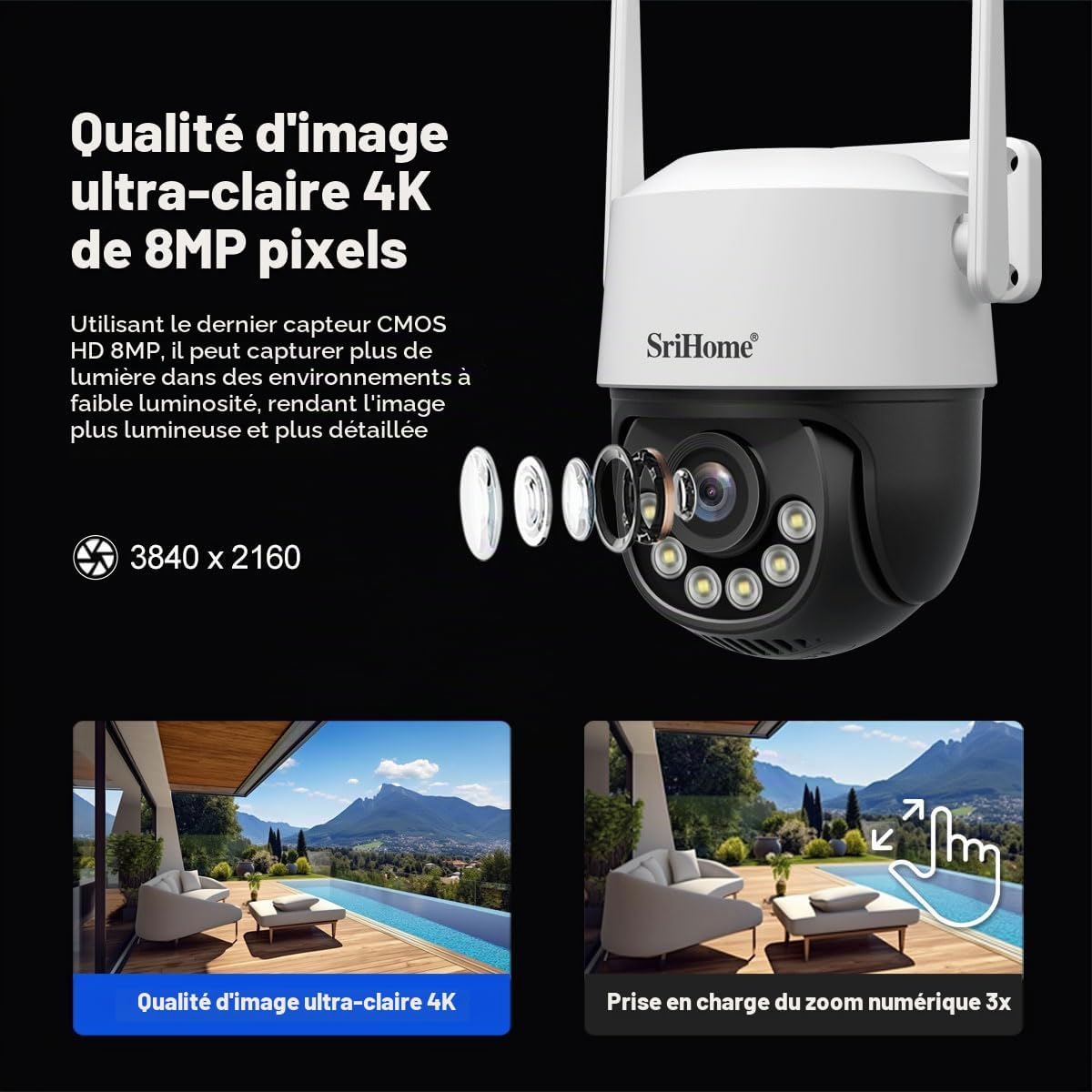

  Image 1: SRIHOME 8MP PTZ Camera with 4K Ultra-Clear Image Quality. The image shows the camera's lens components and highlights its 8MP resolution (3840 x 2160 pixels) for detailed capture.




  Image 2: Three Night Vision Modes. This image illustrates the camera's night vision capabilities: Smart Detection Mode (activates white light upon human detection), IR Mode (infrared black and white), and Full-Color Mode (using white light for color vision).
• Humanoid Detection and Automatic Tracking: Advanced motion detection identifies people, reducing false alarms. The camera automatically tracks detected individuals, providing continuous surveillance.


  Image 3: Motion Tracking and Humanoid Detection. The camera is shown tracking two children playing in a yard, with an app notification indicating an 'Alarm occurred' due to human detection. This demonstrates the camera's ability to follow movement.

• Dual-Band WiFi and Two-Way Audio: Supports both 2.4 GHz and 5 GHz WiFi for stable connection. Also compatible with Ethernet cable connection. Integrated microphone and speaker enable two-way audio communication.


  Image 4: Dual-Band Wi-Fi Connectivity. An illustration showing the camera connected to both 2.4GHz (longer transmission distance) and 5GHz (stronger network signal) Wi-Fi bands, emphasizing stable and faster connection.




  Image 7: Real-time Two-Way Communication. A delivery person is shown interacting with someone via the camera, demonstrating the two-way audio feature. A smartphone screen displays the live camera feed with audio controls.
• Spotlight and Siren Deterrence: Upon intrusion detection in the monitored area, an alarm sounds, and a high-frequency spotlight flashes to deter intruders. The SriHome app sends real-time alert notifications with video.


  Image 5: Spotlight and Siren Deterrence. A scenario depicting an intruder near a house, with the camera's spotlight flashing and siren active. A smartphone screen shows a push notification for 'Human detection alarm', highlighting the camera's active deterrence features.

• Pan/Tilt/Zoom and Weatherproof: The wireless security camera rotates 355° horizontally and 90° vertically. Features 3X digital zoom for detailed viewing. The camera is IP-rated for both indoor and outdoor installation.


  Image 6: Panoramic Rotation and Tilt. This image shows the camera's physical rotation capabilities: 355° horizontal rotation and 90° vertical tilt, controlled remotely via the SriHome app. A small inset shows the app interface for controlling camera movement.

• Multi-User Access and Privacy Protection: Supports up to 5 simultaneous users. The first user is designated as the administrator, and other access requires their authorization. Includes 4 configurable privacy masking zones.
• SriHome App and Flexible Recording: The camera uses the SriHome APP (available on iOS/Android). It supports 24/7 continuous recording, manual recording, and scheduled recording. Storage options include up to 256GB TF card (not included), local phone storage, and cloud storage. Remote video playback is available via the SriHome APP.


  Image 8: App Download, Multi-User Access, and Storage Options. This image displays the SriHome app icon and download options (App Store, Google Play). It also shows icons for up to 5 simultaneous users and details about SD card (up to 256GB) and cloud storage (30-day free trial) for 24/7 recording.

Setup Guide

1. Download the SriHome App: Search for "SriHome" in the Apple App Store (for iOS devices) or Google Play Store (for Android devices) and install the application.
2. Power On the Camera: Connect the provided power adapter to the camera and plug it into a power outlet. Wait for the camera to initialize (this may take a few moments).
3. Add Camera to App: Open the SriHome app, create an account if you don't have one, and follow the in-app instructions to add your new camera. This typically involves scanning a QR code on the camera or connecting to its temporary Wi-Fi hotspot.
4. Connect to Wi-Fi: During the app setup, select your home Wi-Fi network (supports both 2.4GHz and 5GHz) and enter the password. Ensure the camera is within range of your Wi-Fi router for a stable connection. Alternatively, connect the camera directly to your router using an Ethernet cable.
5. Mount the Camera: Choose a suitable outdoor or indoor location for mounting. Use the provided screws to securely attach the camera to a wall or ceiling. Ensure the camera has a clear field of view and is positioned to cover the desired area.

Operating Instructions

Once your camera is set up, you can control and monitor it using the SriHome app:

• Live View: Open the app and select your camera to view the live feed.
• Pan/Tilt/Zoom Control: Use the on-screen controls in the app to rotate the camera horizontally (355°) and vertically (90°), and to activate the 3X digital zoom for closer inspection.
• Night Vision Modes: Access camera settings in the app to switch between infrared, full-color, or smart detection night vision modes based on your preference and environmental conditions.
• Two-Way Audio: Tap the microphone icon in the live view to speak through the camera's speaker, and listen through the app via the camera's microphone.
• Motion Detection and Alerts: Configure motion detection sensitivity and alert preferences in the app settings. You will receive push notifications on your phone when motion or human figures are detected.
• Recording and Playback: The camera supports continuous, manual, and scheduled recording. Recorded footage can be stored on a TF card (up to 256GB), locally on your phone, or in the cloud (subscription may be required after trial). Access and playback recordings through the app's history or cloud storage section.
• Privacy Zones: Set up to 4 privacy masking zones within the app to block out specific areas from being recorded or viewed.
• Multi-User Sharing: Share camera access with up to 4 other users through the app. The primary account holder acts as the administrator.

Maintenance

Regular maintenance helps ensure optimal performance and longevity of your security camera:

• Cleaning: Gently wipe the camera lens and housing with a soft, damp cloth to remove dust and dirt. Do not use harsh chemicals or abrasive materials.
• Firmware Updates: Periodically check the SriHome app for available firmware updates. Keeping the camera's firmware updated ensures you have the latest features and security enhancements.
• Power Supply: Ensure the power adapter and cable are free from damage. A stable power supply is crucial for continuous operation.
• Network Connection: Regularly check your Wi-Fi signal strength in the camera's location to ensure a stable connection.

Troubleshooting

If you encounter issues with your SRIHOME camera, refer to the following common solutions:

• Camera Offline:
  • Check if the camera is powered on and the power adapter is securely connected.
  • Verify your Wi-Fi network is working correctly and the camera is within range.
  • Restart the camera by unplugging and re-plugging the power adapter.
  • If using Ethernet, ensure the cable is properly connected to both the camera and the router.
• Poor Image Quality:
  • Clean the camera lens to remove any smudges or dirt.
  • Ensure there is sufficient lighting in the monitored area, especially for color night vision.
  • Check your internet connection speed; a slow connection can affect streaming quality.
• Motion Detection Not Working/Too Sensitive:
  • Adjust the motion detection sensitivity settings in the SriHome app.
  • Ensure the detection area is correctly configured and not blocked.
  • Verify that alerts are enabled in the app and on your phone's notification settings.
• App Issues (e.g., poor translation, cloud access):
  • Ensure your SriHome app is updated to the latest version.
  • If experiencing language issues within the app or cloud service, check for language settings within the app or contact customer support for assistance.
  • Clear the app's cache or reinstall the app if persistent issues occur.
• Two-Way Audio Problems:
  • Check the volume settings on your phone and within the app.
  • Ensure there is no obstruction blocking the camera's microphone or speaker.
  • Verify a stable network connection, as audio streaming requires sufficient bandwidth.

Specifications

Warranty and Support

For warranty information and technical support, please refer to the documentation included with your product or visit the official SRIHOME website. Keep your purchase receipt as proof of purchase for warranty claims.
