1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your FTYHFEFH carburetor, designed as a direct replacement for Briggs & Stratton 5550, 8550W, and 030235 generator models. Adhering to these instructions will help ensure optimal performance and longevity of the component.
2. Safety Information
- Always disconnect the spark plug wire and battery terminals before performing any work on the generator to prevent accidental starting.
- Work in a well-ventilated area. Fuel vapors are flammable and hazardous.
- Wear appropriate personal protective equipment, including safety glasses and gloves.
- Handle fuel with extreme care. Do not smoke or use open flames near fuel.
- Ensure the generator is cool before working on the fuel system.
- If you are unsure about any installation or repair procedure, consult a qualified technician.
3. Package Contents
Your package includes the FTYHFEFH carburetor, exactly as depicted in the product images. Please verify all components are present and undamaged upon receipt.

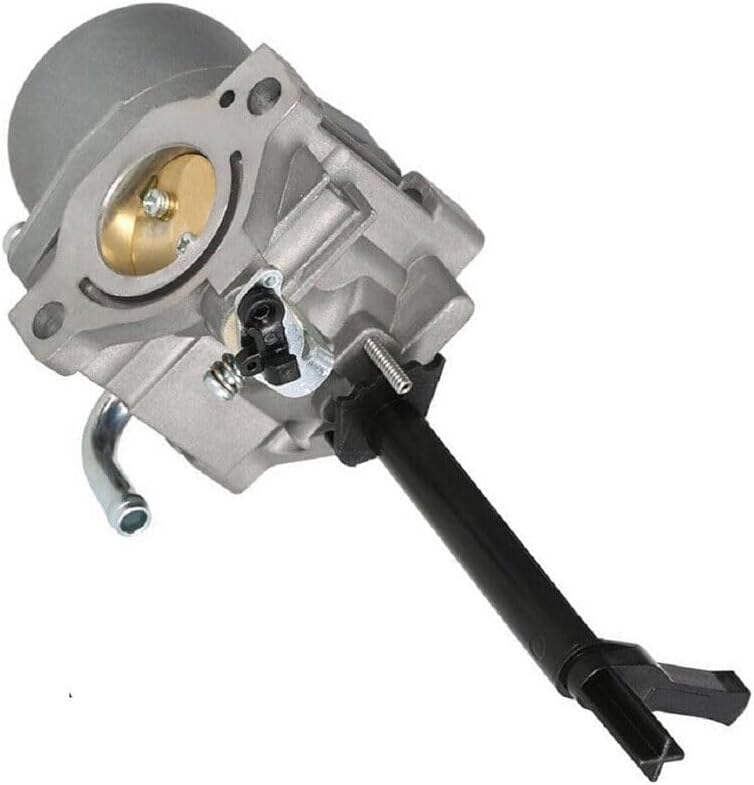

Image 3.1: Side view of the FTYHFEFH carburetor, showing the main body and fuel inlet.
4. Setup and Installation
This carburetor is designed for direct replacement and is manufactured to factory specifications for a precise fit. No special tools are typically required for installation, making it a user-friendly replacement part. However, basic mechanical knowledge is recommended.
Installation Steps (General Guide):
- Preparation: Ensure the generator is turned off, cooled down, and the fuel tank is drained or fuel supply is shut off. Disconnect the spark plug wire.
- Remove Air Filter Assembly: Carefully detach the air filter housing and any associated components to gain access to the carburetor.
- Disconnect Linkages and Hoses: Disconnect the fuel line, throttle linkage, and choke linkage from the old carburetor. Note their positions for reassembly.
- Remove Old Carburetor: Unbolt the old carburetor from the engine manifold. Be mindful of gaskets; they may need replacement.
- Install New Carburetor: Place new gaskets (if applicable) and mount the FTYHFEFH carburetor onto the engine manifold. Secure with bolts, ensuring a snug fit without overtightening.
- Reconnect Components: Reattach the fuel line, throttle linkage, and choke linkage to their correct positions on the new carburetor. Ensure all connections are secure.
- Reassemble Air Filter: Reinstall the air filter assembly.
- Final Checks: Before starting, check for any loose connections, fuel leaks, or obstructions. Reconnect the spark plug wire.
Image 4.1: Front view of the carburetor, highlighting the throttle and choke linkage points for connection.
5. Operating Instructions (Post-Installation)
After successful installation, proper operation of the generator relies on the carburetor's correct function. This section outlines general steps to ensure the generator starts and runs smoothly.
- Fuel Supply: Ensure the generator's fuel tank contains fresh, clean fuel appropriate for your generator model. Open the fuel valve if present.
- Choke Position: For cold starts, set the choke lever to the 'CHOKE' or 'START' position. For warm starts, the choke may not be necessary or can be set to 'RUN'.
- Start Engine: Follow your generator's specific starting procedure (e.g., pull start cord, press electric start button).
- Adjust Choke: Once the engine starts and runs smoothly, gradually move the choke lever to the 'RUN' position. If the engine falters, move it back slightly until it stabilizes, then fully open.
- Monitor Performance: Listen for smooth engine operation. The carburetor should provide a consistent fuel-air mixture, resulting in stable RPMs and power output.
Image 5.1: Bottom view of the carburetor, showing the float bowl where fuel is stored before entering the engine.
6. Maintenance
Regular maintenance of your carburetor and fuel system is crucial for reliable generator performance.
- Fuel Quality: Always use fresh, clean, unleaded gasoline. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer if the generator will be stored for extended periods.
- Fuel Filter: Regularly inspect and replace the inline fuel filter (if present) to prevent debris from reaching the carburetor.
- Air Filter: A clean air filter is essential for proper air-fuel mixture. Inspect and clean/replace the air filter according to your generator's manual.
- Carburetor Cleaning: If performance issues arise due to fuel contamination, the carburetor may need cleaning. This typically involves disassembling the float bowl, jets, and passages, and cleaning them with carburetor cleaner. This task should only be performed by individuals with appropriate mechanical skills.
- Storage: Before long-term storage, run the generator until it runs out of fuel, or drain the fuel system completely to prevent fuel degradation and gumming in the carburetor.
7. Troubleshooting
If your generator experiences issues after carburetor installation, consider the following common problems and solutions:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel, clogged fuel filter, incorrect choke setting, spark plug issue, fuel line obstruction. | Check fuel level and quality. Inspect/replace fuel filter. Adjust choke. Check spark plug. Clear fuel lines. |
| Engine runs rough or stalls | Dirty carburetor jets, old fuel, air filter clogged, vacuum leak. | Clean carburetor. Use fresh fuel. Clean/replace air filter. Check for loose connections around carburetor. |
| Fuel leaks from carburetor | Float bowl gasket damaged, float stuck, needle valve worn. | Inspect/replace float bowl gasket. Clean float and needle valve. Replace needle valve if worn. |
| Lack of power | Clogged main jet, air filter clogged, incorrect engine timing (less likely carburetor related). | Clean main jet. Clean/replace air filter. Consult generator manual for engine timing. |
If troubleshooting steps do not resolve the issue, it is recommended to consult a professional small engine mechanic.
8. Specifications
- Brand: FTYHFEFH
- Model: FTYHFEFH
- Compatibility: Briggs & Stratton 5550, 8550W, 030235 Generator
- Item Weight: 1 pounds
- Product Dimensions: 1 x 1 x 1 inches (Note: These dimensions may refer to packaging or general item size, refer to image for specific carburetor dimensions)
- Manufacturer Part Number: 1
- ASIN: B0F8N6HP4K
- UPC: 779824701348
Image 8.1: Carburetor with key dimensions indicated, showing a length of approximately 7.75 inches and a height of 1.02 inches for a specific component.
9. Warranty and Support
Specific warranty details for this FTYHFEFH carburetor are not provided in the product information. Please retain your proof of purchase and contact the seller or manufacturer directly for warranty inquiries and support.
For technical assistance or further questions regarding this product, please refer to the contact information provided by your retailer or the FTYHFEFH brand.
