Totolink X18 AX1800 Wi-Fi 6 Mesh Router System User Manual

1. Introduction

This manual provides detailed instructions for setting up, operating, and maintaining your Totolink X18 AX1800 Wi-Fi 6 Mesh Router System. This 3-pack system is designed to deliver extensive and reliable Wi-Fi coverage throughout your home, utilizing advanced Wi-Fi 6 technology for high-speed and efficient network performance.

The Totolink X18 system supports dual-band operation (2.4GHz and 5GHz), MU-MIMO, WPA3 security, and EasyMesh technology, ensuring a secure and seamless internet experience for multiple devices.

2. Package Contents

• 3 x Totolink X18 Mesh Routers
• 3 x Power Adapters
• 1 x Ethernet Cable
• 1 x Quick Installation Guide (this manual serves as a comprehensive guide)

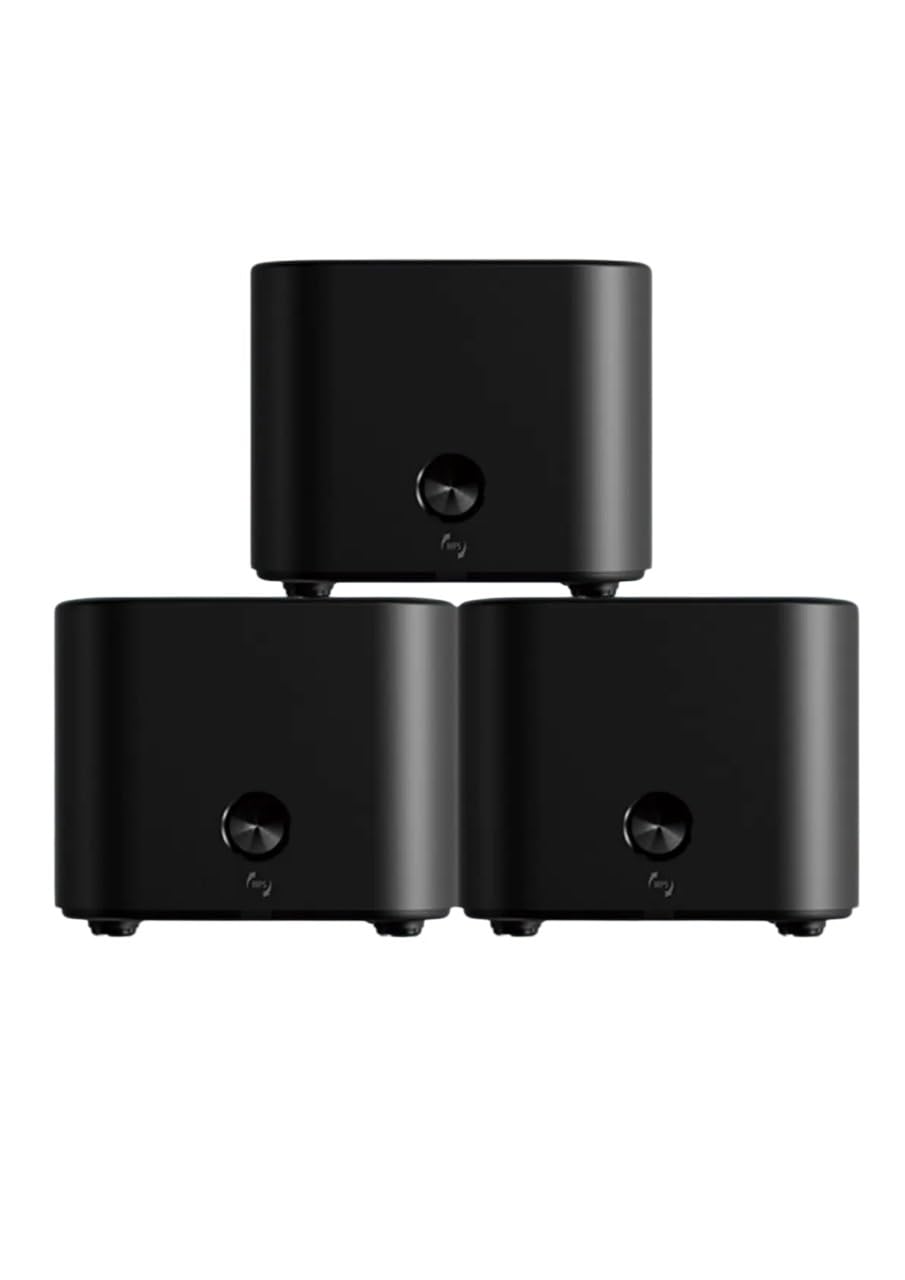

Image: The Totolink X18 Mesh Router system, showing three units and their compact design. This image represents the typical components included in the package.

3. Product Overview

Each Totolink X18 mesh router unit features a compact design with essential ports and indicators for easy management.

3.1 Front Panel

• LED Indicator: Displays the status of the router (e.g., power, internet connection, mesh status).
• Connect Button: Used for WPS or EasyMesh pairing.

3.2 Rear Panel

• WAN Port (Yellow): Connects to your modem or internet service provider's (ISP) equipment.
• LAN Ports (Orange): Connects to wired devices such as computers, smart TVs, or gaming consoles. (Typically 2 LAN ports per unit).
• DC Power Input: Connects to the included power adapter.
• Reset Button: Used to restore factory default settings (usually a small pinhole button).

Image: Rear view of a Totolink X18 mesh router unit, highlighting the WAN (yellow), LAN (orange), and DC power input ports. This illustrates the connectivity options available on each unit.

4. Setup Guide

Follow these steps to set up your Totolink X18 Mesh Router System.

4.1 Initial Router Setup (Main Unit)

1. Unpack: Remove all three X18 units and power adapters from the packaging.
2. Position: Place one X18 unit near your modem or internet service entry point. This will be your main router.
3. Connect to Modem: Connect one end of the provided Ethernet cable to the WAN port (yellow) of the main X18 unit and the other end to your modem's LAN port.
4. Power On: Connect the power adapter to the DC power input of the main X18 unit and plug it into a power outlet. The LED indicator will light up.
5. Wait for Boot: Wait for the LED indicator to turn solid blue (or green, depending on model) which indicates a successful internet connection. This may take a few minutes.

4.2 Connecting Satellite Units (Mesh Pairing)

After setting up the main unit, you can add the other two units to create your mesh network.

1. Position Satellite Units: Place the other two X18 units in locations where you need extended Wi-Fi coverage, ensuring they are within range of the main unit or another satellite unit.
2. Power On: Connect the power adapters to the satellite X18 units and plug them into power outlets.
3. Automatic Pairing: The satellite units are designed to automatically detect and pair with the main unit. The LED indicator on the satellite units will change color (e.g., from blinking to solid blue/green) once successfully connected to the mesh network. This process may take a few minutes.
4. Manual Pairing (if needed): If automatic pairing fails, press the "Connect" button on the main unit, then within two minutes, press the "Connect" button on the satellite unit. The LEDs will flash during pairing and turn solid upon successful connection.

4.3 Initial Wi-Fi Connection

1. Find Network Name (SSID): On your computer or smartphone, search for available Wi-Fi networks. The default SSID and password are usually printed on a label on the bottom of each X18 unit.
2. Connect: Select your network name and enter the default password.
3. Access Web Interface: Open a web browser and type http://itotolink.net or 192.168.0.1 into the address bar. Log in with the default username and password (usually admin for both).
4. Customize Settings: Follow the on-screen wizard to change your Wi-Fi name (SSID) and password for better security. It is highly recommended to change the default login credentials for the router's web interface as well.

Image: A smartphone screen showing the Totolink router application, illustrating the quick setup process via a mobile app. This app allows for convenient network management from Android or iOS devices.

5. Operating Instructions

Once your mesh network is set up, you can manage and optimize it using the web interface or the dedicated mobile application.

5.1 Web Interface Management

Access the web interface by opening a browser and navigating to http://itotolink.net or 192.168.0.1. Log in with your administrator credentials.

• Network Settings: Configure WAN connection type (DHCP, Static IP, PPPoE), LAN settings, and DHCP server.
• Wireless Settings: Change Wi-Fi name (SSID), password, security type (WPA2/WPA3), and channel settings.
• Guest Network: Create a separate Wi-Fi network for guests with isolated access.
• Parental Control: Manage internet access times and block specific websites for connected devices.
• QoS (Quality of Service): Prioritize network traffic for specific applications or devices.
• System Tools: Update firmware, backup/restore configuration, change login password, and view system logs.

5.2 Mobile App Management

Download the "TOTOLINK Router App" from your device's app store (Android or iOS). The app provides a user-friendly interface for common network management tasks.

• Dashboard: View network status, connected devices, and internet speed.
• Wi-Fi Settings: Easily modify Wi-Fi name and password.
• Device Management: See connected devices, block unwanted devices, and set parental controls.
• Mesh Status: Monitor the connection status of your mesh units.

6. Advanced Features

The Totolink X18 system incorporates several advanced technologies to enhance your network experience.

• Wi-Fi 6 (802.11ax): Provides faster speeds (up to 1800Mbps), increased capacity, and improved efficiency, especially in device-dense environments.
• Dual-Band Performance: Operates on both 2.4GHz (for wider coverage) and 5GHz (for higher speeds) frequencies, automatically steering devices to the optimal band.
• MU-MIMO: Multi-User, Multiple-Input, Multiple-Output technology allows the router to communicate with multiple devices simultaneously, reducing latency and improving overall network efficiency.
• WPA3 Security: The latest Wi-Fi security protocol offering enhanced encryption and protection against brute-force attacks, ensuring a more secure network.
• IPv6 Support: Supports the latest internet protocol, providing a larger address space and improved security features.
• EasyMesh Technology: Ensures seamless roaming and simplified network management across all mesh units, compatible with other EasyMesh certified devices.
• Target Wake Time (TWT): An energy-saving feature of Wi-Fi 6 that allows devices to negotiate when and how often they will wake up to send or receive data, prolonging battery life for connected devices.

Image: A visual representation comparing the speed capabilities of AX1800 Wi-Fi 6 (up to 1775Mbps) against AC1200, demonstrating the significant performance improvement offered by Wi-Fi 6 technology for activities like 4K streaming and online gaming.

Image: A Totolink X18 unit accompanied by text explaining the energy-efficient aspects of Wi-Fi 6, specifically mentioning Target Wake Time (TWT) which helps devices conserve power and extend battery life.

7. Maintenance

Regular maintenance ensures optimal performance and security for your mesh network.

7.1 Firmware Updates

Firmware updates often include performance improvements, new features, and security patches. It is recommended to keep your router's firmware up to date.

1. Check for Updates: Log in to the web interface (http://itotolink.net) and navigate to "System Tools" > "Firmware Upgrade".
2. Download Firmware: If a new version is available, download it from the official Totolink website to your computer.
3. Upload and Upgrade: Upload the downloaded firmware file through the web interface and follow the on-screen instructions. Do not power off the router during the upgrade process.

7.2 Factory Reset

A factory reset will erase all custom settings and restore the router to its default configuration. This can be useful for troubleshooting or when reconfiguring your network.

• Method 1 (Button): With the router powered on, use a paperclip or pin to press and hold the "Reset" button (usually a small pinhole on the rear panel) for approximately 5-10 seconds until the LED indicator flashes rapidly. Release the button and wait for the router to restart.
• Method 2 (Web Interface): Log in to the web interface and navigate to "System Tools" > "Factory Defaults" or "Backup & Restore". Select the option to restore factory settings.

8. Troubleshooting

This section addresses common issues you might encounter with your Totolink X18 Mesh Router System.

8.1 No Internet Access

• Check Cables: Ensure the Ethernet cable from your modem is securely connected to the WAN port (yellow) of the main X18 unit.
• Modem Status: Verify that your modem is working correctly and has an active internet connection. Restart your modem if necessary.
• Router LED: Check the LED indicator on the main X18 unit. If it's not solid blue/green, there might be an issue with the internet connection or router configuration.
• ISP Settings: Confirm your WAN connection type (DHCP, Static IP, PPPoE) in the router's web interface matches your ISP's requirements.

8.2 Weak Wi-Fi Signal or Dead Zones

• Unit Placement: Adjust the placement of your satellite X18 units. Ensure they are not too far from the main unit or other satellite units. Avoid placing them near large metal objects, concrete walls, or interference sources (e.g., microwaves, cordless phones).
• Interference: Change the Wi-Fi channel in the router's wireless settings to avoid interference from neighboring networks.
• Mesh Status: Check the mesh status in the mobile app or web interface to ensure all units are properly connected.

8.3 Cannot Access Web Interface

• IP Address: Ensure your device is connected to the X18's Wi-Fi network or via an Ethernet cable to a LAN port. Try accessing http://itotolink.net or 192.168.0.1.
• Browser Cache: Clear your browser's cache and cookies, or try a different browser.
• Firewall/Antivirus: Temporarily disable any firewall or antivirus software on your computer that might be blocking access.
• Factory Reset: If all else fails, perform a factory reset (see Section 7.2) and try accessing the interface with default credentials.

9. Specifications

10. Safety Information

• Use only the power adapter provided with the device.
• Do not expose the device to water, fire, humidity, or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Keep the device away from strong electromagnetic fields.
• Ensure proper ventilation around the device to prevent overheating.
• Keep out of reach of children.

11. Warranty and Support

For warranty information and technical support, please refer to the official Totolink website or contact your local retailer. Keep your purchase receipt for warranty claims.

Online Resources:

• Official Totolink Website: www.totolink.net (Please verify the actual official website for support)
• Support Email/Phone: Refer to the website for regional contact information.
