RovyVon GL5 Pro QD 4-in-1 Rail-Mounted Flashlight User Manual

1. Introduction

This manual provides detailed instructions for the safe and effective use of your RovyVon GL5 Pro QD 4-in-1 Rail-Mounted Flashlight. The GL5 Pro QD is a versatile lighting and aiming device featuring a 4-in-1 design that includes a cool white LED flashlight, a green aiming beam, an IR illuminator, and an IR aiming beam. It is designed for rail-mounted applications and offers enhanced durability and user-friendly features.

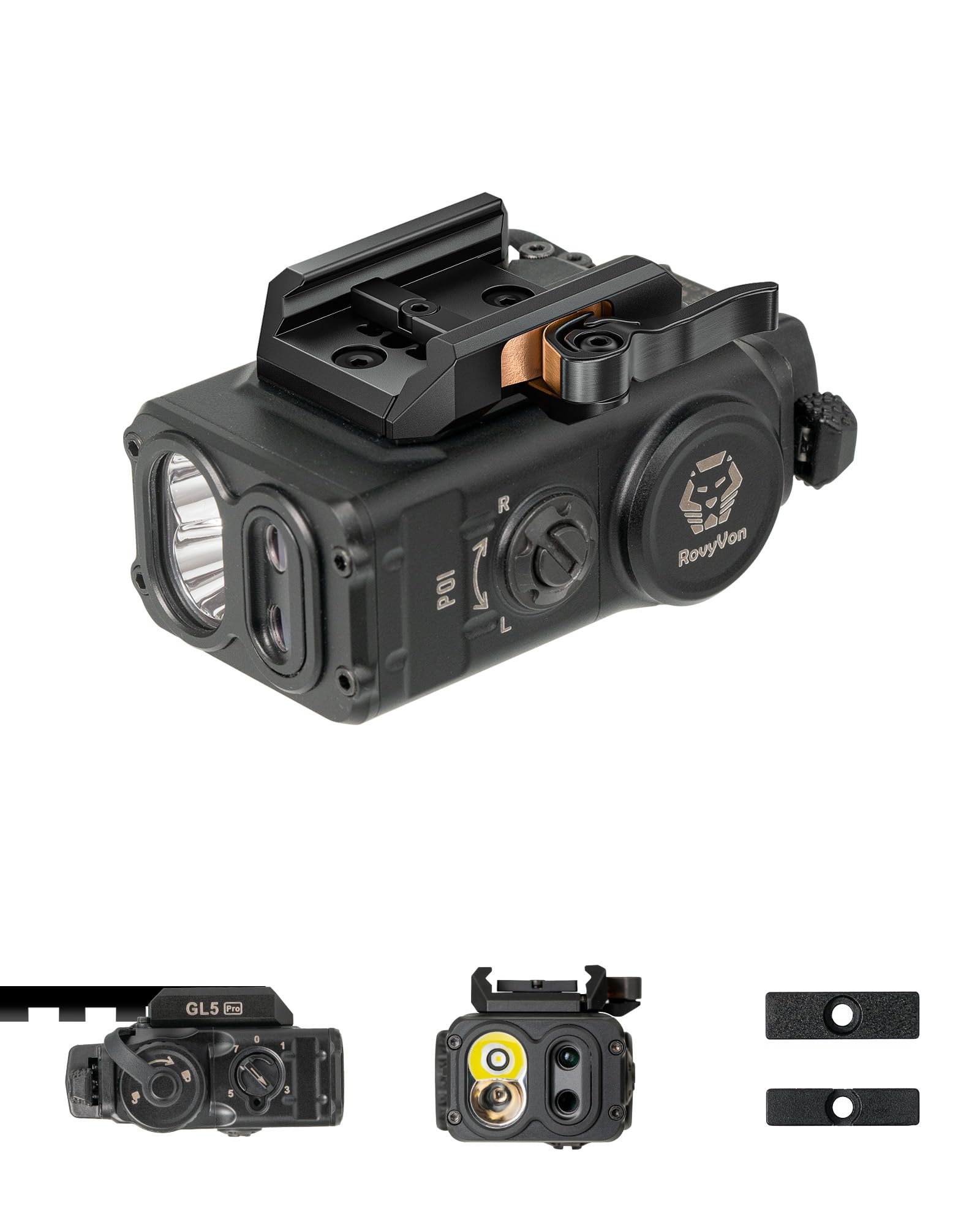

Figure 1: RovyVon GL5 Pro QD 4-in-1 Rail-Mounted Flashlight.

2. What's in the Box

Carefully unpack your RovyVon GL5 Pro QD and ensure all items are present:

• RovyVon GL5 Pro QD Flashlight
• CR123 Battery (included)
• 1913 Adapter
• GL Adapter
• L Wrench
• Zeroing Coin
• User Manual
• RovyVon Card

Figure 2: Included components in the RovyVon GL5 Pro QD package.

3. Setup and Installation

3.1 Rail Mounting

The GL5 Pro QD features an optimized quick-detach (QD) lever designed to fit a wide range of rails, from 20.5mm to 21.5mm. Use the included 1913 or GL adapter as appropriate for your rail system. The adjustable rail ensures secure positioning across different platforms.

Figure 3: The GL5 Pro QD is designed to fit most GL or Picatinny rails.

Figure 4: The adjustable rail allows for secure mounting.

3.2 Remote Pressure Switch (Optional)

The GL5 Pro QD is compatible with remote pressure switches such as the GS1 and GS4 (sold separately). To install, remove the cover from the remote control port and connect the remote switch cable. Secure the cable and switch as needed for your setup.

Figure 5: Remote control port compatible with GS1 and GS4 switches.

4. Operating Instructions

4.1 Mode Selection

The GL5 Pro QD features a mode selection dial to switch between its various functions. Rotate the dial to select the desired mode:

• Mode 1: White Light
• Mode 2: Green Beam
• Mode 3: White Light + Green Beam
• Mode 4: IR Illuminator
• Mode 5: IR Illuminator + IR Beam
• Mode 6: IR Beam

Figure 6: Visual representation of the four primary modes.

Figure 7: Visible light modes including White Light and Green Beam combinations.

Figure 8: Infrared (IR) modes, including IR Illuminator and IR Beam combinations.

4.2 Momentary-On and Constant-On

The GL5 Pro QD supports both momentary-on and constant-on activation:

• Momentary-On: Press and hold any switch to activate. Release to turn off.
• Constant-On: Double-click any switch to activate. Click again to turn off.

Figure 9: Illustration of momentary-on and constant-on activation.

Figure 10: Visual guide for momentary-on and constant-on operation.

5. Battery Information

The GL5 Pro QD utilizes an independent horizontal battery module, which enhances reliability and durability by reducing recoil impact. The battery can be replaced from the side without affecting zeroing, eliminating the need for re-zeroing after battery changes.

• Battery Type: 1 x Lithium Polymer (CR123, included)
• Replacement: Side-loading for convenience and zero retention.

Figure 11: The independent horizontal battery module allows for side replacement without affecting zeroing.

5.1 Low Battery Indicator

When the battery level is low, the output brightness will gradually fade. Replace the battery promptly to maintain optimal performance.

Figure 12: The flashlight's output brightness will fade when the battery is low.

6. Zeroing Tips

The GL5 Pro QD allows for precise adjustment of both windage and elevation to ensure accurate aiming. Use the included L wrench and zeroing coin for adjustments.

Figure 13: Adjustment points for windage and elevation.

6.1 Lock Hole Design for Night Vision Use

The lock hole design allows you to restrict the mode selection to specific IR modes (e.g., Mode 7 to Mode 3) for quick and precise mode identification in low-light or night vision conditions. This feature helps prevent accidental selection of visible light modes when operating under night vision.

Figure 14: A green light indicates IR mode is active, visible from the top for improved concealment in the dark.

7. Specifications

Figure 15: Dimensions and weight of the GL5 Pro QD.

8. Maintenance

To ensure the longevity and optimal performance of your RovyVon GL5 Pro QD, follow these maintenance guidelines:

• Cleaning: Regularly wipe the device with a soft, dry cloth to remove dust and debris. Avoid using abrasive cleaners or solvents.
• Lens Care: Clean the lenses with a lens cleaning cloth and solution designed for optics. Do not touch the lenses with bare fingers.
• Battery Storage: If storing the device for an extended period, remove the battery to prevent leakage and damage.
• Lubrication: Apply a thin layer of silicone grease to O-rings periodically to maintain water resistance (if applicable to specific seals, though the product is not water resistant).

9. Troubleshooting

If you encounter issues with your RovyVon GL5 Pro QD, refer to the following common troubleshooting steps:

• Device Not Turning On:
  • Check if the battery is correctly inserted and fully charged.
  • Ensure the mode selection dial is not set to '0' (Off).
  • Replace the battery with a new one to rule out a depleted battery.
• Beam Not Adjusting:
  • Ensure the adjustment screws for windage and elevation are not overtightened or stripped.
  • Verify that the zeroing coin or L wrench is properly engaging the adjustment mechanism.
• IR Modes Not Visible:
  • IR modes are only visible with night vision devices. Confirm you are using appropriate equipment.
  • Check the IR mode indicator (green light) to confirm IR mode is active.

If the issue persists after attempting these steps, please contact RovyVon customer support for further assistance.

10. Warranty and Support

RovyVon products are manufactured to high-quality standards. For warranty information, product registration, or technical support, please visit the official RovyVon website or contact their customer service department. Keep your purchase receipt as proof of purchase for warranty claims.

RovyVon Official Website: www.rovyvon.com

Customer Service Email: info@rovyvon.com
