HOMCOM 71" Kitchen Pantry Cabinet Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your HOMCOM 71" Kitchen Pantry Cabinet, Model 83A-068V80BK. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

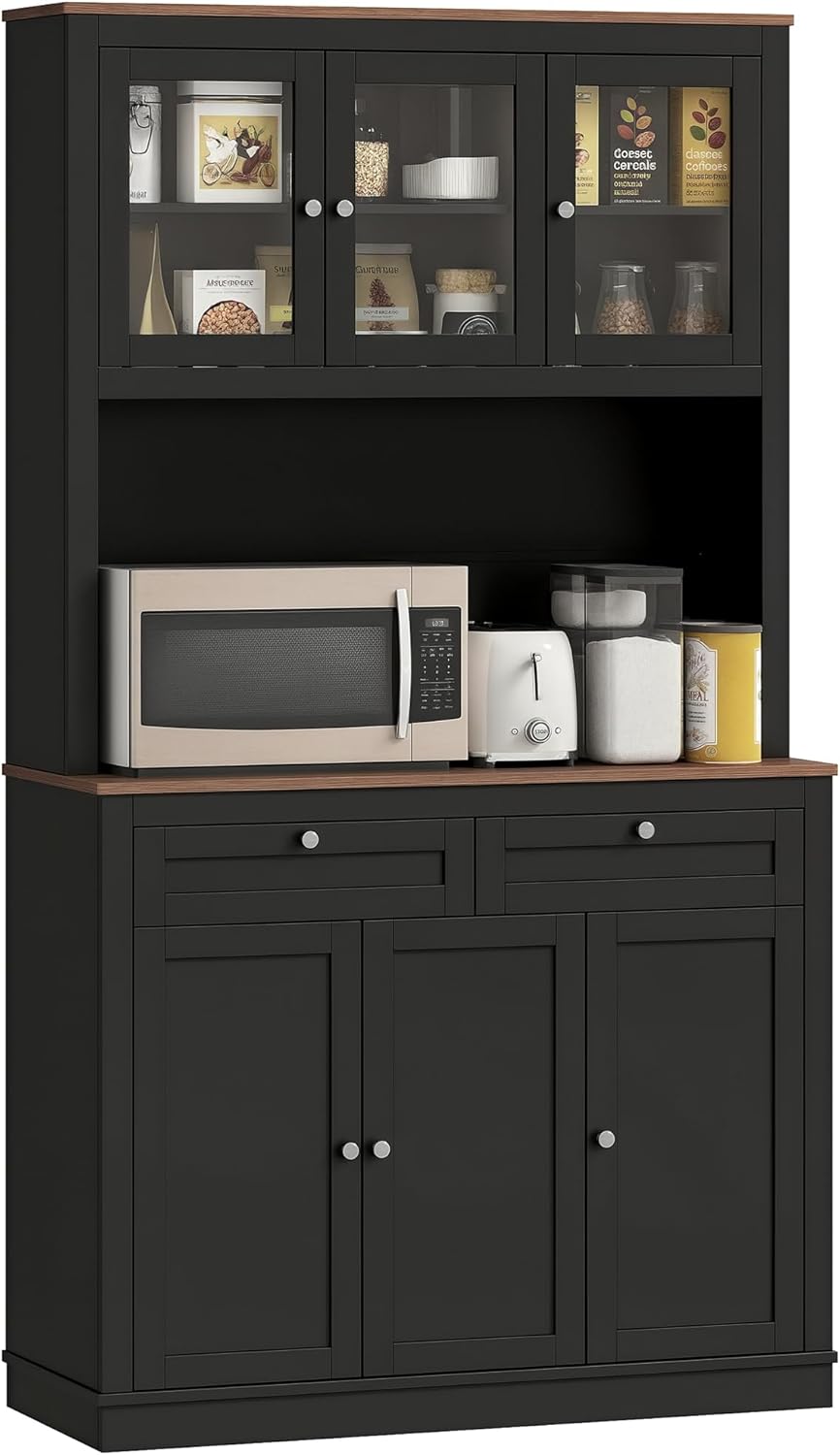

Image: Front view of the HOMCOM 71" Kitchen Pantry Cabinet in black, featuring glass-front upper cabinets, a microwave shelf, two drawers, and lower storage cabinets.

Important Safety Information

Failure to follow these safety instructions may result in injury or damage to the product.

• Always secure the cabinet to the wall using the anti-tip mechanism provided. This prevents accidental tipping, especially important in households with children or pets.
• Do not overload the cabinet or countertop. The maximum weight capacity for the entire unit is 302 lbs. The countertop can support up to 55 lbs., and each drawer can hold 8.8 lbs.
• Keep the area around the cabinet clear of obstructions to prevent accidents.
• Ensure all screws and fasteners are securely tightened during assembly and periodically check for tightness.
• Do not allow children to climb on or play with the cabinet.

Image: A young child standing next to the cabinet, with an inset diagram illustrating the anti-tipping hardware installation for safety.

Package Contents

Before beginning assembly, verify that all components are present and undamaged. Refer to the included assembly instructions for a complete list of parts and hardware.

• Cabinet panels (various sizes)
• Doors (glass-front and recessed)
• Drawers and drawer slides
• Adjustable shelves
• Metal knobs
• Anti-tipping hardware
• Assembly hardware (screws, dowels, cam locks, etc.)

Setup and Assembly

Assembly is required for this product. Please follow the detailed, step-by-step instructions provided in the separate assembly manual included with your purchase. It is recommended to have at least two people for assembly to ensure safety and ease of construction.

1. Unpack and Identify Parts: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Compare parts against the provided parts list in the assembly manual.
2. Assemble Frame: Follow the manual to construct the main frame of the cabinet, ensuring all connections are secure.
3. Install Shelves: Insert the adjustable shelves into the desired positions. The shelves can be repositioned later to accommodate items of various heights.
4. Attach Doors and Drawers: Install the doors and drawers according to the instructions. Ensure smooth operation.
5. Secure Anti-Tipping Hardware: This is a critical safety step. Attach the anti-tipping hardware to the cabinet and securely fasten it to a wall stud.

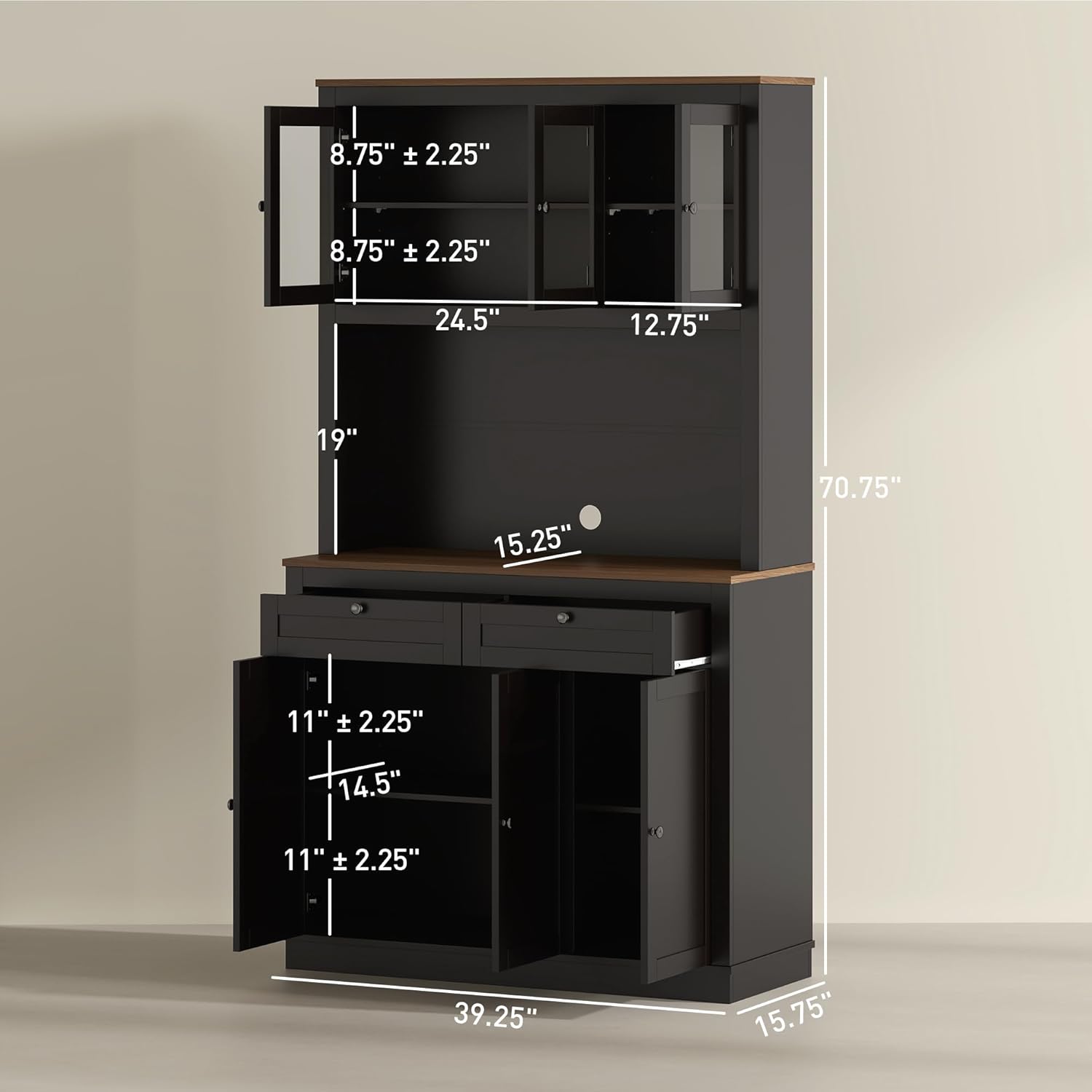

Image: Detailed diagram illustrating the dimensions of the cabinet, including overall height, width, depth, and internal compartment measurements.

Image: Diagram highlighting the adjustable shelves within the cabinet, showing how they can be moved up or down to customize storage space.

Image: Diagram illustrating the three types of adjustments for the door hinges: up and down, front and back, and left and right, to ensure proper door alignment.

Operating Instructions

Your HOMCOM Kitchen Pantry Cabinet is designed for versatile storage in various rooms. Here are guidelines for optimal use:

• Storage Compartments: Utilize the eight compartments for dishes, pots, pantry items, or decorative objects. The glass-front doors allow for display while protecting contents.
• Drawers: The two drawers are ideal for storing smaller items such as utensils, napkins, or silverware.
• Microwave Stand: The spacious countertop area is designed to accommodate a microwave or other small kitchen appliances. A cable hole is provided for convenient wire management.
• Adjustable Shelves: Reposition the adjustable shelves as needed to fit taller items. To adjust, remove items, lift the shelf, and move the support pegs to the desired height.

Image: Interior view of the cabinet showcasing ample storage space in the upper and lower sections, with a microwave on the countertop and a visible cable management hole.

Image: Close-up view of the two open drawers, one containing silverware and the other a bowl, demonstrating their utility for storing kitchen items.

Maintenance

Proper care will extend the life and appearance of your cabinet.

• Cleaning: The melamine-coated shelves and engineered wood surfaces are easy to clean. Use a soft, damp cloth with mild soap and water. Avoid abrasive cleaners or harsh chemicals that can damage the finish.
• Spills: Wipe up spills immediately to prevent staining or moisture damage.
• Hardware: Periodically check all screws, bolts, and fasteners to ensure they remain tight. Tighten if necessary.
• Avoid Direct Sunlight: Prolonged exposure to direct sunlight can cause fading or discoloration of the finish.

Troubleshooting

If you encounter issues with your cabinet, refer to the following common solutions:

• Wobbly Cabinet: Ensure the cabinet is placed on a level surface. Check all assembly screws and tighten any loose ones. Verify the anti-tipping hardware is securely installed.
• Misaligned Doors/Drawers: Refer to the hinge adjustment diagram in the assembly manual or the "Setup and Assembly" section of this document. Adjust hinges as needed to ensure doors close flush and drawers slide smoothly.
• Difficulty Assembling: Review the assembly manual carefully. Ensure all parts are oriented correctly. Do not force components together; if parts do not fit, re-check the instructions and part identification.
• Missing Parts: If any parts are missing upon unboxing, contact customer support immediately with your purchase details.

Specifications

Warranty Information

Specific warranty details for HOMCOM products are typically provided with your purchase documentation or can be found on the manufacturer's official website. Please retain your proof of purchase for any warranty claims.

Customer Support

For assistance with assembly, missing parts, or any other product-related inquiries, please contact HOMCOM customer support. Refer to your purchase documentation for contact information or visit the official HOMCOM website.
